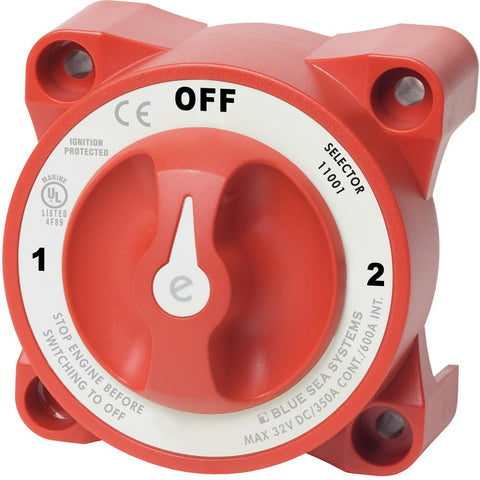

Blue Sea 11001 e-Series Battery Switch w/Alternator Field Disconnect - 3-Position
e-Series Selector 3 Position Battery Switch with AFD
AFD: Yes
Battery Combiner: No
Features:
- Make-before-break contact design allows switching between battery banks without power interruption
- CE Marked
- Ignition protected-safe for installation aboard gasoline powered boats

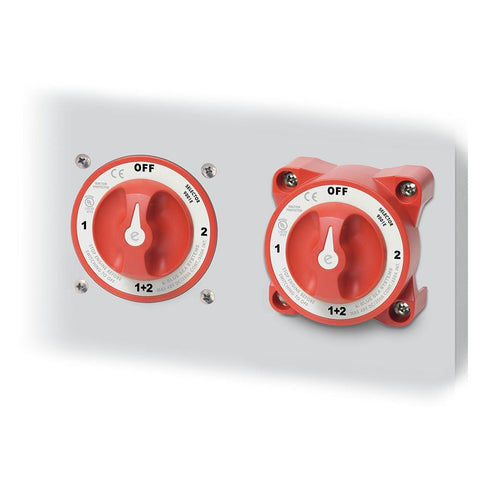

- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches

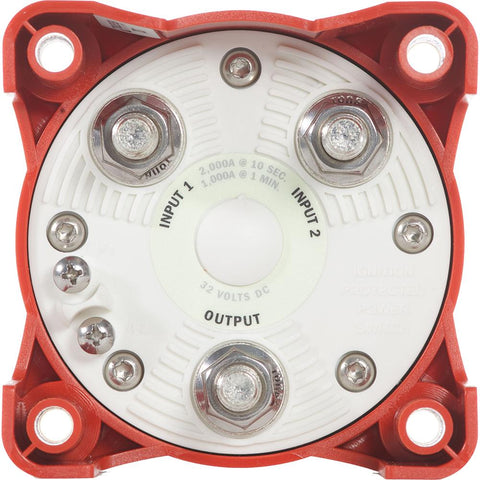

- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AFD: Yes
- Positions: 3
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.15 lbs
- UPC: 632085110017
Brochure (pdf)
