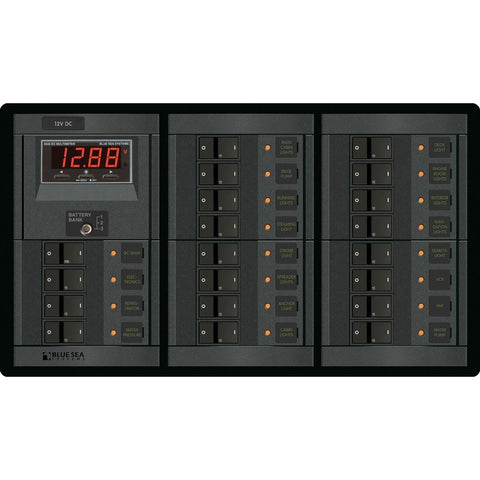

Blue Sea 1221 12V DC Main + 19 Positions w/Digital Meter
12 Volt DC Main + 19 Positions w/Digital Meter
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
-
Positions:t19
-
Nominal Voltage:t12V DC
-
Maximum Amperage*:t100A per bus
-
Height:t7.75" (196.85mm)
-
Width:t13.63" (346.2mm)
-
Depth:t4.00" (101.6mm)
- Weight:t8.80lb (3.99kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- UPC: 632085012212
Quick Guide (pdf)
Owner's Manual (pdf)
