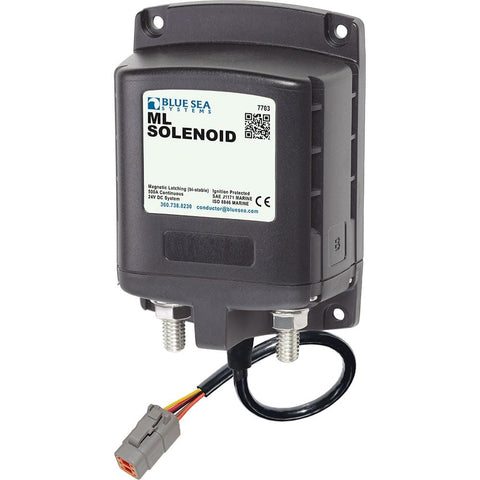

Blue Sea 7703100 ML Solenoid 24V 500A w/Deutsch Connector

  • $ 204.30
  • Save $ 0



7703100 ML Solenoid 24V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

  • Control Circuit Connection: Deutsch DTM
  • Nominal Voltage: 12VDC
  • Manual Control: No
  • Coil Function: Bi-Stable
  • Mounting: #10
  • Amperage Operating Current Continous: 0A
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cable Size to Meet Ratings: 2x (4/0)
  • Stud Material: Tinned Copper
  • Switching Cycles: 100000
  • Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
  • Terminal Stud Length: 0.875" (22.23 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.75lb (0.79 kg)
