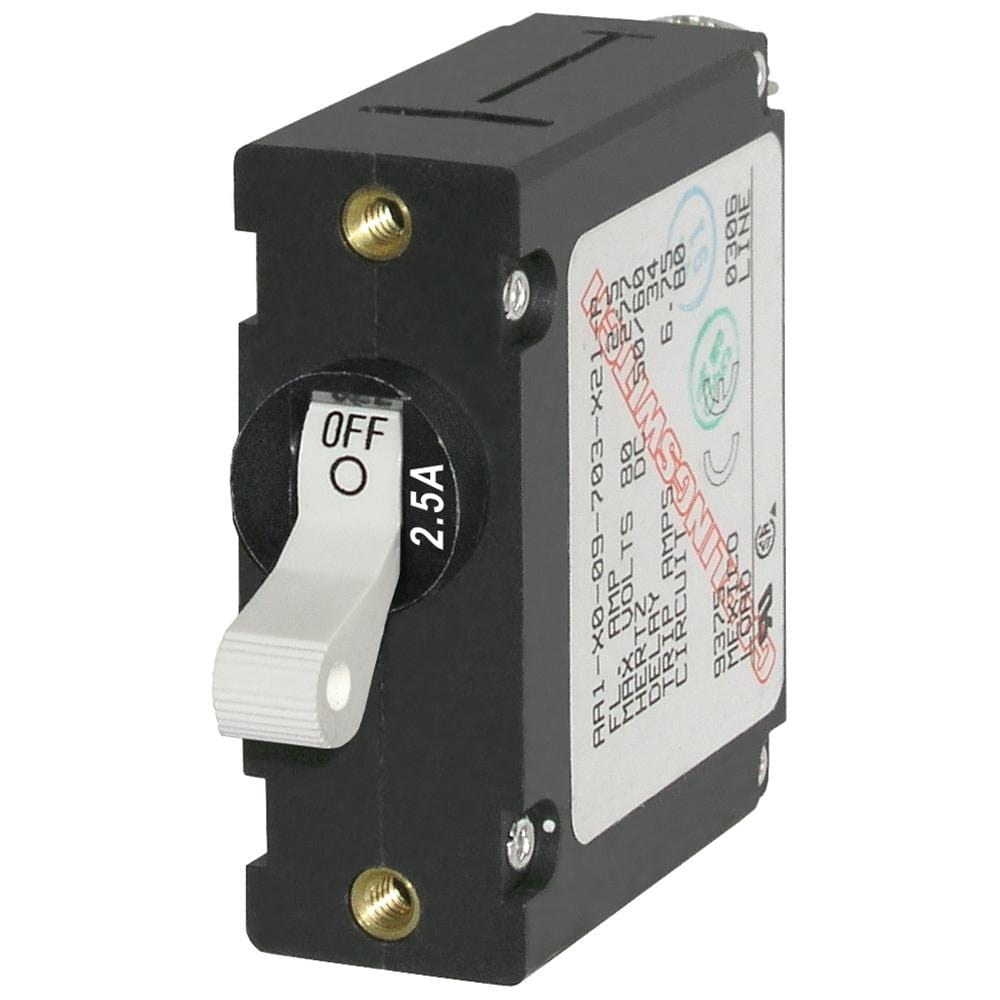

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

  • $ 15.81
  • Save $ 9.56



A-Series White Toggle Circuit Breaker - Single Pole 2.5A

  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems" electrical panels
  • Combines swtiching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition


Specifications:
  • Amperage: 2.5A AC / 2.5A DC
  • Color: White
  • Actuator Style: Toggle
  • Poles: 1
  • Maximum Voltage: 250V AC / 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.17lb (0.08 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 2.5a
  • Box Dimensions: 1"H x 3"W x 5"L WT: 0.4 lbs
  • UPC: 632085071974
