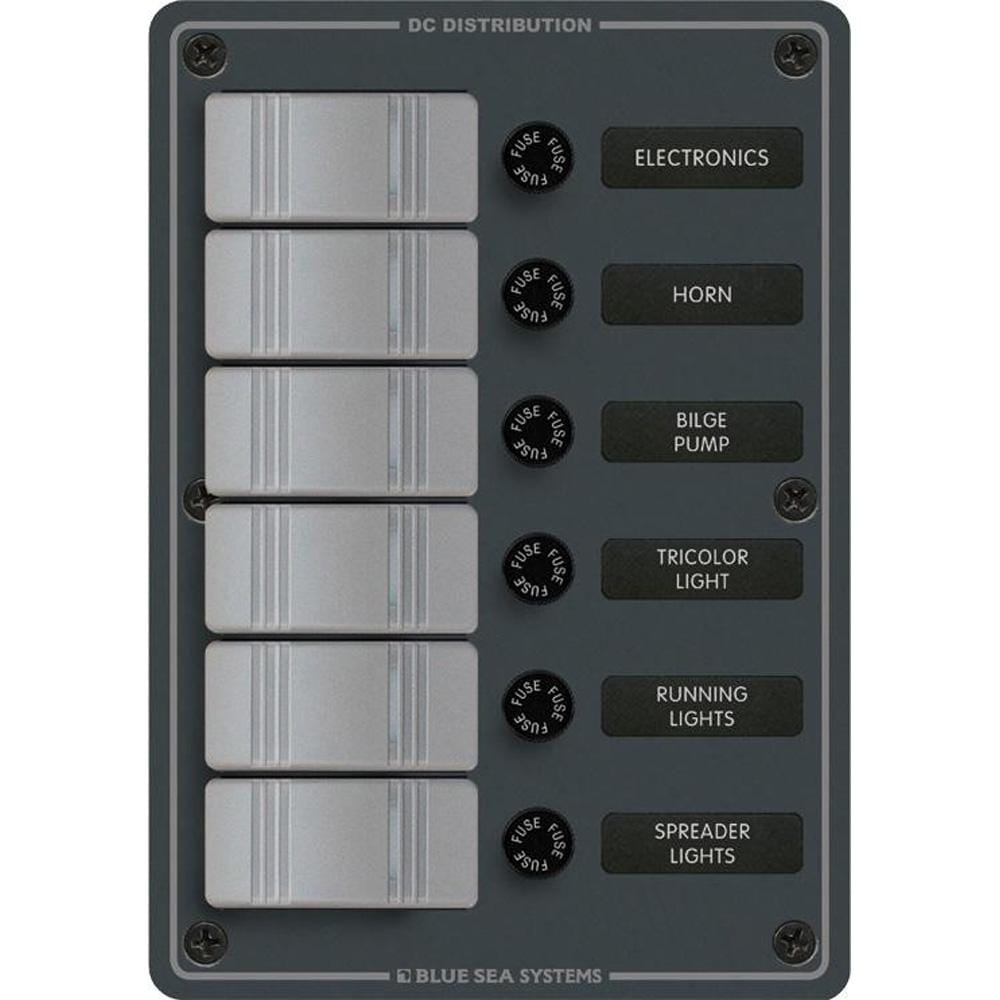

Blue Sea 8053 Slate Grey - 6 Position - Vertical
8053 Slate Grey - 6 Position - Vertical
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
- Weatherproof: Water Resistant
- Positions: 6
- Nominal Voltage: 12v / 24v DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12v DC / 15A @ 24v DC
- Height: 7.5"
- Width: 5.25"
- Depth: 3"
- (6) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (6) 8230 Contura Switch SPST Gray - OFF-ON
*NOTE: Waterproof panel labels are not backlit
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Waterproof: Resistant
- AC/DC: DC
- Max Breaker Quantity: 6
- Voltage: 12/24v
- Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
- UPC: 632085080532
Owner's Manual (pdf)
