EcoFlow Power Hub, AC/DC Distribution Panel and Console

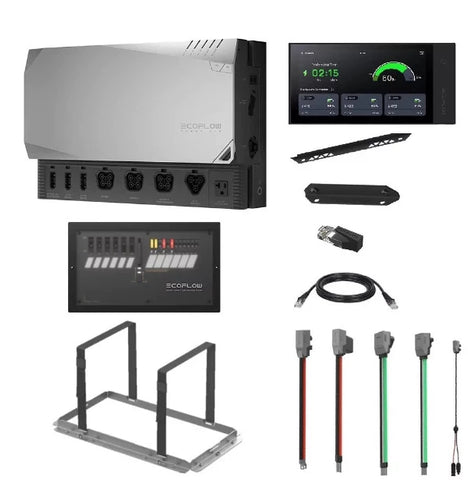

Opt for a handy power kit from EcoFlow and create an optimal electrical system for your RV. This kit includes three components:

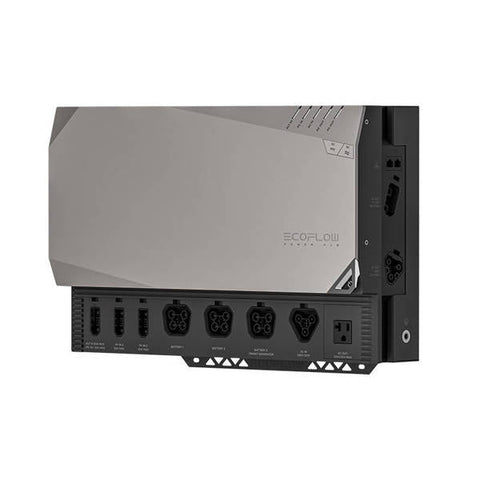

- The EcoFlow Power Hub performs 5 different functions, and with an AC output of 3600W, it allows you to power many essential devices.
- You'll also find a smart AC/DC Distribution Panel included, which will allow you to manage the power and adjust it to the equipment of your choice.

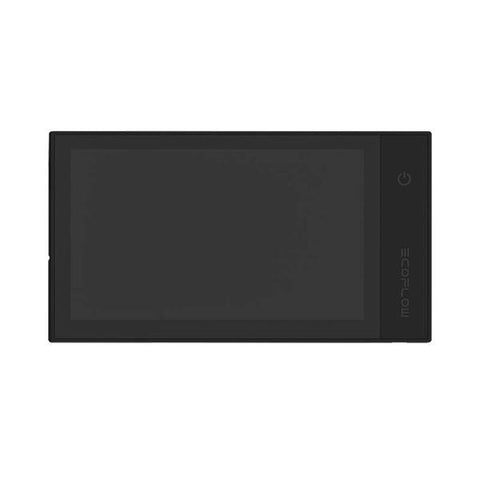

- The Power Kit Console is the third component in this package, which enables you to monitor and control all the functions of an EcoFlow Power Kit.
Smart solutions
The EcoFlow Power Hub is the perfect combination of compact design and high functionality. The compact device combines 2 MPPT solar charge controllers, an MPPT battery charger, a DC-DC converter and an inverter charger. This allows you to save space in your RV, while still including all the necessary components of an RV electrical system. Plug & play operation is also a plus.
The hub can accept input from charging sources up to a total of 6000W, including charging from solar, alternator, generator and shore power. The 3 1600W solar ports allow you to connect the product with flexible, rigid and portable solar panels, plus you can use other brands of solar panels. You can also use shore power, alternator or an EcoFlow smart generator (or any brand of generator) as charging sources.
The EcoFlow Power Hub uses a number of smart solutions so you don't have to worry about the security of connected devices. The advanced MPPT algorithm optimizes energy harvested from the sun, the X-Boost function provides output power of up to 5,000 watts AC, and X-Stream guarantees fast charging of up to 3,000 watts AC.
Everything under control
This combo includes a smart AC/DC Distribution Panel, which is equipped with 6 AC and 12 DC circuit connections. You can connect the devices of your choice to it to manage energy and share it among powered equipment. The Power Kit Console enables you to control up to 6 DC circuits remotely and monitor charging data in real time.
The kit also includes cables, with which you can easily connect your batteries and power devices wherever you want. In the package you'll find an AC charging cable, an alternator charging cable, a solar charging cable, AC Out (2000W) and DC Out (1600W) cables, as well as an RJ45 CAN Bus cable for the distribution panel.
FREE SHIPPING on this item anywhere in the lower 48 US states.
Included: EcoFlow Power Hub, AC/DC Distribution Panel and Console
Specifications: EcoFlow Power Hub
| Brand | EcoFlow |
| Type | Power Hub |
| DC Main Output | 13.6V 70A or 26.4V 60A |
| AC Main Output | 100V~120V 50Hz or 60Hz, 3600W (7200W Peak) (3000W @ Battery Voltage < 50V) |
| Auxiliary AC Outlet | 100V~120V 20A |
| Total Input Power | Max. 6000W |
| AC Input Power | 100V~120V Max.30A, Max. 3000W |
| Alternator Input Power | Port 1: 13V~60V 60A, Max. 1600W Port 2 & 3: 13~60V 30A, Max. 1600W Each |
| Solar Input Power | Port 1 & 2 & 3: 15V~60V 30A, Max. 1600W Each |
| Dimension (HxWxD) | 11.8 in X 18.9 in X 5.5 in |
| Operating Temperature | -13°F to 140°F |
| Net Weight | 31 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, EMC Class A |
| Warranty | 5 Years |
Specifications: EcoFlow AC/DC Distribution Panel
| Brand | EcoFlow |
| Type | AC/DC Distribution Panel |
| DC Main Output | 10-30V, Max. 70A |
| AC Main Output | 100V~120V, Max. 30A |
| DC Output | 6 x Controllable Circuits + 6 Regular Circuits, 10-30V, Max. 20A Each Circuit |
| AC Output | 6 x Circuits (1/2: 30A, 3/4/5/6: 20A), 100V~120V |
| Dimension (HxWxD) | 8.3 in x 14 in x 3.9 in |
| Operating Temperature | -13°F to 140°F |
| Net Weight | 5.7 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, ip21, EMC Class B |
| Warranty | 5 Years |
Specifications: EcoFlow Power Kit Console
| Brand | EcoFlow |
| Type | Power Kit Console |
| Screen | 7-Inch (Diagonal) IPS Touch Screen |
| Communication | RJ45 CAN |
| Control Power Kits System |
ON/OFF via Console’s Power Switch |
| Dimension (HxWxD) | 4.5 in x 8 in x 0.9 in |
| Operating Temperature | -13°F to 113°F |
| Net Weight | 1 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, EMC Class B |
| Warranty | 5 Years |
Documents: EcoFlow Power Hub, AC/DC Distribution Panel and Console
EcoFlow AC/DC Distribution Panel User Manual
EcoFlow Power Kit Console User Manual
