EcoFlow Power Kit (10 kWh) & 48V A/C Cable
NOW AVAILABLE WITH 48V A/C CABLE: Get the great cooling output & low power draw of a 48-volt air conditioner with your Power Kit, while still having the choice of 12-volt or 24-volt DC output for your DC circuits!

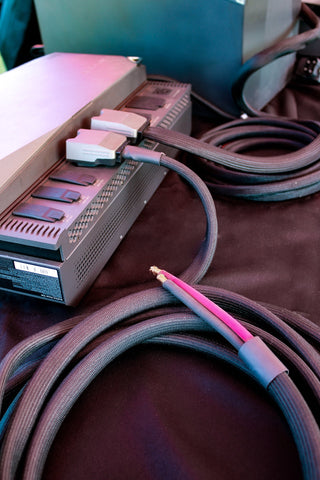

Looking for a hassle-free way to build your camper van's electrical system? Introducing the EcoFlow Power Kit (10 kWh) - the world's first integrated, plug-and-play off-grid power solution designed especially for camper vans, motor homes, trailers and RVs of any kind. It also works with any RV air conditioner, but it's especially well-suited for a 48-volt DC air conditioner, as now you can plug a 48VDC air conditioner directly into one of the battery ports, leaving the other two battery ports available.

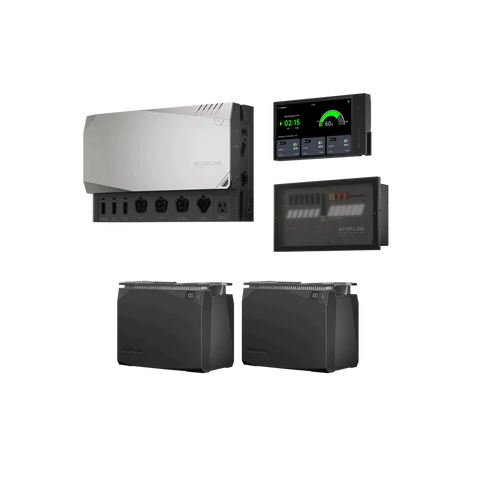

EcoFlow Power Kits are compact, scalable power systems with 4 components:
EcoFlow Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, built-in transfer switch, and plug-in input/output ports for solar, alternator, battery and generator charging.
EcoFlow Power Kit Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, monitor remaining battery capacity
EcoFlow AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.
EcoFlow Battery - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. A 10 kWh EcoFlow Power Kit has two 5 kWh batteries. Note that you can use either one to three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.
An EcoFlow Power Kit is also a plug-and-play off-grid power solution, it comes with all the cables you'll need to connect these components and your charging sources. Most of the cables are 15 feet long, solar and alternator charging cables are 20 feet long, and battery cables are typically 5 or 8 feet long.
Power Kit Advantages

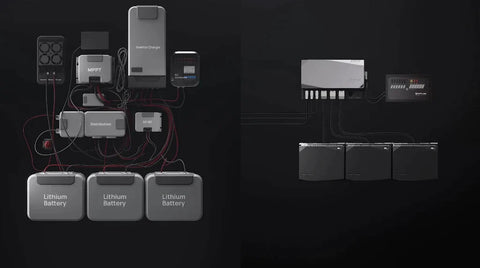

Many van builders design custom electrical systems with Victron Energy power components. Often these are reliable, excellent systems, but they are very complex and expensive, requiring many hours of research and design. After installation, problems with this kind of camper van electrical system can be difficult to troubleshoot, since every system is unique. In contrast, EcoFlow Power Kits offer:
Plug-and-Play - EcoFlow Power Kits offer a standardized, simplified power system that has a very simple installation process, comes with all the necessary cabling between the components and charging sources, and doesn't require extensive design experience or specialized tools. Most builders that we've talked to estimate that an EcoFlow Power Kit reduces their power system build times from 10-20 man-hours down to 2-3 man-hours. It's easy to plug in another battery for increased capacity, or plug in more solar panels for faster battery charging.
Four Charging Methods, Up to 6000W - An EcoFlow Power Kit enables you to use any combination of the charging methods most useful for an RV, including solar, alternators, shore power and generators.
Solar - Power kits allow as much solar power as you can fit on your roof! Three ports can allow for up to 1600W of solar charging on each port, up to 4800W total. EcoFlow offers 100W and 400W rigid solar panels that can be mounted on the roof of your van, and you could even supplement these with portable panels.
Alternator - Three ports can also be used for alternator charging, 1600W each, up to 4800W total. Charge the system with single or dual alternators from 12-60V.
Generator - Connect an EcoFlow Dual-Fuel Smart Generator (or any other brand of generator) for up to 1800W of charging
Shore Power - Connect a 30A shore power source for charging from RV park/campground power.

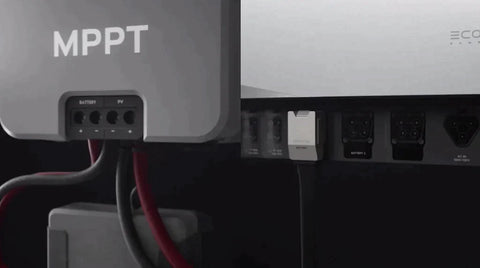

Compact & Integrated Design - Unlike other RV power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. EcoFlow 2 and 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh. A large battery bank like this (the equivalent of a 1200 Ah 12V bank) would require a lot of large cables and a lot of space for all those batteries with most RV electrical systems, with EcoFlow components, it's only 3 battery cables and 3 batteries that plug into the Power Hub in moments. Cable management is already done for you.
Space-Saving Solutions - To save valuable space, EcoFlow shrank down the traditional power kit, integrating components, using thinner wires, creating a smaller power solution and a unique stackable battery design with integrated battery cabling. If you choose, you can conveniently conceal the Power Hub, batteries and other accessories so the entire power system is out of sight, under seats or in a closet.

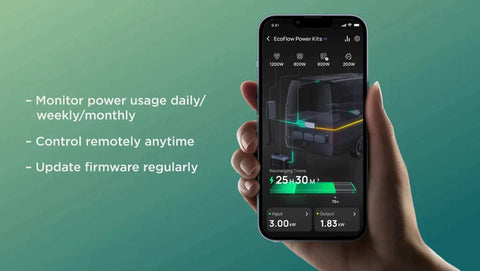

Smart Controls - Keep an eye on your van power with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.
What's In The Box

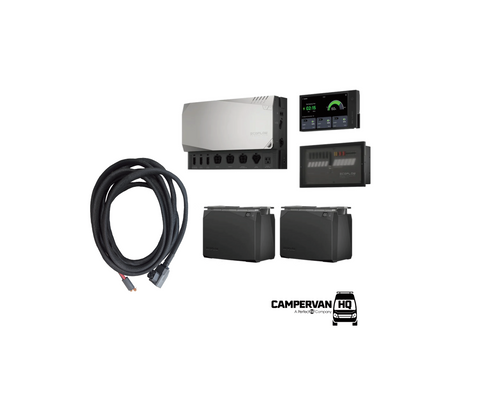

This EcoFlow Power Kit (10 kWh) & 48V A/C Cable bundle includes:
- Power Hub (with integrated inverter, charge controllers, etc.)
- 2x 5 kWh LFP Batteries (with battery mounting plates and straps)
- Cable Pack (AC In, DC In, AC Out, DC Out, Alternator, Solar, Battery)
- AC / DC Smart Distribution Panel,
- Power Kit Console

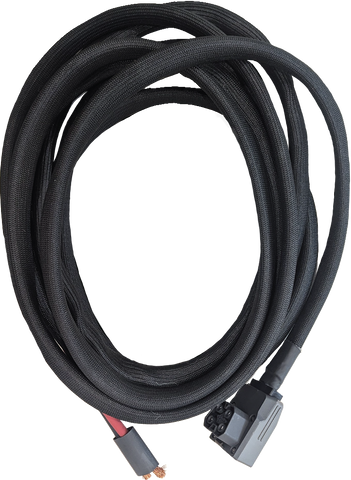

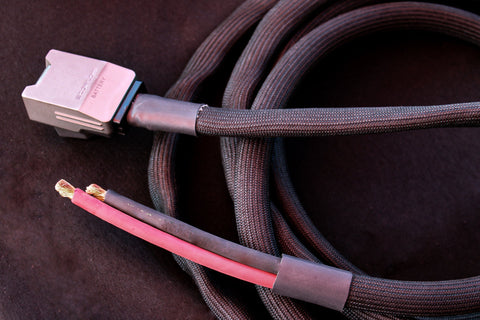

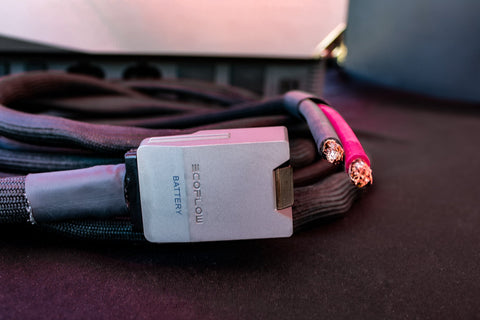

- 48VDC Air Conditioner Cable (20-foot)
FREE SHIPPING on this item anywhere in the lower 48 US states.
Key Features: EcoFlow Power Kit (10 kWh)
- Can support up to 6000W of charging through a combination of 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
- Plug-and-play for simple assembly
- Compact, integrated design, all-in-one Power Hub combines 5 components
- Save space with stackable batteries
- 48V system, a safer, smaller power solution
- Real-time and remote smart controls
- Made in USA
- 5-year system warranty, can purchase upgrade to 10 years.
Specifications: EcoFlow Power Kit (10 kWh)
Battery Specification - 5 kWh LFP Battery
|Battery Capacity||5120 Wh (100 Ah)|
|Battery Type||Lithium iron phosphate|
|Charging Cut-off Voltage||57.6V|
|Discharging Cut-off Voltage||40V|
|Max Continued Charging Current||80A|
|Max Continued Discharge current||100A|
|Battery Cycle Life||3,500 cycles to 80% capacity|
|Battery Dimensions||19.7 x 10.2 x 11.8 in|
|Weight||Approx. 89.5 lbs|
