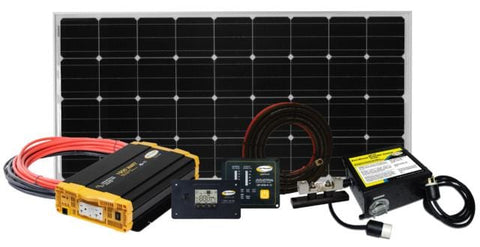

RV Solar Kit: Go Power 190W Weekender ISW
Looking for a very complete RV solar kit? The Go Power 190W Weekender ISW solar charging system includes a solar panel, a solar charge controller, and an inverter and transfer switch, giving you an economical way to have most of the comforts you need wherever you dry camp. Like the bigger Solar Extreme and Solar Elite systems, it will enable you to power your loads and charge your batteries from solar power (and shore power too, with an optional converter). If you need more power, you can easily expand the system by adding more solar panels with an expansion kit.
Key Features: RV Solar Kit - Go Power 190W Weekender ISW
- 190W high-efficiency solar panel
- 1500 watt pure sine wave inverter for AC power
- 30A PWM charge controller
- 30A pre-wired transfer switch

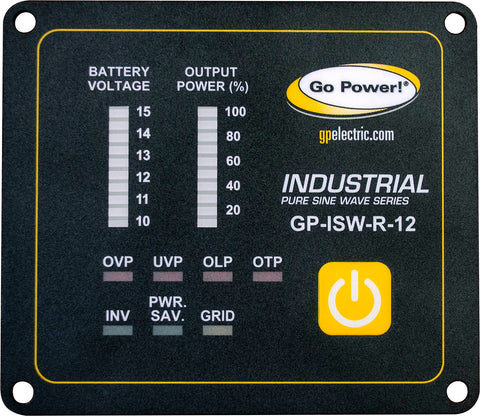

- Inverter on/off remote

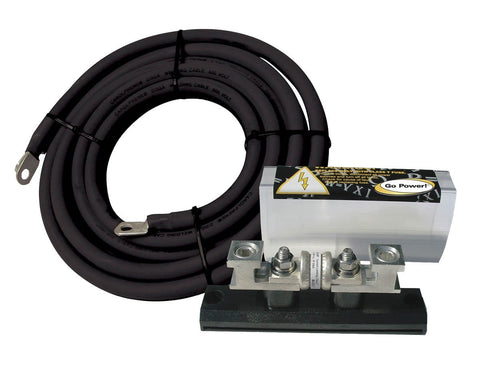

- DC inverter install kit

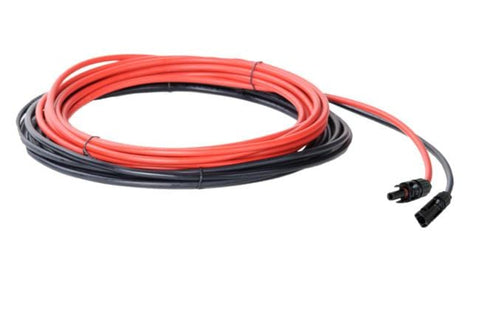

- 1 x 25′ of MC4 output cable (#10) red & 1 x 25’ of MC4 output cable (#10) black and all mounting hardware
Note: A Go Power Smart Converter/Charger is not included in this package, but the system will easily integrate with your vehicle’s stock converter.
Specifications: RV Solar Kit - Go Power 190W Weekender ISW
| Solar Panel | One Go Power PG-PV-190M 190W high-efficiency (16.4%) monocrystalline PV module, tempered glass exterior, framed with anodized aluminum, 59.1" x 26.3" x 1.97" (Vmp 18.6V, Voc 22.5V, Isc 9.3A) |

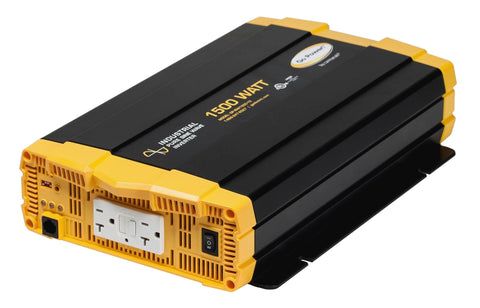

| Power Inverter | Go Power GP-ISW1500 1500W pure sine inverter (2000W surge, 1500W continuous output), UL1741-listed, 91% peak efficiency |
| Charge Controller | Go Power PWM-30 30A pulse width modulation (PWM) charge controller with integrated backlit LCD display, temperature-compensated 4-stage (bulk, absorption, float, equalize) charging |
| Transfer Switch | 30A transfer switch |
| Cabling | 2 x 25' AWG10 cables for solar panels, with MC4 connectors, 10' of AWG2 cabling for battery to inverter connection with 400A slow-blow fuse |
| Batteries | No batteries included - compatible with 12VDC flooded lead-acid, AGM and gel batteries, suggested battery bank size ~200AH |
| Mounting Hardware | Standoffs, RV rooftop Z-feet solar panel mounts, tie wraps, fuses |
| Warranty |
25-year warranty on solar panel power output 5-year warranty on charge controller 2-year warranty on inverter |
| Approvals | UL 1703/IEC61215, UL1741 |
Documents: RV Solar Kit - Go Power 190W Weekender ISW
Go Power 190W Weekender ISW RV Solar Kit - Specification Sheet
Go Power 190W Weekender ISW RV Solar Kit - User Manual
