RV Solar Kit: Go Power 570W Solar Extreme System
Looking for an RV solar kit? A complete solar kit like this Go Power 570W Solar Extreme RV Solar Kit is an excellent choice if you want solar power for your RV, and want to save yourself the hassle of searching out all the components.
With this complete RV solar power package, you can generate the power for most of the comforts you need wherever you dry camp. This system includes three 190W solar panels, charge controller, a power inverter with remote and transfer switch, converter/charger, and all the cabling, fuses, and mounting hardware needed for your installation.
Like the Go Power Weekender and Solar Elite systems, it features all of the components that will allow convenient access to AC or solar power through your breaker panel, and the ability to charge batteries from both "shore power" (campground/RV park plug-in) and solar power.
Note: DC battery bank not included.
Features: RV Solar Kit - Go Power 570W Solar Extreme System
-
Three high-quality 190W solar panels
-
3000 watt pure sine wave inverter for AC power, with remote control
-
30 amp solar charge controller to regulate power to battery bank
- 75A converter/charger
- 30A transfer switch
-
Inverter installation kit with battery cabling and slow-blow fuse
-
Pre-wired automatic shore power/inverter AC switching kit
-
50' of MC4 output cable (10 AWG) and all mounting hardware
Note: This is a large item that ships via truck freight, shipping is $99.
Specifications: RV Solar Kit - Go Power 570W Solar Extreme System
| Solar Panel | Three GP-PV-190M 190W high-efficiency (16.4%) monocrystalline PV modules (570W total), tempered glass exterior, framed with anodized aluminum, 59.1" x 26.3" x 1.97" (Vmp 18.6V, Voc 22.5V, Isc 9.3A) |

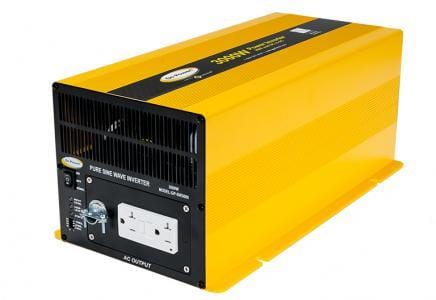

| Power Inverter | Go Power GP-SW3000 3000W pure sine inverter (3500W surge, 3000W continuous output), UL1741-listed, 85-90% peak efficiency |
| Charge Controller | Go Power PWM-30 30A pulse width modulation (PWM) charge controller with integrated backlit LCD display, temperature-compensated 4-stage (bulk, absorption, float, equalize) charging |

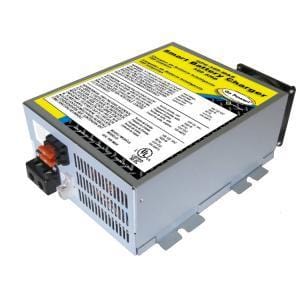

| Converter/Charger | 75A GPC-75 converter/charger |
| Transfer Switch | 30A pre-wired GP-TS transfer switch |
| Cabling | 50' of AWG10 cabling for solar panels, with MC4 connectors, 10' of AWG2 cabling for battery to inverter connection with 400A slow-blow fuse |
| Batteries | No batteries included - compatible with 12VDC flooded lead-acid, AGM and gel batteries, suggested battery bank size ~500AH |
| Mounting Hardware | Standoffs, RV rooftop Z-feet solar panel mounts, tie wraps, fuses |
| Warranty |
25-year warranty on solar panel power output 5-year warranty on charge controller 2-year warranty on inverter |
| Approvals | UL 1703/IEC61215, UL1741 |
Documents: RV Solar Kit - Go Power 570 Solar Extreme System
Go Power 570W Solar Extreme RV Solar Kit - Specification Sheet
Go Power 570W Solar Extreme RV Solar Kit - User Manual
Video: RV Solar Kit - Go Power 570W Solar Extreme System
