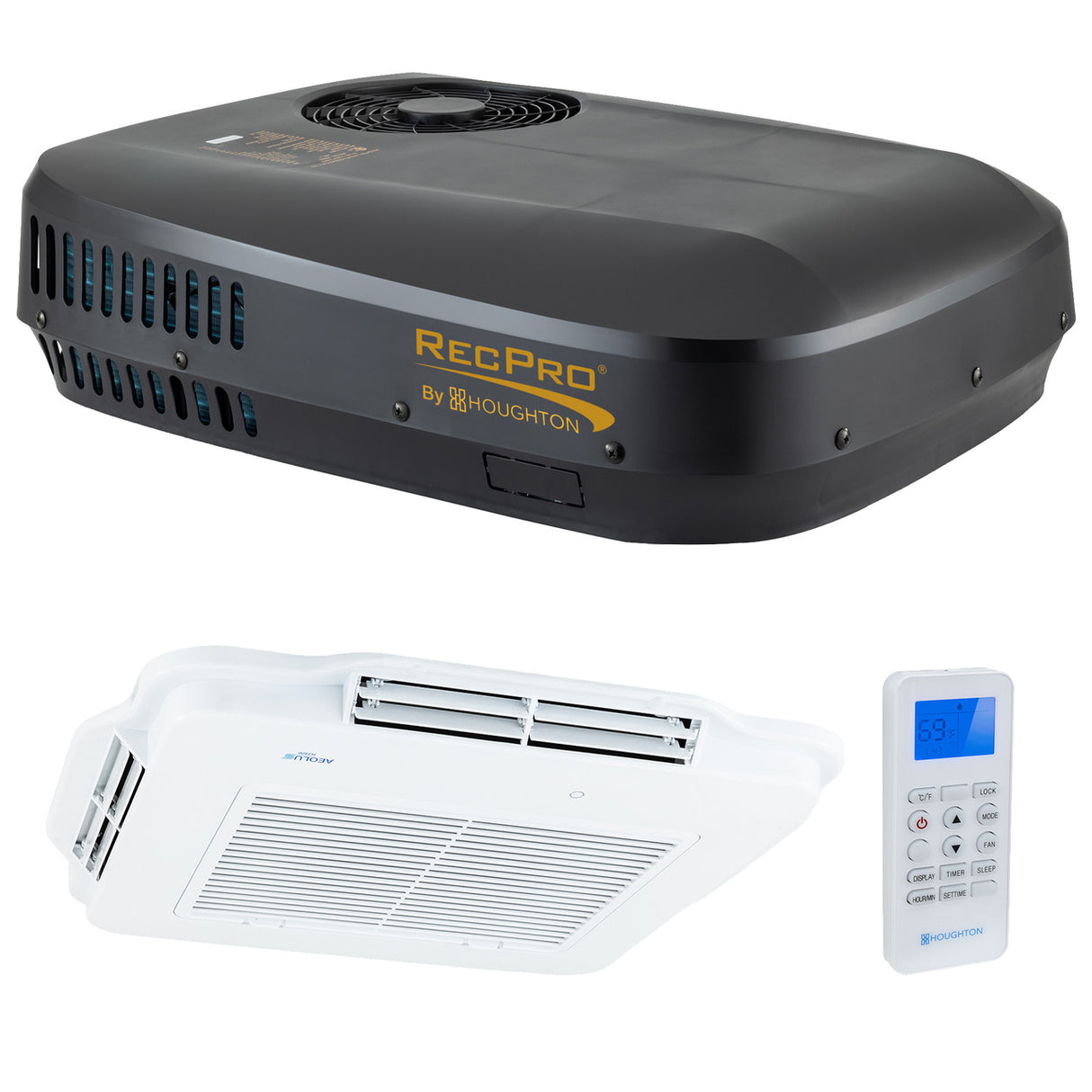

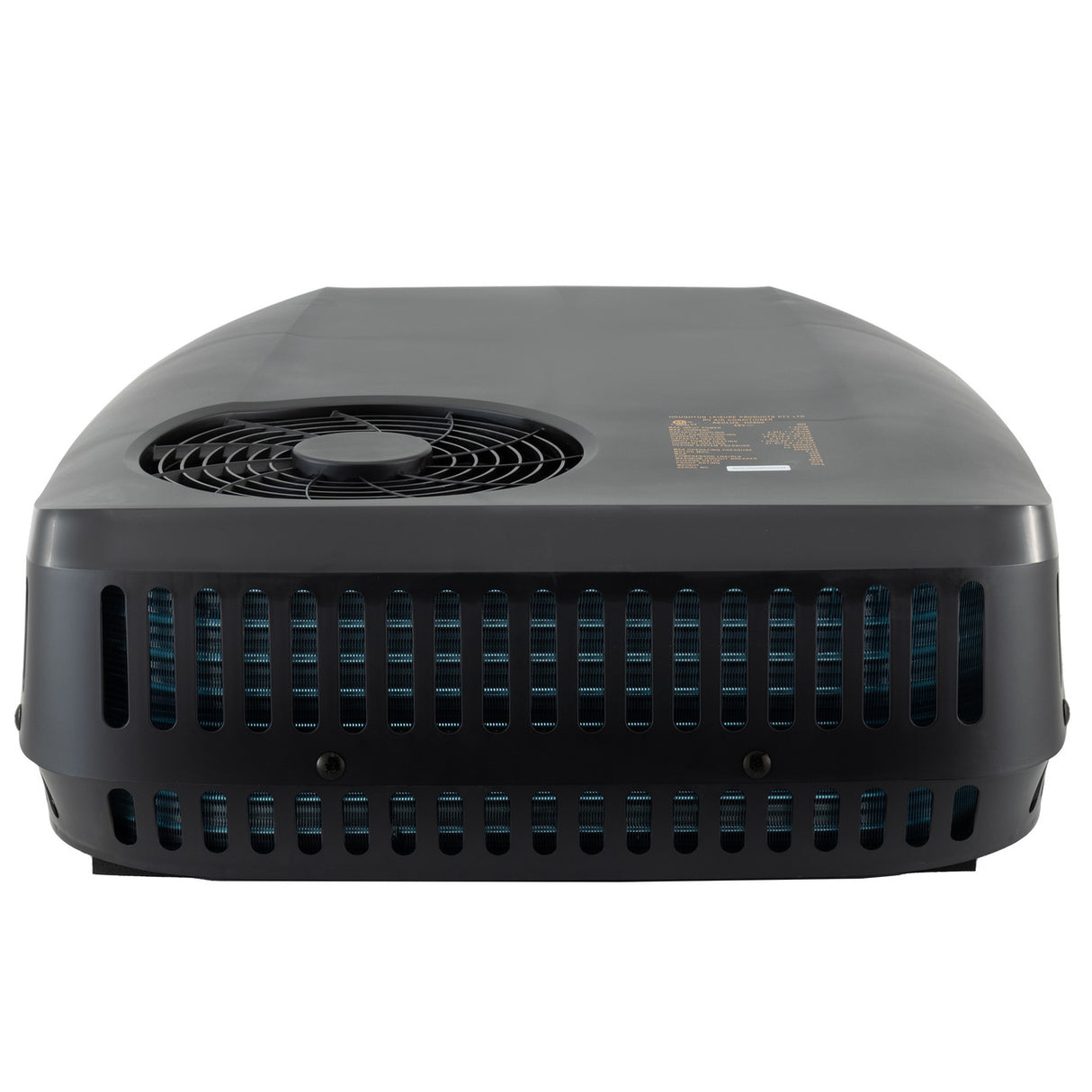

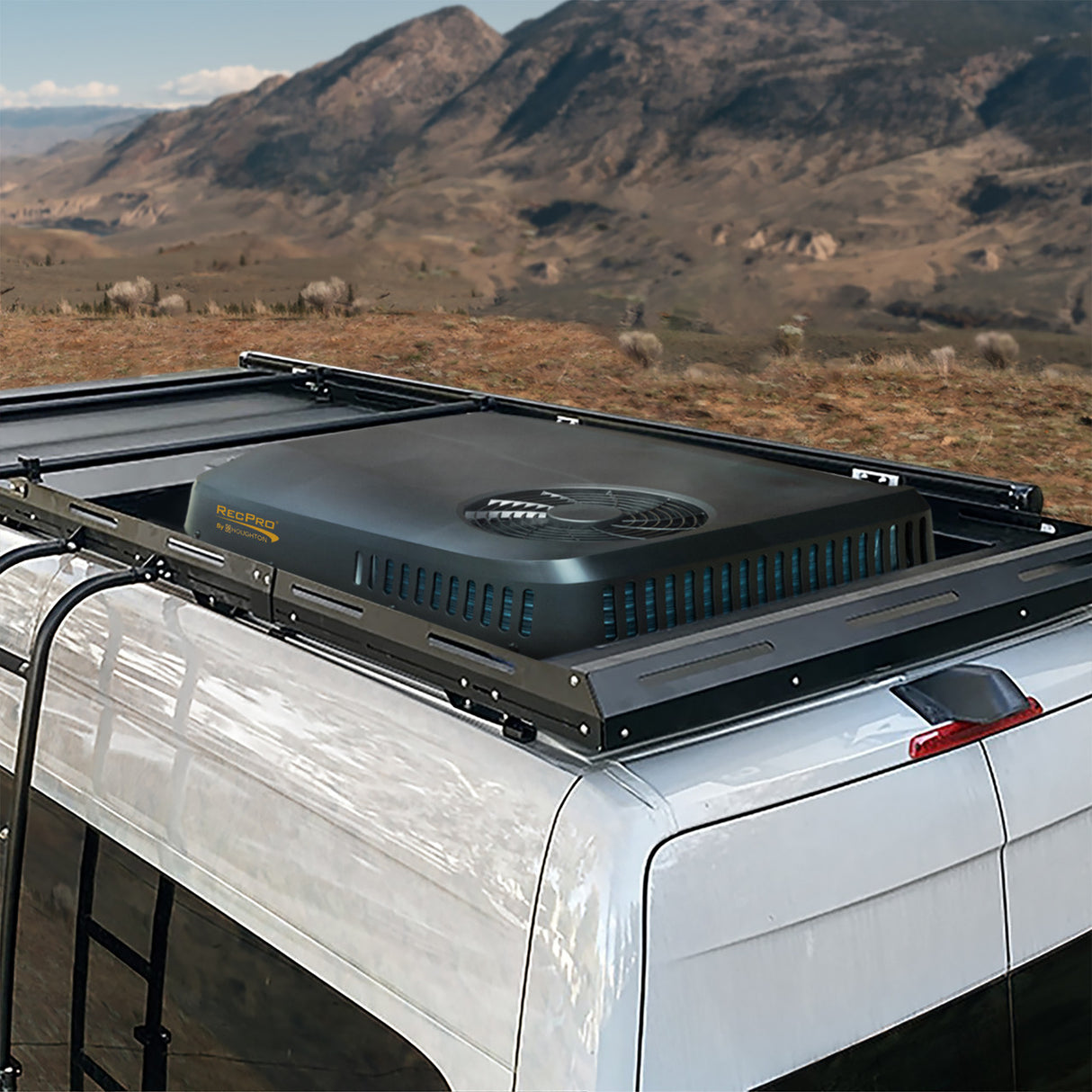

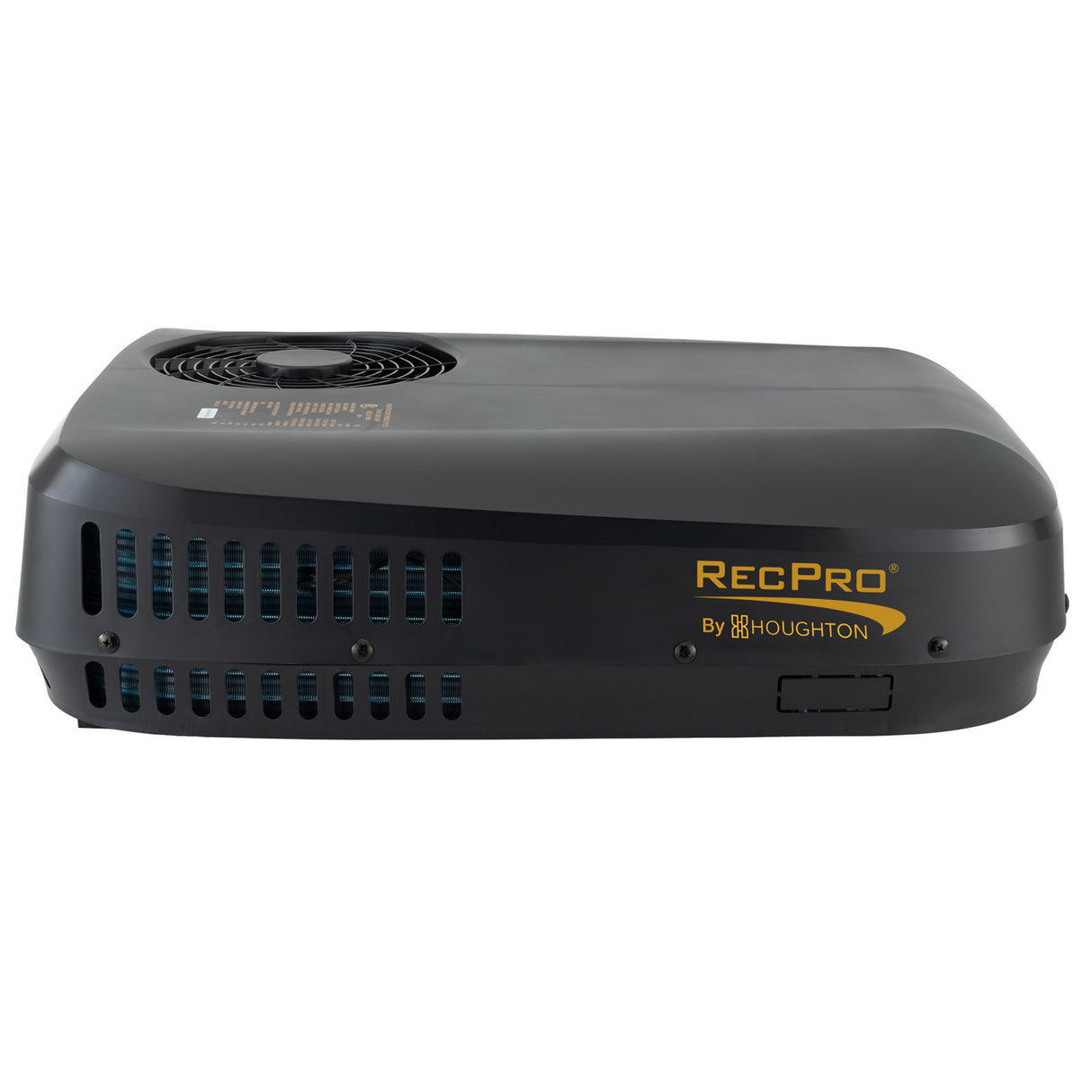

The RecPro 48V RV Air Conditioner with Heat Pump– 9500 BTU features a low-profile design that looks great and offers reduced drag while you are traveling, unlike larger, bulkier AC units. Despite its low-profile design, this AC unit is packed full of features that offer all sorts of benefits. For starters, this AC unit can be installed in a standard 14" x 14" roof opening, with a minimum roof thickness of 1" and a maximum of 2 ¾". Its smaller and lighter design gives it a mid-sized heating and cooling capacity, making it perfect for camper vans, RVs, and mobile homes.

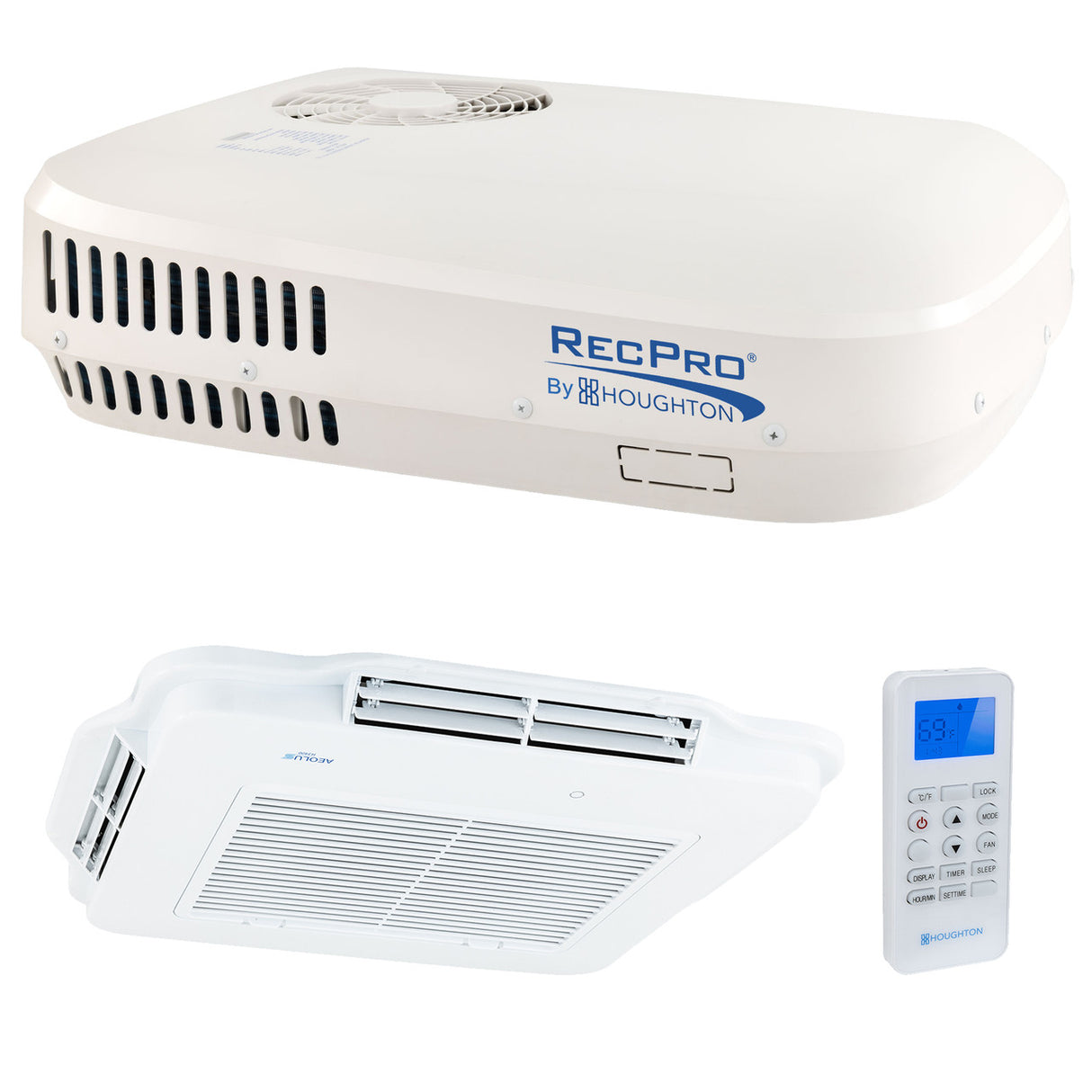

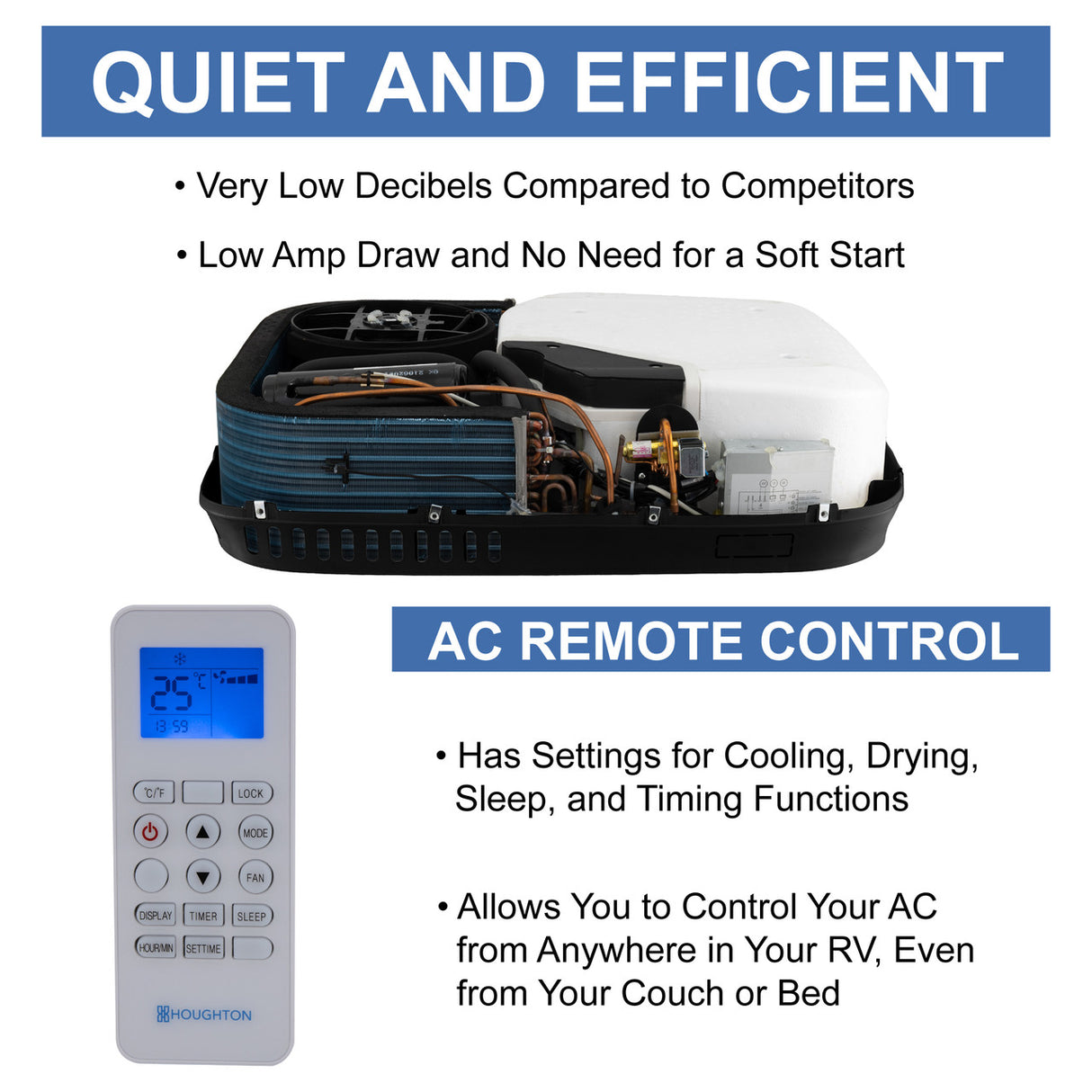

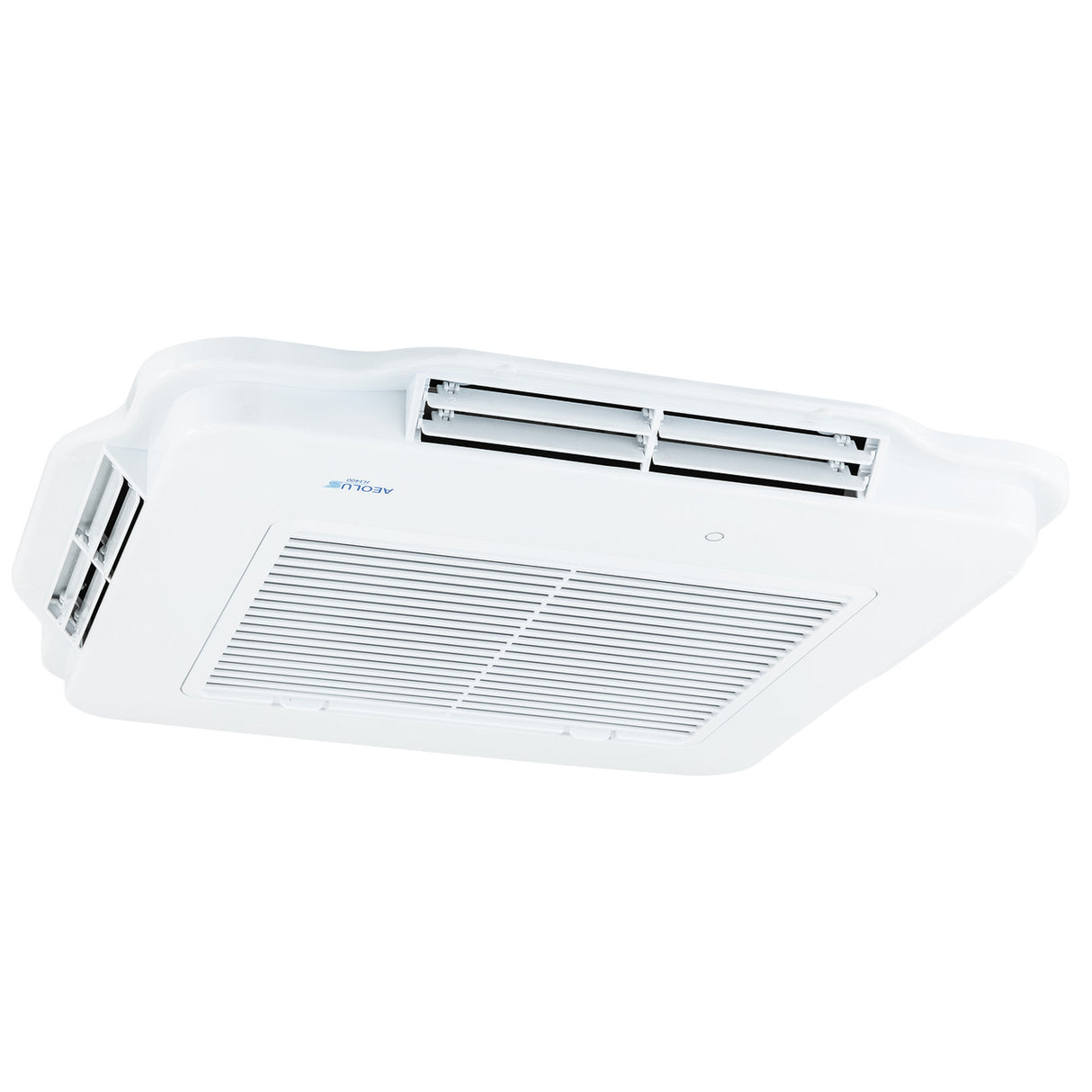

This RecPro 48V Air Conditioner with Heat Pump - 9500 BTU comes with a remote control and a touch-screen plenum with LED lighting and 4 dimming modes that make it easy to control your AC and adjust its settings. The plenum can display a variety of settings and information, such as a clock/timer and temperatures displayed in either ℉ or ℃. Featuring low noise, low amp draw, and efficient heating and cooling in one device, it is easy to see that this small AC has big things in store for you.

Free Shipping!

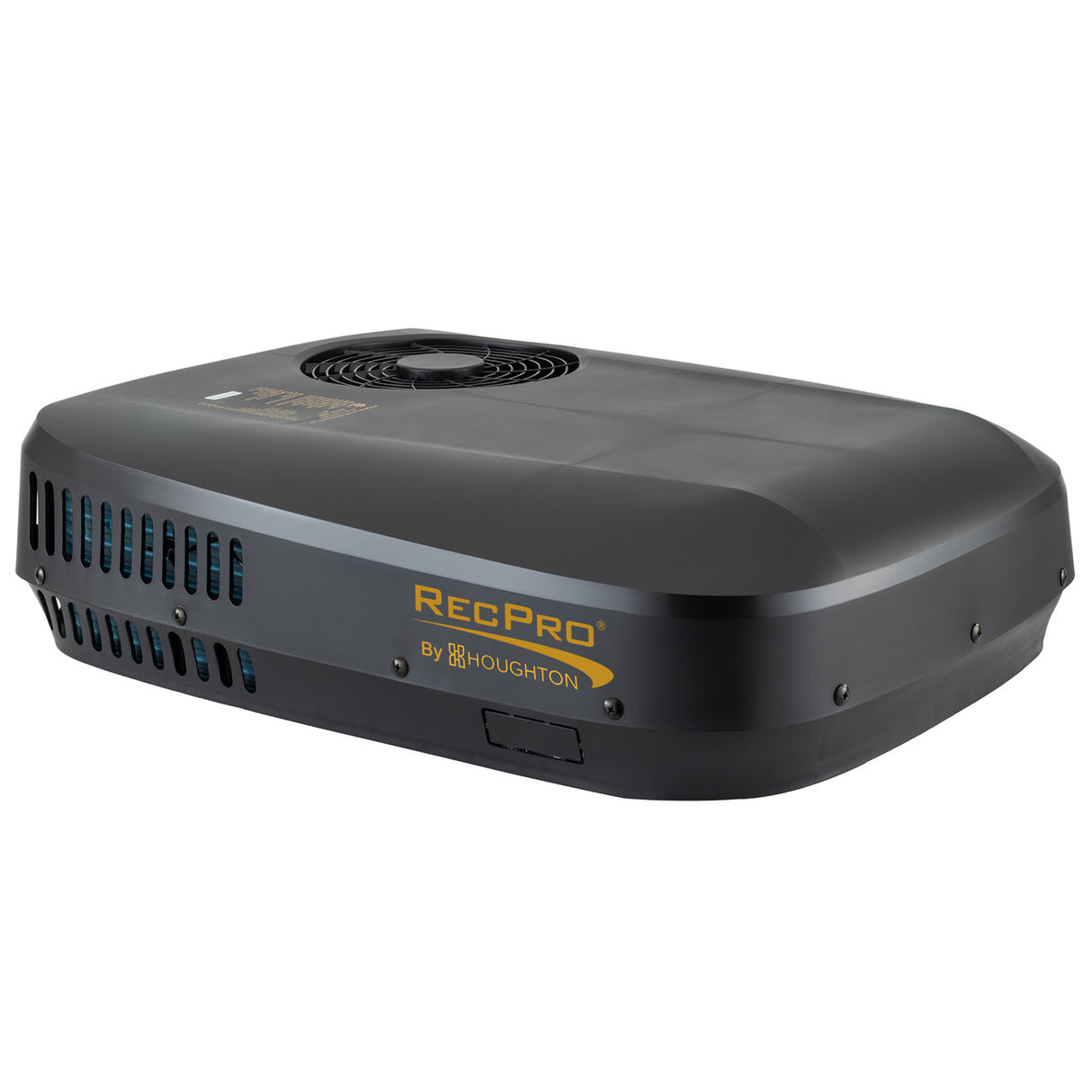

Note: All RecPro 48V models come with a white internal face plate. Only the exterior shroud is offered in white/black.

Key Features: RecPro 48V Air Conditioner with Heat Pump - 9500 BTU

• Air Conditioner / Heat Pump
• Fits 14" x 14" roof openings
• Power Supply: 48V DC (45V - 60V Operating Range)
• Capacity: 9,500 BTU Cooling / 9,000 BTU Heat
• Power Draw: 1380W Cooling / 1390W Heat
• Non-ducted

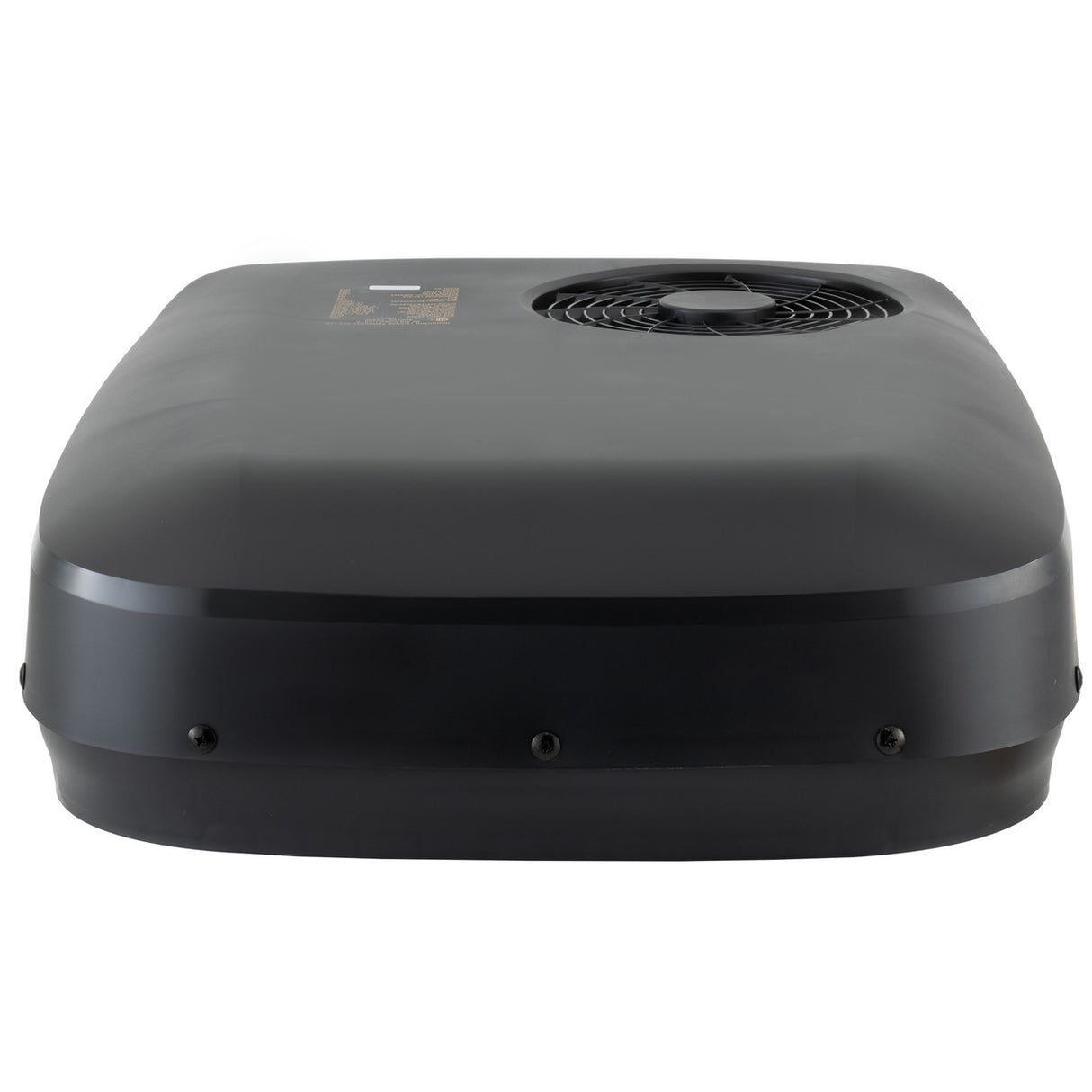

• Low profile design
• Four air outlets
• Variable speeds

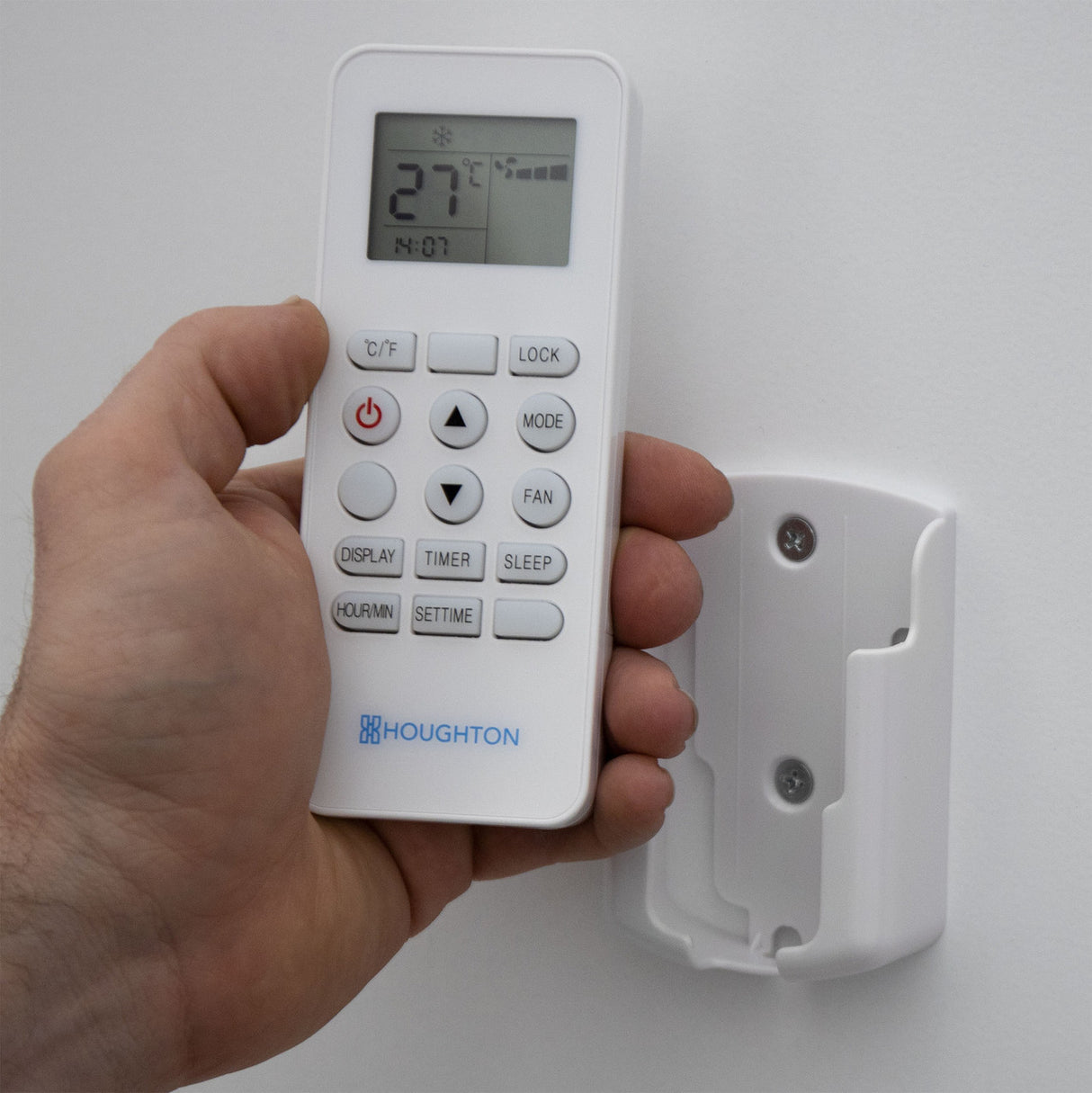

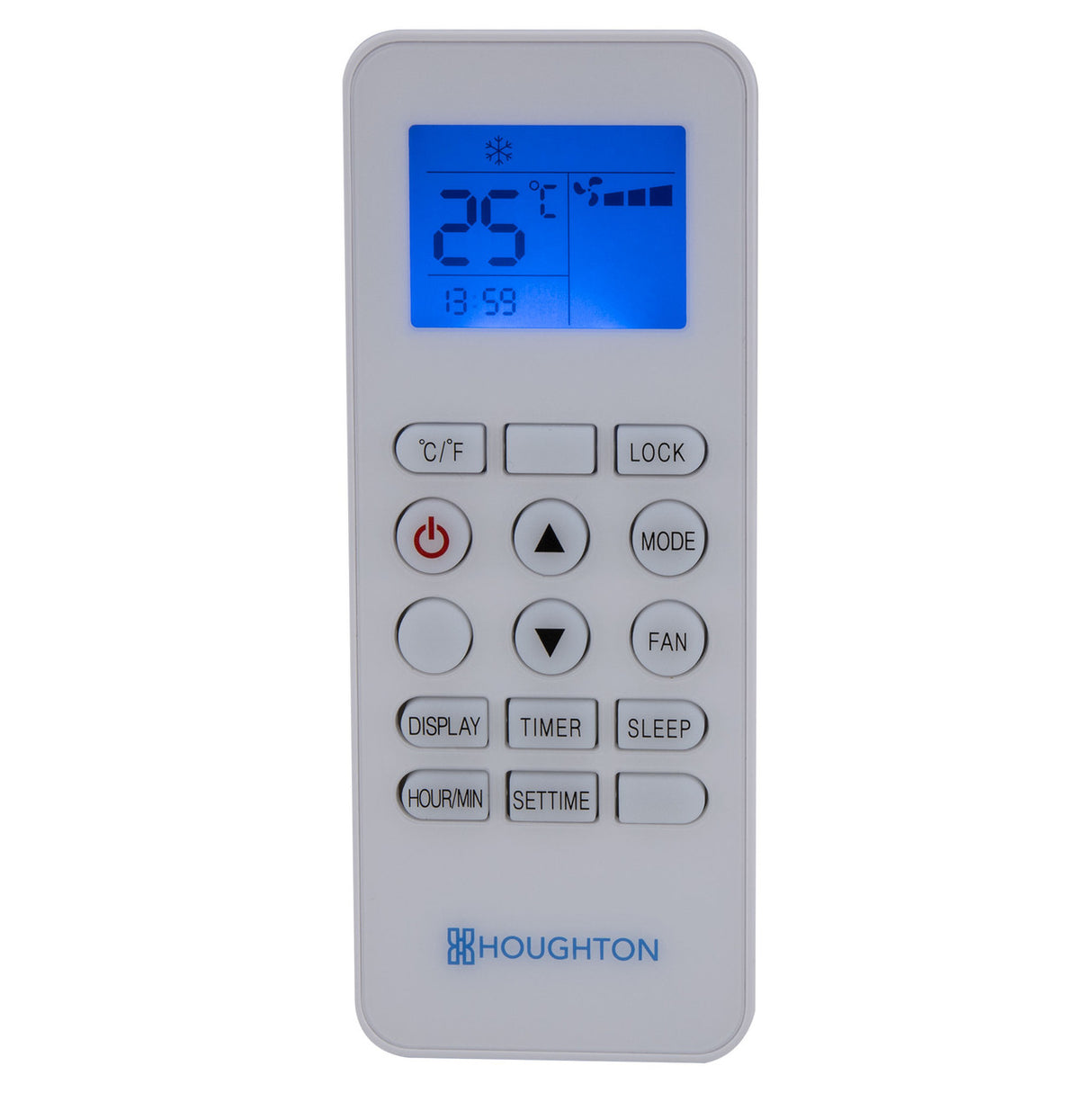

• Remote control
• Clock/Timer display

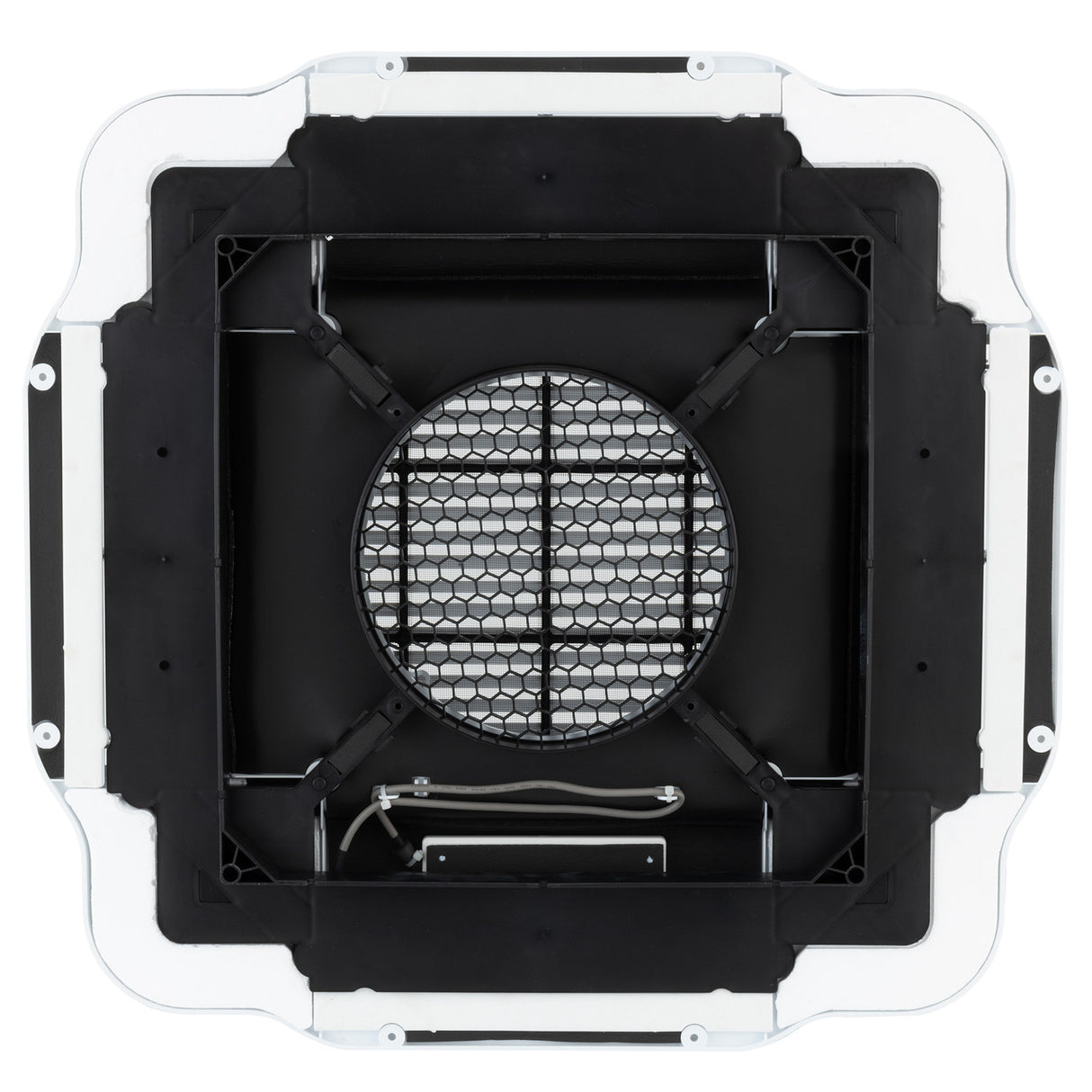

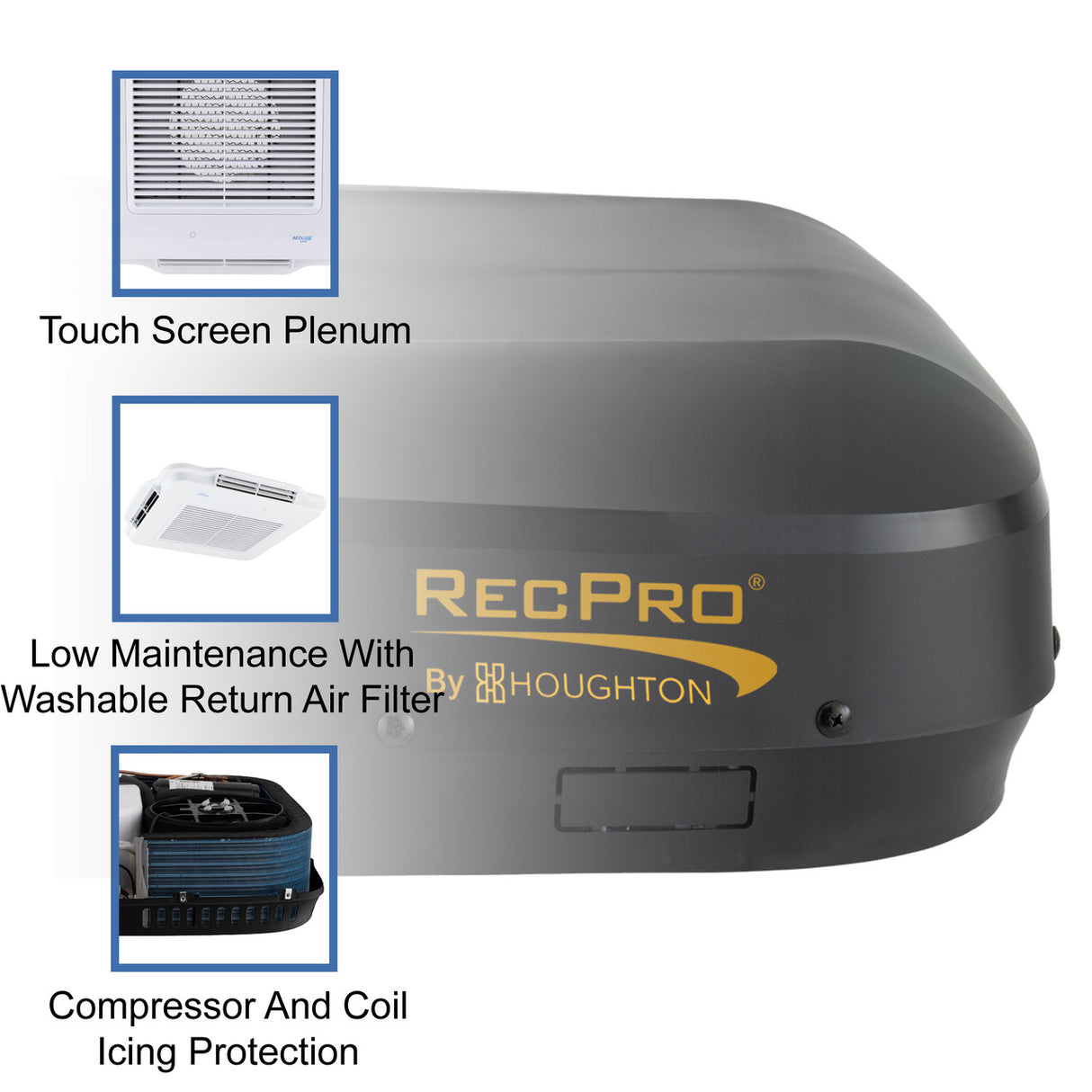

• Touch screen plenum display
• Cool, Fan, Dry, Heat, and Auto modes
• Low, Medium, High, and Auto fan speeds

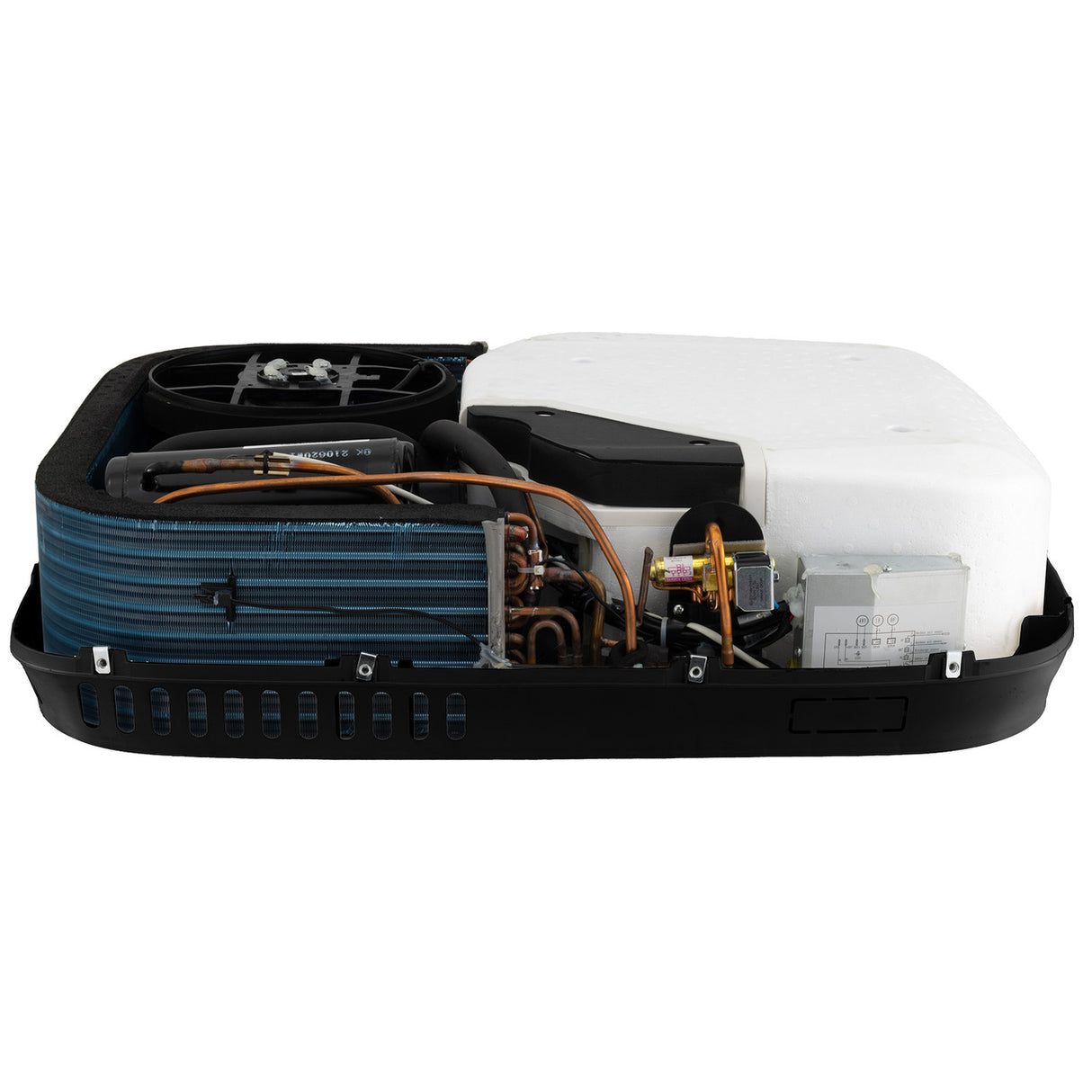

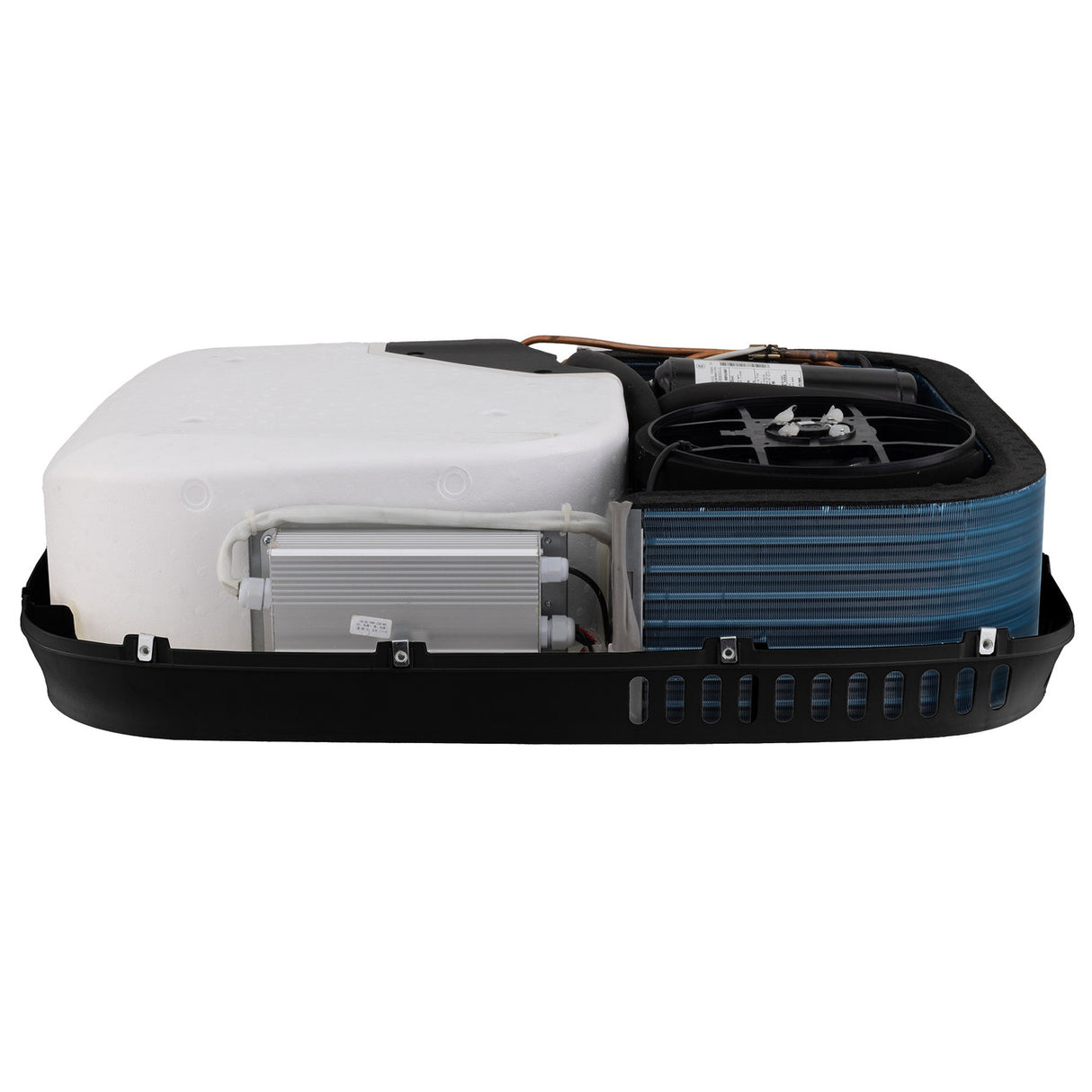

• Reverse cycle refrigeration circuit
• Washable return air filter
• UV-resistant polymer casing
• LED lighting with 25%, 50%, 75%, and 100% brightness dimming modes

Specifications: RecPro 48V Air Conditioner with Heat Pump - 9500 BTU

• Operating Voltage: 48V DC (45 - 60V)

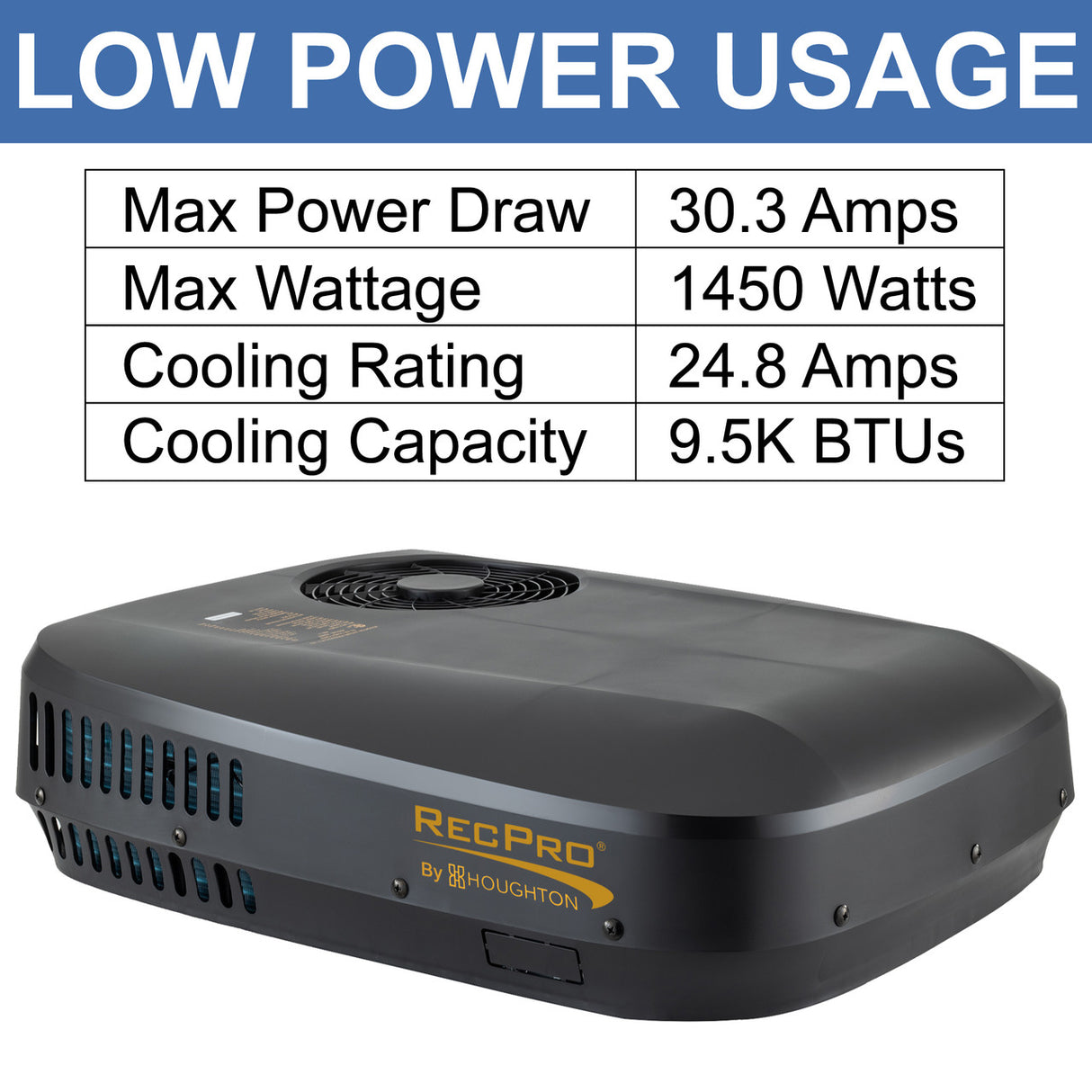

• Cooling Current: 16.5 - 26.2 Amps
• Heating Current: 13.8 - 23.3 Amps
• Maximum Input Power: 1650 Watts
• Maximum Current: 34.5 Amps
• Maximum Design Pressure: 4500kPa
• Minimum Design Pressure: 3000kPa
• Maximum Air Flow: 286 CFM
• Installed Weight: 78 lbs
• Refrigerant charged: R410A / 600g

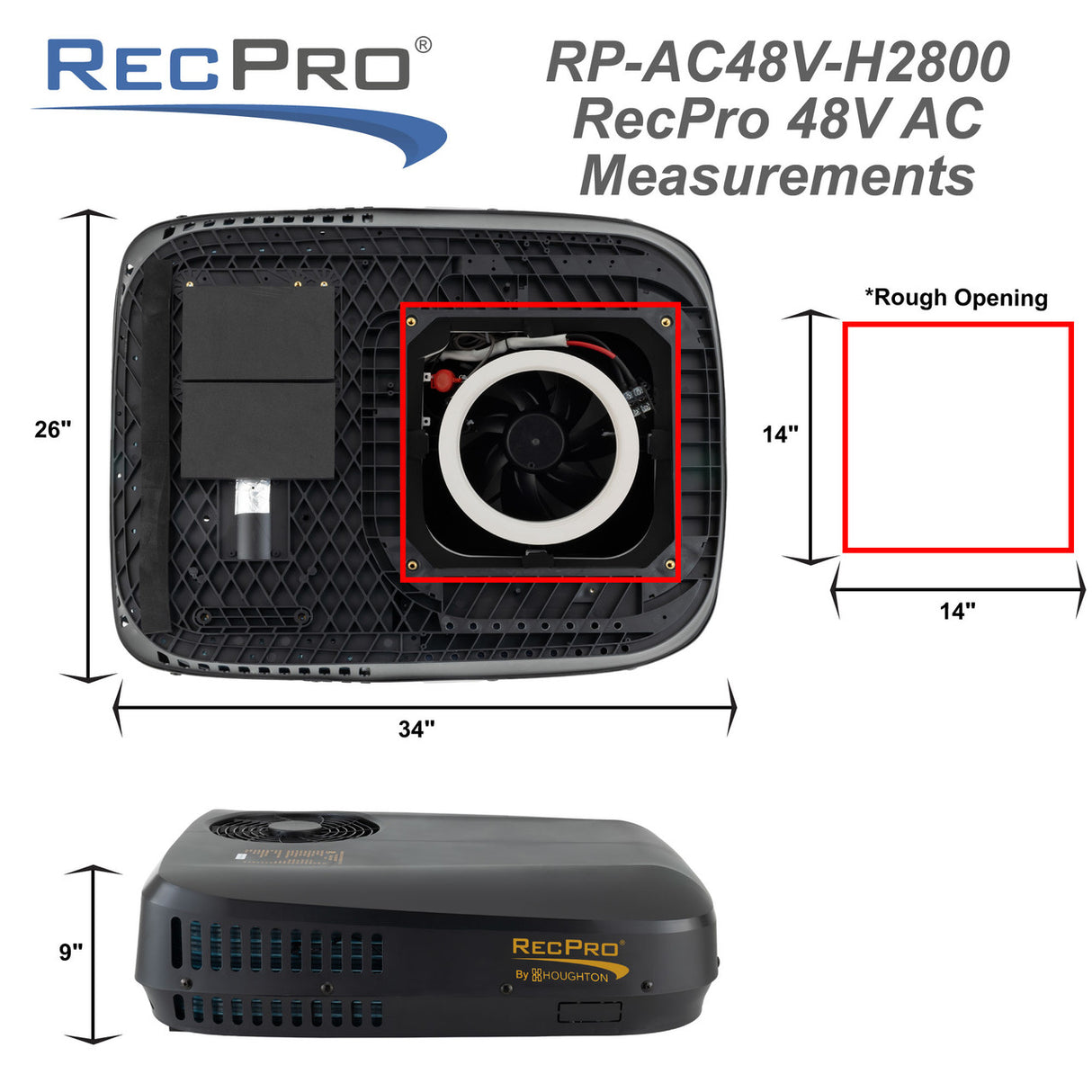

• Case Measurements: 34"L x 26"W x 9"H
• Minimum Roof Thickness: 1” (25mm)
• Maximum Roof Thickness: 2 ¾” (70mm)
• **Air conditioner performance may diminish while driving at highway speeds, up to and including Error Code E5. If problem persists, reduce vehicle speed.
