VWD Universal Awning Bunk Window (AW3310)

$ 28900

Earn [points_amount] when you buy this item.

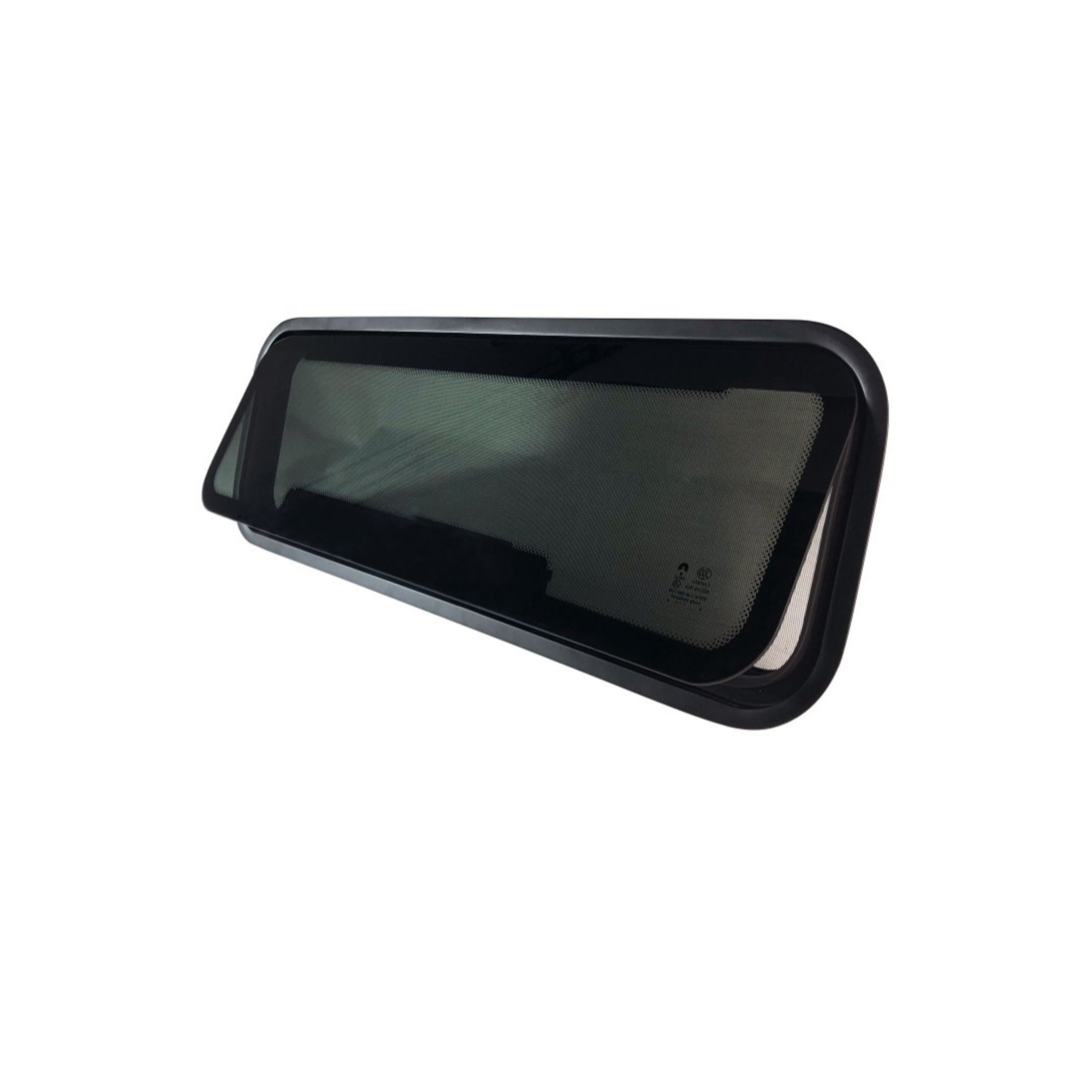

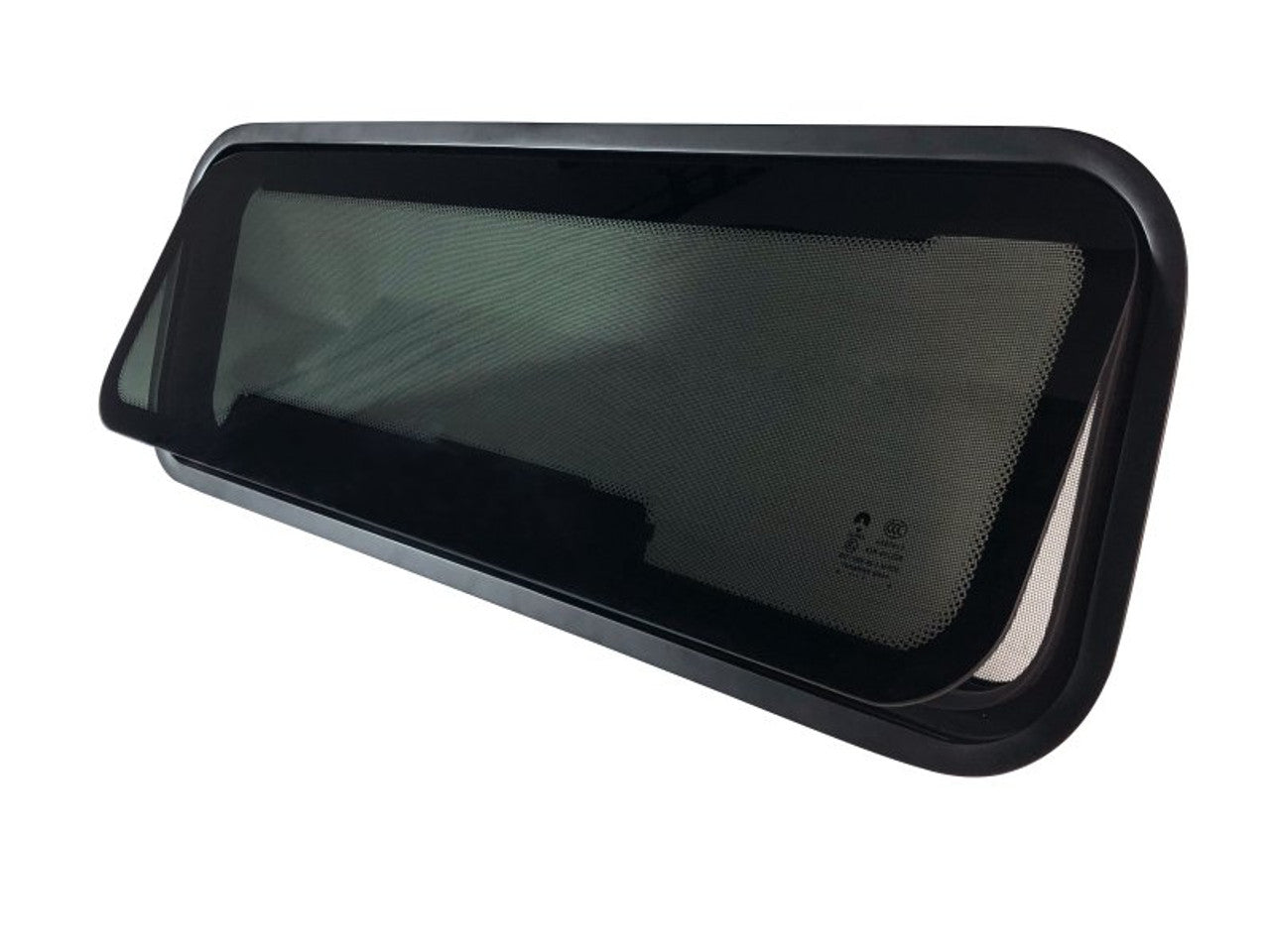

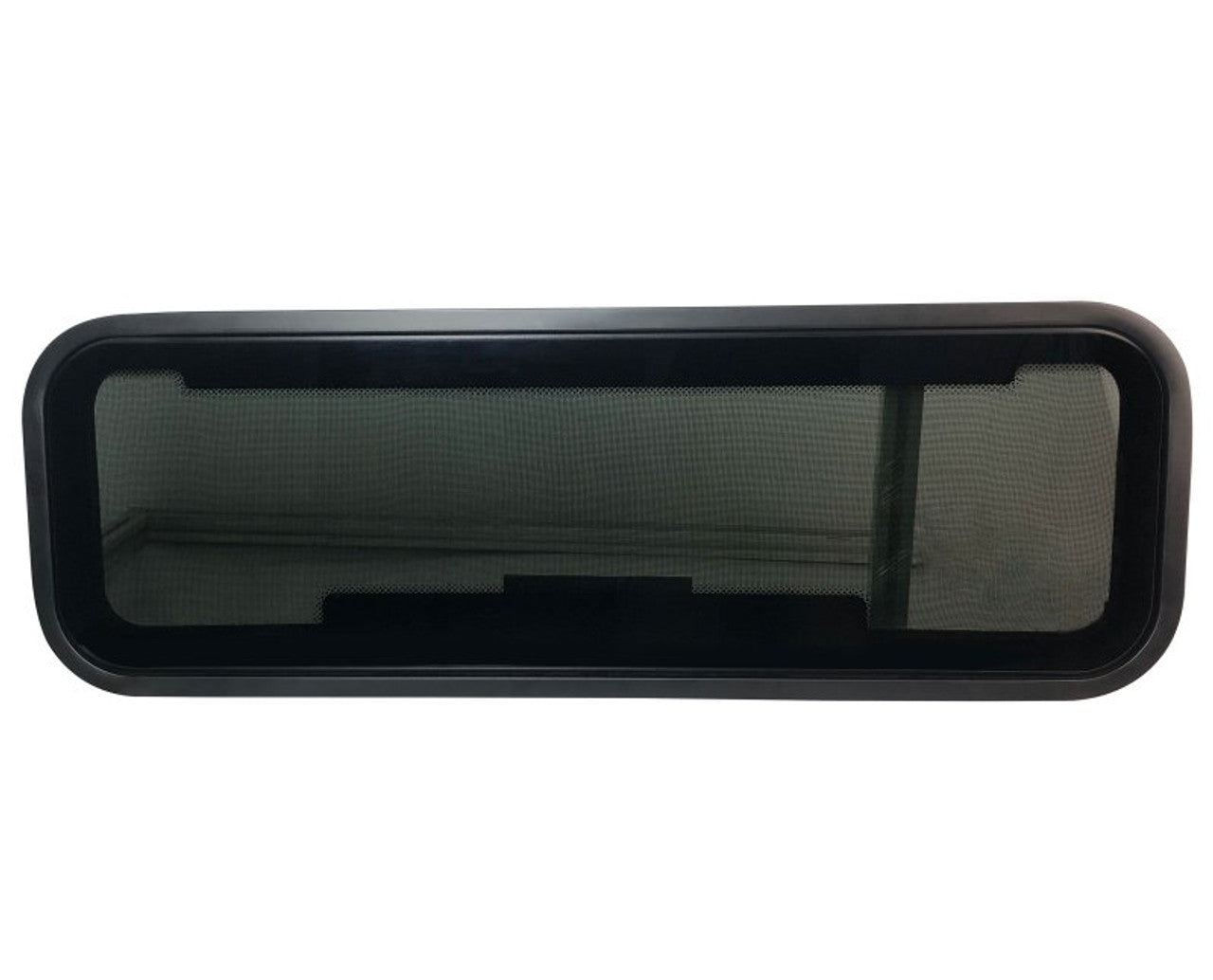

The VWD Awning Bunk Window is a tilt-out van bunk window that allows excellent ventilation for your camper van.

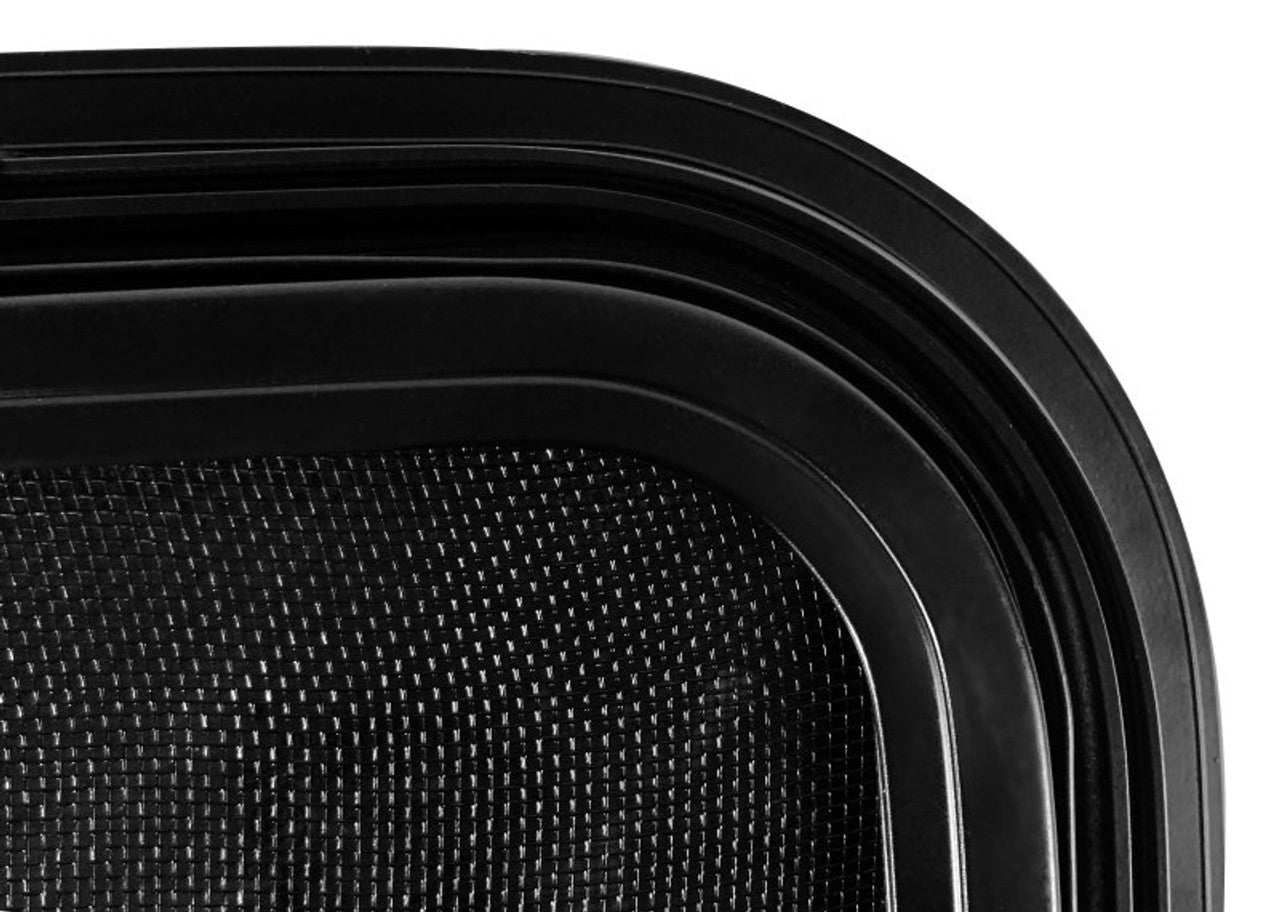

This bunk window is an easy-to-install flat awning crank-out window that features a removable screen and measures 34-3/4" long and 11-3/4" tall. The window is crafted with solar privacy glass and features an upgraded 3M UV-coated foam seal for increased longevity and a more reliable weather-tight seal compared to competitive models.

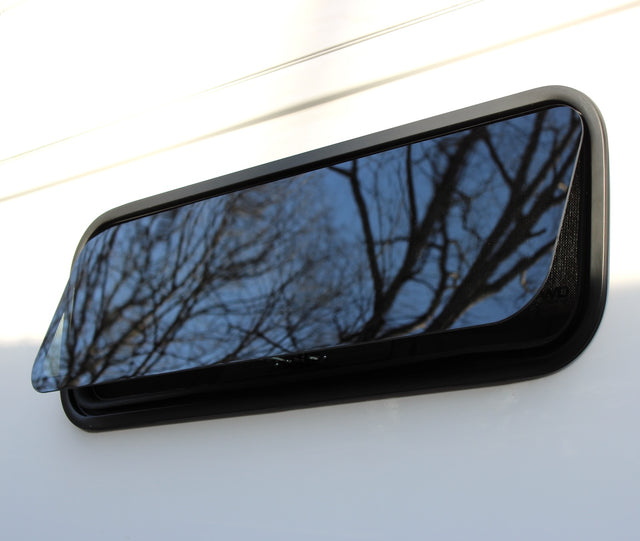

The awning tilts out 3", allowing air to flow through the massive 31-1/4" x 8-1/4" opening enabling some of the best ventilation for a bunk window.

Key Features: VWD Universal Awning Bunk Window (AW3310)

  • Universal Fit
  • Color = Matte black powder coat frame
  • Solar privacy glass
  • Matte black powder coat frame
  • UV Rating = 17%
  • Installation Type = Clamp Ring
  • Mfg Country = China
  • Mfg Warranty = 1 Year
  • Outside Frame Dimensions: 34-3/4" x 11-3/4"
  • Cut-Out Dimensions: 33-5/8" x 10-5/8"
  • Clamp Ring Size: 1/8"
  • Alternative to CRL AW1033

What’s needed to install a clamp-in window?

  • Bunk window
    • Gasket (included with window)

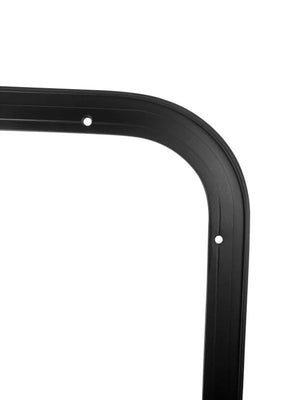

    • Clamp ring (included with window)
    • Screws (included with window)
  • Bunk window template
  • Drill & metal drill bits(1/8” max)
  • Philips screw driver (hand-tighten all screws)
  • Step bit (3/8”-1/2” at least)
  • Jigsaw with fine metal blade
  • Foam or bristle paint brush
  • Auto paint/primer
  • Plastic/paper drop-cloths
  • Blue painter’s tape
  • Safety:
    • Gloves
    • Eye protection
    • Hearing protection
    • Face mask
    • Long-sleeved shirt

Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.

Specifications: VWD Universal Awning Bunk Window (AW3310)

Outside Frame Dimensions: 34-3/4" x 11-3/4"
Cut-out Dimensions: 33-5/8" x 10-5/8"
Weight (lbs.): 15
Tint: 17% UV tinting
Window Type: Fixed Awning with Screen (Clamp-in)
Fits: All van models, universal placement


Video: Universal Clamp-In Windows

Below are videos showing a guideline of how to install clamp-in windows with 1/8" clamp rings. The same method can be applied to almost any clamp-in window, but be sure to measure your clamp ring inner dimensions and compare to your template before making the cutout.
