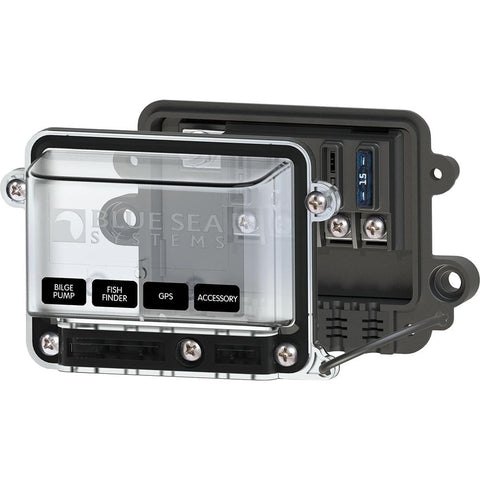

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover

  • $ 32.99
  • Save $ 10


5056 ST-Blade Water Resistant Fuse Block with Cover

Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.

Features:

  • Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast-acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Small format standard and custom labels available
  • Spare fuse and fastener storage in cover

Specifications:

  • Amperage: 80A per block/25A per circuit
  • Maximum Voltage: 32V DC
  • Bus Material: Tin-Plated Copper C11000
  • Mounting Holes: Clearance for 1/4" (6mm) screws
  • Screw Terminal Type: #8-32 Screws with captive star lock washer
  • Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: ATO/ATC
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 8"W x 8"L WT: 0.65 lbs
  • UPC: 632085050566
