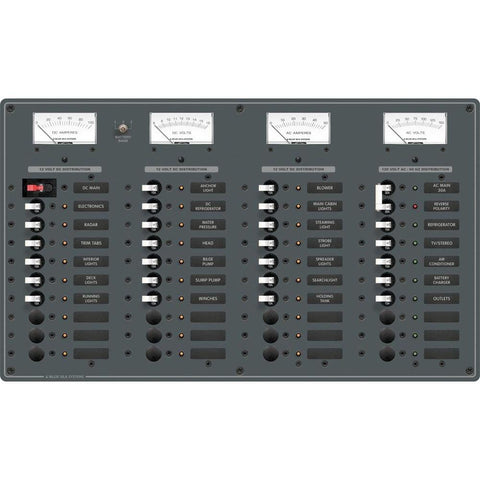

Blue Sea 8195 AC Main + 8 Positions / DC Main + 29 Positions

  • $ 1,580.87
  • Save $ 0



AC Main + 8 Positions / DC Main + 29 Positions

Switches Color: White

Installed AC Breakers

  • (1) 16A

  • (5) 8A


  • Installed DC Breakers
  • (1) 100A Main

  • (20) 15A


    • Voltage 230v - 12V DC
    • All AC and DC buses installed and fully pre-wired
    • Label backlighting pre-installed
    • ON - indicating LEDs installed in all circuit positions
    • 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
    • Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Max Breaker Quantity: 8 AC / 29 DC
    • AC/DC: Both
    • Voltage: 230v/12v
    • Box Dimensions: 8"H x 15"W x 22"L WT: 12.6 lbs
    • UPC: 632085081959

    Quick Guide (pdf)
    Owner's Manual (pdf)
