Blue Sea 8665 Contura 3 Bilge Pump Control Panel

  • $ 110.88
  • Save $ 30

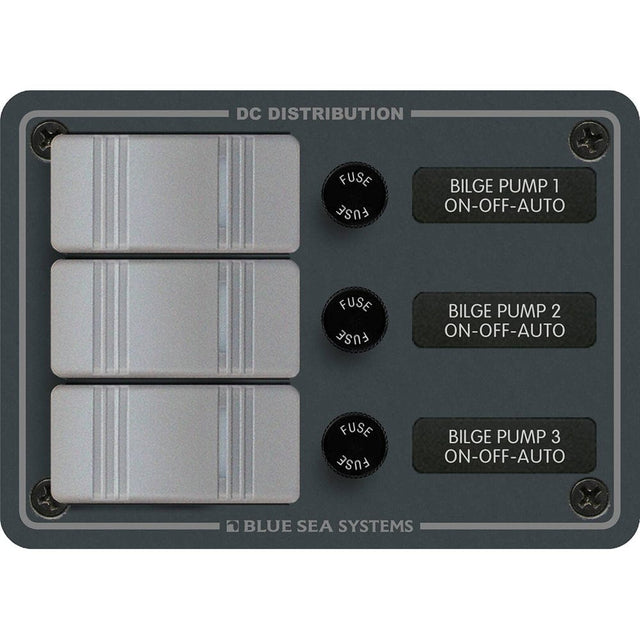

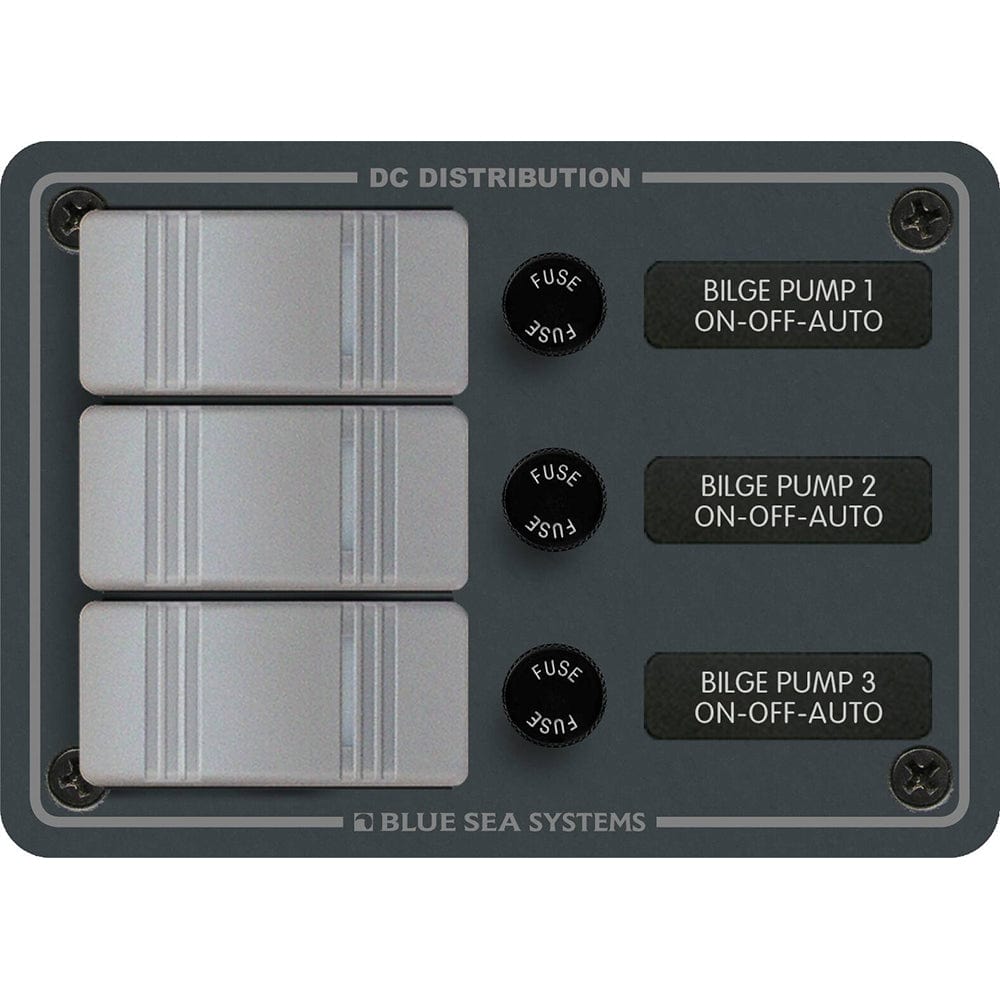

8665 Contura 3 Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

  • Designed for 12 or 24V DC systems
  •  ON - OFF - AUTO Contura Switch
  • Watertight mounting gasket
  • Fuse holders accept commonly available AGC and MDL glass fuses
  • "ON” LED embedded in switch indicates the pump is running
  • Completely wired and ready to install

Specifications:

  • Weatherproof - Water Resistant
  • No. of Bilge Pumps - three (3)
  • Nominal Voltage - 12/24V
  • Panel Cumulative Rating - 45A
  • Switch Rating: 20A @ 12V DC / 15A @ 24V DC
  • Dimensions (H x W x D) - 3.75" x 5.25" x 3"

In the Box:

  • Panel Mount AGC/MDL Fuse Holder (P/N 5021) x three (3)
  • Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x three (3)
  • Black 60 Label Set (P/N 8214)

*Sold as an Individual

Specifications:

  • Action: on - off - auto
  • Color: Black/Grey
  • Throw/Pole: SPDT
  • Box Dimensions: 4"H x 7"W x 9"L WT: 0.65 lbs
  • UPC: 632085086657

Owner's Manual (pdf)
