Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares

  • $ 1,599.00

Note: Current lead time 8 weeks.

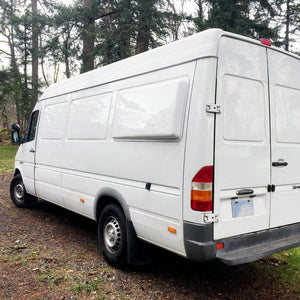

Looking to sleep sideways in your 2002-2006 Mercedes Sprinter camper van? These Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares replace the stock rear upper body panels in your Sprinter, providing extra lateral space to enable you to sleep sideways in your camper van. Install these Flarespace flares, and you'll be able to have a 73"-78" wide sleeping platform and a very comfortable night's sleep, without interfering with any of the doors on the van.

The extra space saved from orienting the bed sideways (almost 24") can be used to store bikes, add extra cabinetry or whatever else you need.

Note: Flares are only sold in pairs (one passenger-side, one driver-side), flares are not sold individually. Shipping on this item is $199. ALL SALES ARE FINAL on this item, no cancellations or refunds.

Key Features: Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares

  • Flares are made of polyester resin (fiberglass)
  • Package comes with two unpainted flares, approved 3M installation materials, and detailed installation instructions.
  • Flares add extra width to the rear of your Sprinter campervan.

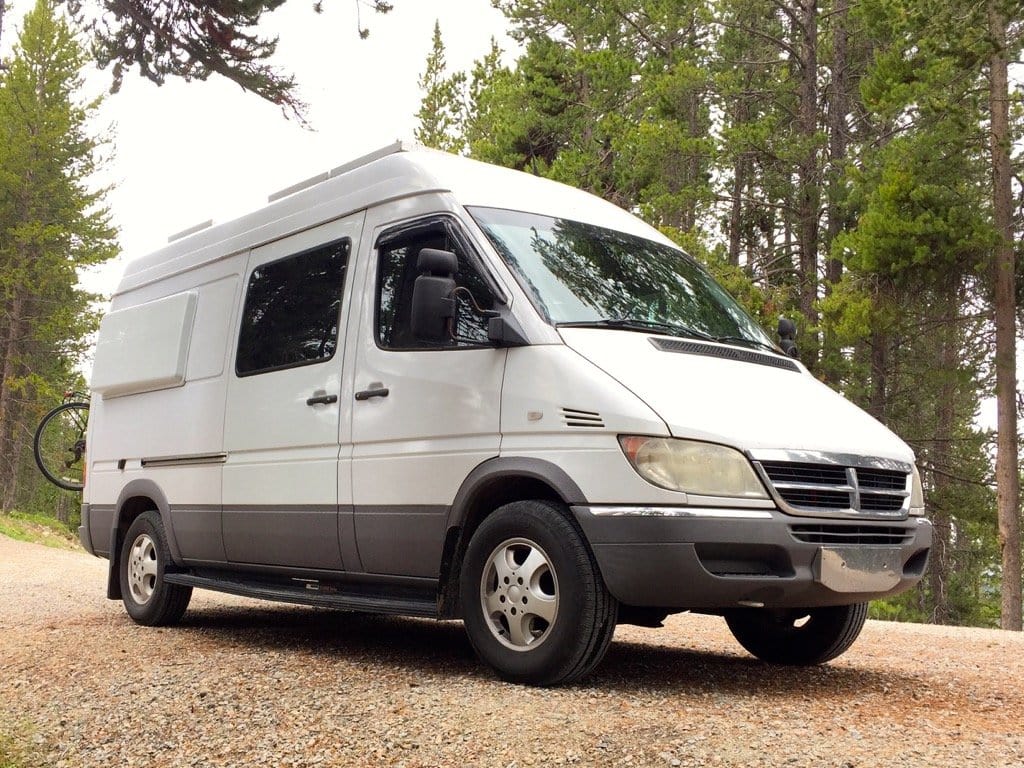

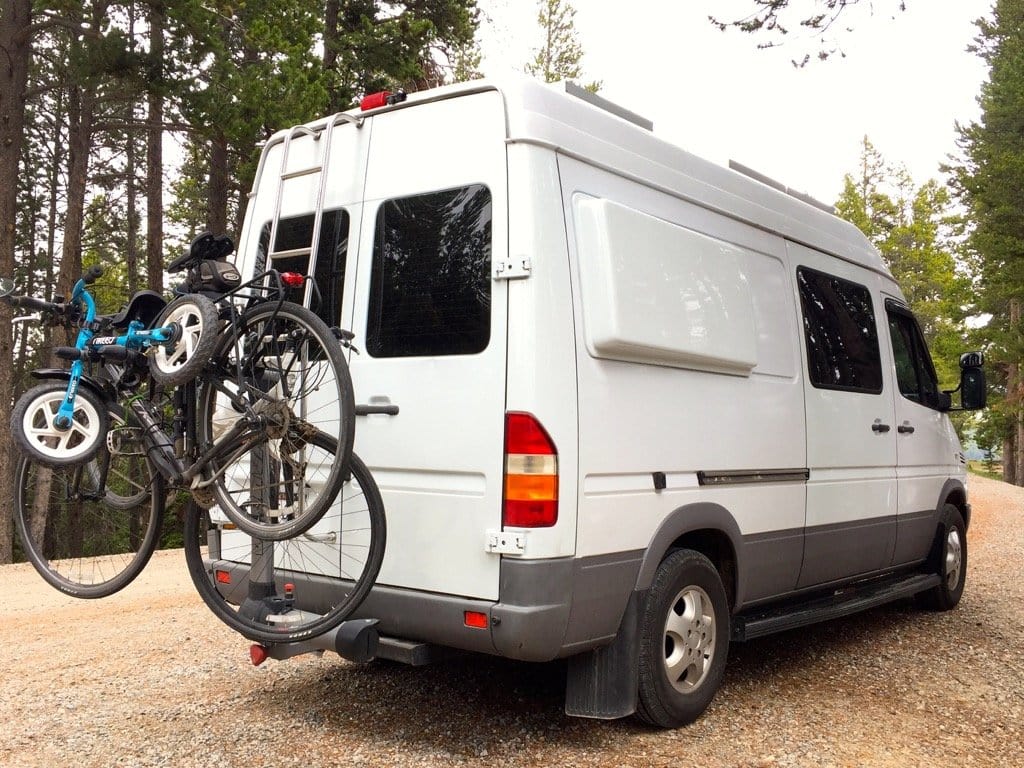

  • Designed to fit the rear quarter factory window cutouts on 2002-2006 Mercedes Sprinter 2500/3500 158"WB cargo and  passenger vans (a.k.a. T1N Sprinters). Can also fit 140"WB 2004-2006 Mercedes Sprinter 2500/3500 vans with some customization, see Documents section below for details.
  • Proudly made in the USA by Flarespace.
    • Flares are made to order, we'll check lead times when you order.

FAQ: Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares

  • Who can install flares? Campervan HQ can provide you with a list of trained installers in your area, or any professional auto body shop can paint and install flares.
  • How are they installed? Your installer will paint the flares to match the color of your Sprinter van. The rear quarter panel is cut out along the factory lines, with the same size cut out as a window. The flares are glued in using the supplied 3M adhesive and sealant. Installers are supplied with detailed step-by-step instructions, including a video and written instructions. Install takes about 4 hours, plus a day to cure.
  • Does the sliding door need to be modified? On 158"WB Sprinters, the stock Sprinter sliding door will open fully without modifications. On 140"WB Sprinter vans, the sliding door can be opened to about 27" wide, a secondary door stop should be installed.
  • Will the rear doors still open 270 degrees? If you install an extended door stopper on the rear door, the Sprinter's rear doors can still be opened fully without touching the flares.

Specifications: Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares

Height (in.) 24.4
Width (in.) 52.25
Depth (in.) 4.25
Weight (lbs.) 40 (pair of flares, boxed)
Material Polyester resin (fiberglass), 300-grit gelcoat surface, ready for paint


Documents: Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares

Fitting Flares to a 140"WB T1N Sprinter Van

Video: Flarespace Mercedes Sprinter (2002-2006) Campervan Body Flares
