Ram Promaster Campervan Body Flares

  • $ 1,800.00

Note: Current lead time 8 weeks.

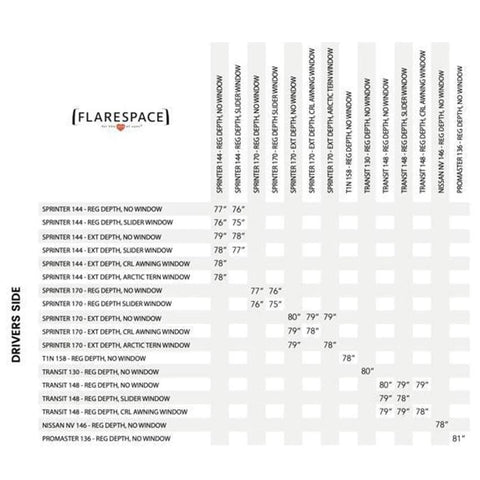

Looking to sleep sideways in your Ram Promaster camper van? These Ram Promaster Campervan Body Flares replace the stock rear upper body panels in your Promaster van, providing extra lateral space to enable you to sleep sideways in your campervan. Install these Flarespace flares and you'll be able to have an 80" wide sleeping platform and a very comfortable night's sleep, without interfering with any of the doors on the van. The extra space saved from orienting the bed sideways (almost 24") can be used to store bikes, add extra cabinetry, whatever you need.

Use the drop-down to select the window option you want for your flares.

Note: Flares are only sold in pairs (one passenger-side, one driver-side), flares are not sold individually. Shipping on this item is $175. ALL SALES ARE FINAL on this item, no cancellations or refunds.

    Key Features: Ram Promaster Campervan Body Flares

    • Flares are are made of polyester resin (fiberglass)
    • Package comes with two unpainted flares, approved 3M installation materials, and detailed installation instructions
    • Available with or without window cutouts to fit VW1033L and VW1033R half-slider windows (order separately)
    • Flares add extra width to the rear of your Promaster campervan
    • Designed to fit the rear quarter panel of your 2014+ high roof or low roof 136" or 159" Ram Promaster cargo van.
    • Flarespace Half Slider Window 1033 (optional)
    • Proudly made in the USA by Flarespace.
    • Flares are made to order, we'll check lead times when you order.

    Note: To complete your installation add Interior Finish Kit ( +$250)

    FAQ: Ram Promaster Campervan Body Flares

    • Who can install flares? Campervan HQ can provide you with a list of trained installers in your area, or any professional auto body shop can paint and install flares.
    • How are they installed? Flares can be painted to match the color of your Promaster van. The rear quarter panel is cut out along the factory lines, with the same size cutout as a window. The flares are glued in using the supplied 3M adhesive and sealant. Installers are supplied with detailed step-by-step instructions. Install takes about 4 hours, plus a day to cure.
    • Does the sliding door need to be modified? The stock Promaster sliding door will open fully without modifications. This also applies for slider doors with CR Laurence windows and T-vent window knobs.
    • Will the rear doors still open 270 degrees? If you install an extended door stopper on the rear door, the Promaster's rear doors can still be opened fully without touching the flares.

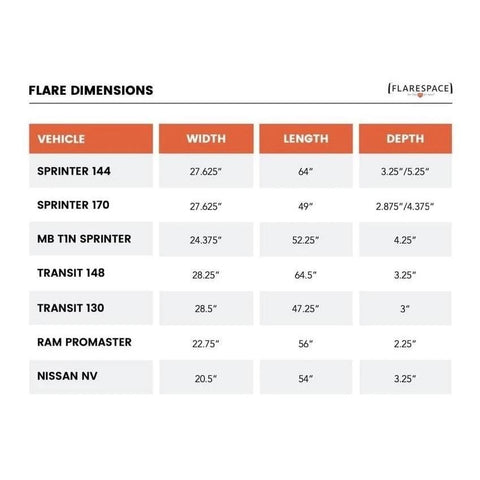

    Specifications: Ram Promaster Campervan Body Flares

    Height (in.) 22.75
    Width (in.) 56
    Depth (in.) 2.25
    Weight (lbs.) 40 (pair of flares, boxed)
    Material Polyester resin (fiberglass), 300-grit gelcoat finish, ready for paint


     Video: Ram Promaster Campervan Body Flares
