VWD Universal Awning Bunk Window (AWN4015C)

  • $ 399.95

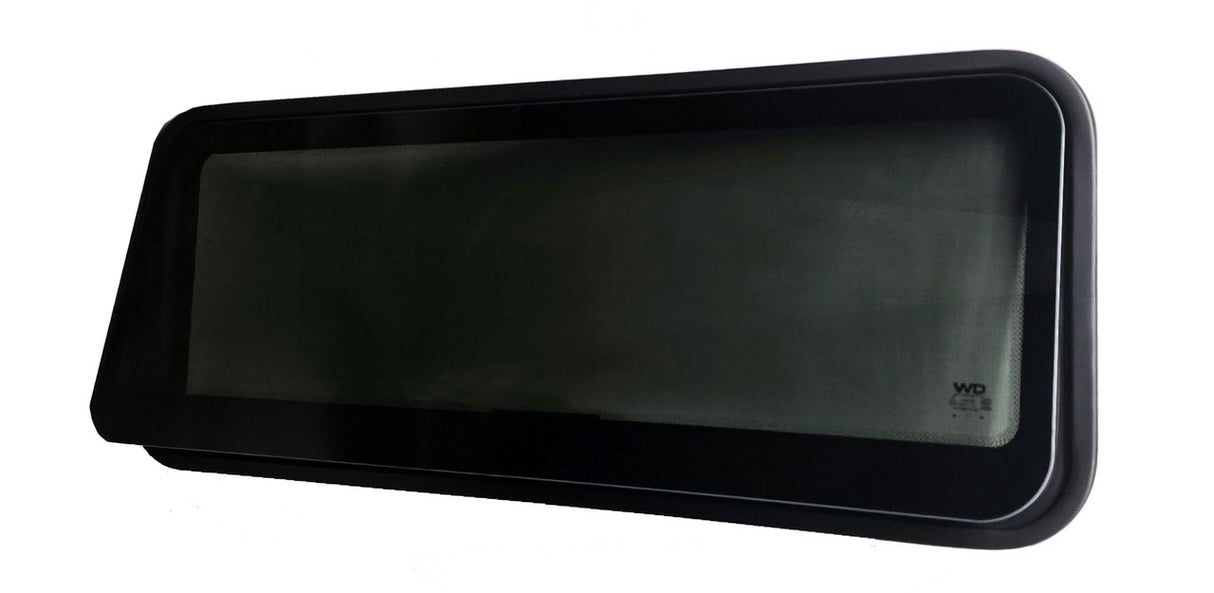

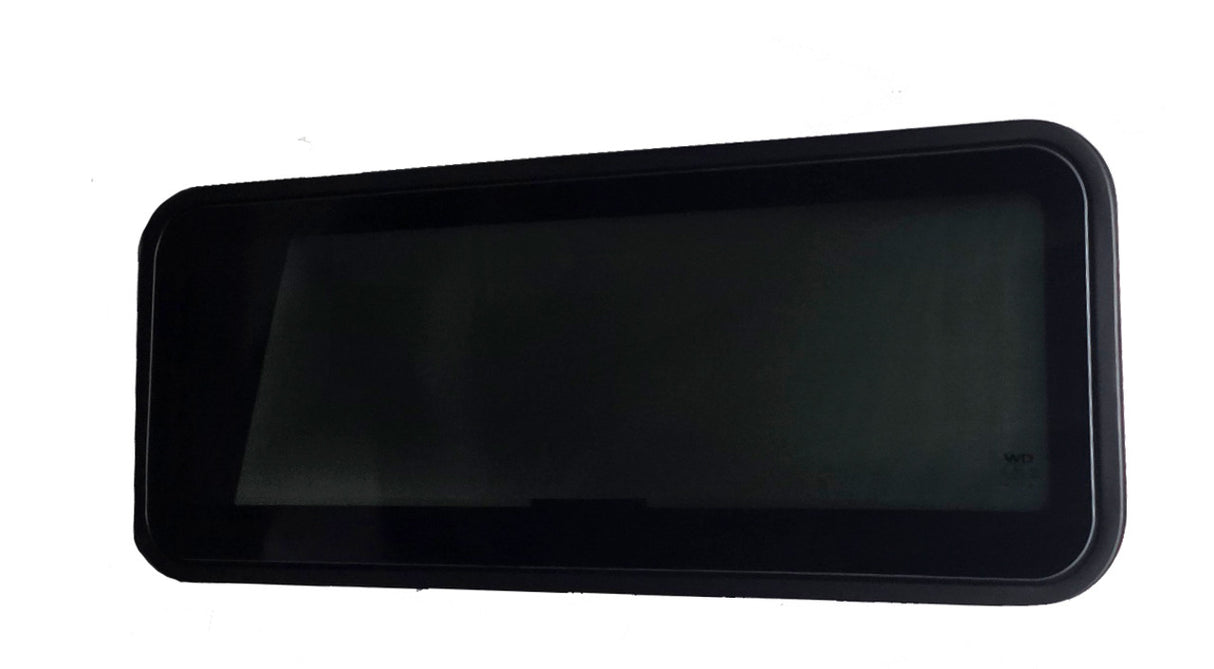

The VWD Awning Bunk Window(AWN4015C) is a tilt-out van bunk window that allows excellent ventilation for your camper van.

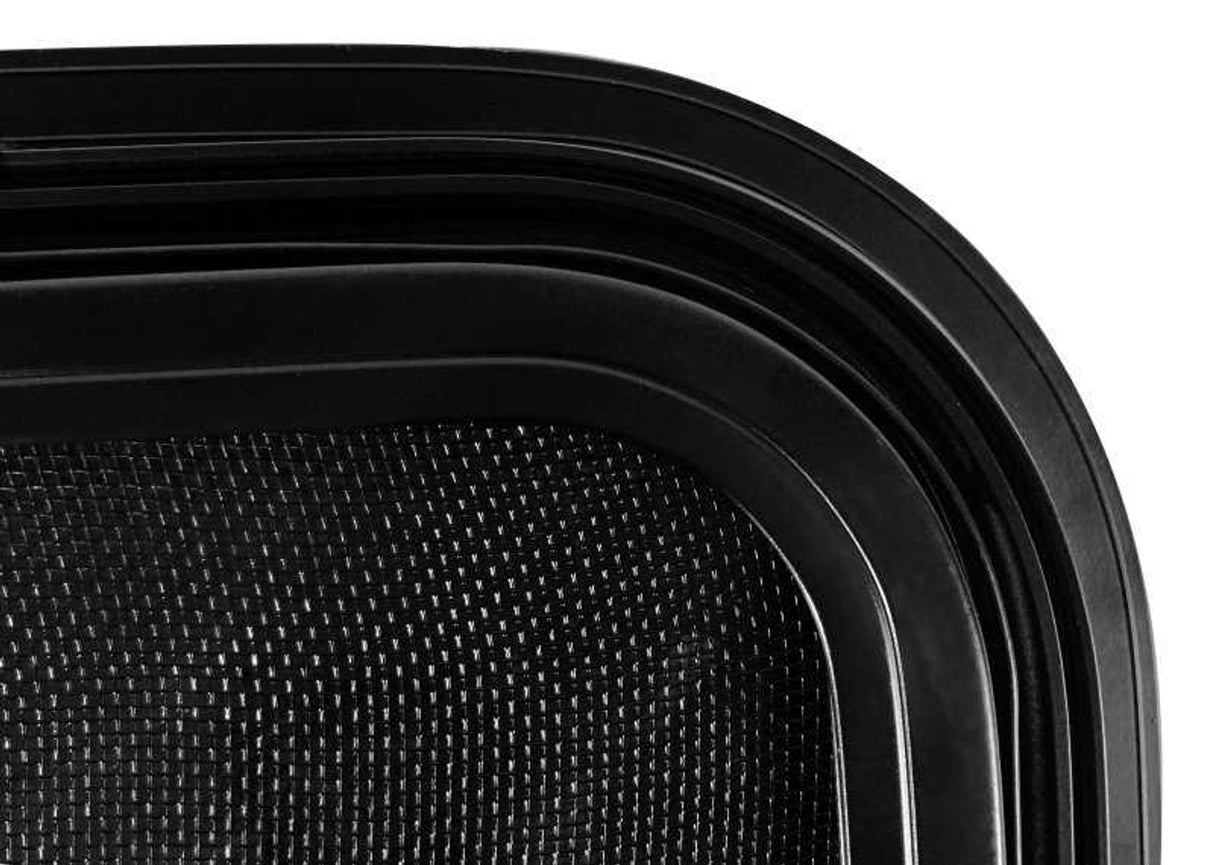

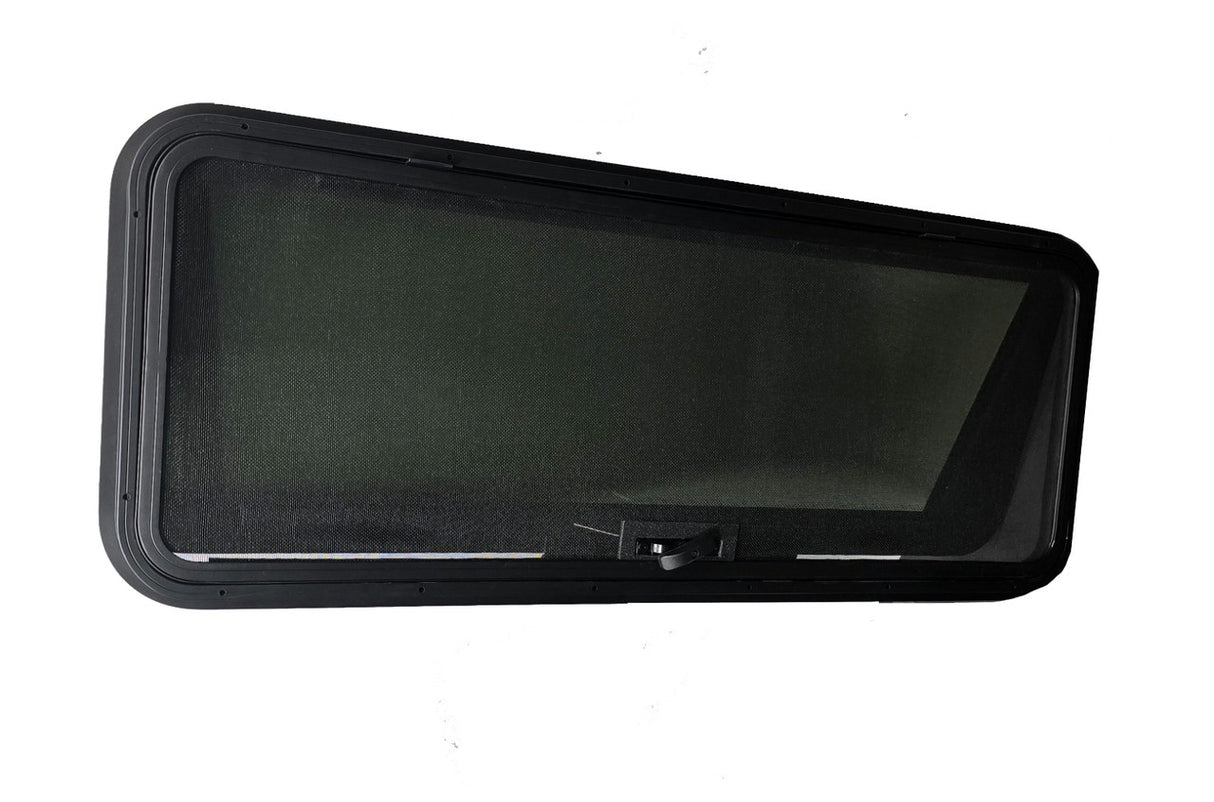

This bunk window is an easy-to-install flat awning crank-out window that features a removable screen and measures 41-1/4" long and 16-3/8" tall. The window is crafted with solar privacy glass and features an upgraded 3M UV coated Foam seal for increased longevity and a more reliable weather-tight seal compared to competitive models.

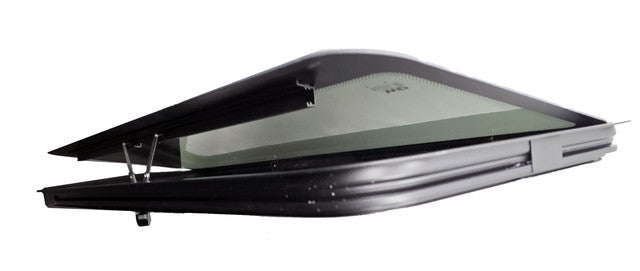

The awning tilts out 3", allowing air to flow through the massive 41-1/4" x 16-3/8" opening enabling some of the best ventilation for a bunk window. Best of all, you can even keep it open while it's raining!

Key Features: VWD Universal Awning Bunk Window (AWN4015C)

  • Universal Fit
  • Color = Matte Black powder coat frame
  • Solar Privacy Glass
  • Matte Black powder coat frame
  • UV Rating = 17%
  • T-Handle style knob
  • Installation Type = Clamp Ring
  • Mfg Country = China
  • Mfg Warranty = 1 Year
  • Outside Frame Dimensions: 41-1/4" x 16-3/8"
  • Cut-Out Dimensions: 40" x 15"
  • Clamp Ring Size: 1/8"

When mounting these windows in your van or camper:

  • If you can, cut the openings with a center-blade shear, rather than a jigsaw - this will cut an opening that may be less ragged, produce less debris, and produce less hammering on the sheet metal of the van.
  • Make sure you paint the cut edges of the new window opening - if you skip this step, moisture can rust out the edges of the window mounting.
  • These windows are designed to clamp onto the sheet metal body of the vehicle, they do not require any spacers. It cannot clamp to anything larger than 1/8".
  • It is recommended to let the self-tapping screws do their job and bore their own hole. However, pre-drilling with a 1/16" metal drill bit helps get them started and you won't risk damaging the window or screw. In previous install scenarios, pre-drilling and getting the screw started with a drill makes it faster. Finish tightening the screws with a handheld screwdriver to avoid stripping out the hole.

Specificatons: VWD Universal Awning Bunk Window (AWN4015C)

Outside Frame Dimensions:  41-1/4" x 16-3/8"
Cut-out Dimensions:  40" x 15"
Weight (lbs.): 16
Tint: 17% UV tinting
Window Type: Fixed Awning with Screen (Clamp-in)
Fits: All van models, universal placement

VWD Clamp-in Awning Window Install Video:
