Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R)
Please allow 2-3 weeks lead time before shipping.

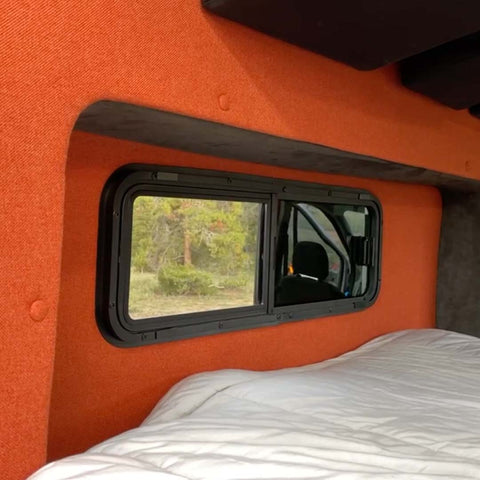

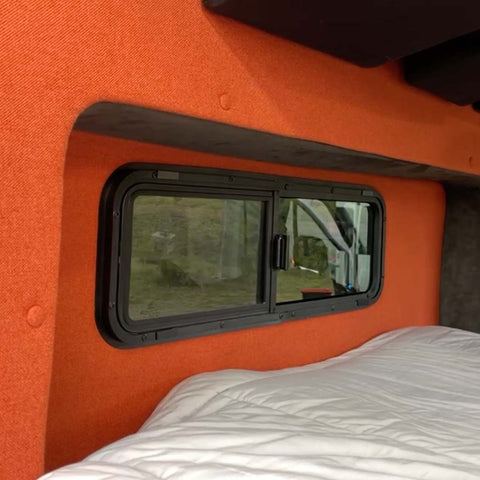

Need smaller rear sliding windows for camper vans with rear beds? The Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R) will complement the styling of your camper van, whether it's a Mercedes Sprinter, Ford Transit, Ram Promaster or Nissan NV.

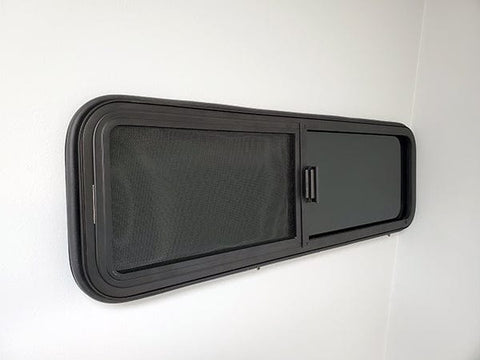

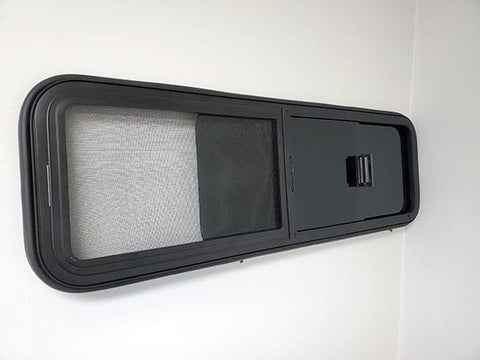

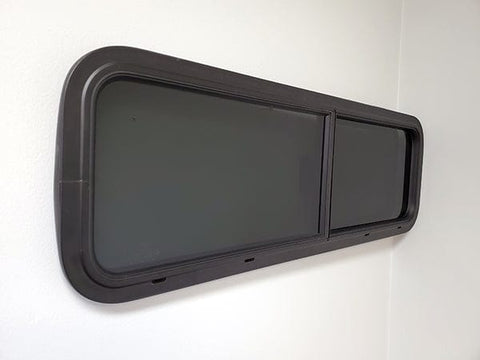

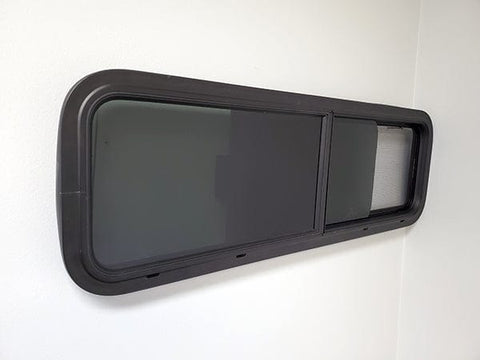

This single-pane glass FS1033R half-slider window has an opening panel which slides horizontally. The opening section of the window also has a detachable screen. This window is a clamp-in style, meaning it has pre-applied weatherstripping, so you don't need any adhesive to install it. Also, it's designed to clamp right onto the sheet metal of your van, no brackets or adapters are necessary.
Want a similar size and shape window but that you can use in rainy conditions? Check out the Arctic Tern awning-style bunk window which comes with a built-in blind and screen assembly.
All Flarespace sales may be canceled within 24 hours of ordering. Fiberglass products may not be returned, exchanged or canceled after 24 hours. All other Flarespace products may be evaluated for exchange or return on a case by case basis.
Key Features: Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R)
This Half-Slider Bunk Window (Passenger Side, FS1033R):
- Fits the passenger's side of any van model
- Has cutout dimensions of 10" high x 33" wide
- Has 28% dark gray factory tint
- Has detachable screens
- Comes with pre-applied weatherstripping (no sealant, tape or adhesive needed for install)
- Uses tempered glass for maximum safety and strength
- Is tested to ANSI Z26.1 and FMVSS 205 safety standards
- These windows include a 1/8" clamp ring (which doubles as a trim ring) mounted with screws.
When mounting these windows in your van:
- A template is useful, but not included. Carefully cut the opening according to your template.
- Make sure you paint the cut edges of the new window opening - if you skip this step, moisture can rust out the edges of the window mounting. Also, be careful not to block the weep holes on the bottom of the frame, they let condensation out, again to prevent rust.
- These windows are designed to clamp onto the sheet metal body of the van, they do not require any spacers.
- It is recommended to let the self-tapping screws do their job and bore their own hole. However, pre-drilling with a 1/16" metal drill bit helps get them started and you won't risk damaging the window or screw. In previous install scenarios, pre-drilling and getting the screw started with a drill makes it faster. Finish tightening the screws with a handheld screwdriver to avoid stripping out the hole.
Specifications: Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R)
| Outside Frame Dimensions: |
33-7/8" x 10-7/8" |
| Cut-Out Dimensions: |
33" x 10" |
| Shipping Weight (lbs.): | 15 |
| Clamp Ring Size (in.): | 1/8" |
| Tint: | 28% dark gray |
| Window Type: | Fixed Slider, Screened (Clamp-in) |
| Fits: | All van models |
| Minimum Order: | 1 Each |
| Ship Via: | Can Ship UPS |
Video: Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R)
Vehicle fitment
- Product type
- RV awning
- Vehicle
- Camper vans, RVs, trailers, and mobile builds
- Side
- Passenger side
- Window type
- Opening window
- Opening style
- Half-slider
- Screen
- This is an opening window with a sliding screen.
- Install type
- Clamp-in
- Summary
- Camper vans, RVs, trailers, and mobile builds that need a compatible RV awning. Confirm awning length, bracket compatibility, mounting surface, door/roof clearance before ordering. Product listing notes: This single-pane glass FS1033R half-slider window has an opening panel which slides horizontally. The opening section of the window also has a detachable screen. This window is a clamp-in style, meaning it has pre-applied weatherstripping, so you don't need any adhesive to install it. Also, it's designed to clamp right onto the sheet metal of your van, no brackets or adapters are necessary. Want a similar size and shape window but that you can use in rainy conditions? Check out the Arctic Tern awning-style bunk window which comes with a built-in blind and screen assembly. Fits the passenger's side of any van model
- Install requirements
- This is a clamp-in window installation that only requires the window. Confirm the cutout, clamp ring fit, and mounting clearances before ordering. See the Clamp-in van window install guide.
Fitment FAQ
What does this Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R) fit?
This Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R) fits Camper vans, RVs, trailers, and mobile builds.
Is this product vehicle-specific?
This RV awning is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.
What should I verify before ordering?
Confirm awning length, bracket compatibility, mounting surface, door/roof clearance before checkout.
What installation details matter?
Confirm awning length, bracket compatibility, mounting surface, door/roof clearance before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This RV awning is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
Do Campervan HQ van windows come with instructions?
Most van windows are sold for DIY van builders and may not include manufacturer instructions because many manufacturers assume installation by someone familiar with van window installation. Check the Campervan HQ van window installation blog for guidance. For CR Laurence van windows, you can also search YouTube for CR Laurence window install videos.
Do van windows require adhesive and primer?
This is a clamp-in van window. Clamp-in windows do not require primer or urethane adhesive because they seal against the van body with weatherstripping, an exterior compression ring, foam gasket tape where specified, or an interior trim ring. You still need an existing opening, so cargo vans without windows require the correct cutout before installation.
Do Campervan HQ van windows ship for free?
Most van windows do not ship free because large windows often require truck freight or special handling. When available, warehouse pickup can reduce or refund shipping costs. For large multi-item orders, contact Campervan HQ for an individual quote.
What should I check when a van window is delivered?
Inspect the window shipment before the delivery driver leaves. If there is damage, have the driver note it on the Bill of Lading and provide a signed copy. Without signed damage notation at delivery, Campervan HQ may not be able to make a shipping damage claim.
What is the return process for damaged or defective van windows?
For delivery damage, Campervan HQ needs a signed Bill of Lading showing the damage and photos of the damage. For a defective van window, Campervan HQ needs photos of the defect and will request a Return Authorization. In either case, re-package the window in the original box and tape the invoice number or return authorization number to the outside of the box.
Campervan HQ fitment guide
Flarespace Half-Slider Bunk Window (Passenger Side, FS1033R) fitment and installation guide
This universal-fit window is for camper vans, RVs, trailers, truck campers, and overland builds when the installer confirms install method, opening style, screen details, placement, structure, cutout, and wall thickness.
Why choose this product?
- Universal-fit camper van window for installer-confirmed applications
- RV, trailer, truck camper, and overland builds require matching dimensions and wall thickness
- Window operation and install type define the installation requirements
Installation context
- This is a clamp-in window installation that only requires the window
- Factory cutout or installer-cut opening dimensions must match the window
- Side, window position, roof height, and wheelbase must match before installation
Compatibility notes
Camper vans, RVs, trailers, and mobile builds that need a compatible RV awning. Confirm awning length, bracket compatibility, mounting surface, door/roof clearance before ordering. Product listing notes: This single-pane glass FS1033R half-slider window has an opening panel which slides horizontally. The opening section of the window also has a detachable screen. This window is a clamp-in style, meaning it has pre-applied weatherstripping, so you don't need any adhesive to install it. Also, it's designed to clamp right onto the sheet metal of your van, no brackets or adapters are necessary. Want a similar size and shape window but that you can use in rainy conditions? Check out the Arctic Tern awning-style bunk window which comes with a built-in blind and screen assembly. Fits the passenger's side of any van model
Common use cases
- Universal camper van window upgrades
- Camper van conversions
- RV window, trailer, truck camper, and overland build projects
