EcoFlow

EcoFlow 5 kVA Power Kit - Gen 2

FREE SHIPPING

SALE $1000 OFF

$ 8,24600
5kVA Kit Version
OurKaravan EcoFlow 80/20 Cabinet

Key Features
Your Kit version selected includes 1x 5kWh LFP Battery

The EcoFlow 2kWH Battery is compatible with both Gen 1 and Gen 2 EcoFlow Power Kits.

Key Features:

  • Supports up to 11 kW of charging from a combination of 4 charging methods: up to 4800W solar, 6000W alternator, 4000W shore power, and 3200W Smart Generator input.
  • Plug-and-play for simple assembly
  • Compact and integrated design, 5-in-one Power Hub includes a DC/DC charger, DC/DC converter, 2x MPPT charge controllers, and an AC/DC inverter.
  • Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls through EcoFlow PowerInsight and Power Kit Console displays, and the EcoFlow app
  • Made in China
  • 5-year warranty.

Expected Ship Time Mid-July

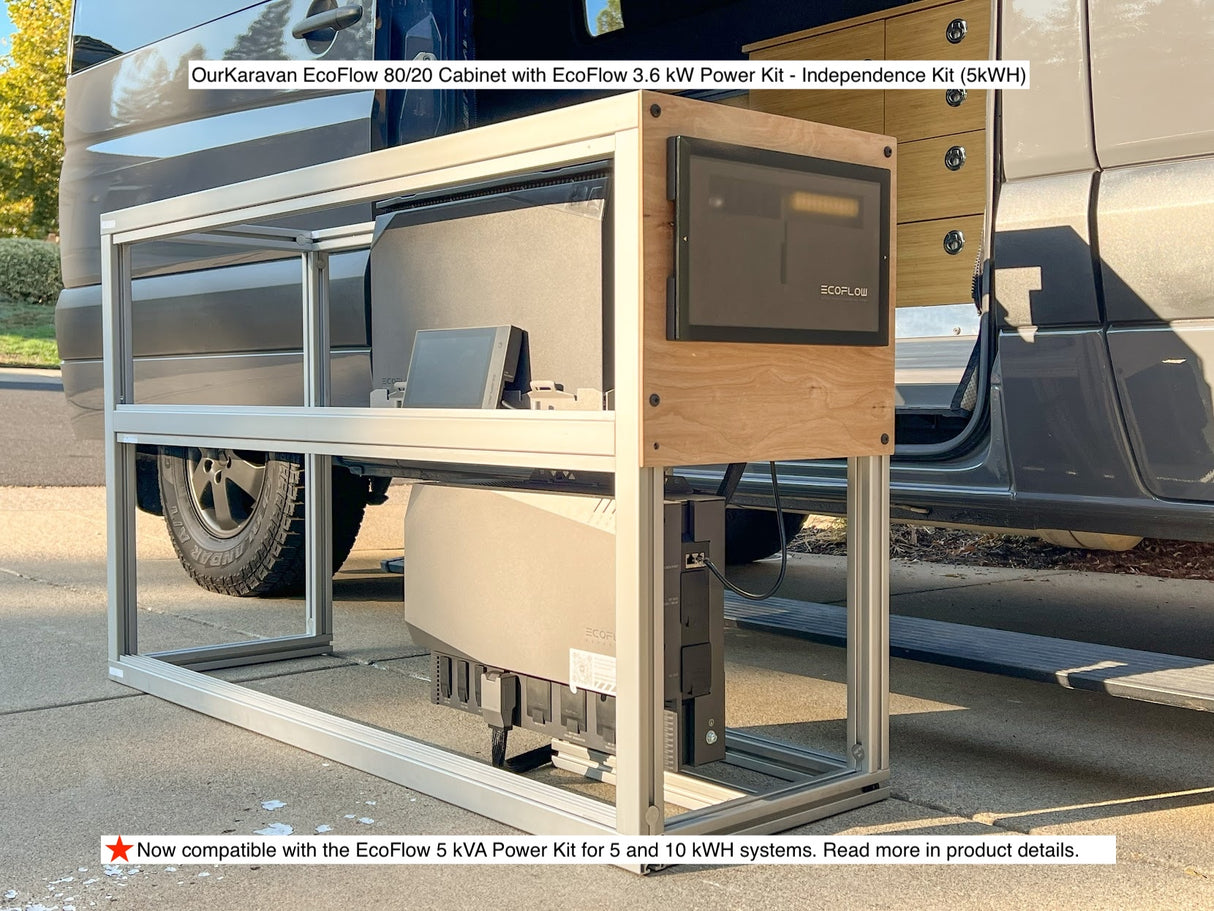

We recommend the 50A Distribution Panel with 10kWH Batteries for the ideal EcoFlow Power Kit experience. The OurKaravan EcoFlow 80/20 Cabinet is now compatible with the 5 kVA Power Kit for 5 and 10 kWH systems. Select in dropdown menu and then choose your add-ons.

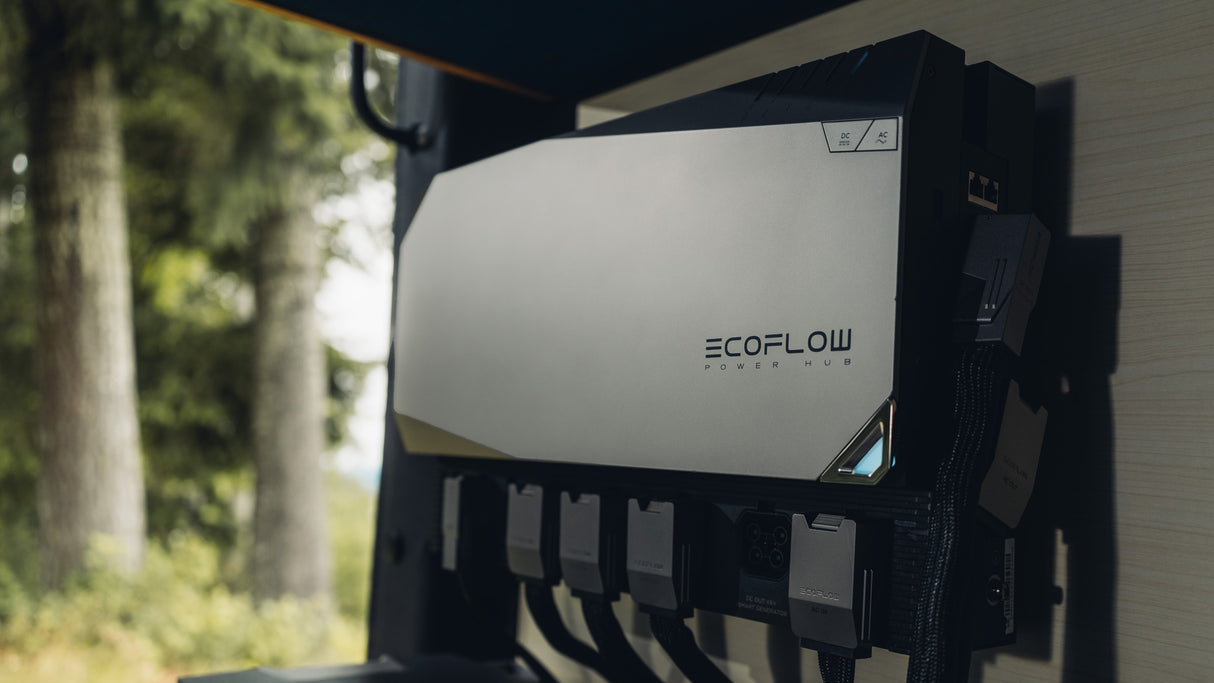

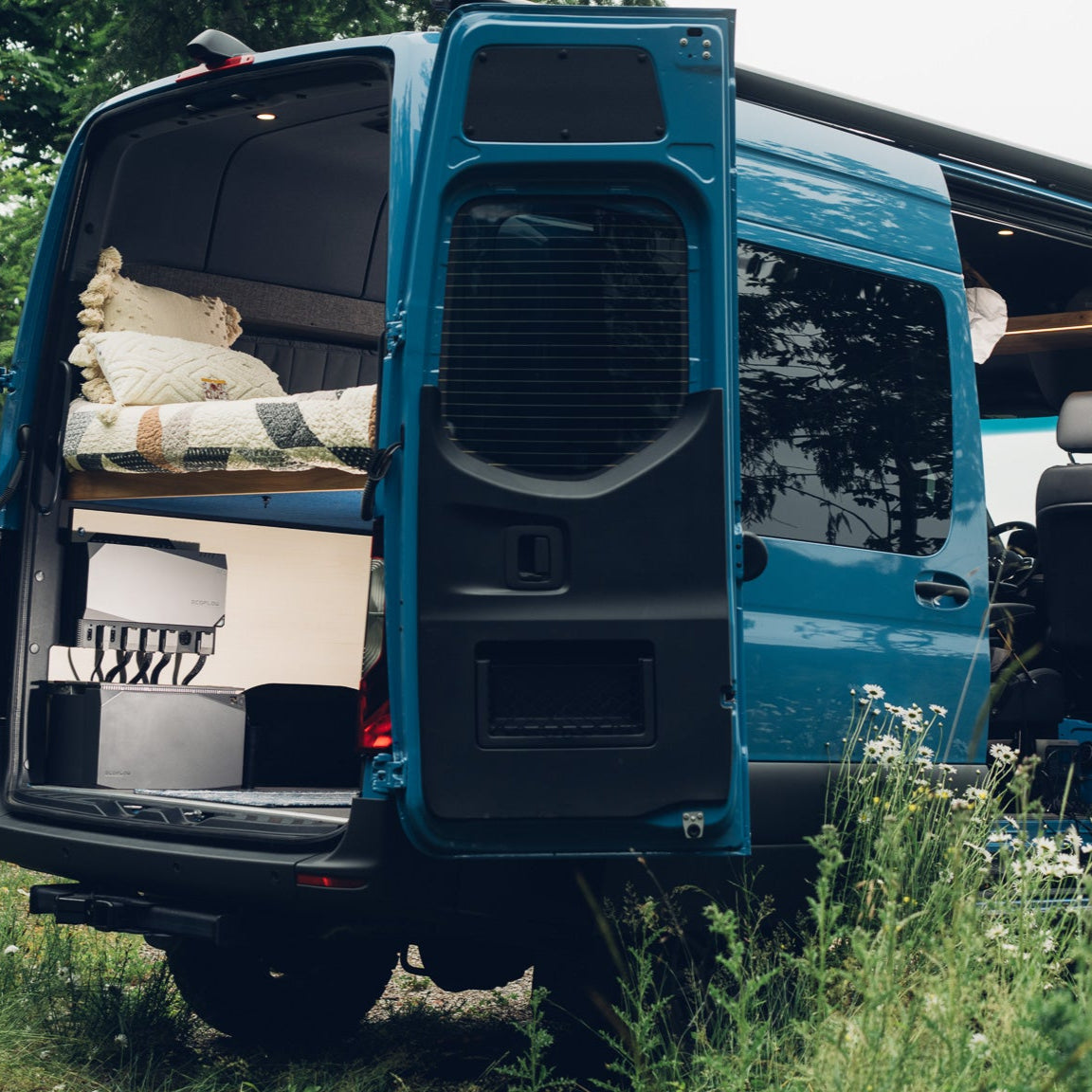

The hassle-free, high-powered EcoFlow 5 kVA Power Kit - Gen 2 is the newest version of EcoFlow's integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

CHOOSE YOUR KIT, BATTERIES, and 48V CABLE

You can choose between these variants of the EcoFlow 5 kVA Power Kit - Gen 2:

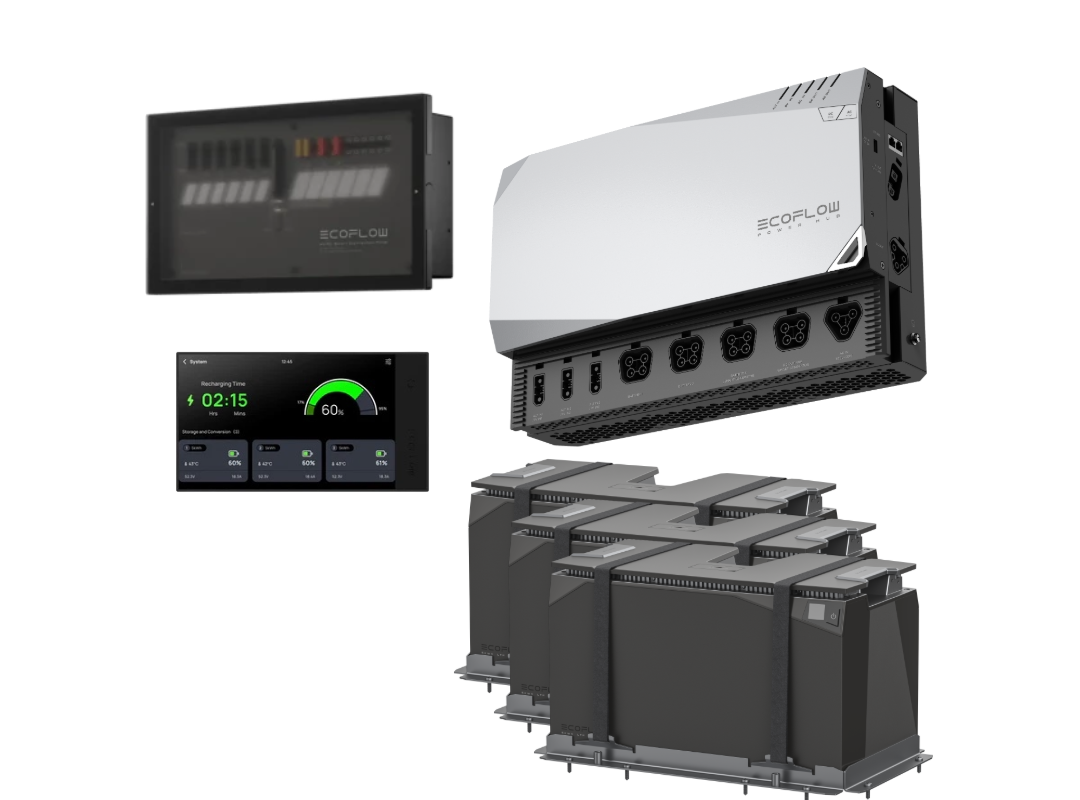

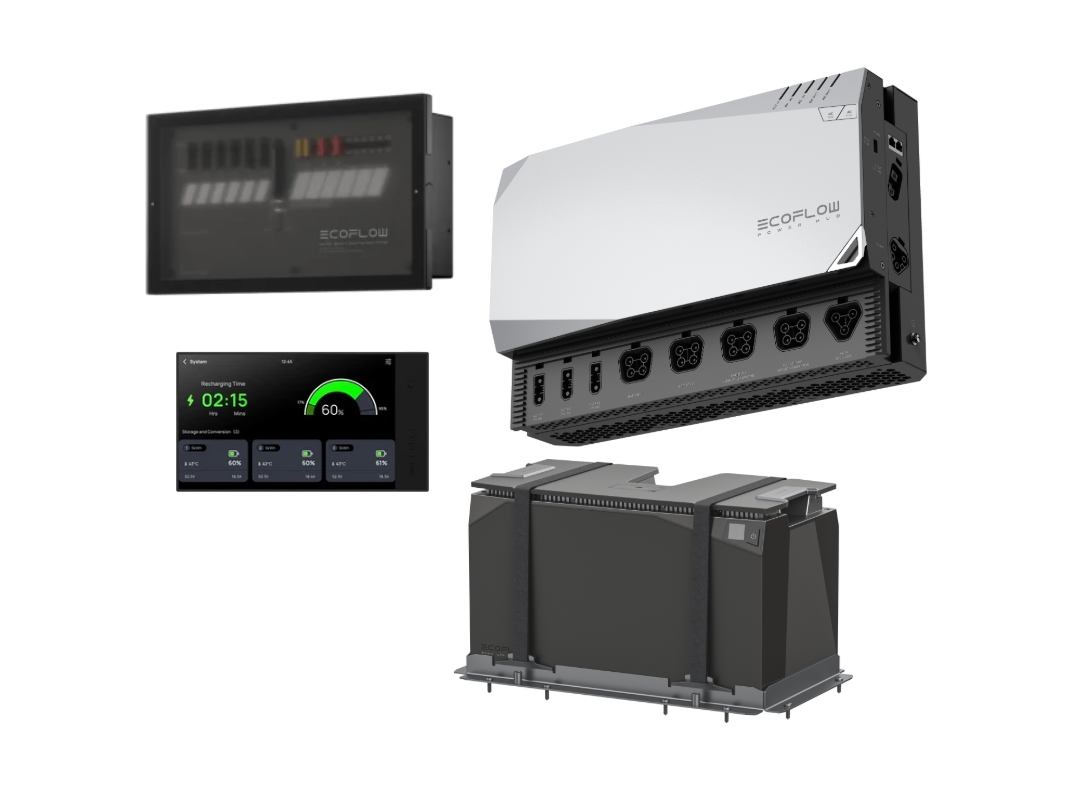

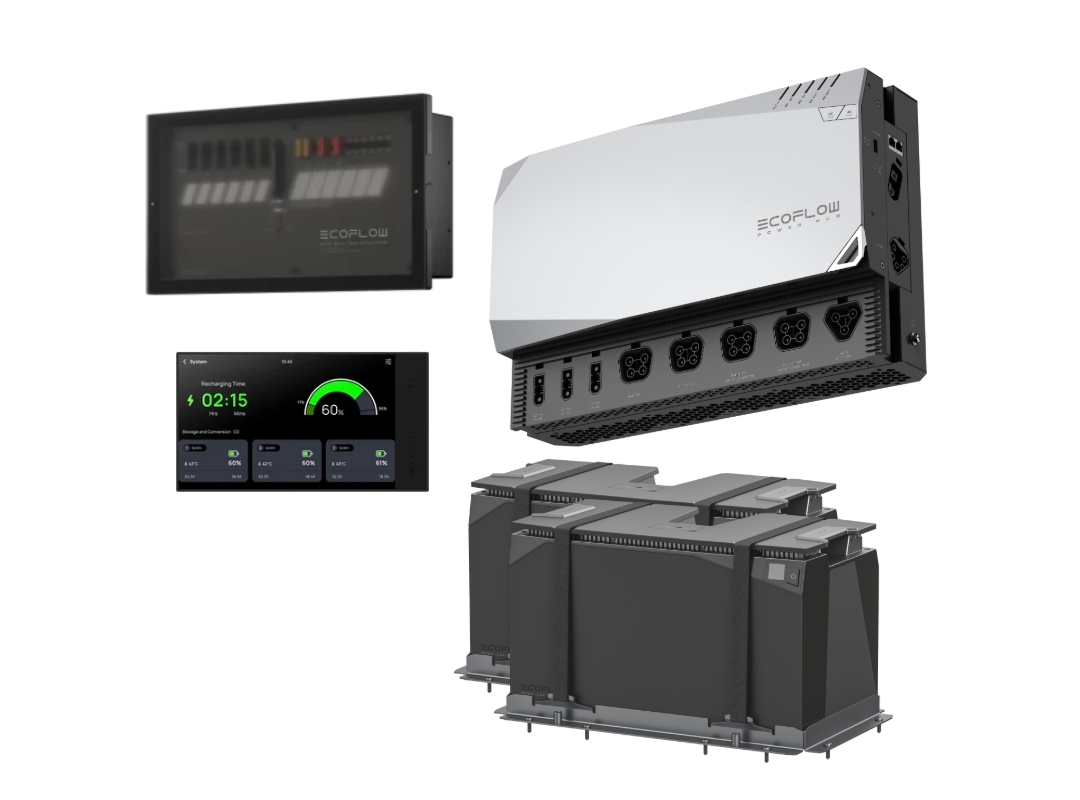

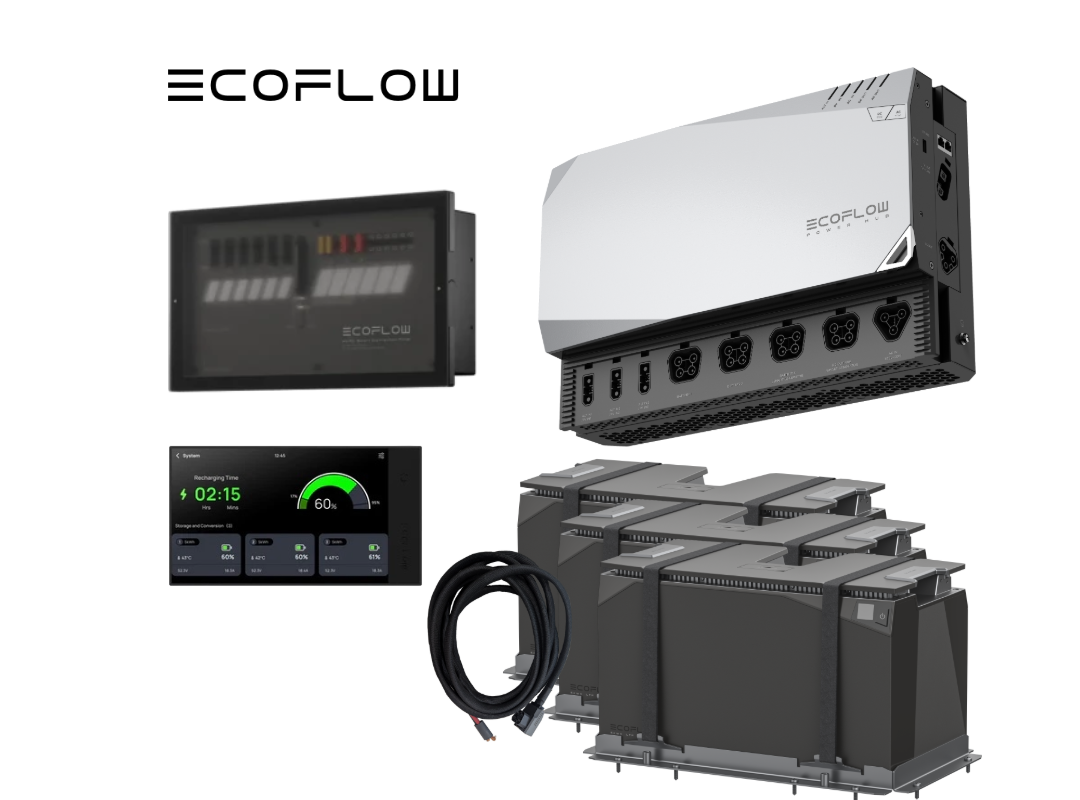

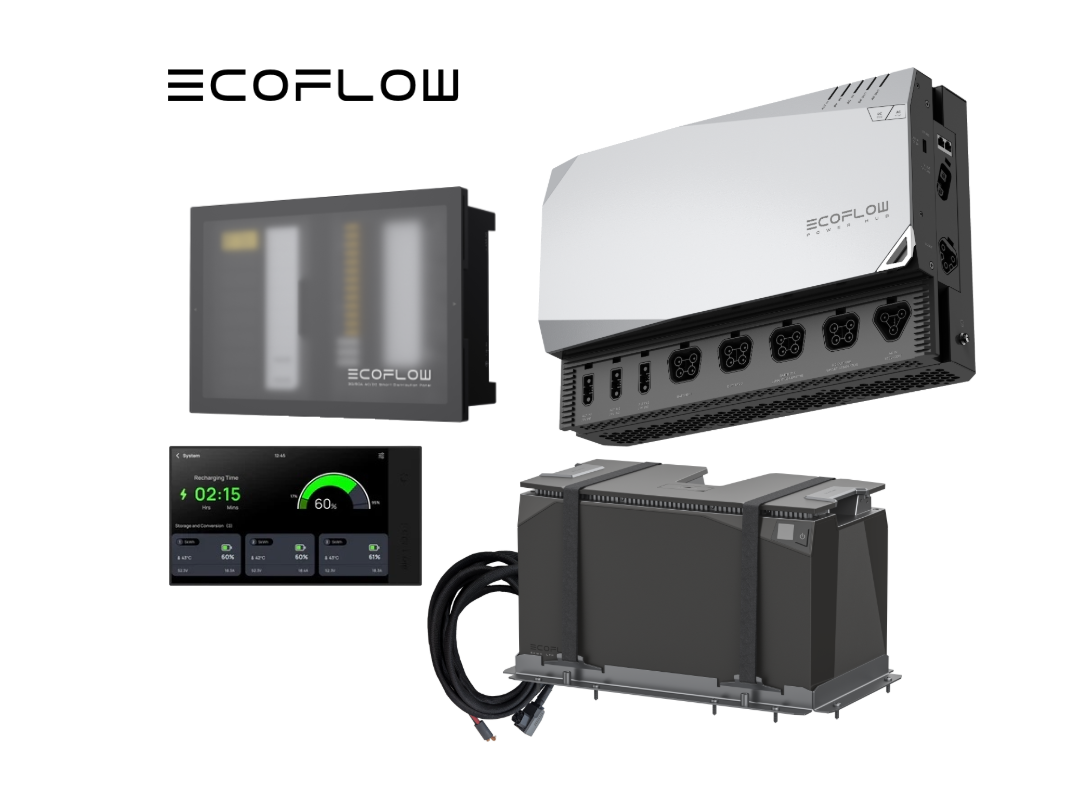

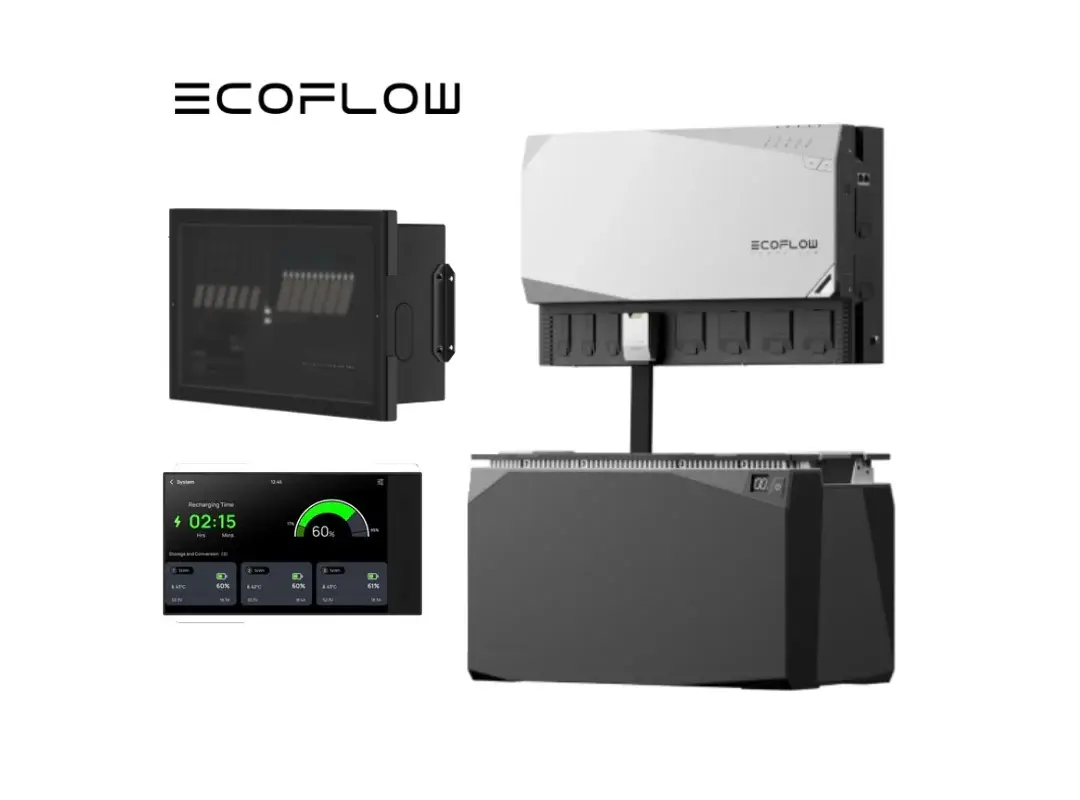

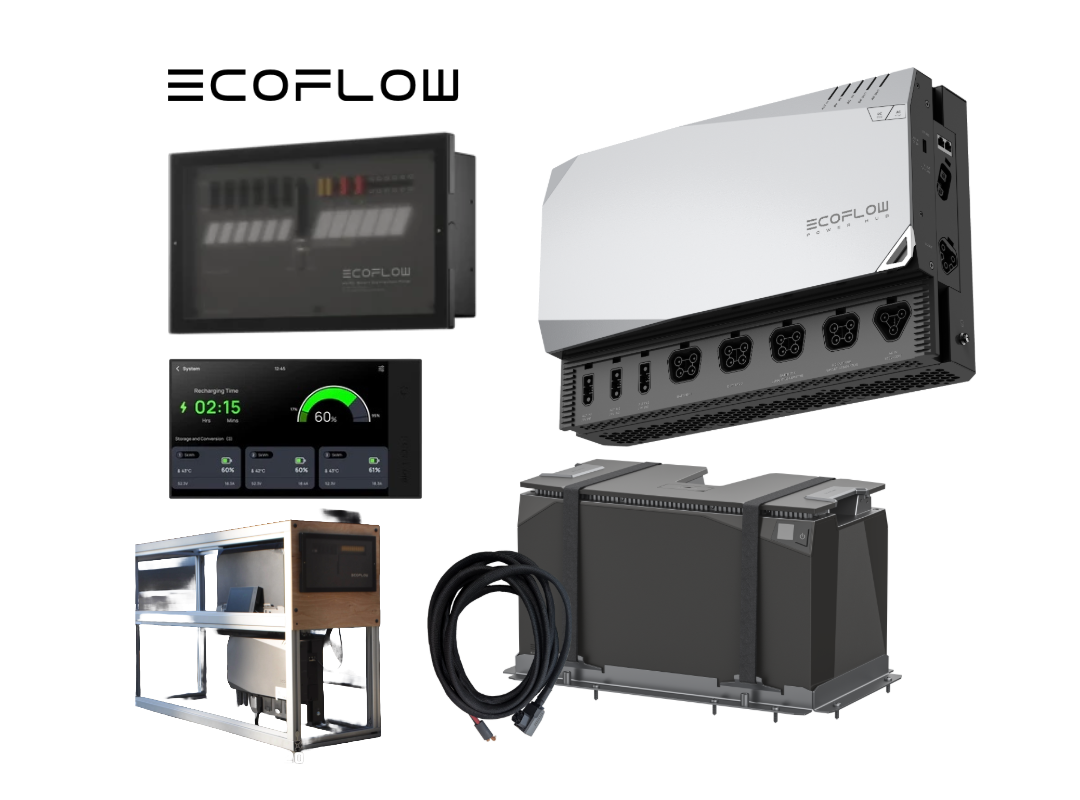

  1. 30A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps

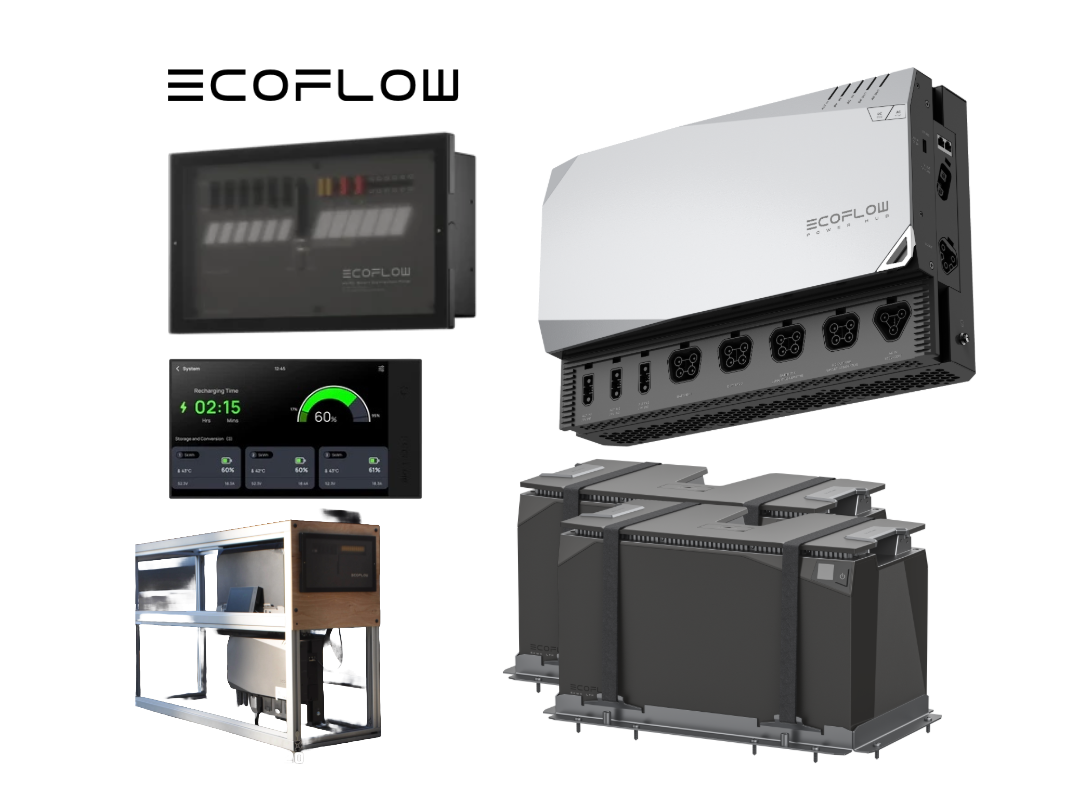

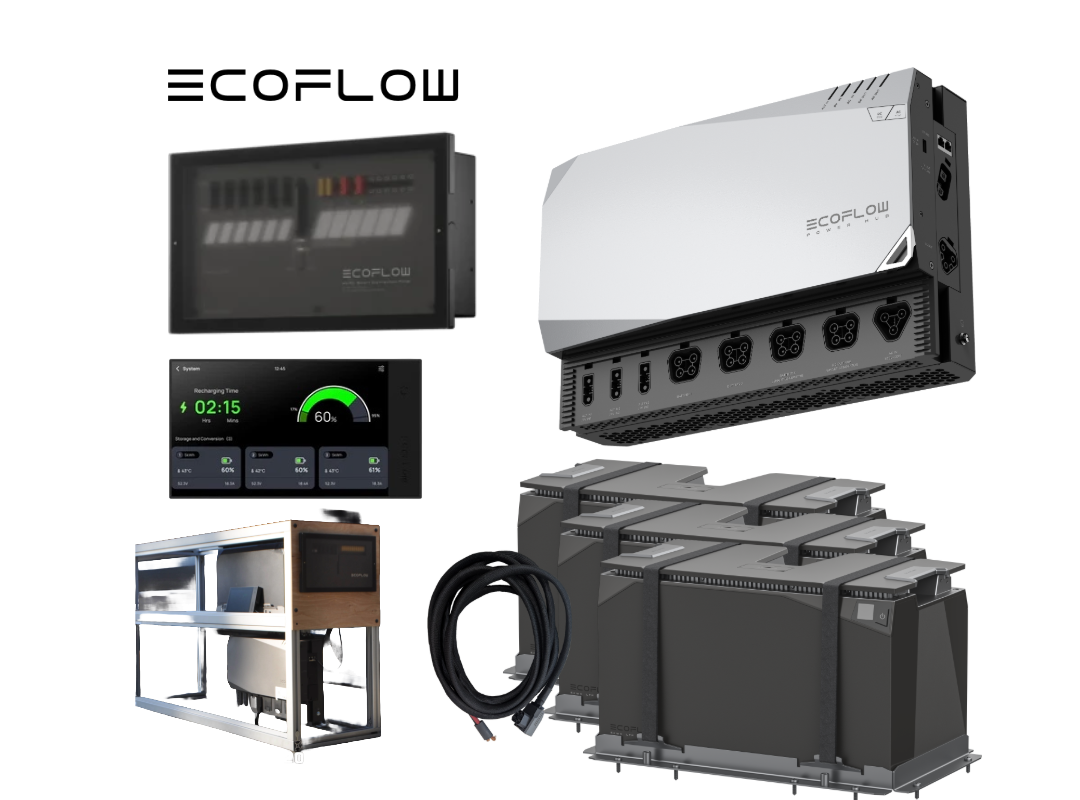

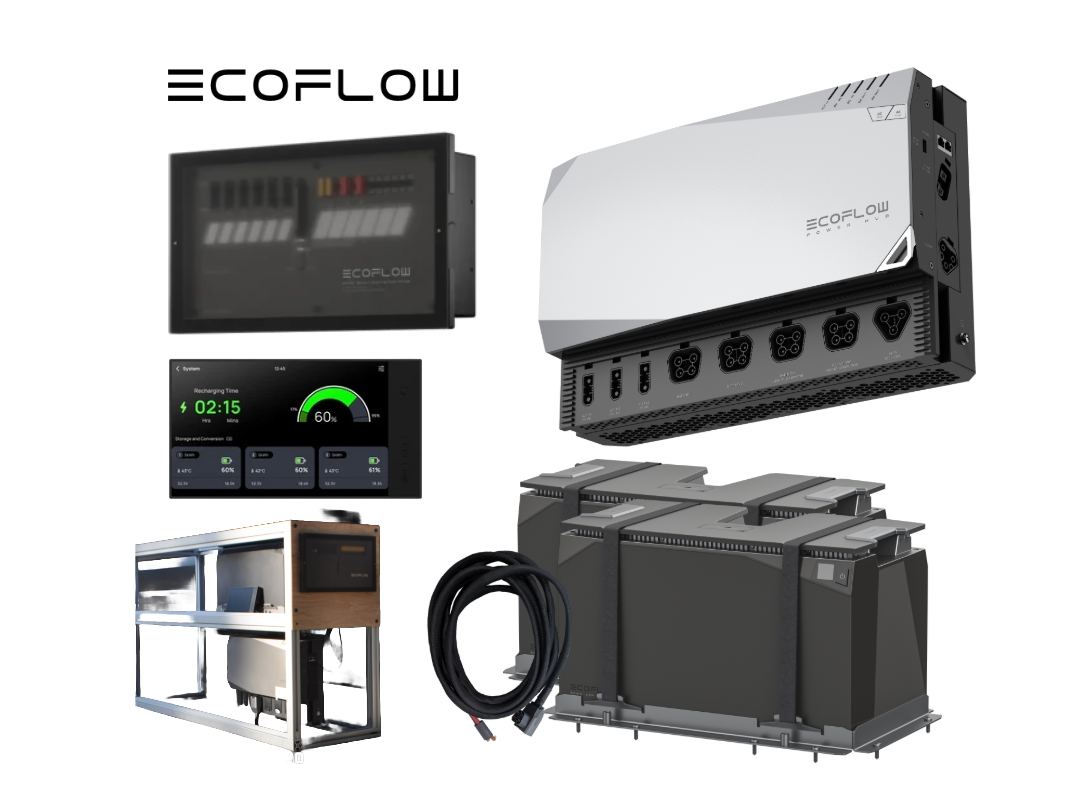

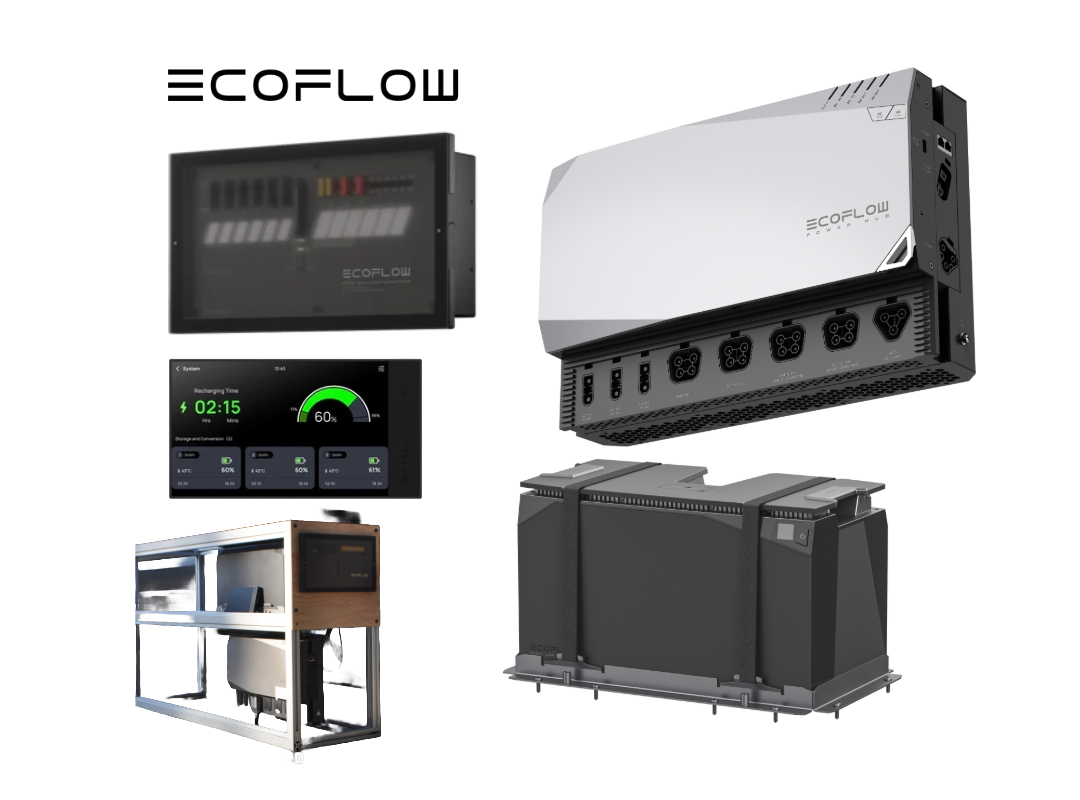

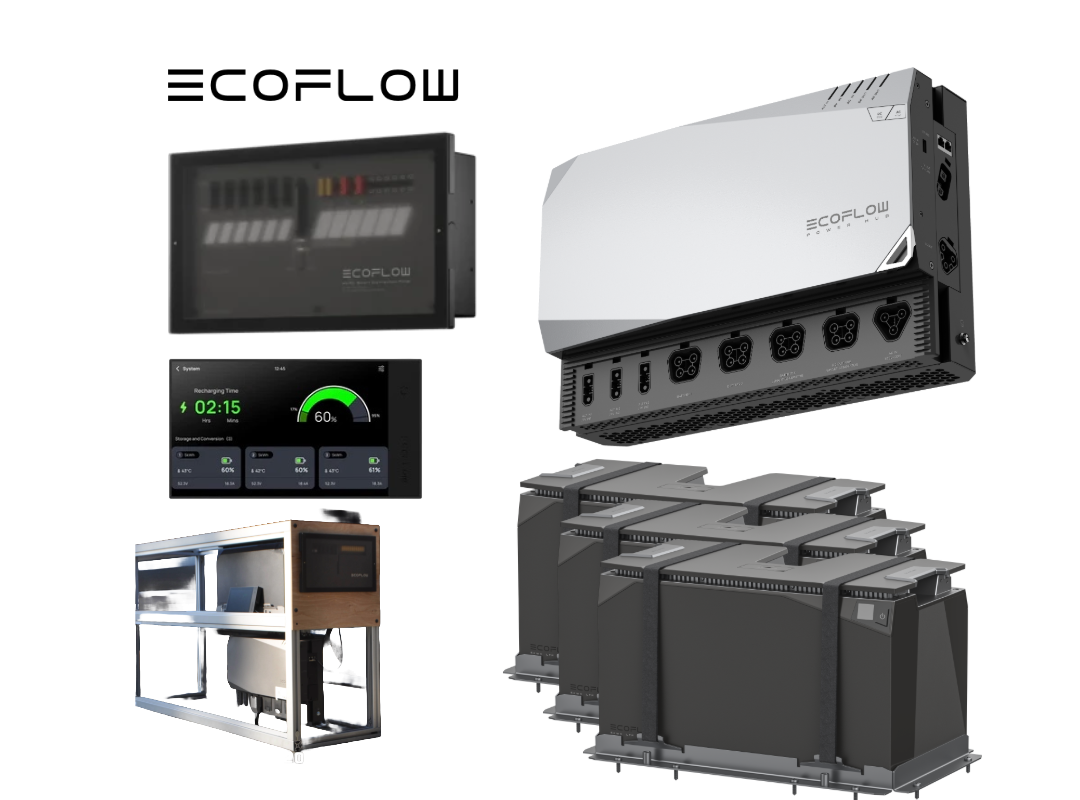

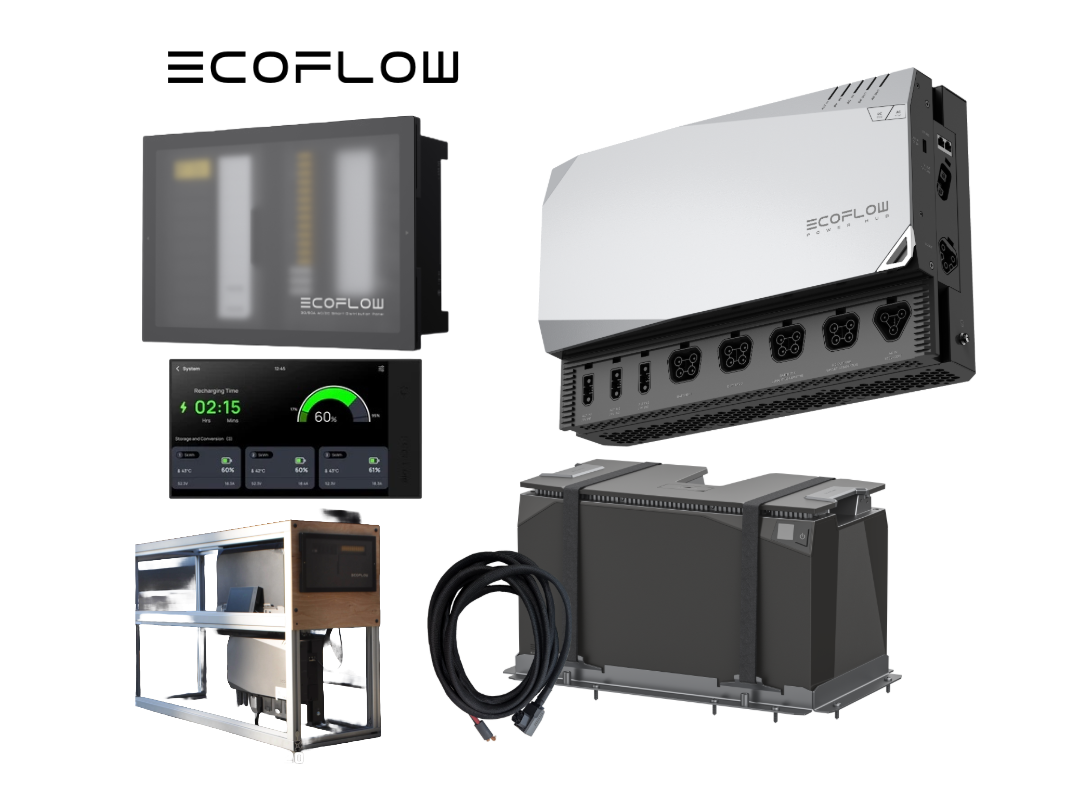

  2. 30A RV Kit with Console and OurKaravan EcoFlow 80/20 Cabinet includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps, OurKaravan EcoFlow 80/20 Cabinet with install hardware and installation instructions.

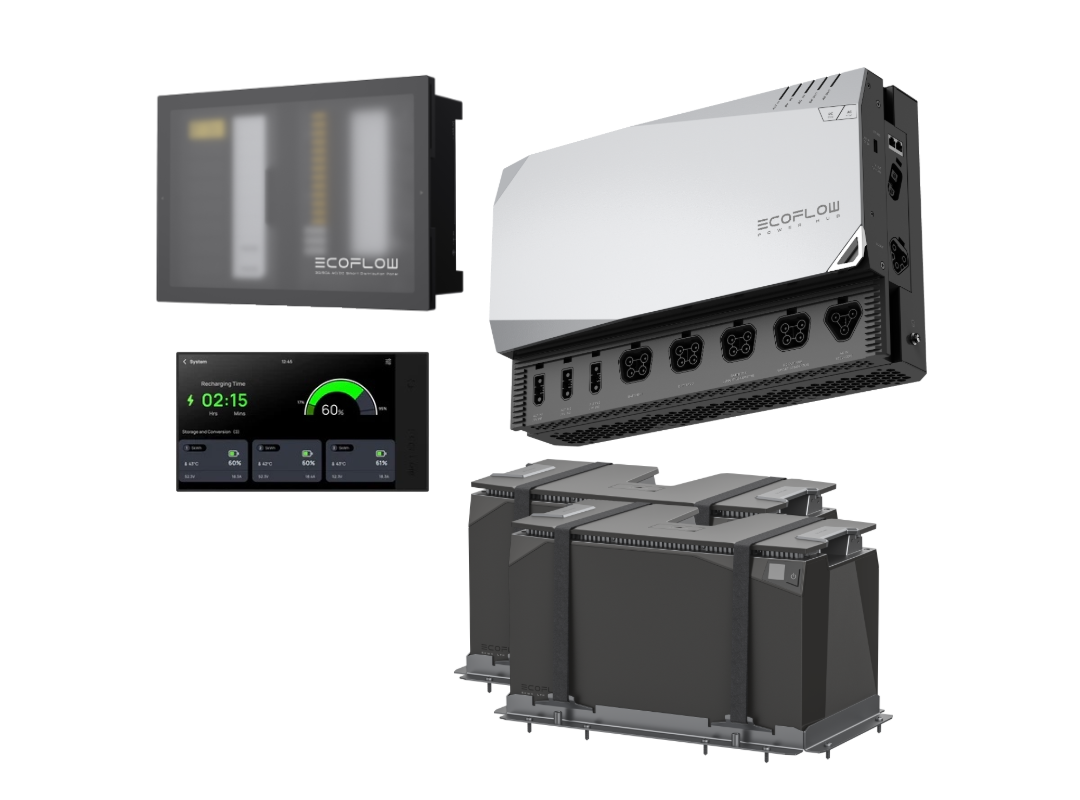

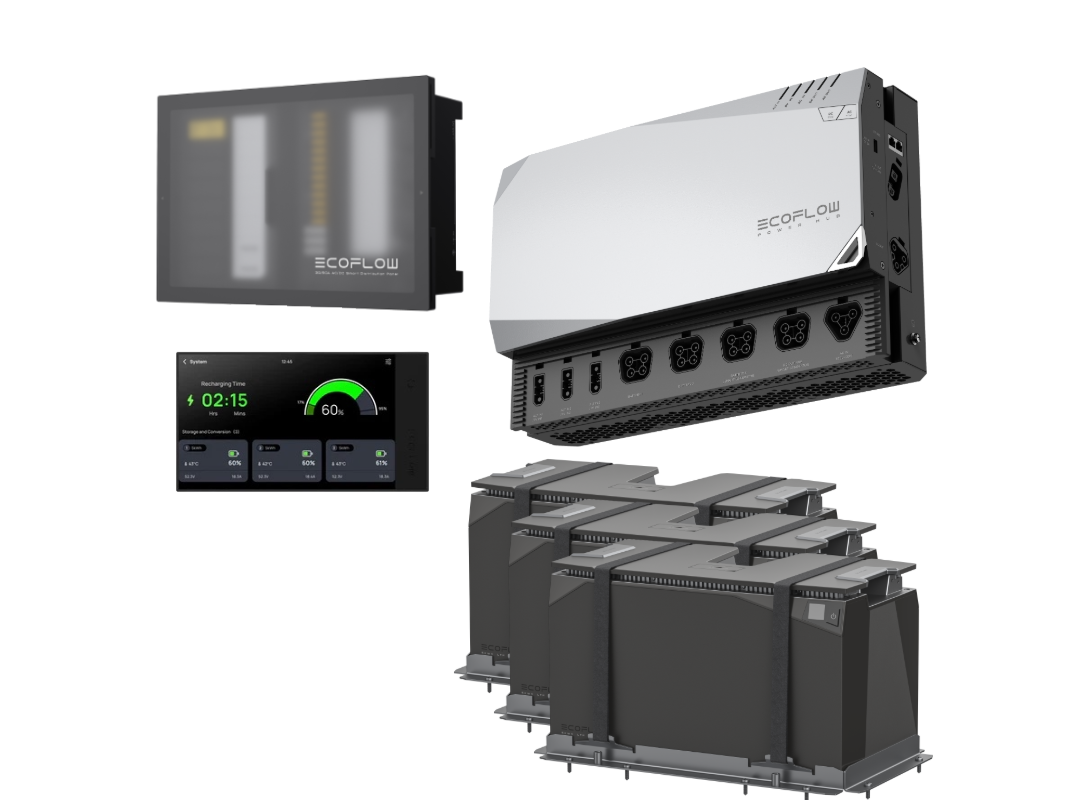

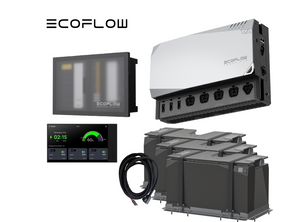

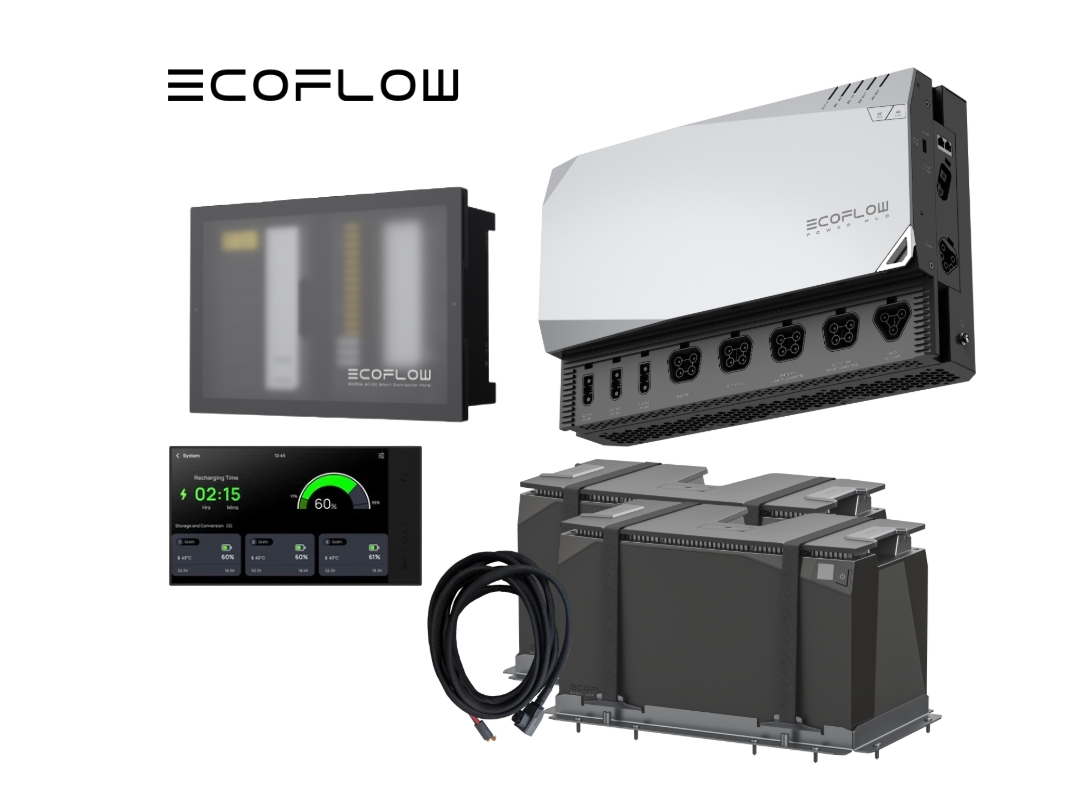

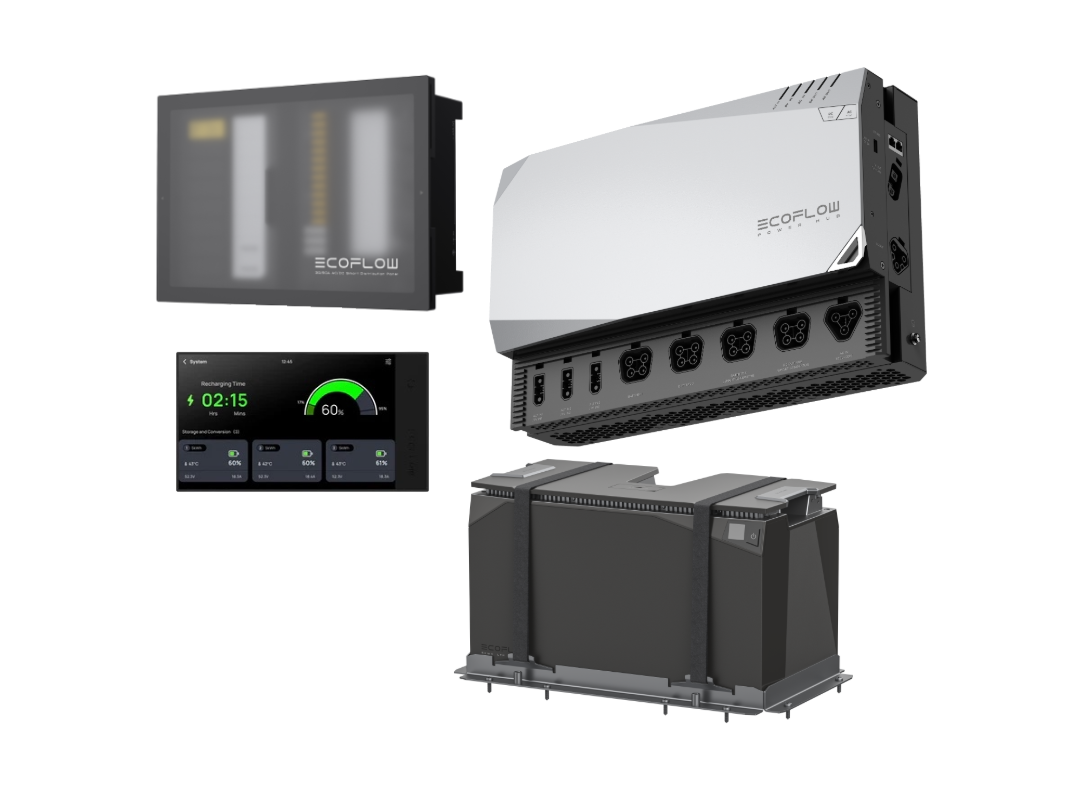

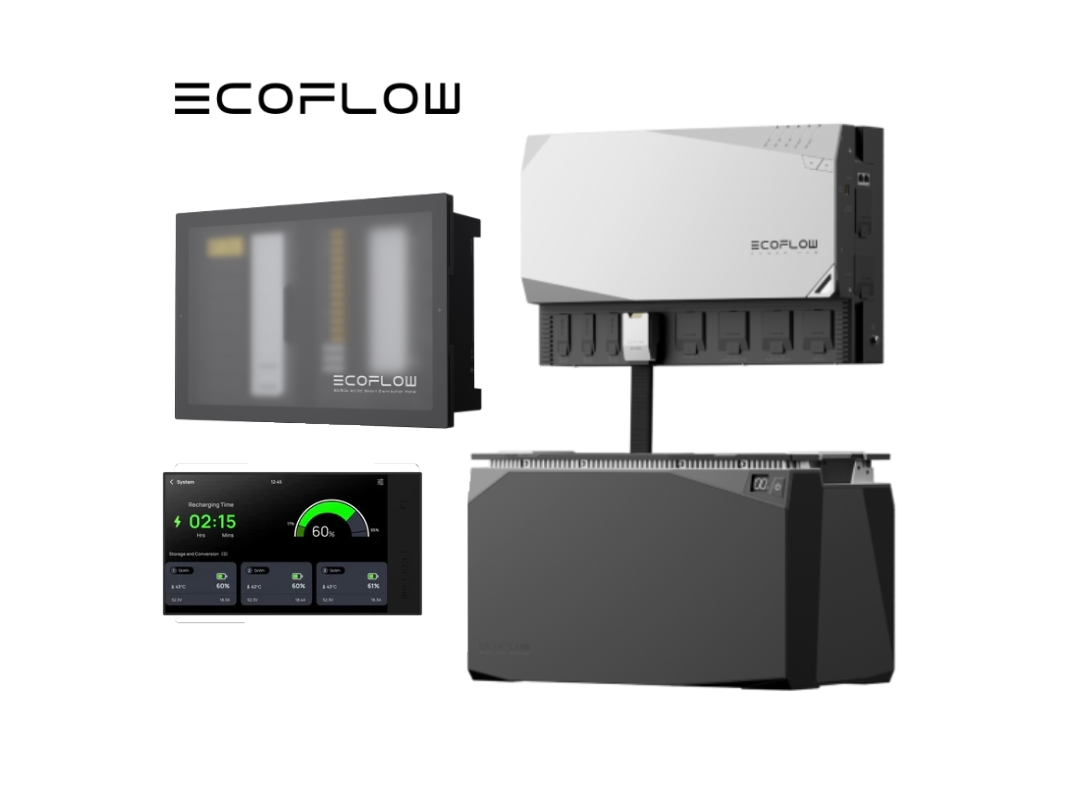

  3. 50A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps

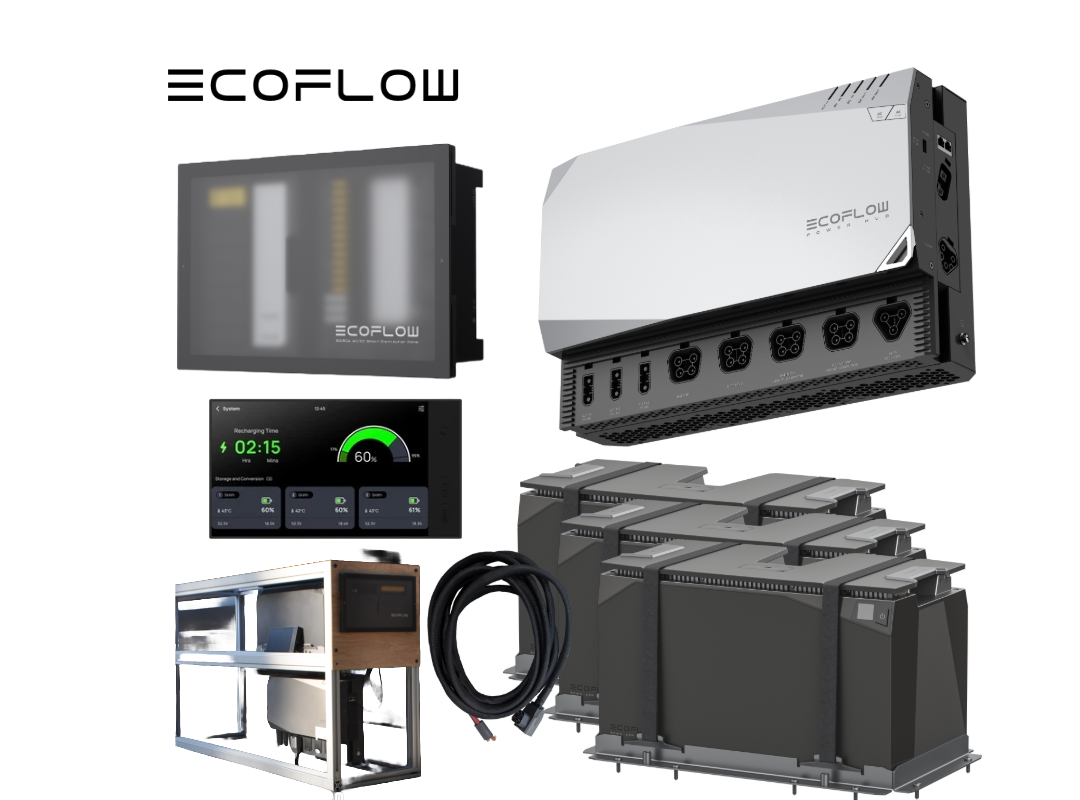

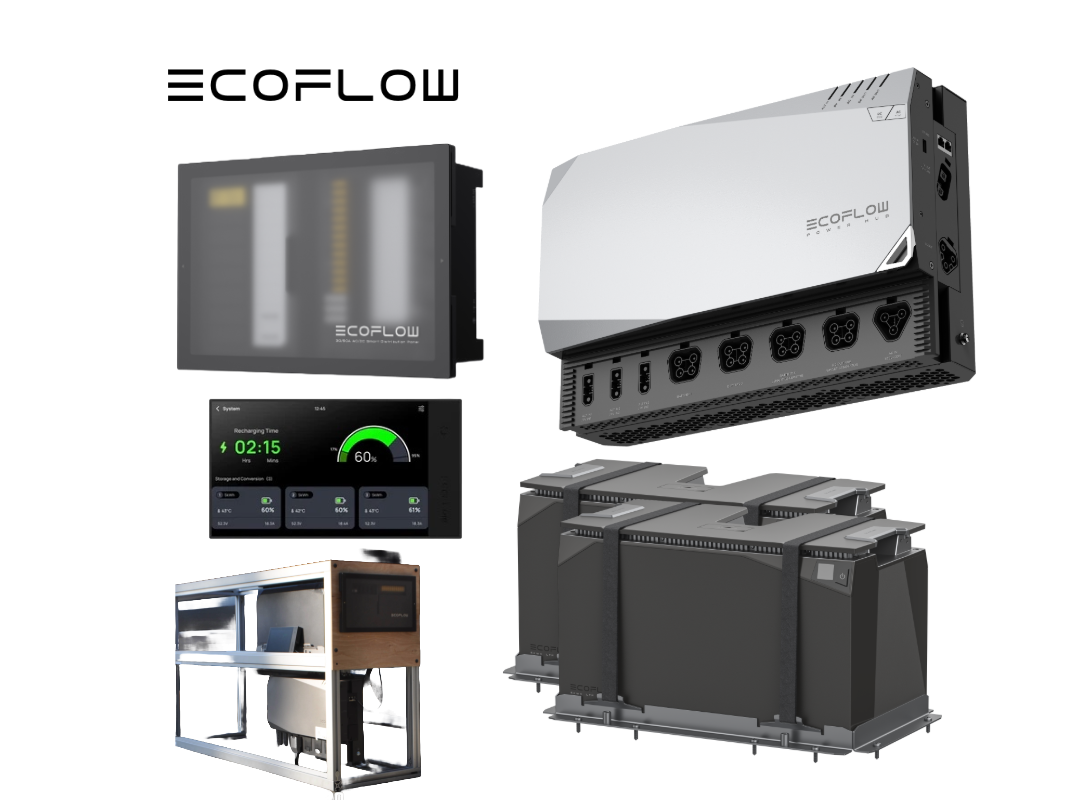

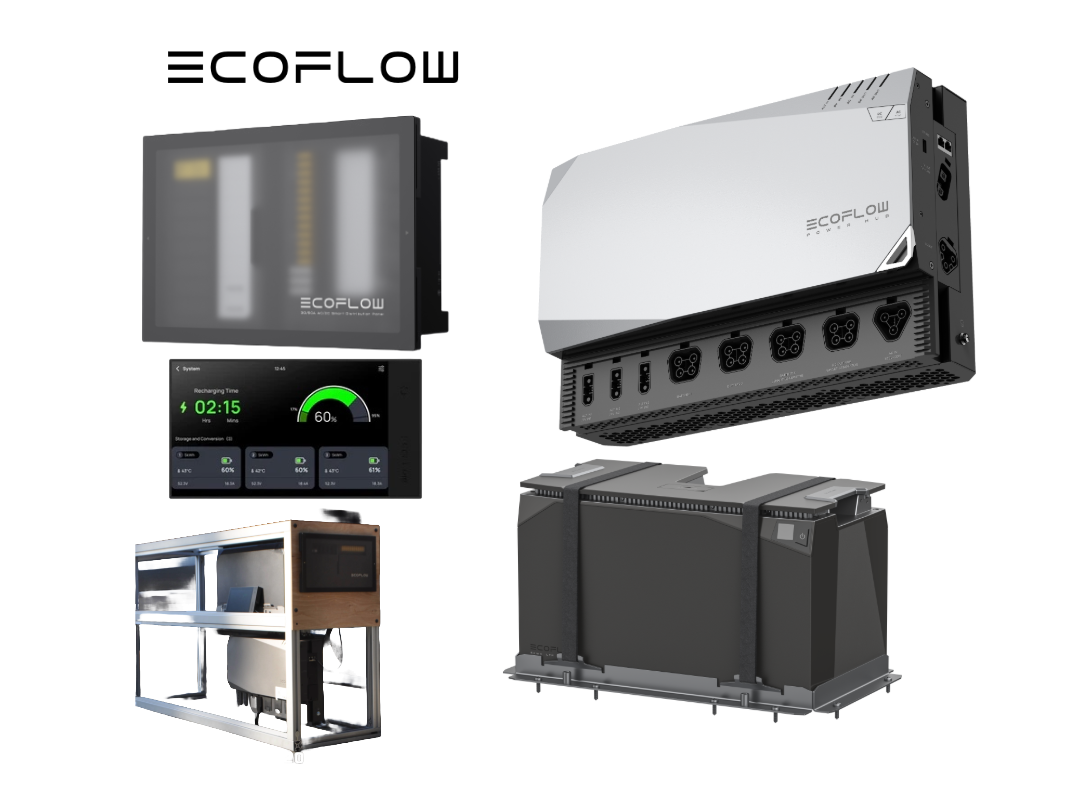

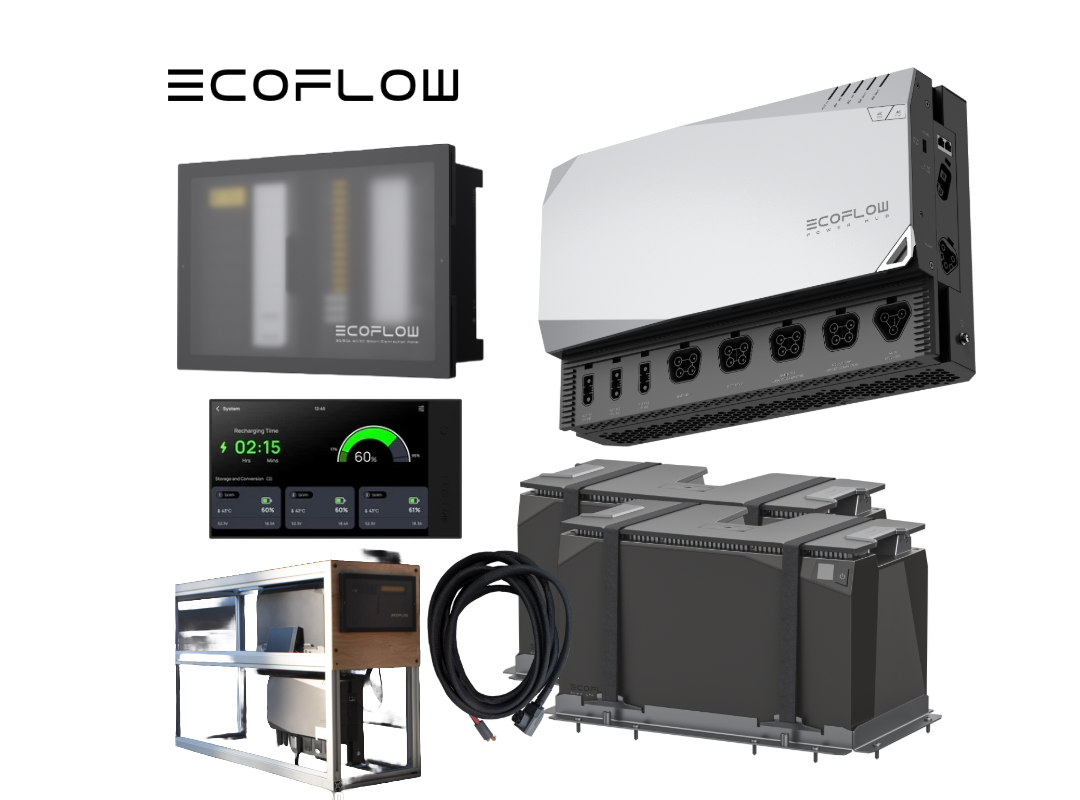

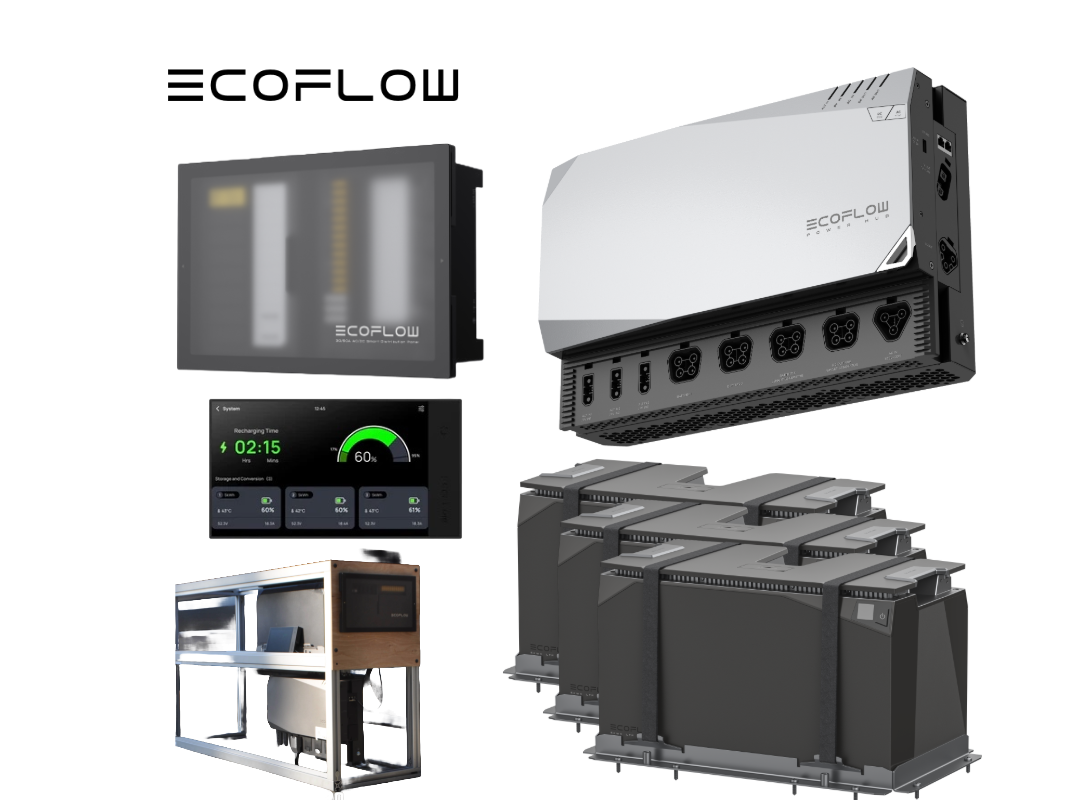

  4. 50A RV Kit with Console and OurKaravan EcoFlow 80/20 Cabinet includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps; OurKaravan EcoFlow 80/20 Cabinet with install hardware and installation instructions. Please see updated diagram for the 30A/50A Panel recommended install location below.

BATTERIES - POWER DOCK

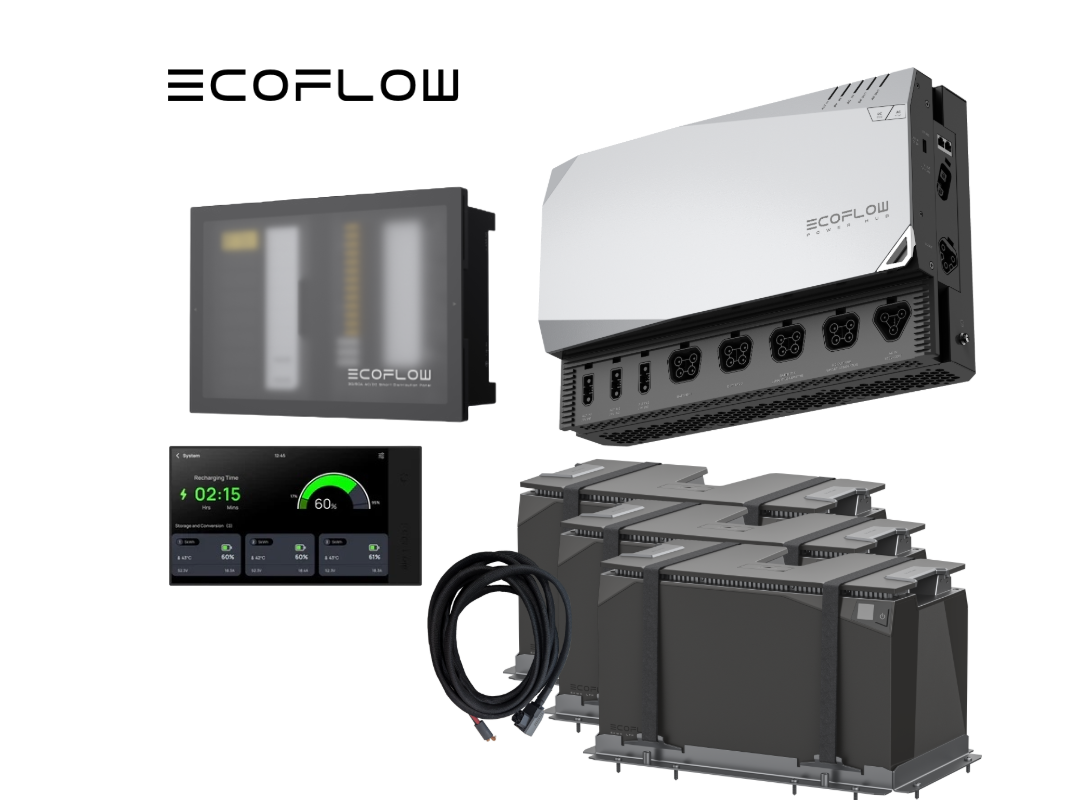

Your Kit Version selected includes a 5 kWh LFP Battery. Systems can expand up to 45 kWh when combining 3x EcoFlow Power Docks with 9x EcoFlow 5 kWh Batteries. You can also expand up to 18 kWh when combining 3x EcoFlow Power Docks with 9x EcoFlow 2 kWh Batteries. EcoFlow Power Kits allow mixing 2 kWh and 5 kWh batteries. We recommend at least 10 kWh-15 kWh when powering air conditioners, heaters, lights, etc. for the ideal EcoFlow Power Kit experience.

Note: The OurKaravan Cabinet is compatible with 5 and 10 kWH systems. A 3rd battery port will still be available if you plan to expand beyond the OurKaravan Cabinet Kit.

Note: The Power Dock to Power Hub connector cable is sold separately.

48V A/C CABLE

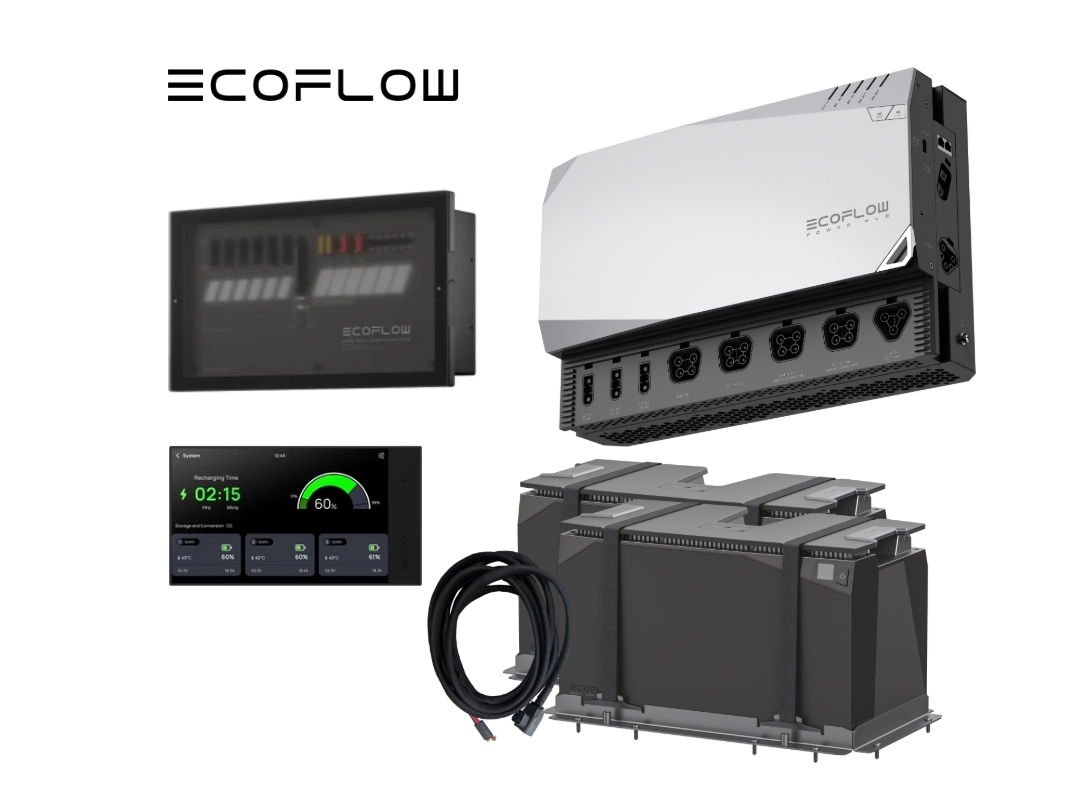

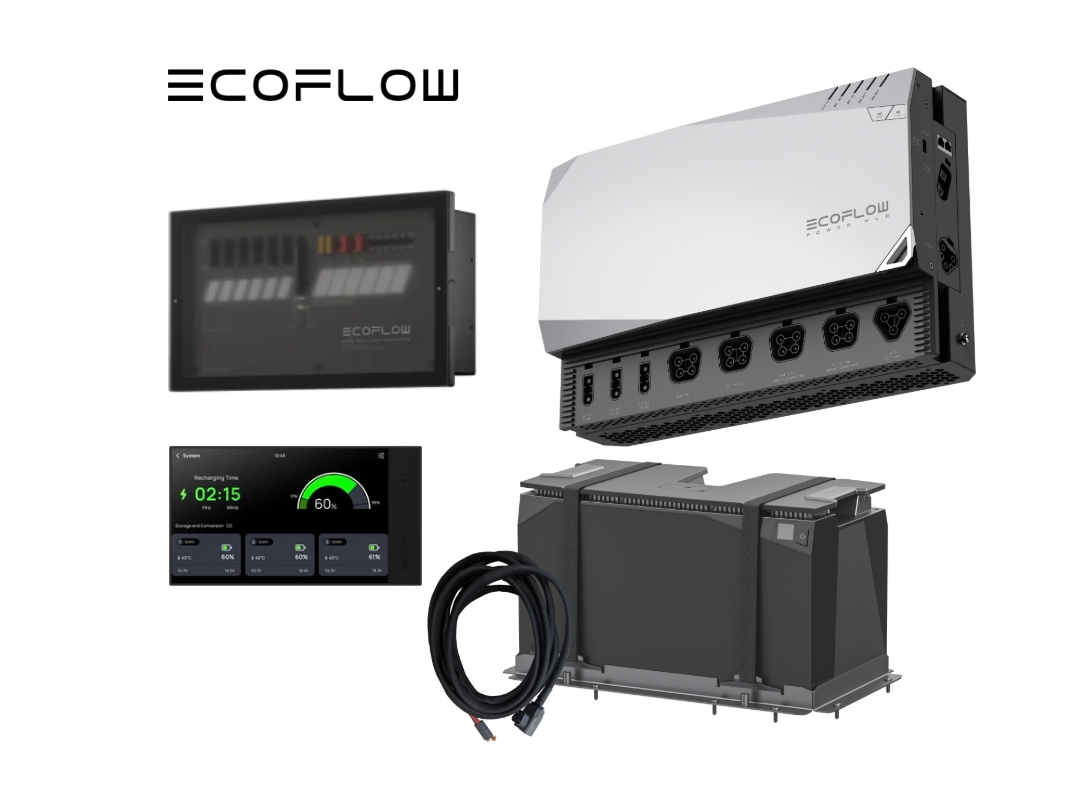

The new 5 kVA Power Hub features a dedicated 48V output port. To use this with a 48V appliance, add the 48V cable in the menus above. This is recommended for rooftop air conditioners or other 48V appliances.

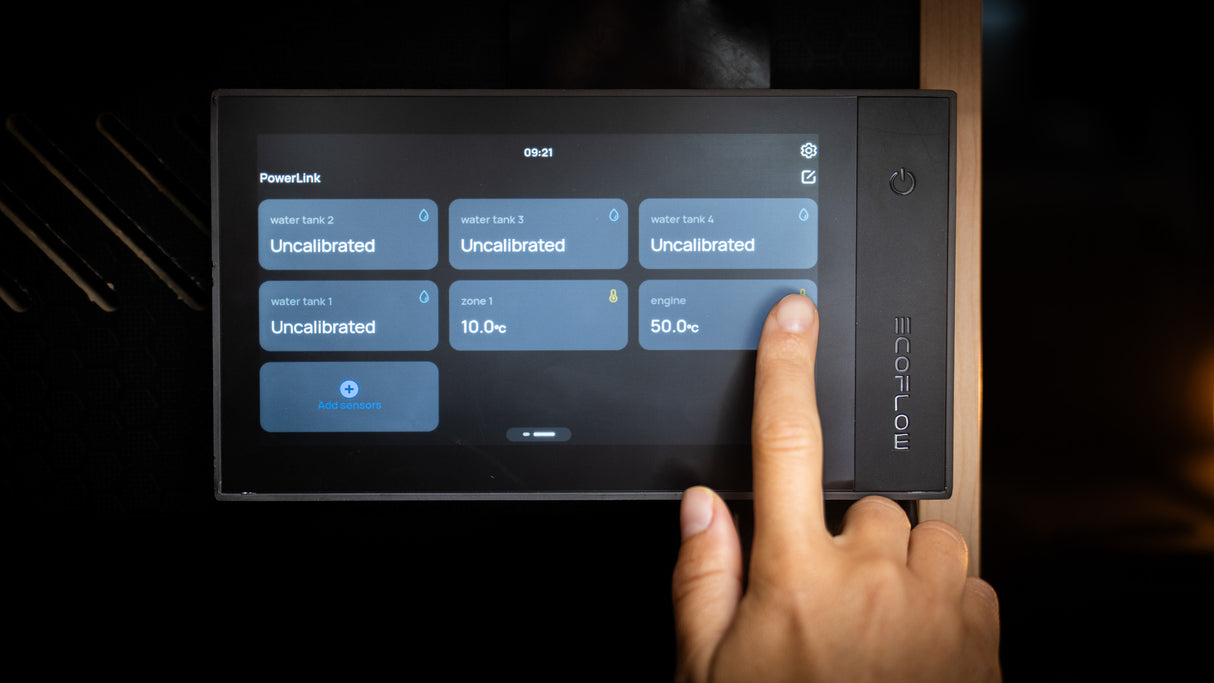

POWER LINK

You can add up to 2x EcoFlow Power Links to the 5 kVA (Gen 2) and 3.6 kVA (Gen 1) Power Kits in a single system. You can add the Power Link in the menus above. Communication cables between the the Power Hub, AC/DC Smart Distribution Panel, and Power Kit Console are included. Communication cables and sensors are not included with the Power Link.

FREE SHIPPING on all EcoFlow items anywhere in the lower 48 US states.

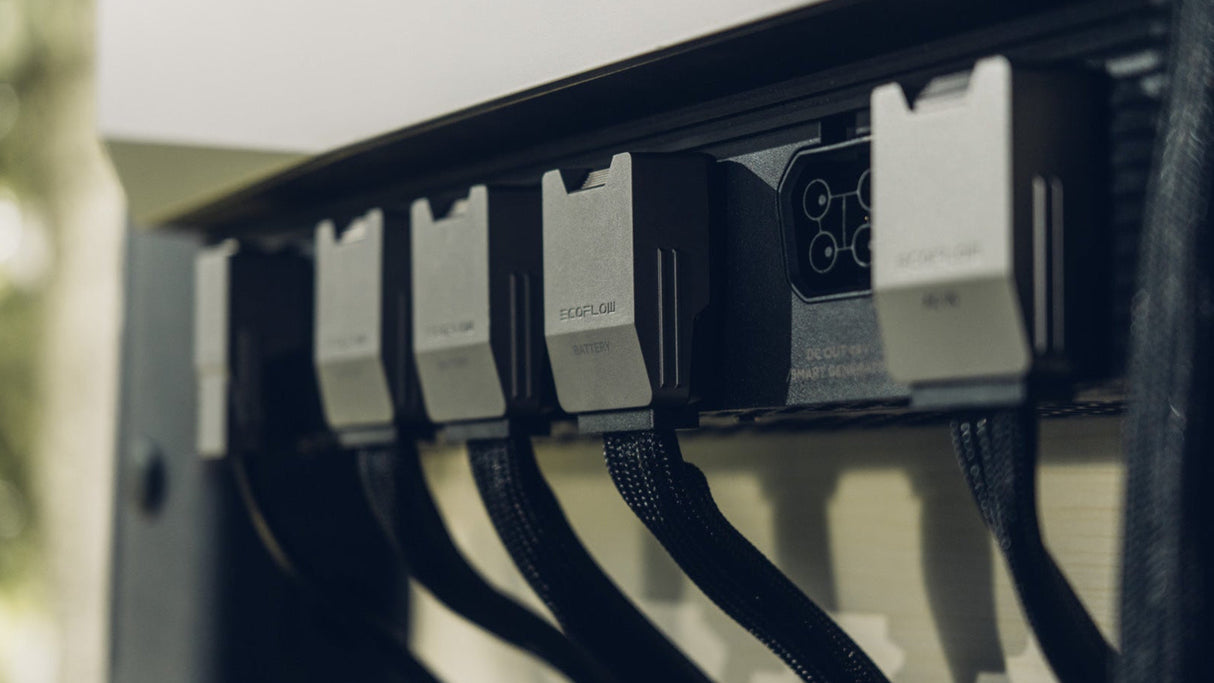

Note: The 5kVA Power Hub comes with AC and DC Main Out cables designed to connect to the new EcoFlow 50A Distribution Panel. The 50A Distribution Panel does not come with circuit breakers or extra DC fuses. 3x DC Main fuses are included. Please see the User Manual for common/appropriate breakers.

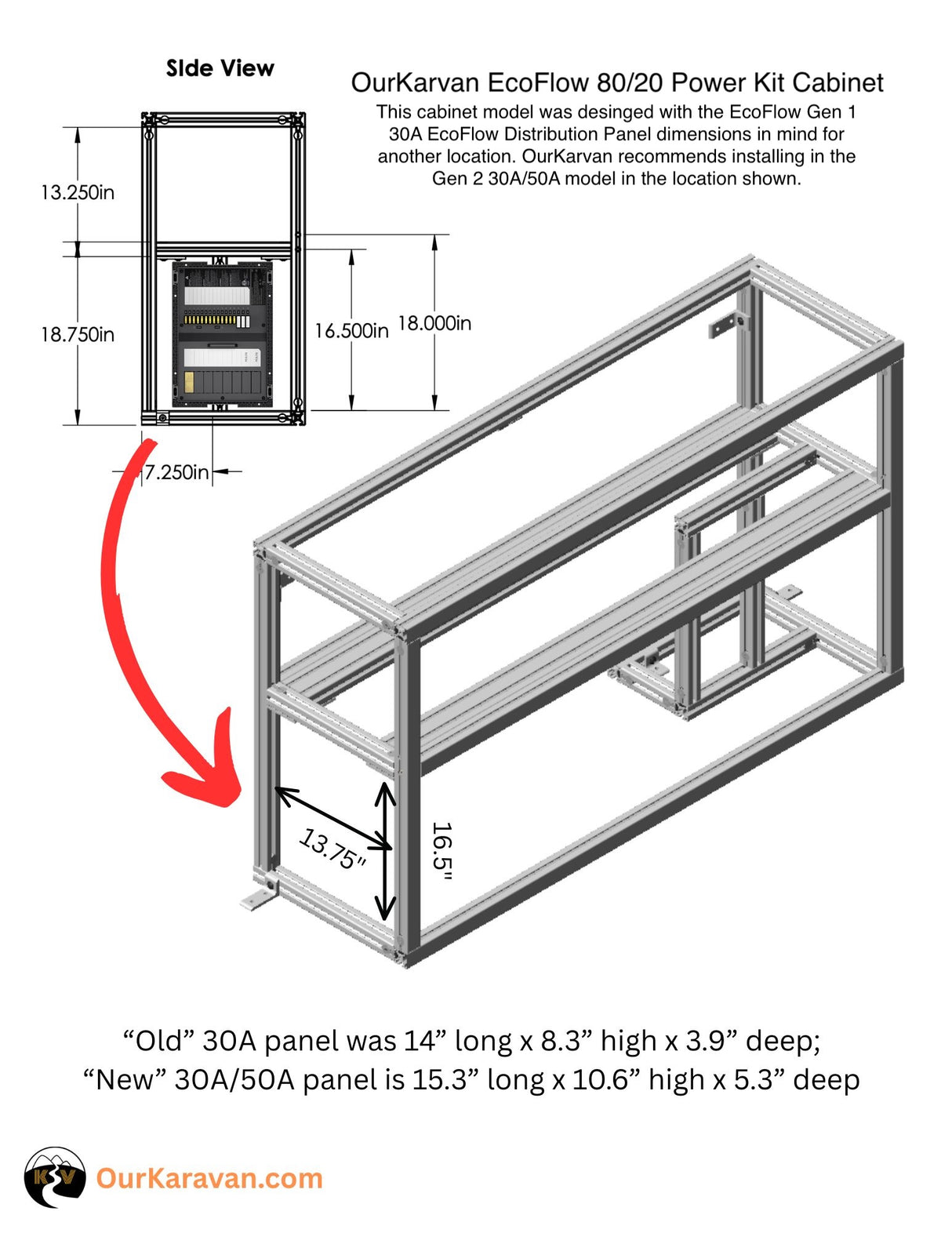

OurKaravan recommends installing the EcoFlow new 30A/50A Distribution Panel (Gen 2) in a new location when comparing to the EcoFlow Gen 1 - 30A Panel model. Please see image below. Installers and end users are welcome to install in another location.

OurKaravan Cabinet PDF (Gen 1 30A Panel version)

Manuals

OurKaravan Cabinet PDF

EcoFlow LFP Battery User Manual

EcoFlow 5 kVA Power Hub User Manual - Gen2

EcoFlow Power Kit Console User Manual

EcoFlow PowerInsight User Manual

EcoFlow AC/DC Smart Distribution Panel User Manual (30A)

EcoFlow AC/DC Smart Distribution Panel User Manual (30A/50A)

EcoFlow Power Dock User Manual

EcoFlow Power Link User Manual

FAQ

1. How is the 5 kVA Power Kit (Gen 2) different from the 3.6 kVA Power Kit (Gen1)?

The new 5 kVA Power Kit includes new components like the 5 kVA Power Hub that includes new features like the 48V Output Port, 3x EcoFlow LFP Battery ports, and 240V output when connected to 50A shore power, as well as a more powerful inverter (5000 kVA continuous output and 10000 kVA surge, compared to 3600W output and 7200W surge for the 3.6 kVA hub). The 5 kVA Power Kit also includes the new, larger 30/50A Smart AC/DC Distribution Panel and the ability to choose the 7-inch Power Kit Console or 10-inch PowerInsight display. The 3.6 kVA Power Kit (Gen1) was similar, but did not have 240V capabilities and did not offer a dedicated 48V output port. Please see the Specifications tab for more 5 kVA component details.

2. Can I combine 2 kWh and 5 kWh batteries?

Yes, you can expand by combining 2 kWh batteries or 5 kWh batteries on the Power Hub or using the Power Dock. Keeping like-with-like batteries on the Power Docks is recommended for simpler battery state of charge readings and management.

2. What is the max output power allowed on an EcoFlow 5 kVA Power Kit?

The Power Hub AC and DC output specifications as stated in the user manual:

  • 13.6VDC - 100A, 1300W Max
  • 26.4VDC - 60A, 1600W Max
  • AC Out (Discharge only): 120V - 4000W, 5000VA, 60Hz
  • AC Out (Bypass Mode):

Low Voltage: 100-120V ~ 50A Max, 50/60Hz

High Voltage: 220-240V ~ 50A Max, 50/60Hz

4. How much solar do I need to charge an EcoFlow 2 or 5 kWh Power Kit battery?

The 5 kVA Power Kit allows 13-60V 100A, 4000W max on Port 1 and 13-60V 30A, 1600W max on Ports 2/3. Depending on average consumption, mounting space, mounting location, the panel's rated power and whether the panels are wired in series or parallel, are all factors in making this decision. We cannot recommend any specific amount since all installations are different, so please decide accordingly based on your needs. We offer multiple EcoFlow solar cables and accessories to help you plan your layout.

Product Specs

EcoFlow 5 kVA Power Kit - Gen 2

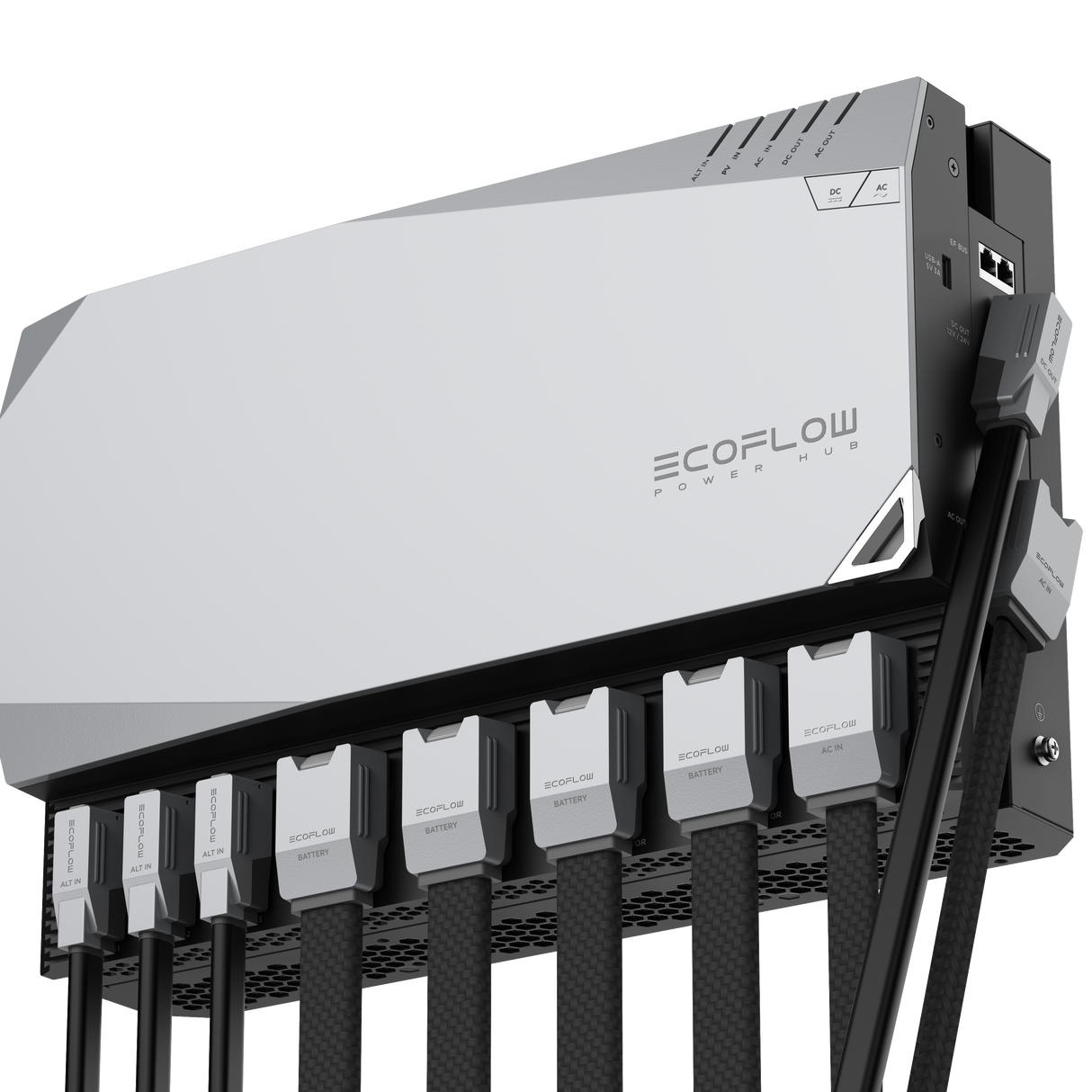

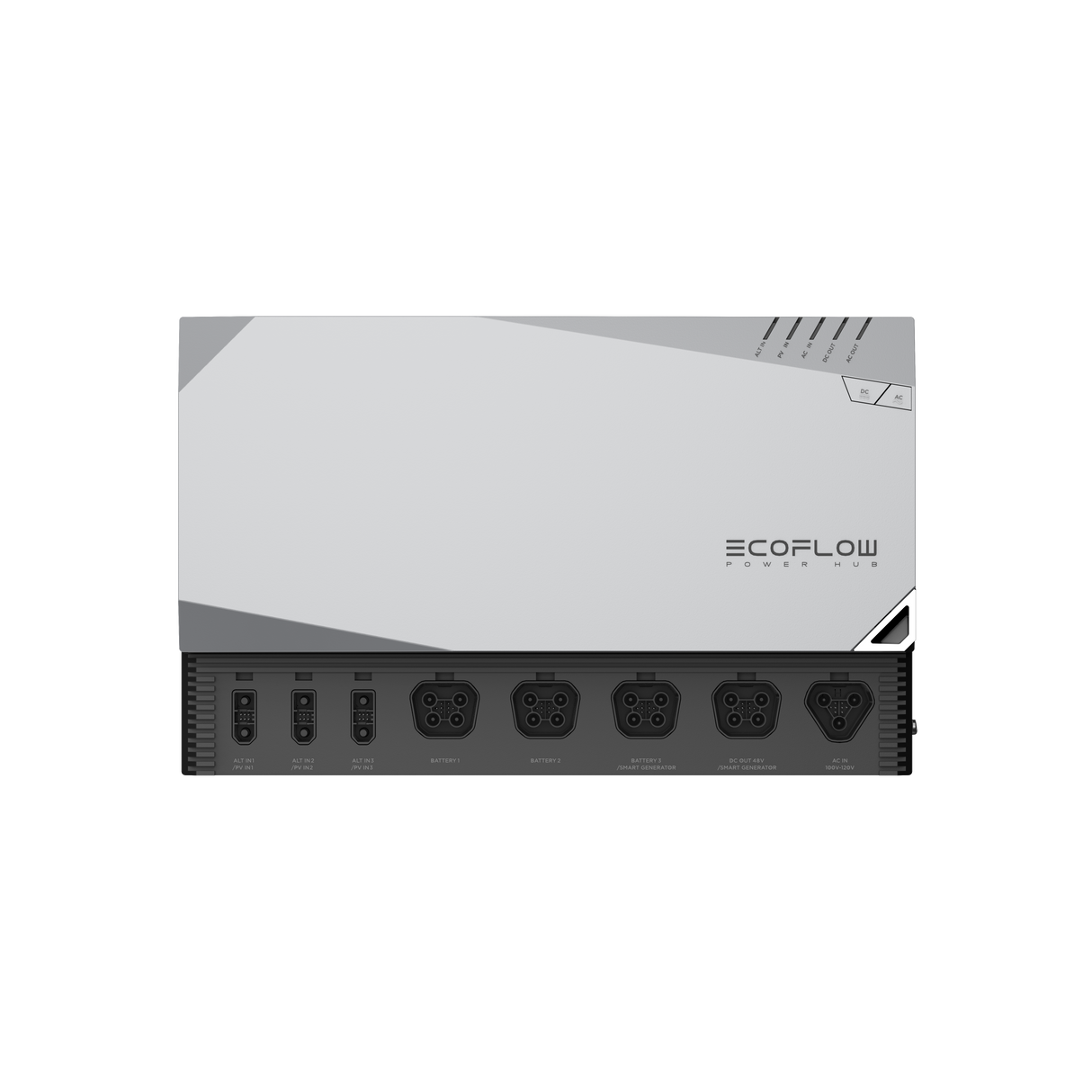

5 kVA Power Hub - Gen 2

Dimensions (in)

480x140x300mm(18.9x5.5x11.8in)

Testing & Certifications

CE, UL, FCC

Wi-Fi

2.4G, 5G Supported

Bluetooth

5.0 Supported

OUTPUT


AC Output (Discharge only)

120V - 4000W, 5000VA, 60Hz

(Surge 10 kVA, 100ms)

AC Output (Bypass Mode)

Low Voltage: 100-120V ~ 50A Max, 50/60Hz

High Voltage: 220-240V ~ 50A Max, 50/60Hz

DC Main Output

13.6V - 100A, 1300W Max

26.4V - 60A, 1600W Max

INPUT


X-Fusion(Power Assist)

50A, 5000VA Max

AC Main Input Voltage/frequency

100-120V, 50Hz/60Hz

Solar Charging Input

Port 1: 13-60V 100A, 4000W max

Port 2/3: 13-60V 30A, 1600W max

Alternator Charging Input

13V-60V, 60A/30A/30A, up to 4800W total

TEMPERATURE


Best Operating Temperature

68°F-86°F(20°C - 30°C)

Discharge Temperature

-13°F-140°F(-25°C to 60°C)

Charge Temperature

-13°F-140°F(-25°C to 60°C)

Storage Temperature

-13°F-140°F(-25°C to 60°C)

Net Weight

34 lbs(15.5kg)

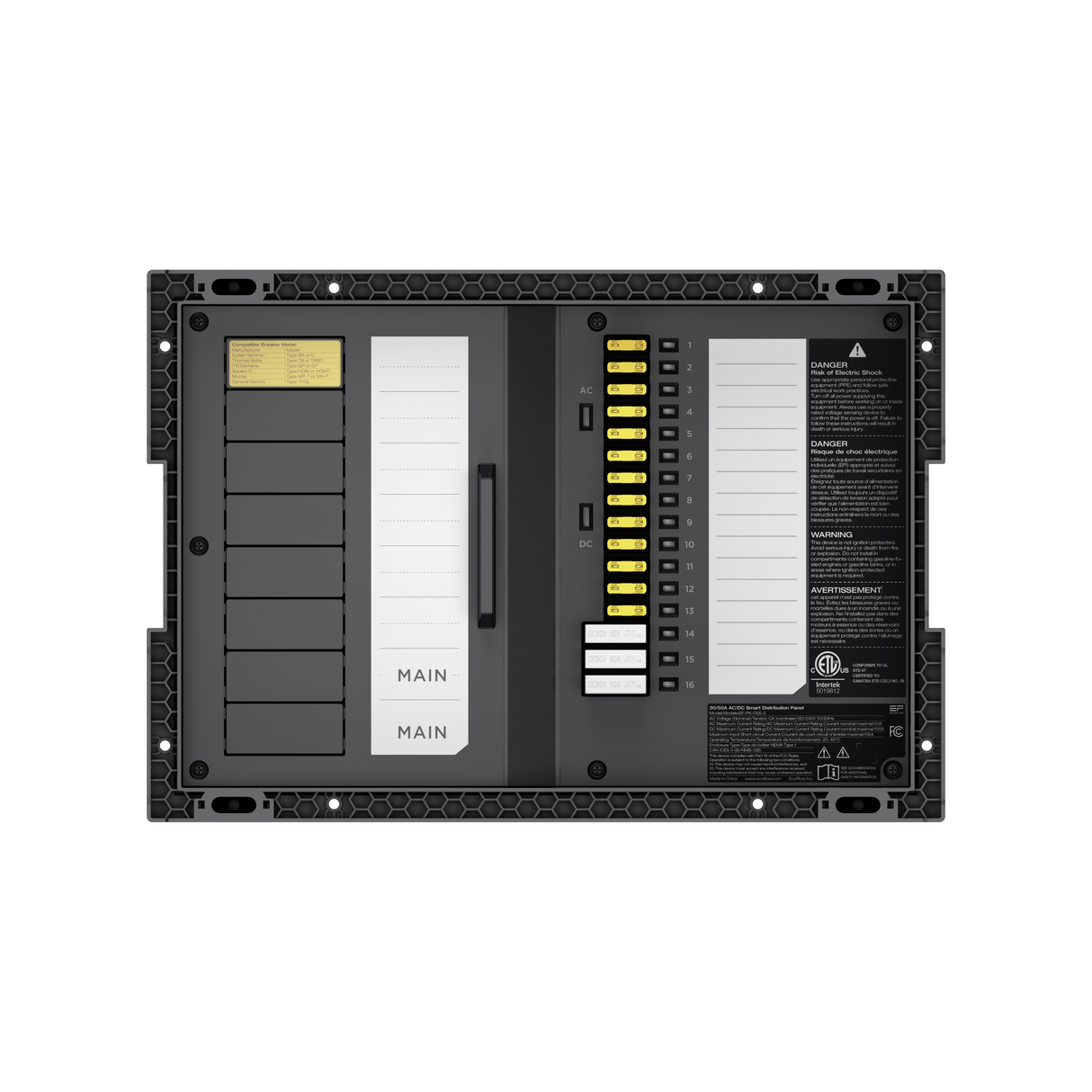

30/50Amp AC/DC Smart Distribution Panel - Gen 2

Feed-In type

Split phase (L1, L2, N)

AC Input

50A Max. 120V/240V, 60Hz

AC Output

Max 30A for each branch circuit

AC Circuits

Max 12 branch circuits

Maximum Input Short-Circuit Current

10kA

DC Input

Max 100A, 13/26V

DC Output

Max 30A for F1-F13 Circuits

Max 50A for F14-F16

Number of Circuits

16 controllable circuits(F1-F16)

Operating Temperature (C)

–25°C to 45°C (–13°F to 113°F)

Operating Temperature (F)

–25°C to 70°C (–13°F to 158°F)

Dimensions

390x135x270 mm (15.3x5.3x10.6 in.)

Net Weight (lbs)

4 kg (8.8 lb)

Altitude

9842 ft (3,000 m)

Enclosure Type

NEMA Type 1

Power Insight (10-in.) - Gen 2

Dimensions(WxHxD)

244.4 x 158.6 x 12.6mm(9.6W x 6.2H x 0.5D)

Weight

620g(1.4lbs)

Input Rating(USB-C)

5V DC, 2A

Operating Temperature

-10℃ to 45℃(14°F to 113°F)

Storage Temperature

-15℃ to 50℃(5°F to 122°F)

Altitude

3000m(9842ft)approximately

Communications

WLAN and Bluetooth

IP Rating

IP42

Bluetooth

Frequency Range: 2402-2480 MHz

Max output power: <10 dBm

Wi-Fi

Frequency Range:

2412-2472 Mhz, 5180-5320 MHz, 5500-5700 MHz; Max Power: <20 dBm

Frequency Range:

5745-5825 MHz; Max Power: >13.98 dBm

Tests and Certifications

UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

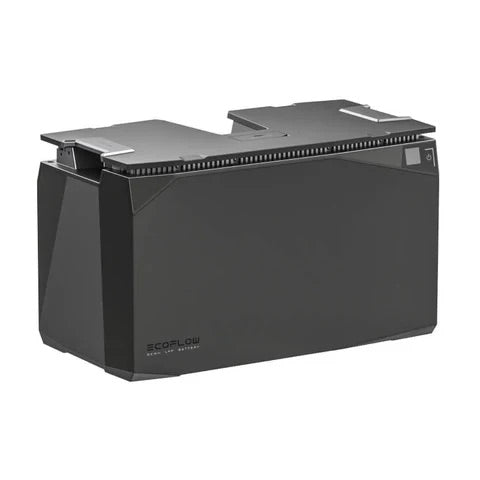

5kWh LFP Battery

Capacity

5120Wh (51.2V, 100Ah)

Cell Chemistry

Lithium Iron Phosphate

Cycle Life

~3500 Cycles up to 80% Capacity

Protection Level

IP54

Test and Certifications

UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

Storage Temperature (F)

-4°F–140°F

Storage Temperature (C)

-20°C–60°C

Operating Temperature (F)

-4°F-122°F

Operating Temperature (C)

-20℃-60℃

Power Kit Console (7-in.) - Gen 1

Touch Screen (Diagonal Measurement)

7 Inch (6x3.4in) (Width x Height)

Power Supply Voltage

12 VDC

Operating Temperature (C)

-20℃-60℃

Operating Temperature (F)

-4°F-140°F

Tests and Certifications

UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC
