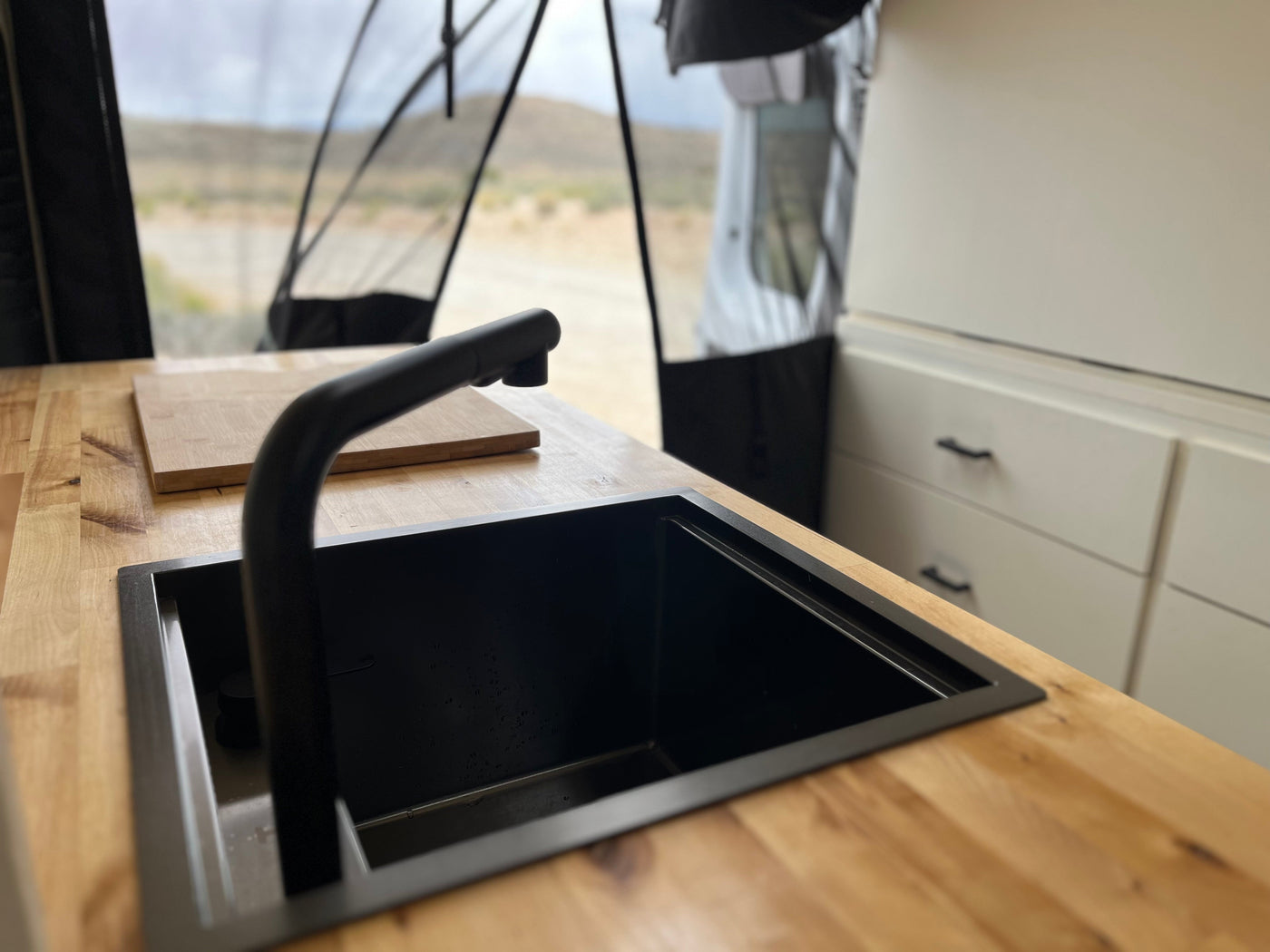

Maximizing space and functionality is crucial in van conversions. The Tec Vanlife Black Nanotechnology Stainless Steel RV Sink offers a sleek, durable solution designed specifically for compact living.
Benefits:
- Sleek, efficient design allows faucet to pull-out when needed and recess for more counter space when not.
- Pull-out faucet head can be used for showering or outside use depending on mounting location.
- Two-function spray head: shower and full
- Includes cutting board or metal cover
- Ideal RV drain setup
- Quick install
Our guide walks you through its features, specifications, and installation process.
Parts Included
- Black Nanotechnology Stainless Steel Sink
- Sit/Stand Pull-Out Faucet with 52" Spray Hose
- Bamboo Chopping Board
- Low-Profile Drain Assembly
- Mounting Hardware
- Standard 1/2" NPT Fittings
Specifications
- Exterior Dimensions: 17.7" x 15.3" (450mm x 390mm)
- Interior Dimensions: 14.9" x 13.6" (380mm x 347mm)
- Cutout Dimensions: 16.5" x 14.2" (420mm x 360mm)
- Depth: 9" (230mm)
- Material Thickness: 3mm
Installation Steps
- Prepare the Countertop:
- Mark and cut the sink opening using the provided cutout dimensions (16.5" x 14.2")
- Install the Faucet:
- Mount the faucet into the designated hole.
- Secure it with the provided hardware.
- Connect Water Supply:
- Attach hot and cold water lines to the faucet's 1/2" NPT fittings.
- Install the Sink:
- Place the sink into the cutout.
- Secure it using silicon to seal and adhere the sink in place.
- Attach the Drain:
- Connect the low-profile drain assembly to the sink and plumbing.
- Test for Leaks:
- Turn on the water supply and check all connections.
Key Features
- Hideaway Design: The faucet retracts below the countertop, maximizing workspace.
- 52" Pull-Out Spray Hose: Versatile use for washing dishes or as an outdoor shower.
- Deep Basin: 9-inch depth accommodates large dishes and reduces splashes.
- Low-Profile Drain: Saves under-sink cabinet space.
- Nanotechnology Coating: Durable, stain-resistant, and easy to clean.
Summary
The Tec Vanlife Black Nanotechnology Stainless Steel RV Sink combines functionality with modern design, making it an excellent choice for van conversions. Its space-saving features and durable construction ensure it meets the demands of life on the road.
