EcoFlow

EcoFlow 3.6 kW Power Kits

Ships in 5-7 business days. OurKarvan Cabinet typically ships in 3-4 weeks.

$ 6,49900 $ 7,59700

Important

The OurKaravan Cabinet can support 5kWH and 10kWH batteries, but not 15kWH. The 15kWH Power Kit with 3.6 kW Power Hub cannot accept the 48V A/C cable, so we recommend the 10 kWh option or viewing the EcoFlow 5 kVA Power Kit.

Key Features

  • Supports up to 6000W of charging from a combination of 4 charging methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Plug-and-play for simple assembly
  • Compact, integrated design, 5-in-one Power Hub incorporates all components.
  • Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)

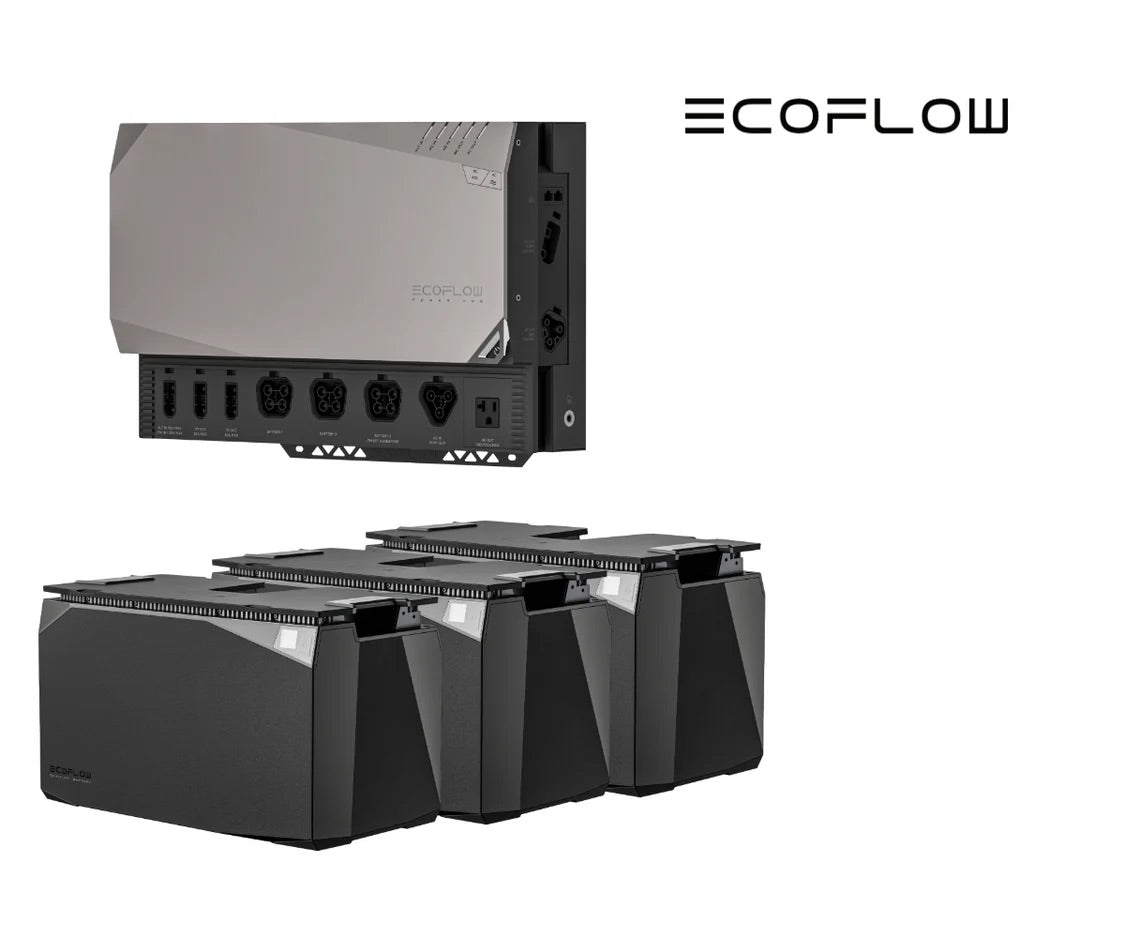

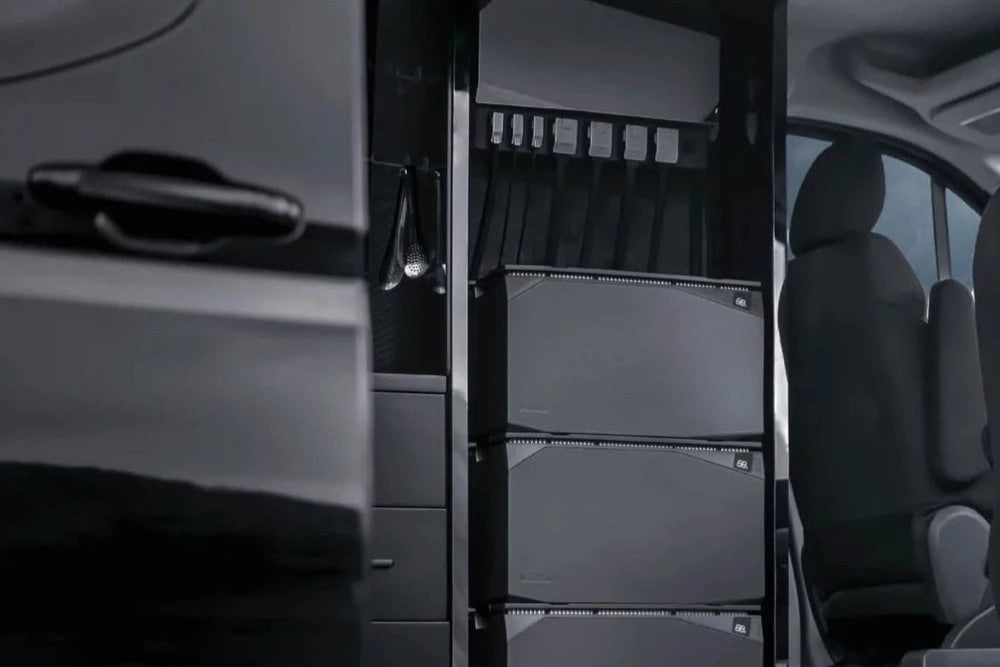

  • Save space with up to 3-stackable 5 kWh batteries
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls through EcoFlow Console and App
  • Made in China

Ships in 5-7 business days. OurKarvan Cabinet typically ships in 3-4 weeks.

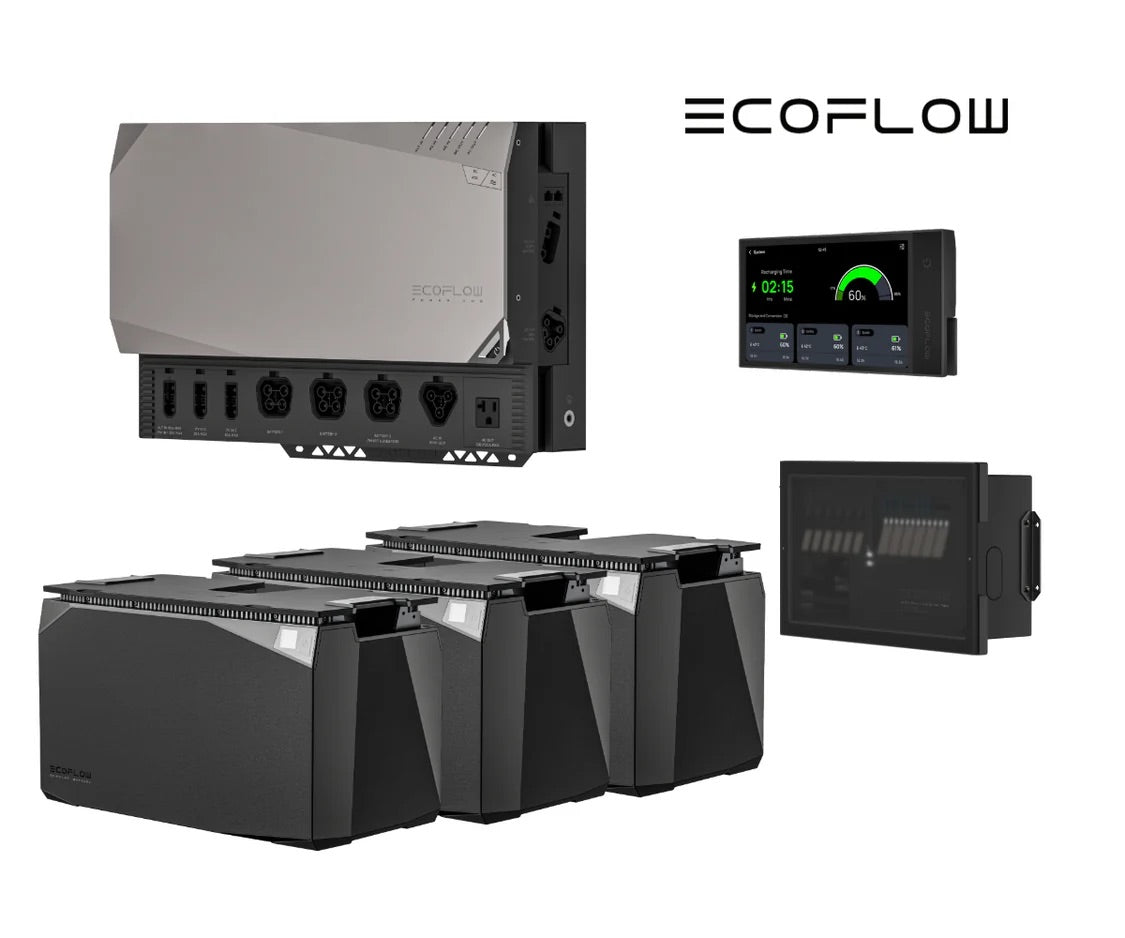

Hassle-free, high-powered EcoFlow 3.6 kW Power Kits are the world's first integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

CHOOSE YOUR KIT

You can choose between these variants of the EcoFlow 3.6 kW Power Kits, then select your additional batteries in the menu above. Each Kit version comes with 1x 5kWH LFP Battery(includes 1.5m battery cable, wall/floor mounting brackets, and straps.)

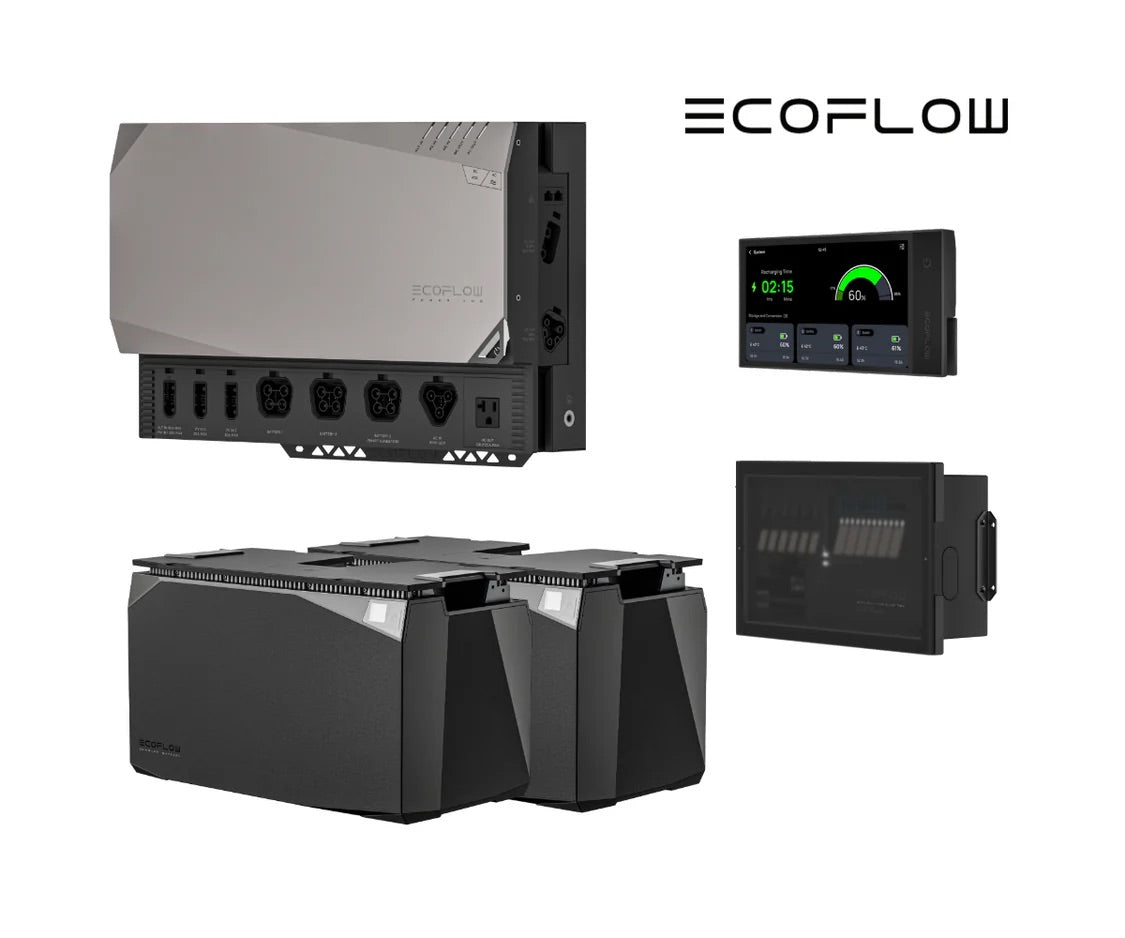

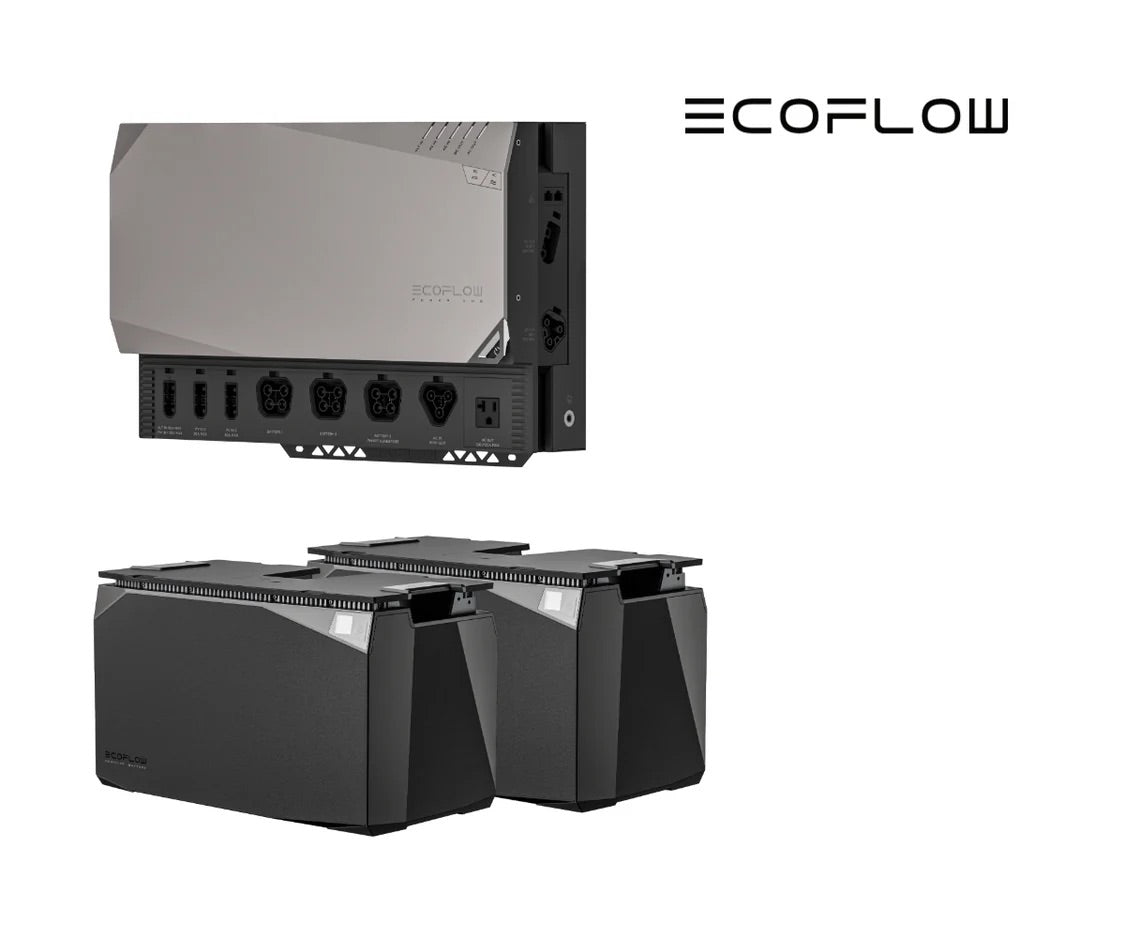

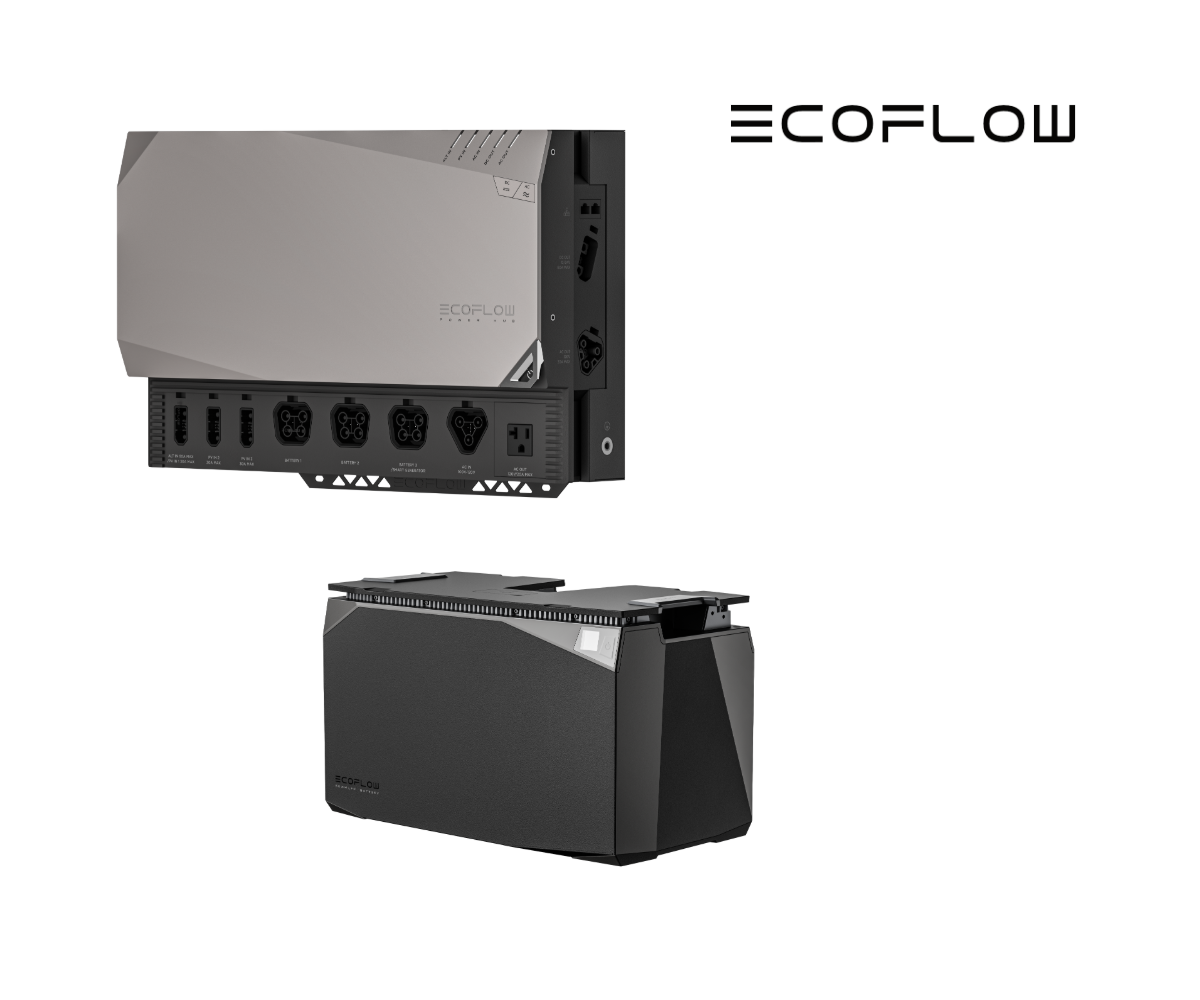

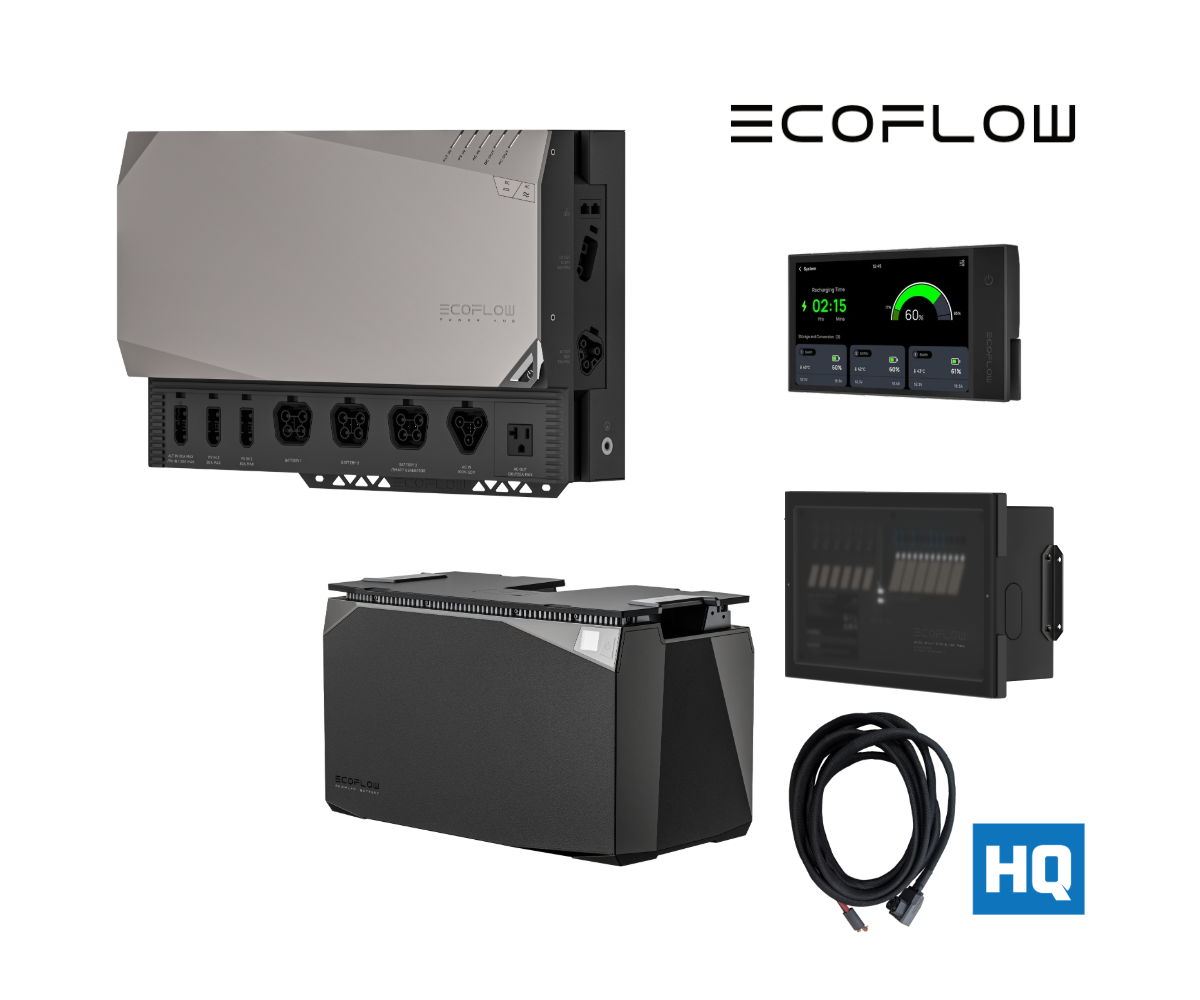

  1. Get Set Kit includes - 1x Power Hub, 1x 5kWh LFP Battery, 1x Cable Pack

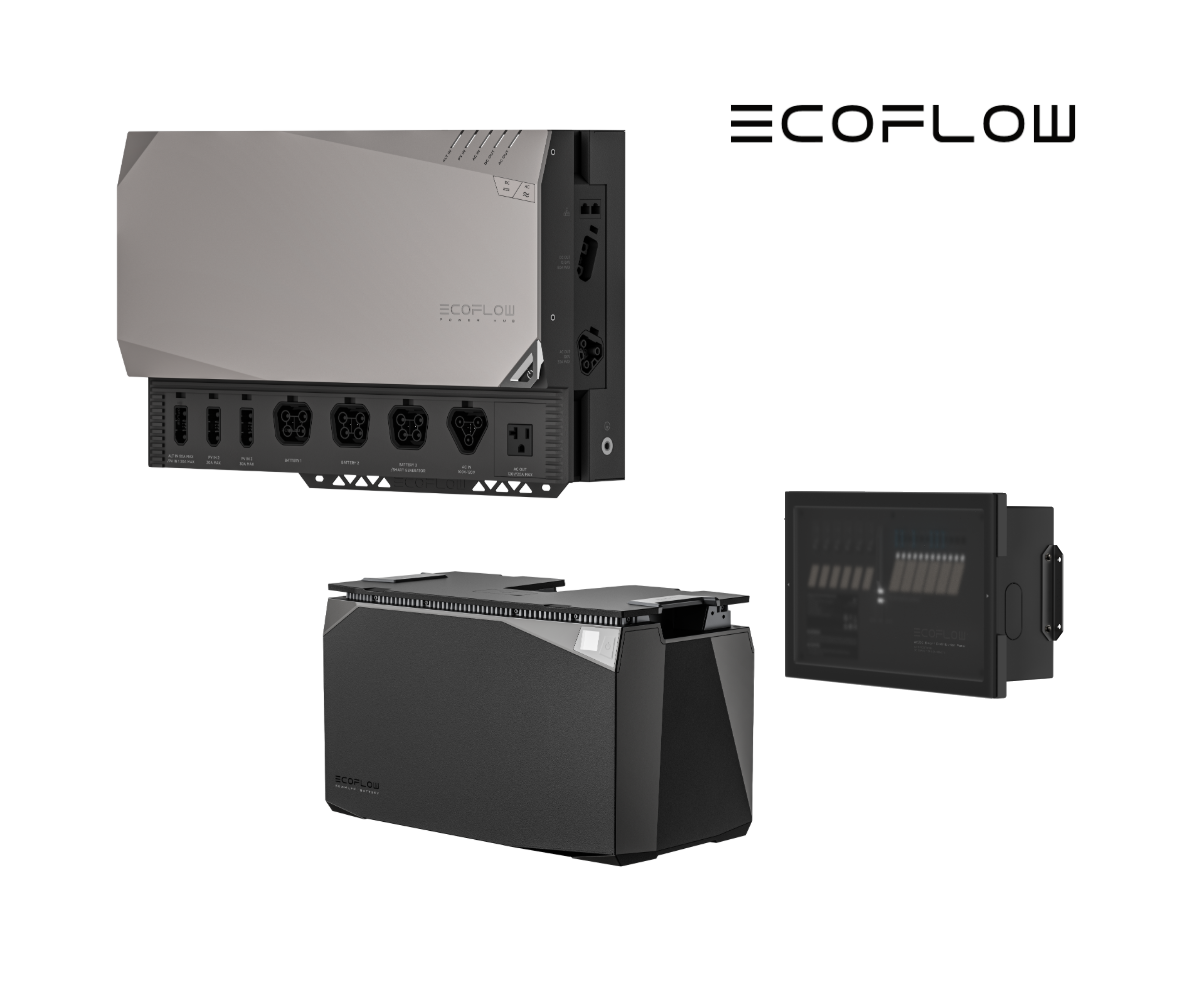

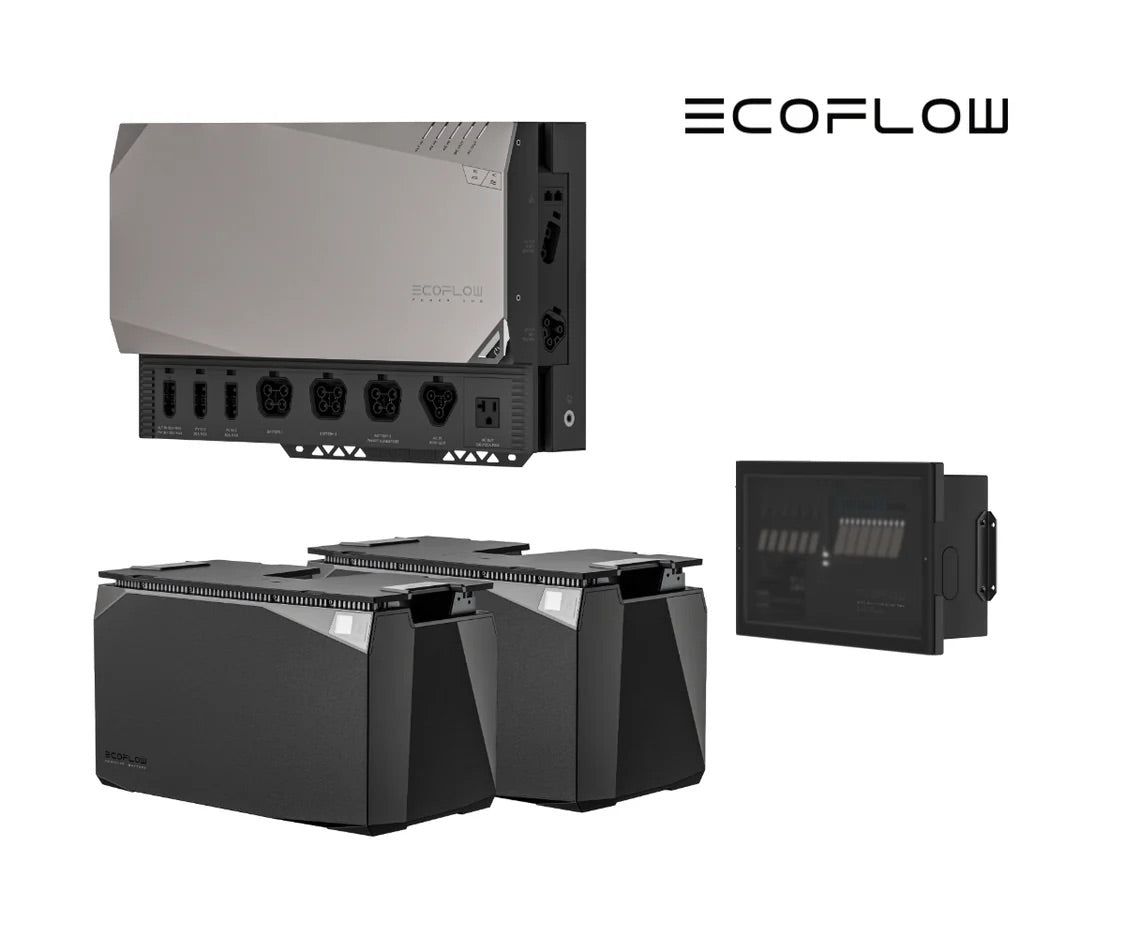

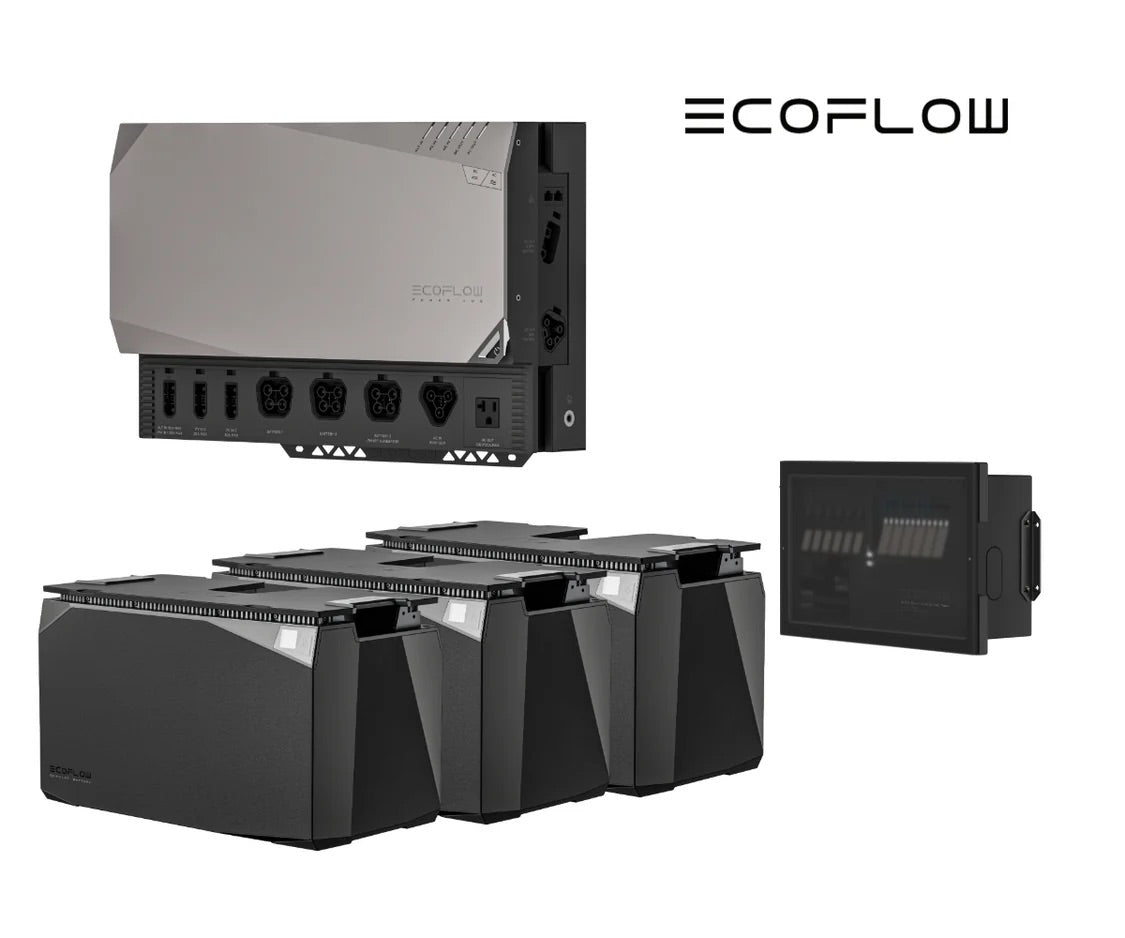

  2. Prepared Kit includes - 1x Power Hub, 1x 5kWh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Battery Mounting Strap

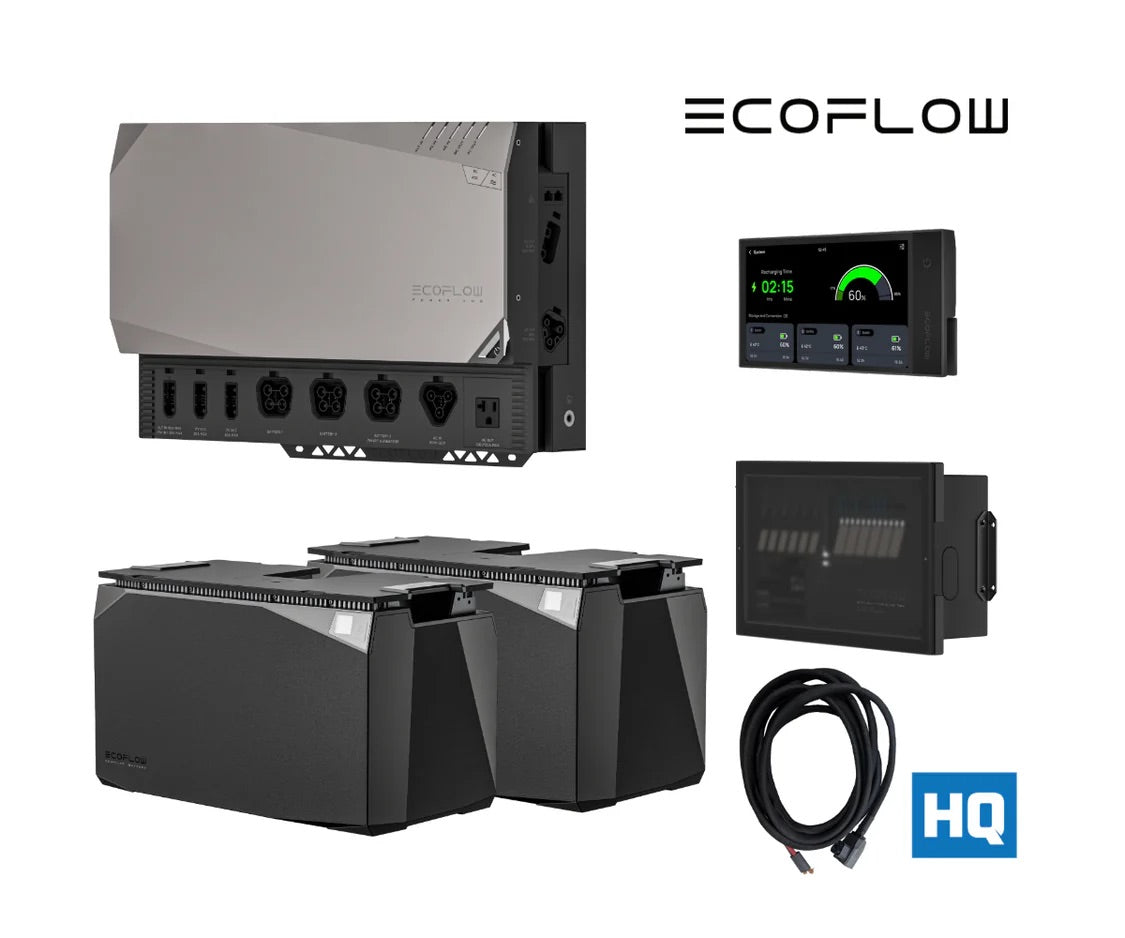

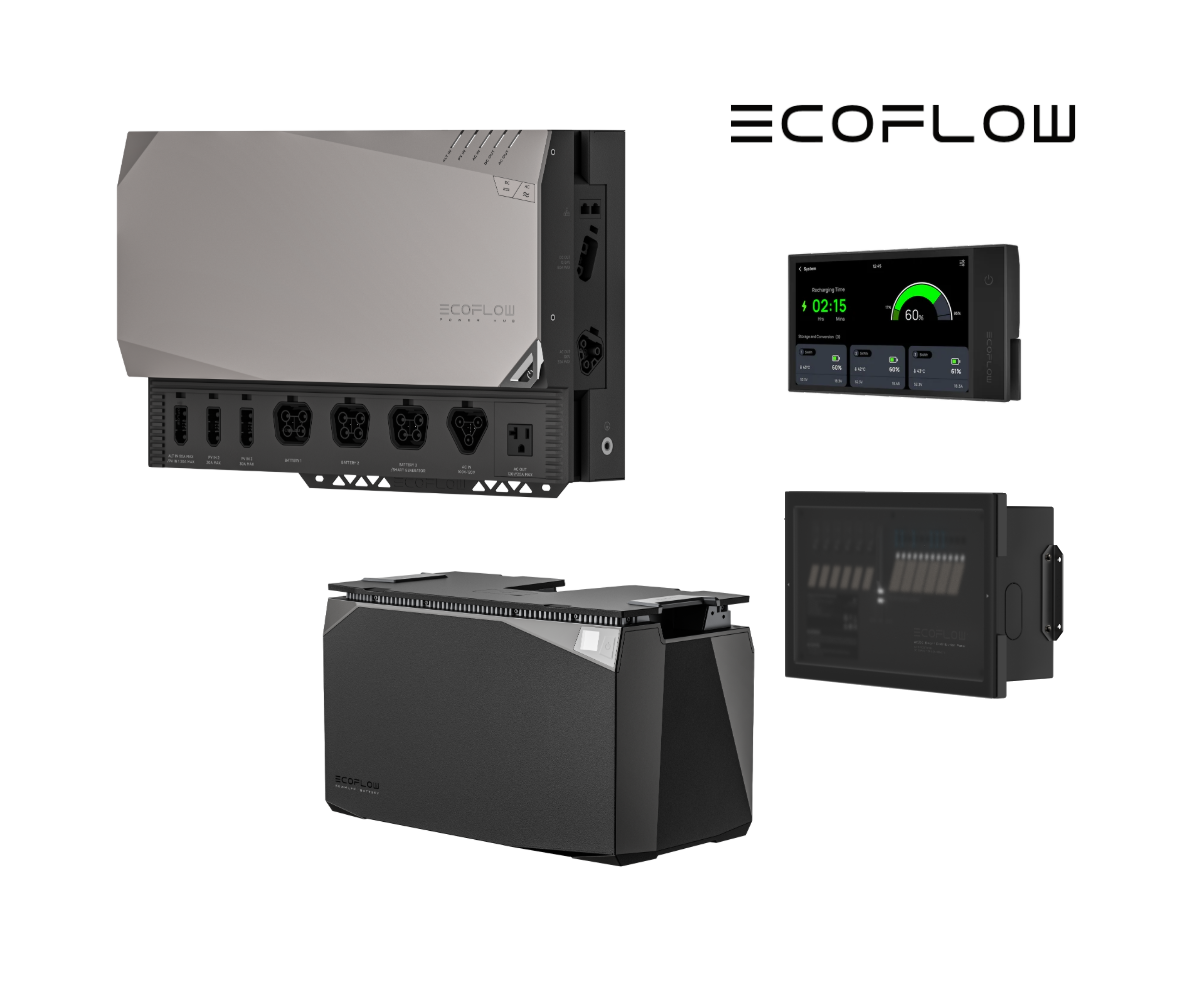

  3. Independence Kit includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap.
  4. Independence Kit + 48V A/C Cable includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack and 48V RV air conditioner cable, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap

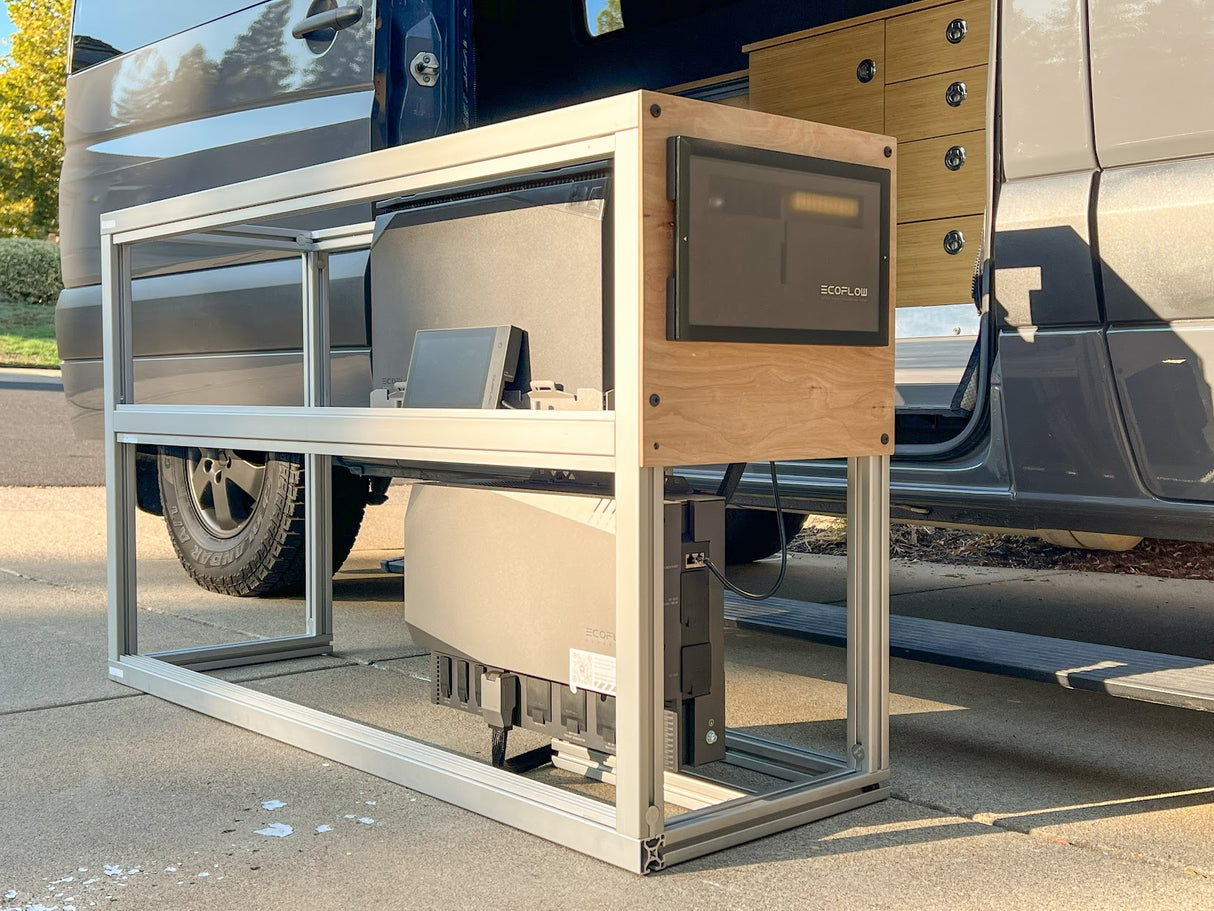

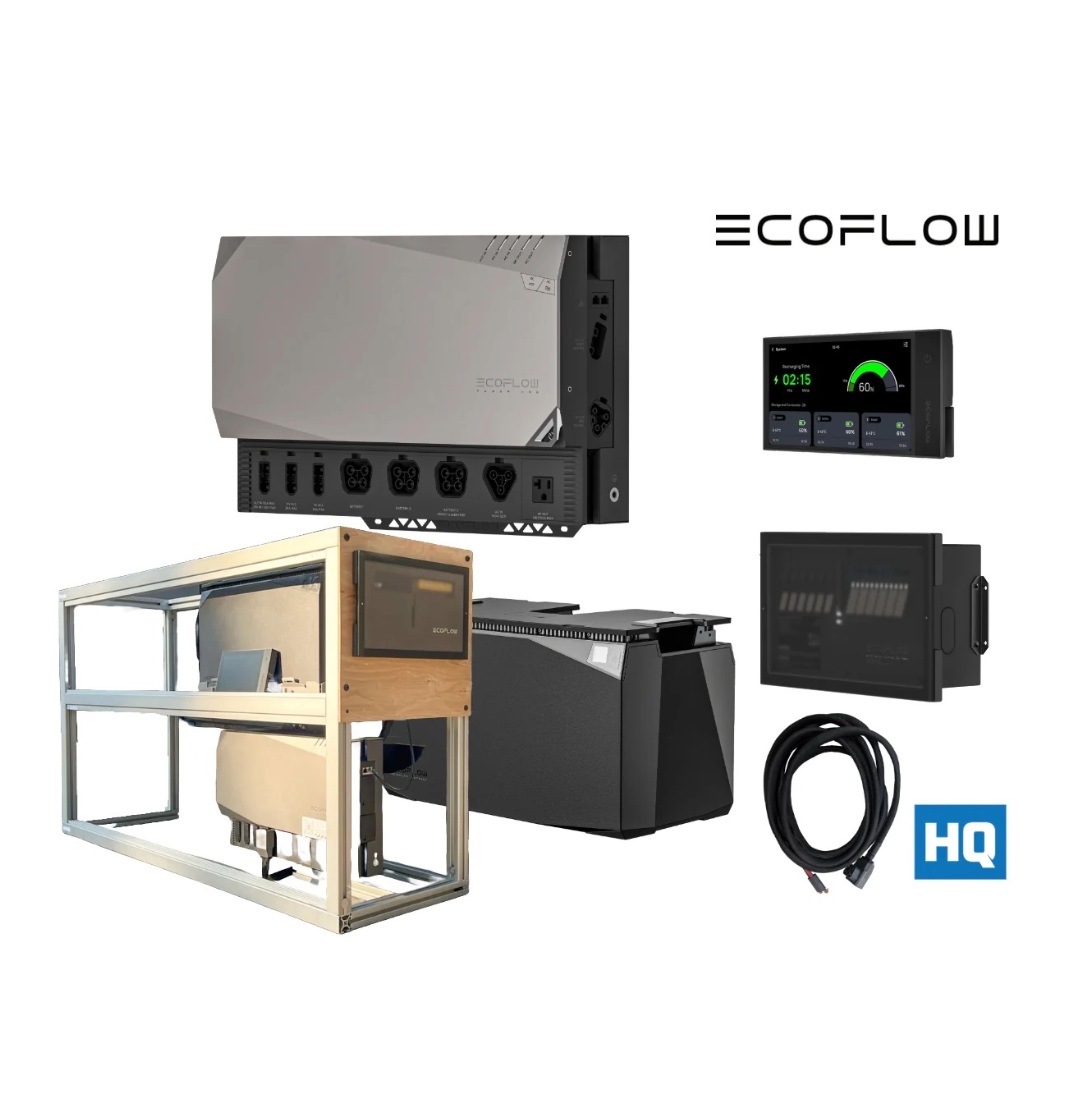

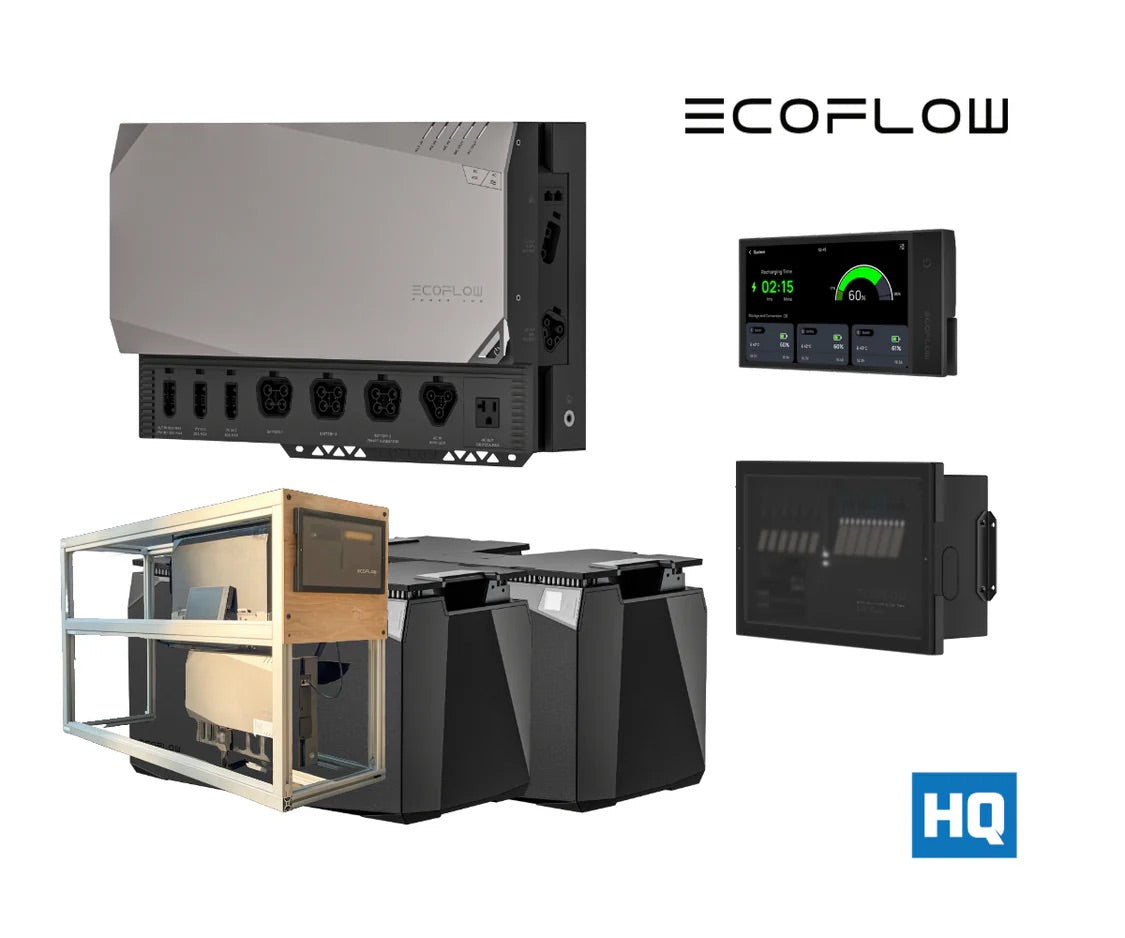

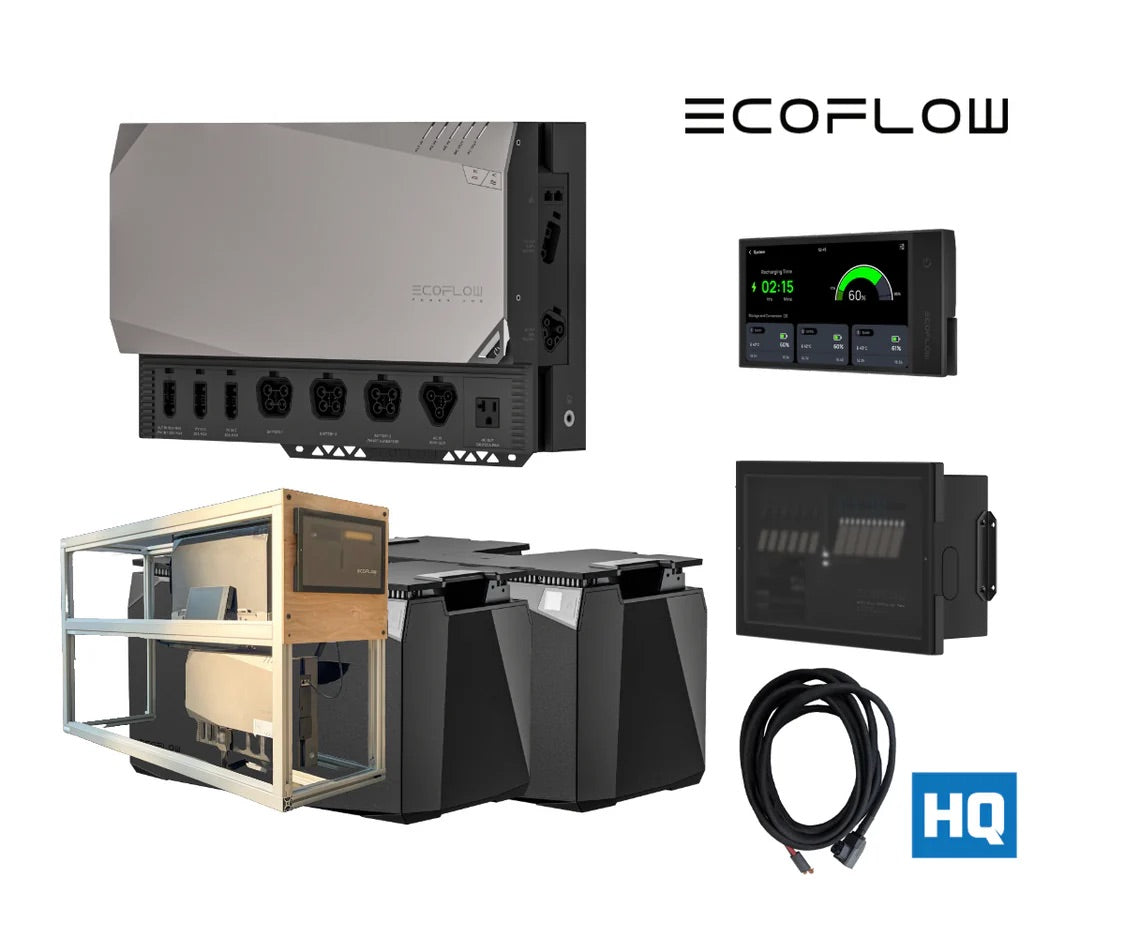

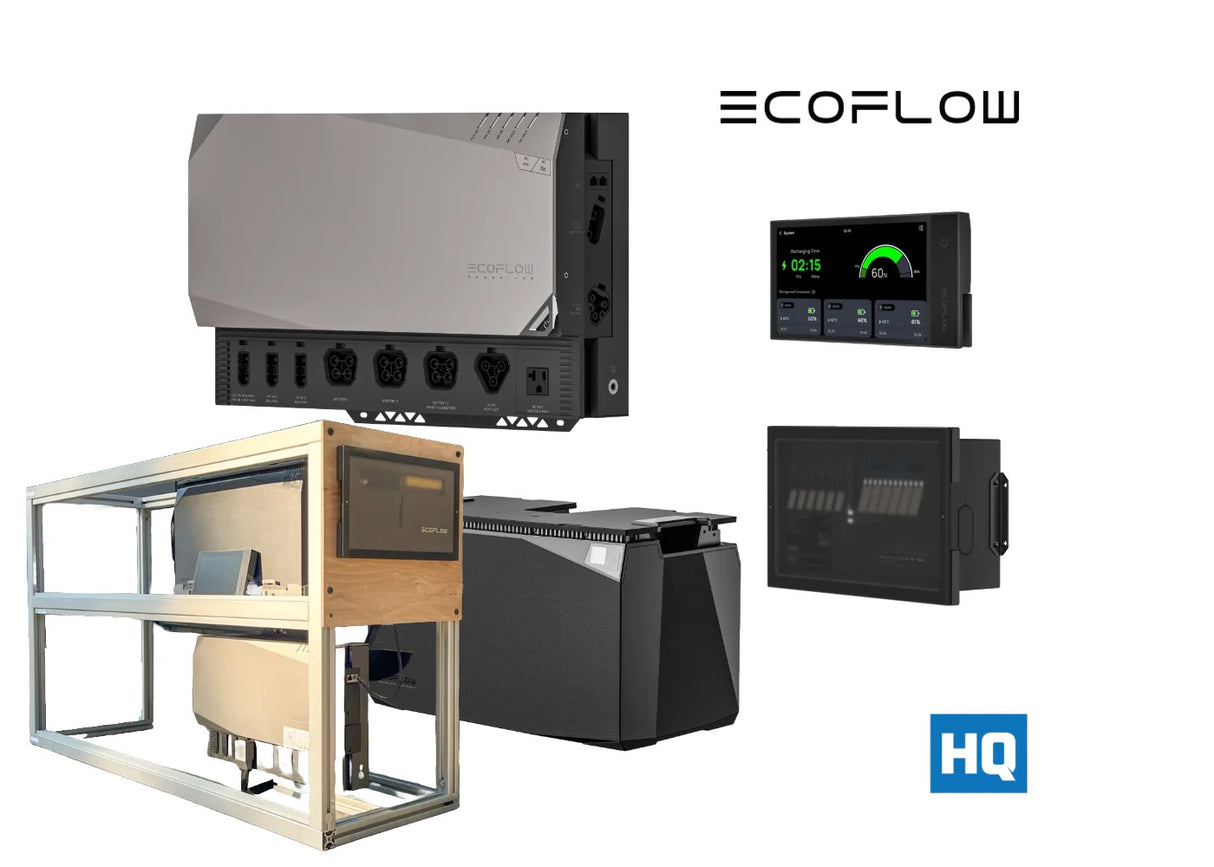

  5. Independence Kit + 48V A/C Cable + OurKaravan Cabinet Kit includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack and 48V RV air conditioner cable, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap, and an OurKaravan Cabinet Kit. The complete + ready to install 80/20 OurKaravan Cabinet Kit mounts over the rear wheel well on any 2007+ Mercedes Sprinter van model or 2015+ Ford Transit 148" EXT cargo van(see FAQ's), providing a sturdy aluminum cabinet frame with brackets for the Power Kit components. The cabinet can be easily faced with wood panels of your choice (panels not included).

What's in the Cable Pack with each 3.6kW Power Hub?

FREE SHIPPING on this item anywhere in the lower 48 US states.Note: The 48V Cable comes with the EcoFlow Battery Port Connection pre-assembled on one end and has positive/negative bare wire on the opposite end. No ring terminals or crimps are included.Note: The OurKaravan Cabinet has not been compatibility tested with RAM ProMaster Models.OurKaravan Cabinet now compatible with both 3.6 kW(this listing) and5 kVA Power Kitswith 5kWH or 10kWH total batteries.You can still expand to more batteries, just plan to expand outside the OurKaravan Cabinet. OurKaravan Cabinet typically ships in 3-4 weeks. See lead time above for Power Kit components.

Manuals

EcoFlow LFP Battery User Manual

EcoFlow Power Hub User Manual

EcoFlow Power Kit Console User Manual

EcoFlow AC/DC Smart Distribution Panel User Manual

OurKaravan Cabinet PDF

FAQ

1. How is the 3.6 kVA Power Kit (Gen1 different from the 5 kVA Power Kit (Gen 2)?

The new 5 kVA Power Kit includes new components like the 5 kVA Power Hub that includes new features like the 48V Output Port, 3x EcoFlow LFP Battery ports, and 240V output when connected to 50A shore power, as well as a more powerful inverter (5000 kVA continuous output and 10000 kVA surge, compared to 3600W output and 7200W surge for the 3.6 kVA hub).

The 5 kVA Power Kit also includes the new, larger 30/50A Smart AC/DC Distribution Panel and the ability to choose the 7-inch Power Kit Console or 10-inch PowerInsight display. The 3.6 kVA Power Kit (Gen1) was similar, but did not have 240V capabilities and did not offer a dedicated 48V output port. Please see the Specifications tab for more 3.6 kW Power Hub capabilities.

2. Can I combine 2 kWh and 5 kWh batteries?

Under review and testing at headquarters. Updates coming in October 2025.

3. How much solar do I need to charge an EcoFlow 2 or 5 kWh Power Kit battery?

The 3.6 kW Power Kit allows 13-60V 100A, 1600W max on Ports 1/2/3. Depending on average consumption, mounting space, mounting location, the panel's rated power and whether the panels are wired in series or parallel, are all factors in making this decision. We cannot recommend any specific amount since all installations are different, so please decide accordingly based on your needs. We offer multiple EcoFlow solar cables and accessories to help you plan your layout.

Product Specs

EcoFlow 3.6 kW Power Kits

3.6 kW Power Hub - Gen 1

Brand

EcoFlow

Type

3.6 kW Power Hub

DC Main Output

13.6V 70A or 26.4V 60A

AC Main Output

100V~120V 50Hz or 60Hz, 3600W (7200W Peak) (3000W @ Battery Voltage < 50V)

Auxiliary AC Outlet

100V~120V 20A

Total Input Power

Max. 6000W

AC Input Power

100V~120V Max.30A, Max. 3000W

Alternator Input Power

Port 1: 13V~60V 60A, Max. 1600W

Port 2 & 3: 13~60V 30A, Max. 1600W Each

Solar Input Power

Port 1 & 2 & 3: 15V~60V 30A, Max. 1600W Each

Dimension (HxWxD)

11.8 in X 18.9 in X 5.5 in

Operating Temperature

-13°F to 140°F

Net Weight

31 lbs

Certificate & Standard

CE, UL, FCC, UKCA, E-Mark, RCM,

TELEC, KCC, ICES, EMC Class A

Warranty

5 Years

5kWh LFP Battery

Battery Capacity 5120Wh(100Ah))
Battery Type Lithium-ion
Nominal Voltage 51.2V
Configuration 16S1P
Charging Cut-off Voltage 57.6V
Discharging Cut-off Voltage 40V
Max Continued Charging Current 80A
Max Continued Discharge current 100A
Cycle life 3,500 cycles to 80% capacity
Dimensions 19.7 x 10.2 x 11.8 in
Weight Approx. 89.5 lbs

30A AC/DC Distribution Panel - Gen 1

Brand EcoFlow
Type AC/DC Distribution Panel
DC Main Output 10-30V, Max. 70A
AC Main Output 100V~120V, Max. 30A
DC Output 6 x Controllable Circuits + 6 Regular Circuits, 10-30V, Max. 20A Each Circuit
AC Output 6 x Circuits (1/2: 30A, 3/4/5/6: 20A), 100V~120V
Dimension (HxWxD) 8.3 in x 14 in x 3.9 in
Operating Temperature -13°F to 140°F
Net Weight 5.7 lbs
Certificate & Standard CE, UL, FCC, UKCA, E-Mark, RCM,
TELEC, KCC, ICES, ip21, EMC Class B
Warranty 5 Years

Power Kit Console

Brand EcoFlow
Type Power Kit Console
Screen 7-Inch (Diagonal) IPS Touch Screen
Communication RJ45 CAN
Control Power Kits System
 ON/OFF via Console’s Power Switch
Dimension (HxWxD) 4.5 in x 8 in x 0.9 in
Operating Temperature -13°F to 113°F
Net Weight 1 lbs
Certificate & Standard CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, EMC Class B
Warranty 5 Years
