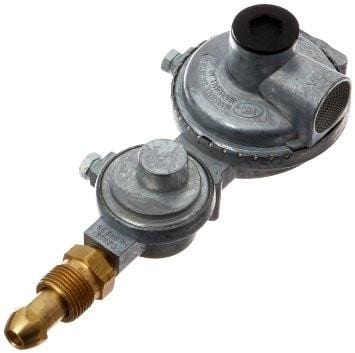

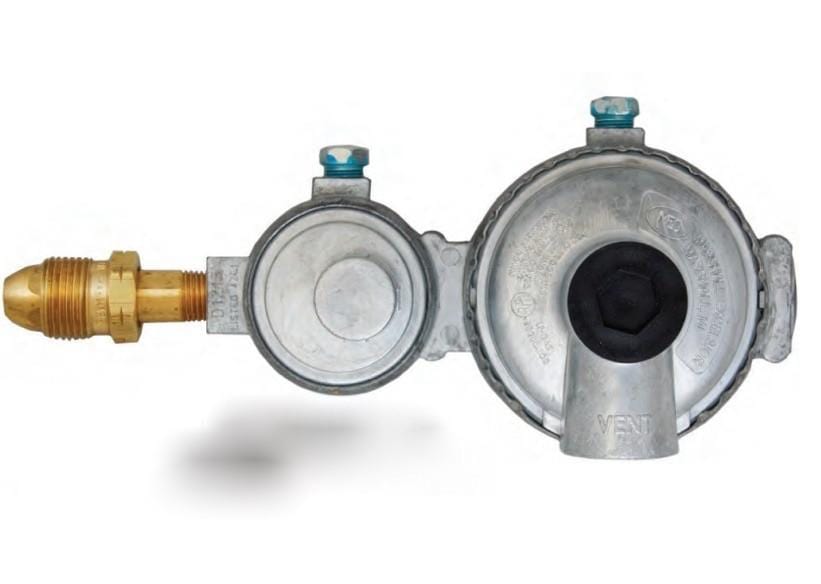

Propane Regulator, Two-Stage (MEGR-295)

  • $ 21.99
  • Save $ 2.96


Need a propane regulator for your RV propane tank? The Marshall Excelsior MEGR-295 Propane Regulator is a two-stage propane tank regulator designed for underbody-mounted RV propane tanks, like Manchester tanks.

LP gas regulators reduce the pressure of LP gas vapor from tank pressure to desired appliance pressure. According to national code, a two-stage regulator must be used on RV's. A two-stage regulator greatly reduces the possibility of freeze-ups. Also, since the second stage regulator receives a relatively uniform pressure from the first stage regulator, this helps the second stage regulator to maintain appliance pressure at a nearly constant 11" W.C.

Note: The regulator is the heart of the LP gas system. Care should be taken to protect it from the elements which could cause it to malfunction. Your LP gas system should be kept free of moisture which could cause regulator freeze-up. A good regulator enclosure or cover will protect your regulator.

Warning: Your LP gas system should be tested before use by a trained and certified LP gas technician.

    Key Features: Propane Regulator, Two-Stage (MEGR-295)

    • Suitable for use with horizontal underbody RV propane tanks like the Manchester 6811, 6813, 6814, 6817 or 6840 tank models
    • Two-stage regulation, as required by ANSI/RVIA code in the US
    • Regulator is suitable for high-pressure LP gas
    • Die-cast zinc internal body with brass fitting
    • Limited 90-day warranty.

    Specifications: Propane Regulator, Two-Stage (MEGR-295)

     Length (in.) 6
    Width (in.) 2
    Weight (lbs.) 2.2
    Pressure Permits 175,000 BTU/H @30 psi, maximum inlet pressure 250 psi
    Connections

    3/8" FNPT (female NPT) outlet

    .9 GPM excess flow, hard-nose POL-type inlet to tank

    Approvals UL 144, ANSI/RVIA, NFPA
