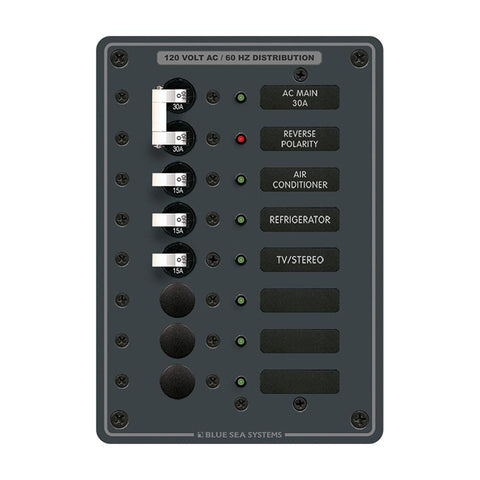

Blue Sea 8027 AC Main +6 Position Breaker Panel - White Switches
8027 AC Main +6 Position Breaker Panel - White Switches
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Positions: 6
- Nominal Voltage: 120v AC
- Height: 7.5"
- Width: 5.25"
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (7) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Max Breaker Quantity: 6
- AC/DC: AC
- Voltage: 120v
- Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
- UPC: 632085080273
Owner's Manual (pdf)
