WFCO WF-8930 Distribution Panel
Couldn't load pickup availability
Earn 599 Points when you buy this item.
If you are building or retrofitting an RV with many AC circuits and need an AC/DC distribution panel for 30A or 50A shore power, consider the WFCO WF-8930 Distribution Panel. The 8930/50 Series can be a 50 Amp or 30 Amp AC distribution center, with slightly different capabilities in either configuration:
- 30A - 30A AC main with 7 AC branch circuits
- 50A - 50A AC main with 12 AC branch circuits
In both configurations, it can accommodate 15 DC circuits (13 20A circuits and 2 30A circuits).
We carry three versions of this panel (select the version you want using the drop-down menu above):

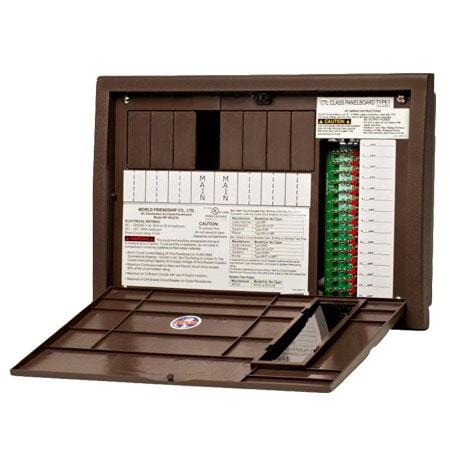

- WF-8930/50NP - Brown panel and door
- WF-8930/50NPB - Black panel and door
- WF-8930/50NPB-30 - Black panel and door, with one stab bar removed for use with 30 amp service only.
Important: This panel is not ignition-protected, and should not be installed in a compartment with batteries or any LP gas.
Want to save shipping costs? Use the discount code PORTLANDPICKUP when you order and pick up from our Portland, Oregon warehouse and you won't pay any shipping costs.
Key Features: WFCO WF-8930 Distribution Panel
- Flexible: can be 30A or 50A distribution center
- Built-in standard protection for over-current, over-temperature, over-voltage, reverse polarity
- Two-piece, includes door with window
- LED warning lights provide visible warning for open circuits
- Built-in terminal bars for negative DC wiring
- Built-in strain reliefs in cabinet back (suitable for 10/2-14/2 Romex)
- Integrates with any of WFCO's deck-mount RV converters
- Rear-mounted AC 15A or 20A receptacle, allowing easy converter plug-in for power
- DC circuits are fused with ATC blade-style fuses
- Main AC circuits (30A/50A 120/240VAC) and branch circuits (20A 120/240VAC) use 1" single-pole circuit breakers
- UL and cUL listed
- Limited 2-year warranty.
Note: This is a distribution panel only, and does not include a converter or transfer switch, though it can easily pair with a WFCO converter and transfer switch. Circuit breakers and fuses for this panel are sold separately.
Specifications: WFCO WF-8930 Distribution Panel
| Input Voltage | 120VAC or 240VAC |
| Input Current | 30A or 50A |
| Outer Dimensions | 13 3/4"W x 9 1/2"H x 4"D |
| Rough Opening | 12 3/16"W x 8 3/16"H x 3"D |
| Weight (lbs.) | 3.75 |
| AC Circuits | 30A Config: Main 30A, 7 AC branch circuits 50A Config: Main 50A, 12 branch circuits |
| Compatible AC Circuit Breakers (Main) |
Square D HOM, Siemens QP, or Cutler Hammer BR230/ BR250/C250/C230 breakers |
| Compatible AC Circuit Breakers (Branch) |
Square D HOMT, Siemens QP or QT, or Cutler Hammer Bd2020/ A2020 breakers |
Documents: WFCO WF-8930 Distribution Panel
WFCO WF-8930 Distribution Panel Installation Manual
