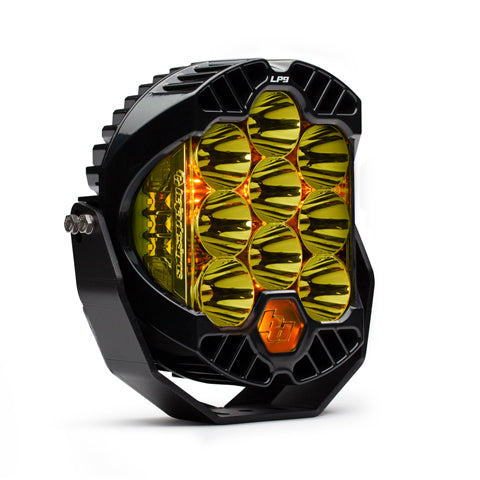

Baja Designs LP9 Racer Edition LED Auxiliary Light Pod


  • $ 669.95

Introducing the Baja Designs LP9 Racer Edition LED Auxiliary Light Pod, a design that was inspired by Baja Designs’ legendary 8-inch La Paz HID. The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.

The LP9 utilizes 9 forward projecting LEDS to produce 11,025 lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances.

Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

The Baja Designs LP9 Racer Edition LED Auxiliary Light Pod isn't just a light—it's a lighting revolution. With unmatched power, advanced cooling, and versatile patterns, the LP9 Racer is your key to elevating your journey, illuminating every path with clarity and confidence. Unleash the future of lighting technology today.

Key Features: Baja Designs LP9 Racer Edition LED Auxiliary Light Pod

  • Blazing Brightness
  • Cool and Efficient
  • Versatile Daytime Running Light
  • Driving/Combo Brilliance
  • Satisfaction Guarantee (30-day money back guarantee)
  • Limited Lifetime Warranty (complete purchase protection)
  • uService (replaceable lenses and optics)
  • ClearView (all the light, right where you need it)
  • MoistureBlock (waterproof, rain proof, submersible)
  • CopperDrive (only led driven at 100 percent)
  • 5000K Daylight (less driver fatigue, natural color)
  • Made in USA

Specifications: Baja Designs LP9 Racer Edition LED Auxiliary Light Pod

Amperage Rating (A) 9.600
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Racer Edition Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8374
Description Racer Edition Spot; Clear / Amber
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 132.480
Wiring Harness Included No


Length (in.) 8
Height (in.) 8
Depth (in.) 3.2
Weight (lbs.) 6.5

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

Document: Baja Designs LP9 Racer Edition LED Auxiliary Light Pod

Baja Designs LP9 Racer Edition LED Auxiliary Light Pod Installation Instructions
