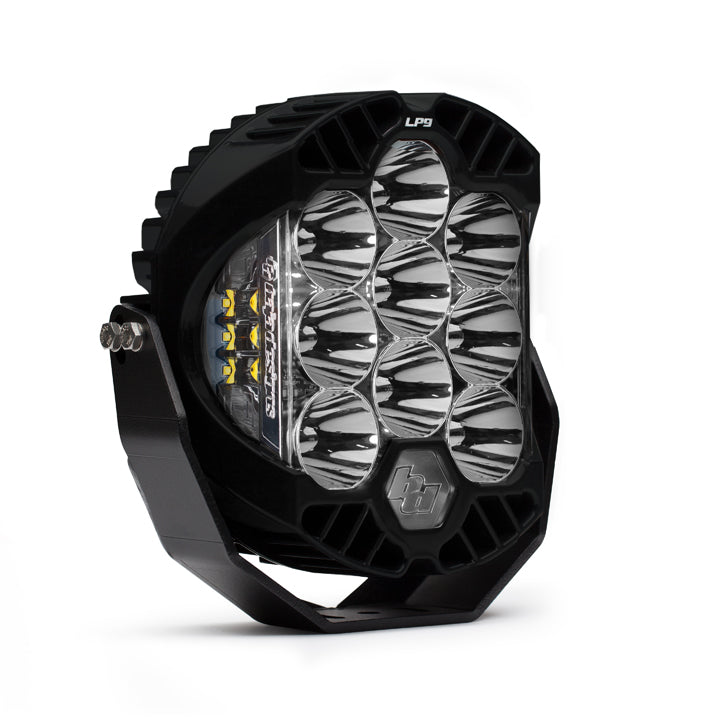

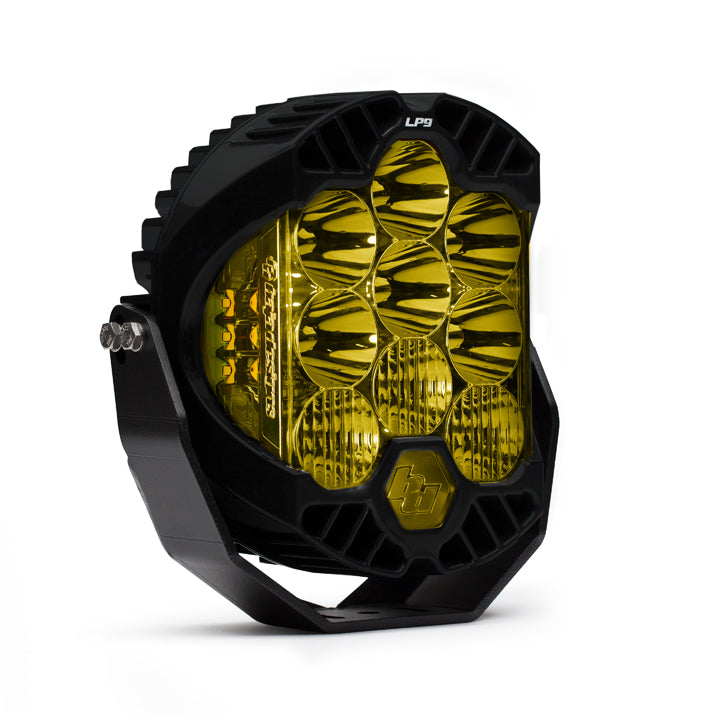

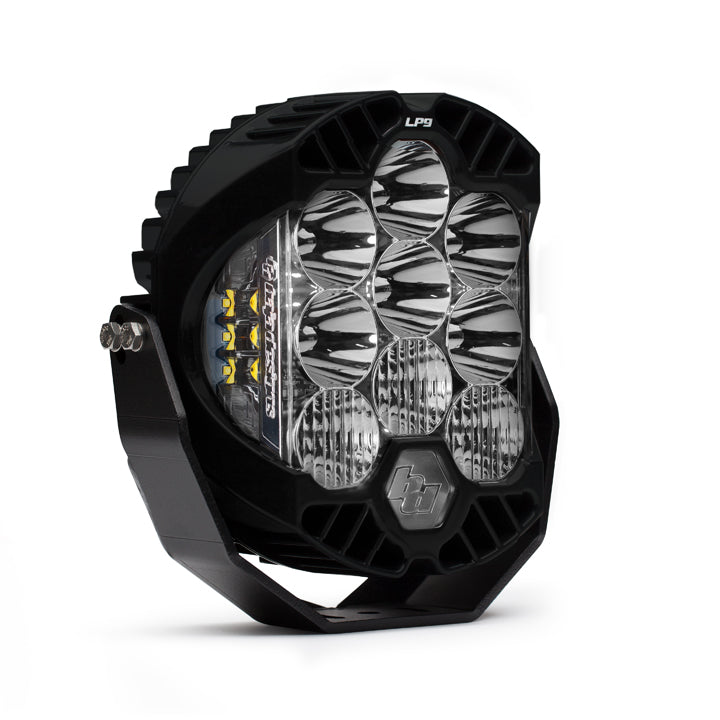

Baja Designs LP9 Sport LED Auxiliary Light Pod


  • $ 463.95

The Baja Designs LP9 Sport LED Auxiliary Light Pod is the ideal choice for enthusiasts seeking a full-sized light with a contemporary design and advanced functionalities. This Sport model retains all the cutting-edge technologies that have made the LP9 series so popular.

One of its standout features is Direct Ducted Cooling, which effectively keeps the light cool even during demanding situations. Additionally, it incorporates Integrated Peripheral Technology (IPT), delivering an impressive 200-degree spread of usable light.

The LP9 Sport is equipped with 9 forward-projecting LEDs, generating an impressive 6,500 Lumens at a power consumption of 61 watts. It also includes 6 LEDs dedicated to Integrated Peripheral Technology (IPT), producing 2,280 lumens while consuming only 21 watts.

Just like our other LED offerings, the LP9 Sport comes with uService technology, allowing users to effortlessly change the lens pattern and color to adapt to varying driving conditions or simply refresh the lens when desired.

Please note that the LP9 Sport offers a straightforward on/off functionality, without a high/low beam option, and it does not include the amber backlit feature. For those features, you may want to consider the LP9 Pro or Racer Editions in the LP9 series.

In summary, the Baja Designs LP9 Sport LED Auxiliary Light Pod combines a sleek design with powerful lighting capabilities, making it an excellent choice for those who value modern styling and advanced lighting technology for their off-road adventures.

Key Features: Baja Designs LP9 Sport LED Auxiliary Light Pod

  • Blazing Brightness
  • Cool and Efficient
  • Versatile Daytime Running Light
  • Spot or Driving/Combo Brilliance
  • Satisfaction Guarantee (30-day money back guarantee)
  • Limited Lifetime Warranty (complete purchase protection)
  • uService (replaceable lenses and optics)
  • ClearView (all the light, right where you need it)
  • MoistureBlock (waterproof, rain proof, submersible)
  • CopperDrive (only led driven at 100 percent)
  • 5000K Daylight color (less driver fatigue, natural color)
  • Made in USA.

Specifications: Baja Designs LP9 Sport LED Auxiliary Light Pod

Amperage Rating (A) 6.400
Average Rated Life (hr.) 49,930
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 9421
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Sport LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 88.320
Wiring Harness Included No


Length (in.) 8
Height (in.) 8
Depth (in.) 3.2
Weight (lbs.) 6.5

Standards & Compliance

Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Document: Baja Designs LP9 Sport LED Auxiliary Light Pod

Baja Designs LP9 Sport LED Auxiliary Light Pod Installation Instructions

Video: Baja Designs LP9 Sport LED Auxiliary Light Pod
