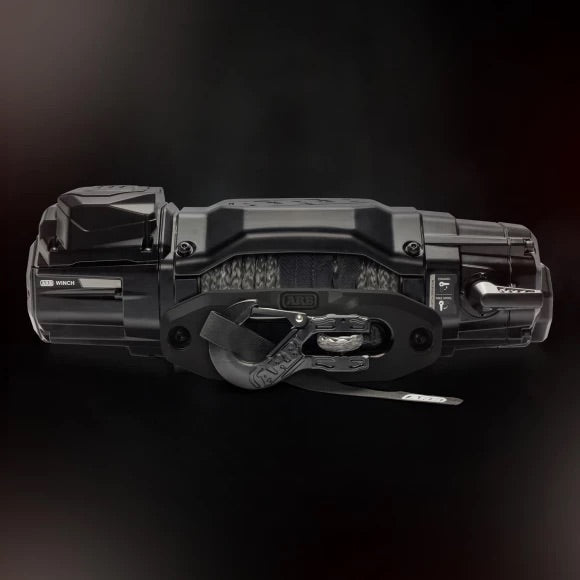

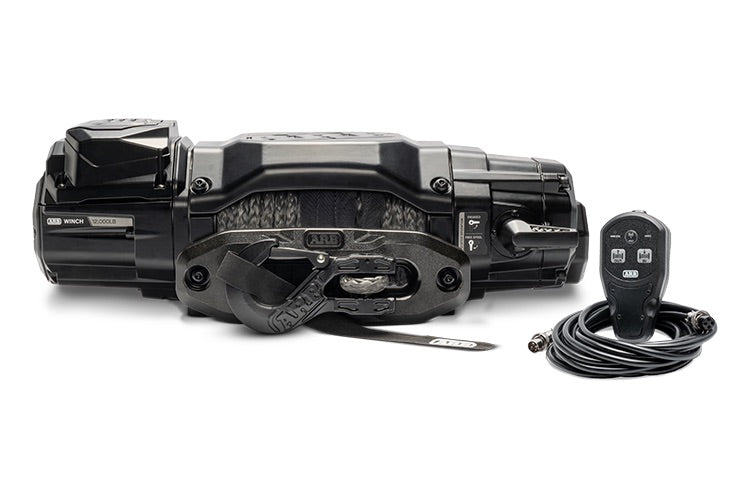

ARB Winch 12,000 lbs (ARW120SA)
The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.
Key Features: ARB Winch 12,000 lbs (ARW120SA)
- The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
- A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
- Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
- 4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.

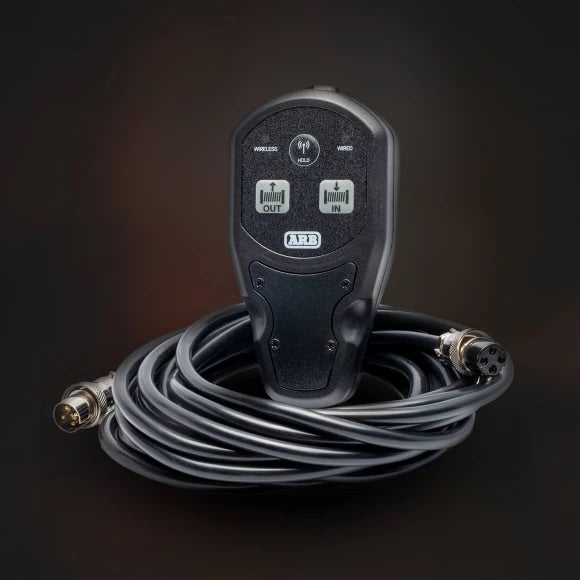

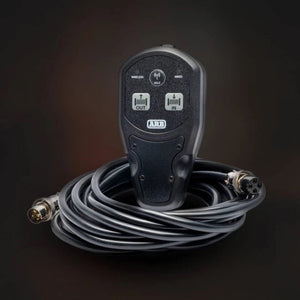

- Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
- Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
- One piece bridging plate offers greater torsional strength.

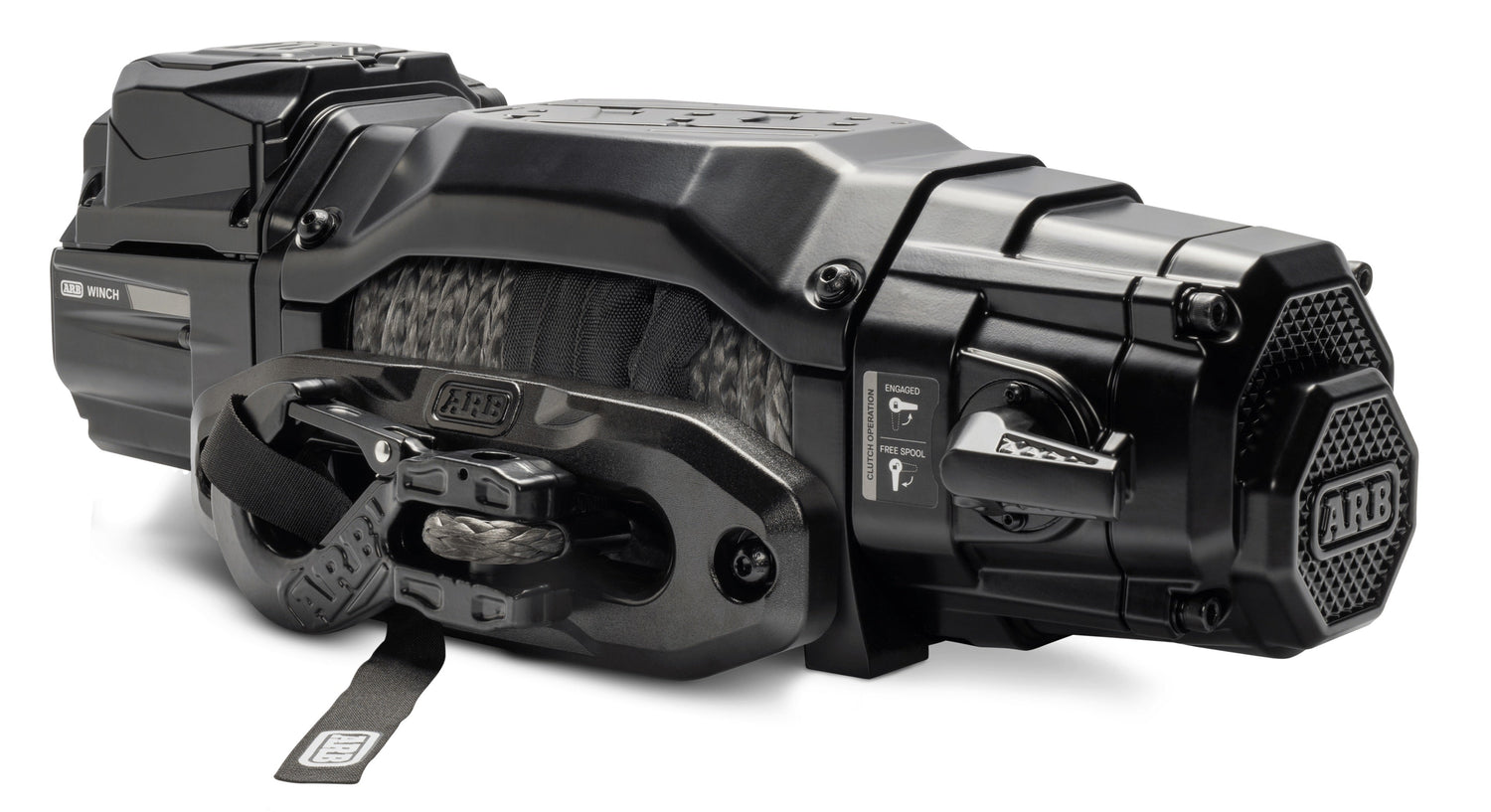

- Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.
Documents: ARB Winch 12,000 lbs (ARW120SA)
ARB Winch 12,000 lbs (ARW120SA) Installation Guide
Specifications: ARB Winch 12,000 lbs (ARW120SA)
Includes Main Power Isolation Switch and Remote Mounted Control Plug
|
Volts |
12V |
|
Max Line Speed |
65ft 7.4in / min |
|
Weight |
73.85 lbs |
|
Material |
Aluminum/steel |
|
Color |
Black |
|
Prop 65 |
Yes |
|
Waterproof Ratings |
IP68 Winch Motor and Gearbox |
|
Fairlead |
Aircraft Grade Black Aluminum Hawse Fairlead |
|
Rated Line Pull |
12,000 lb |
|
Rope |
Black Synthetic (13/32 in × 91.9 ft) with Protective Sleeve |
|
Motor |
4.3kW (5.7HP) |
|
Electrical Contactor |
Albright DC Contactor 500 Amp |
|
Brake |
Gearbox Mounted 100% Load Holding Proportional Friction Brake |
|
Gearbox |
2-Stage Planetary and 2-Stage Spur |
|
Limited Lifetime Warranty |
7-Year Warranty on Electrical Components)
|
