EcoFlow LFP Battery Power Distribution Terminal
Couldn't load pickup availability
Wiring large DC loads into your EcoFlow Power Kit-based RV electrical system? Check out the EcoFlow LFP Battery Power Distribution Terminal – the solution for efficient and reliable DC power distribution in a compact and eco-friendly package.

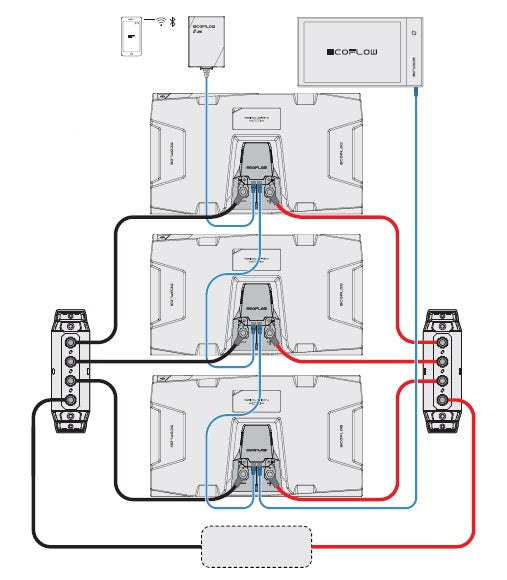

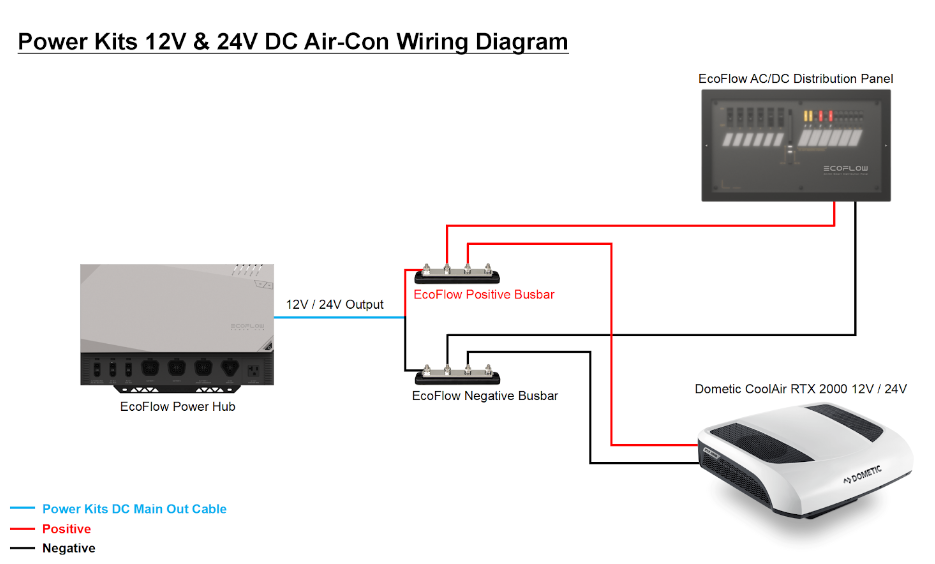

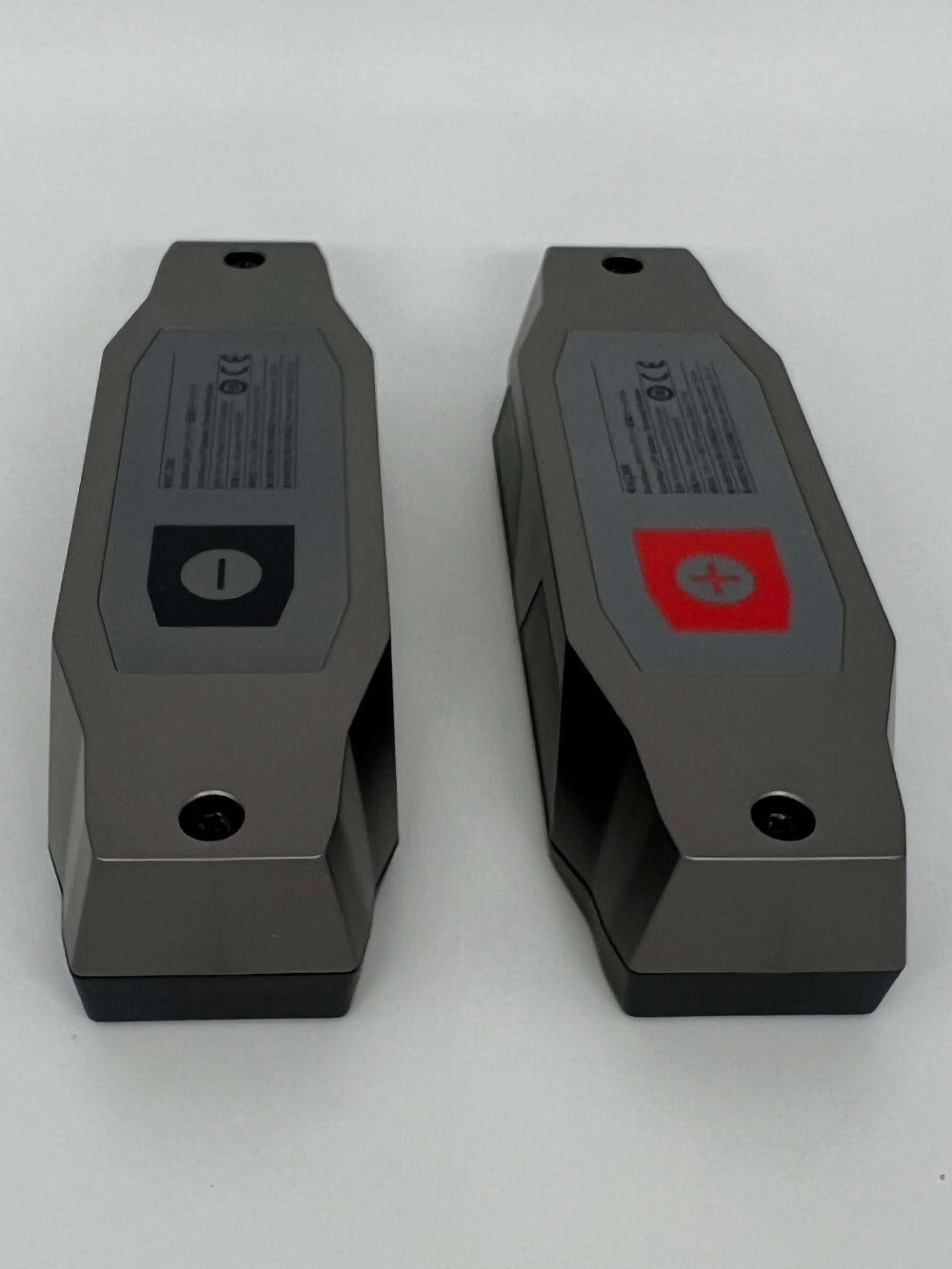

These 300A DC bus bars (sold as a set of two, one for positive and one for negative connections) give you a way to wire large DC loads into your EcoFlow Power Kit. EcoFlow recommends using these for loads like 12V and 24V DC air conditioners, combined with the AC/DC Distribution Panel.
FREE SHIPPING on this item anywhere in the lower 48 US states.
Specifications: EcoFlow LFP Battery Power Distribution Terminal
| Brand | EcoFlow |
| Type | Power Distribution Terminal / Bus Bar (set of 2) |
| Max. current rating | 300A |
| Max. voltage rating | 60 VDC |
| Terminal diameter | 0.31 inch |
| Terminal height | 0.59 inch |
| Terminal material | Stainless steel |
| Hex nut material | Stainless steel |
| Recommended torque | 150.5-203.6lbf·inch / 17-23N·m |
| Busbar strip material | Tin-plated copper |
| Base material | PC+ABS, black, YS 1293B，UL 94 V-0 |
| Cover material | PC+ABS, YS 1286B, UL 94 V-2 |
| Weight | 0.59 lb |
| Dimensions (h*w*d) (with cover) | 6.57 x 2.05 x 1.36 inch |
| Warranty | 1-year |
Documents: EcoFlow LFP Battery Power Distribution Terminal
EcoFlow LFP Battery Power Distribution Terminal Quick Installation Guide
Video: EcoFlow LFP Battery Power Distribution Terminal

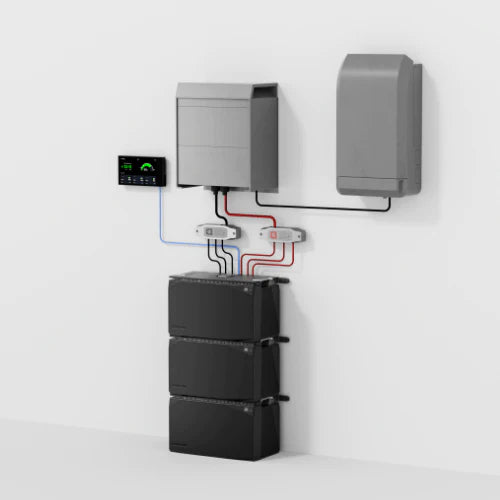

The modular EcoFlow Power Kits are plug-and-play power systems, enabling you to quickly put together very capable electrical systems for your camper van or RV. Even after you assemble a system, you can add a battery to increase power storage capacity or plug in a solar panel for faster charging. Power Kits include the patented Power Hub that combines five components (inverter, dual MPPT solar charge controllers, DC/DC charger, DC/DC converter) to meet all your power needs, saving you space, money, and set-up hassle.
<
