Northwest Conversions 24 Gallon Ford Transit Spare Tire Tank
Introducing the Northwest Conversions 24 Gallon Ford Transit Spare Tire Tank, the ultimate solution for maximizing space and ensuring a reliable water supply on your adventures!
Once the tire is removed the factory cable mount will need to be removed from the bracket. This can be done by sliding the cable through the slot in the metal bracket. This assembly can be completely removed or it can be tied up above the mount and secured with cable ties or similar. The tire safety cable can be removed as well. There are 2 black rubber plugs noted in the picture that will need to be removed. These 2 holes are the locations for the smaller 7” L-bolts supplied with the tank. There are two similar holes for the 11” L-bolts on the crossmember where the factory tire hanger cable was located as noted in the picture.
Note: Free Shipping in Continental US!
- Designed to fit the spare tire location specific to the Ford Transit Van
- Tank can be used for fresh or grey water
- 24 Gallon Tank

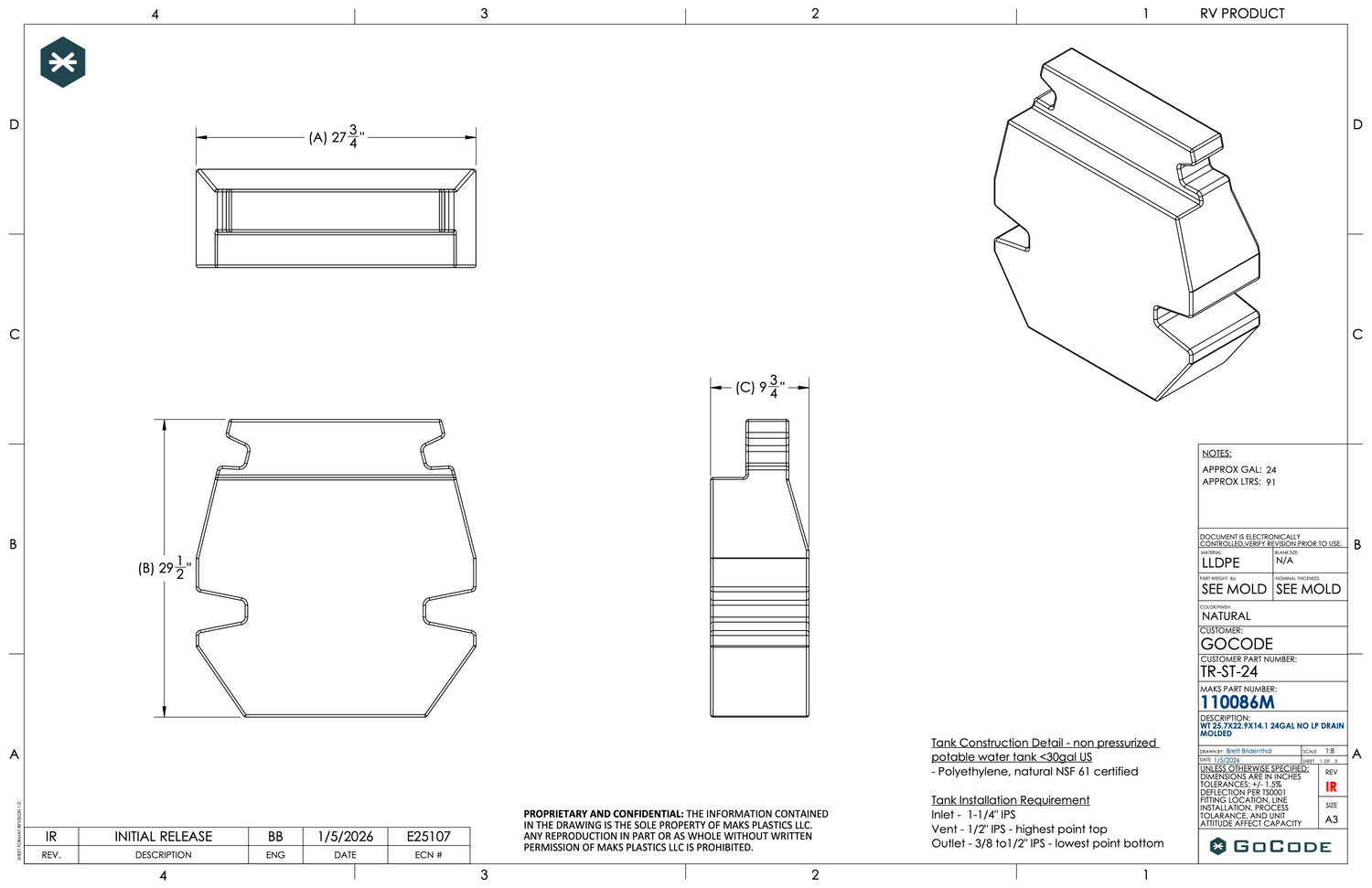

- Overall dimensions are 28″ x 30″ x 9.75″ (+-)
- Made from BPA Free, Food Grade polyethylene
- IAPMO TS-4 Certified
- Tank has (2) 1/2″ NPT and (2) 1.5″ NPT ports on driver side
- Tank has (1) 1/2 NPT and (1) 1.5″ NPT port on top
- Tank is designed to NOT be Pressurised (I.e. Needs to be vented)
- 1/2″ mounting hardware and plates included
- Made in the USA
The 24 Gallon is designed specifically to fit the Ford Transit Van spare tire location mounted with the supplied hardware. The tank may fit other makes and models.
Vehicle fitment
- Product type
- Adapter or bracket
- Vehicle
- Ford Transit
- Summary
- Fits Ford Transit. Confirm vehicle model, year range, measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: Once the tire is removed the factory cable mount will need to be removed from the bracket. This can be done by sliding the cable through the slot in the metal bracket. This assembly can be completely removed or it can be tied up above the mount and secured with cable ties or similar. The tire safety cable can be removed as well. There are 2 black rubber plugs noted in the picture that will need to be removed. These 2 holes are the locations for the smaller 7” L-bolts supplied with the tank. There are two similar holes for the 11” L-bolts on the crossmember where the factory tire hanger cable was located as noted in the picture. 1/2″ mounting hardware and plates included The 24 Gallon is designed specifically to fit the Ford Transit Van spare tire location mounted with the supplied hardware. The tank may fit other makes and models.
Fitment FAQ
What does this Northwest Conversions 24 Gallon Ford Transit Spare fit?
This Northwest Conversions 24 Gallon Ford Transit Spare fits Ford Transit applications where the listed fitment details match.
Is this product vehicle-specific?
This is a vehicle-specific adapter or bracket for Ford Transit. Confirm the listed model, year range, configuration, measurements, and installation requirements before ordering.
What should I verify before ordering?
Confirm vehicle model, year range, measurements, mounting location, clearances, installation requirements before checkout.
What installation details matter?
Confirm vehicle model, year range, measurements, mounting location, clearances, installation requirements before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This adapter or bracket is intended for Ford Transit camper van conversions, RV upgrades, overland builds, and mobile installations where the listed fitment details match.
Campervan HQ fitment guide
Northwest Conversions 24 Gallon Ford Transit Spare Tire Tank for camper van and RV builds
Northwest Conversions 24 Gallon Ford Transit Spare Tire Tank supports Transit applications where fitment, measurements, installation requirements, and build layout should be confirmed before ordering.
Why choose this product?
- Supports camper van, RV, and mobile build planning
- Helps confirm measurements, installation needs, and clearances before checkout
- Useful for matching the product to the build layout before ordering
Installation context
- Confirm measurements and clearances
- Review wiring, mounting, sealant, or material requirements where relevant
- Use professional installation when the build requires it
Compatibility notes
Fits Ford Transit. Confirm vehicle model, year range, measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: Once the tire is removed the factory cable mount will need to be removed from the bracket. This can be done by sliding the cable through the slot in the metal bracket. This assembly can be completely removed or it can be tied up above the mount and secured with cable ties or similar. The tire safety cable can be removed as well. There are 2 black rubber plugs noted in the picture that will need to be removed. These 2 holes are the locations for the smaller 7” L-bolts supplied with the tank. There are two similar holes for the 11” L-bolts on the crossmember where the factory tire hanger cable was located as noted in the picture. 1/2″ mounting hardware and plates included The 24 Gallon is designed specifically to fit the Ford Transit Van spare tire location mounted with the supplied hardware. The tank may fit other makes and models.
Common use cases
- Camper van conversions
- RV upgrades
- Trailer and overland builds
Northwest Conversions 24 Gallon Ford Transit Spare Tire Tank
