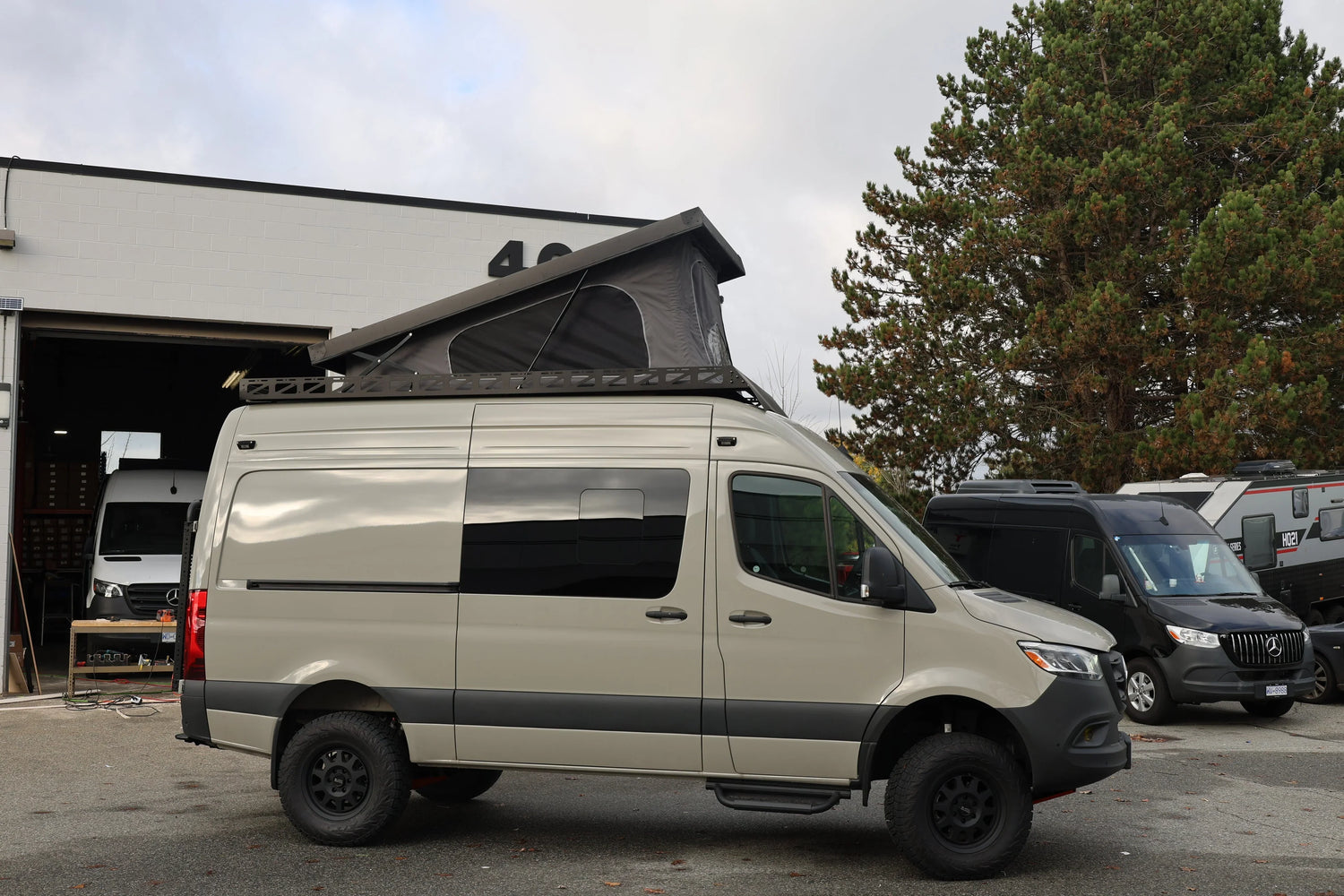

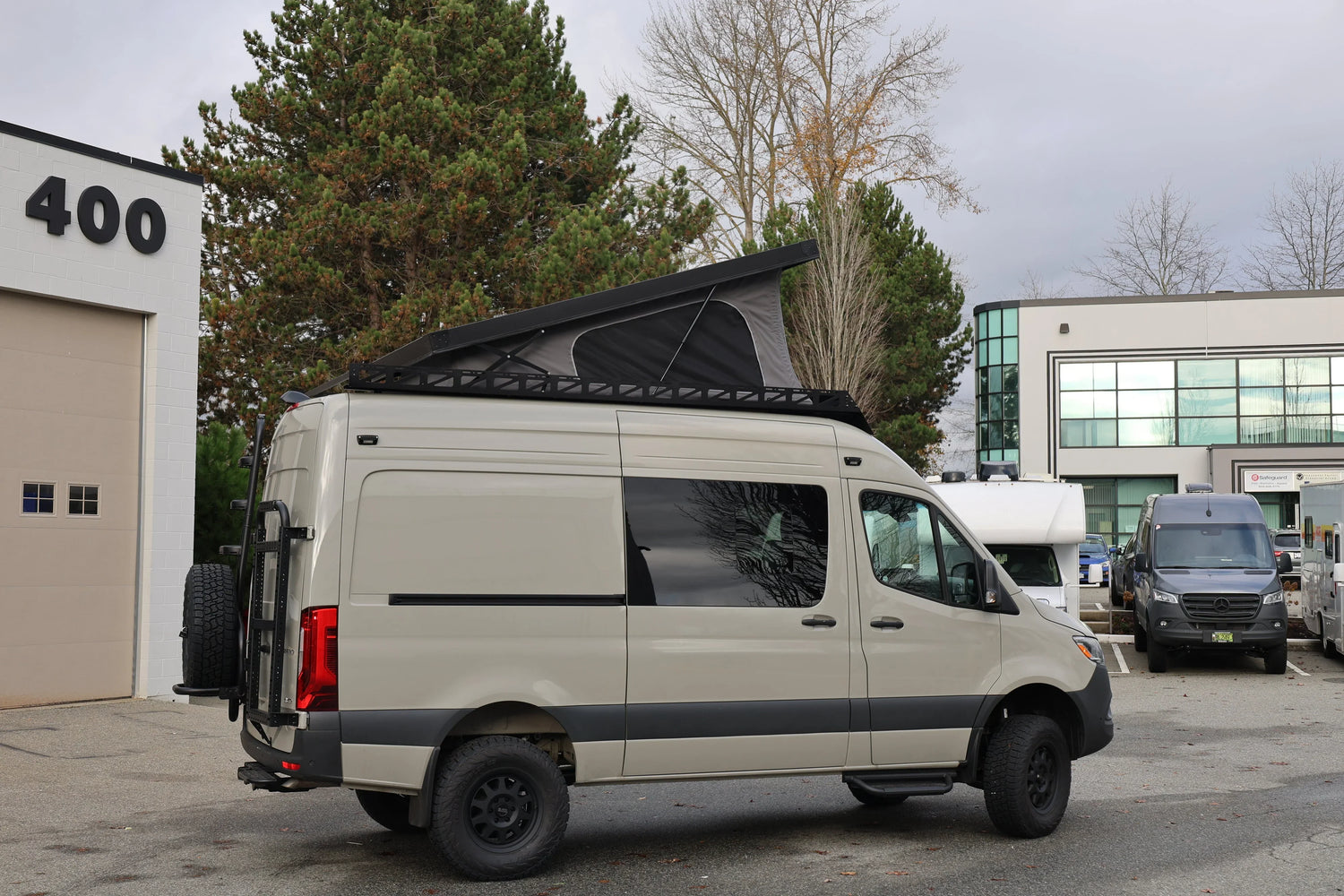

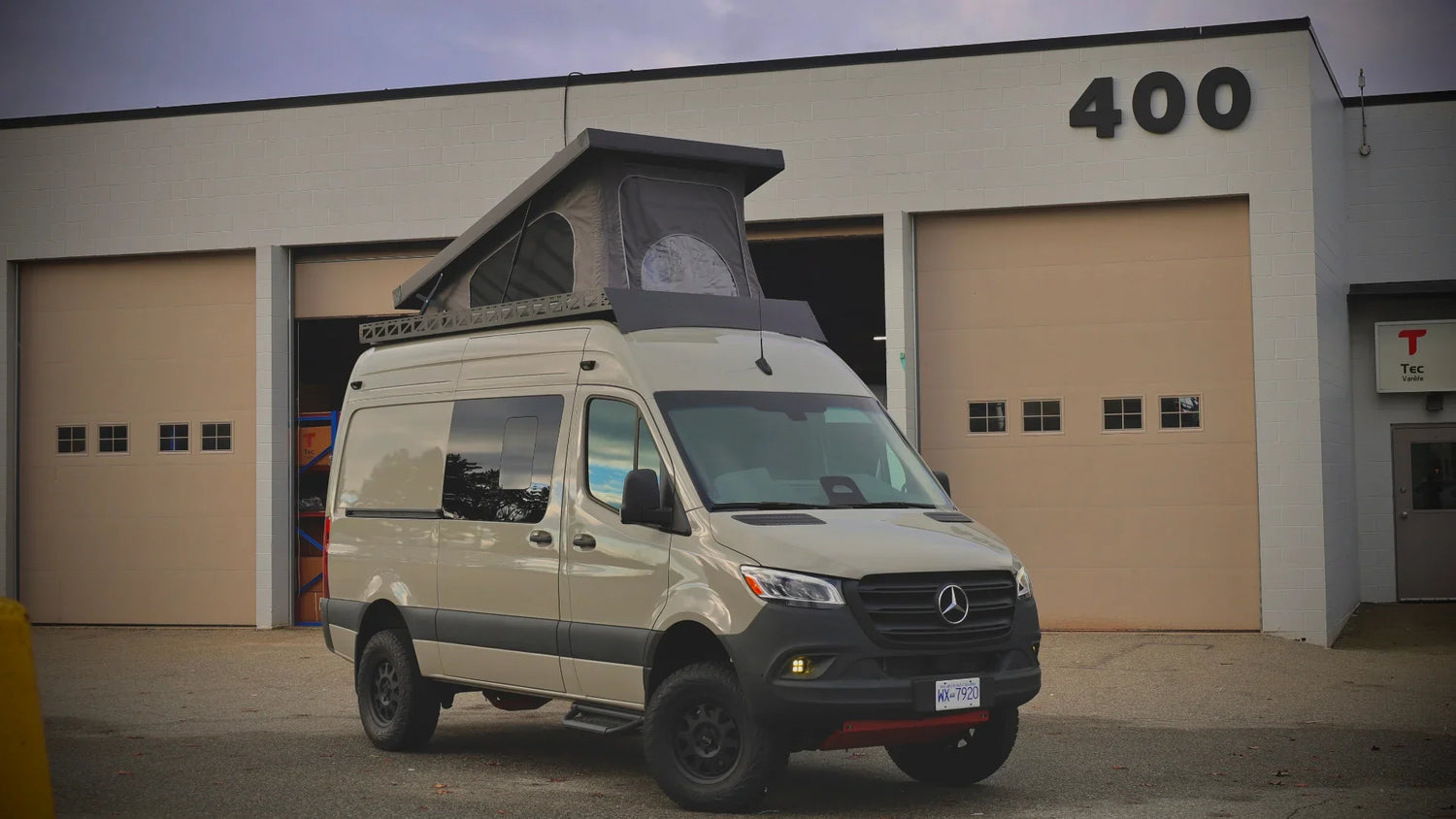

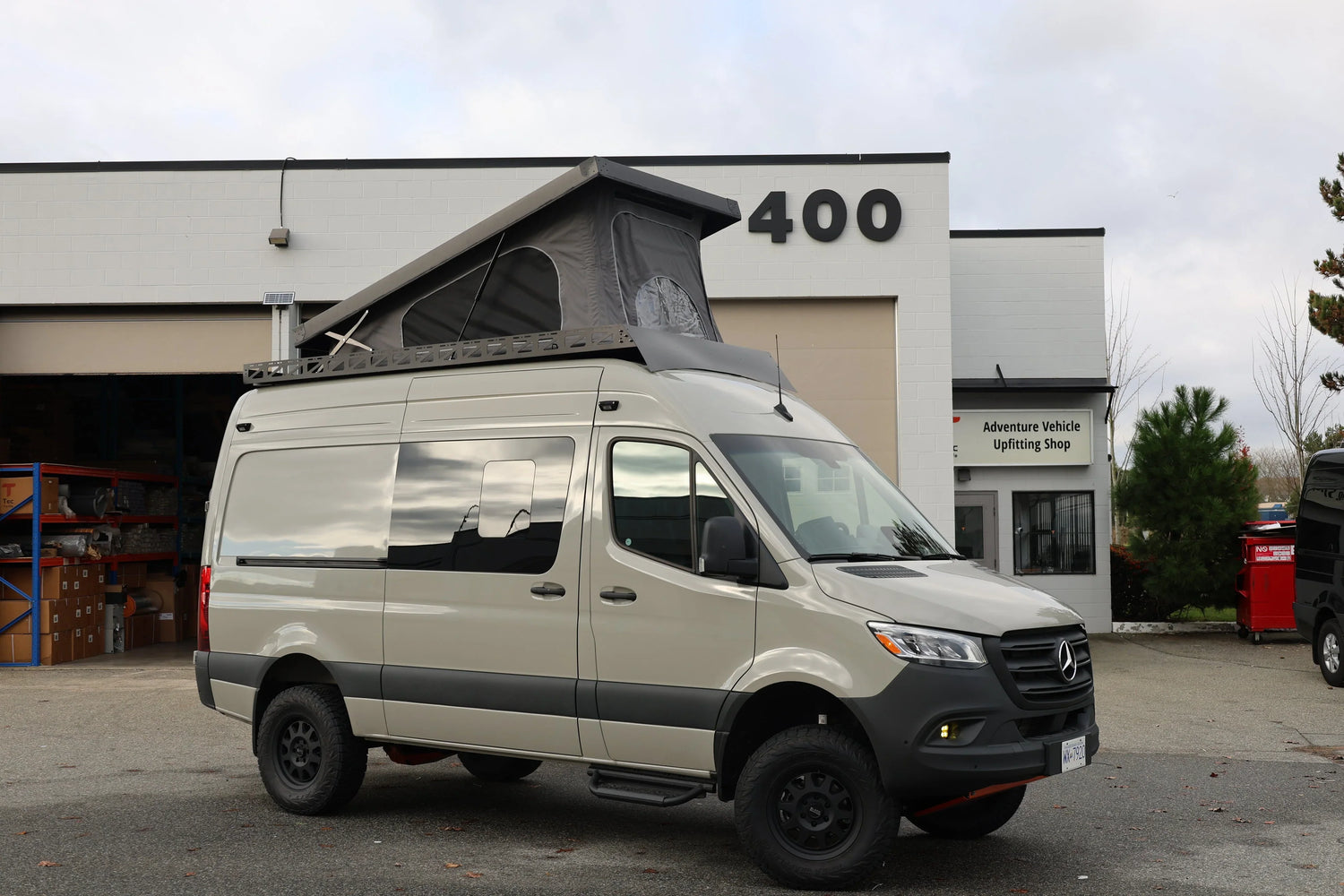

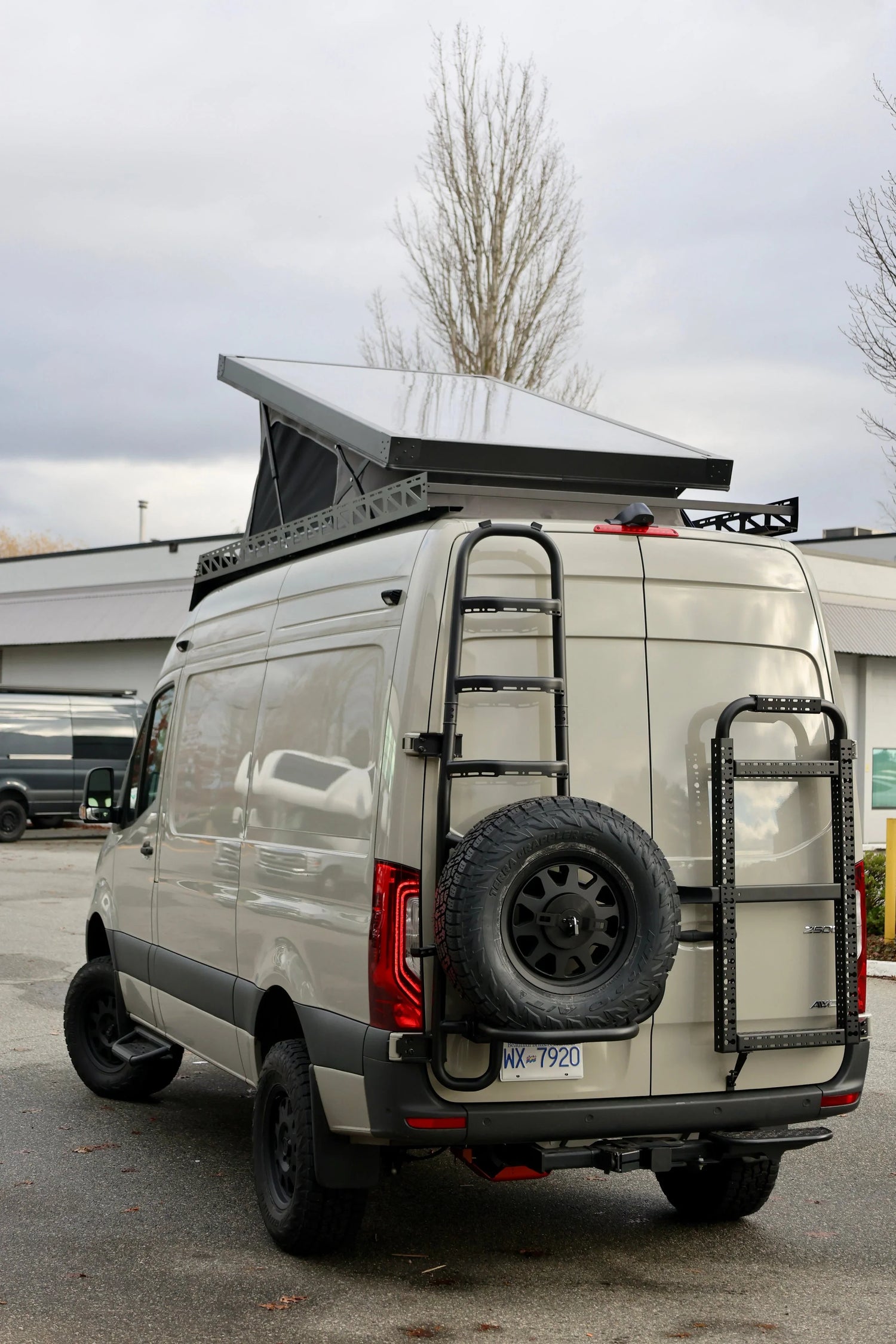

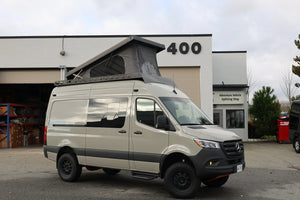

RoamlabX Carbon Fiber Roof Top Tent - 2007+ Mercedes Sprinter 170"

Pre-Order! Estimated shipping late May-early June. Requires oversized freight with curbside delivery. Free Shipping to all lower 48 US states!

This item will come partially assembled for a Mercedes Sprinter 144", but will also include a Roof Rack Extension package to adapt to 170". All Roof Top Tents are the same size, only roof rack assemblies change.

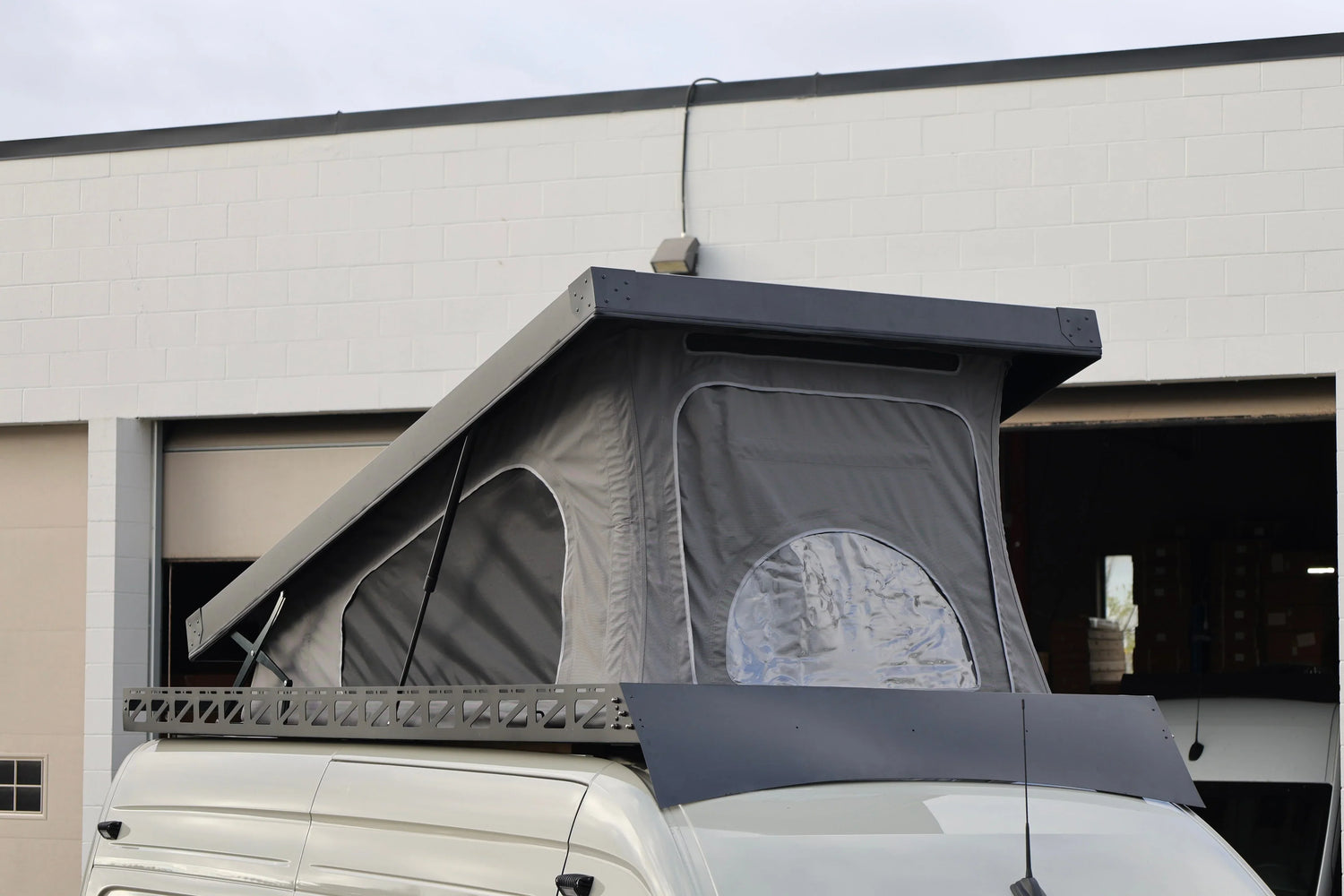

Revolutionary carbon fiber rooftop tent engineered exclusively for Sprinter vans. At under 135 lbs, this is the world's lightest full-size rooftop tent, featuring aerodynamic design, integrated insulation, and solar-ready construction for year-round adventure.

Key Features: RoamlabX Carbon Fiber Roof Top Tent - 2007+ Mercedes Sprinter 170"

• Fits 2007+ Mercedes Sprinter 170" vans
• Designed to fit Tec Vanlife Modular Roof Racks only(included)
• Low profile ultra-light weight Carbon Fiber Roof Top Tent

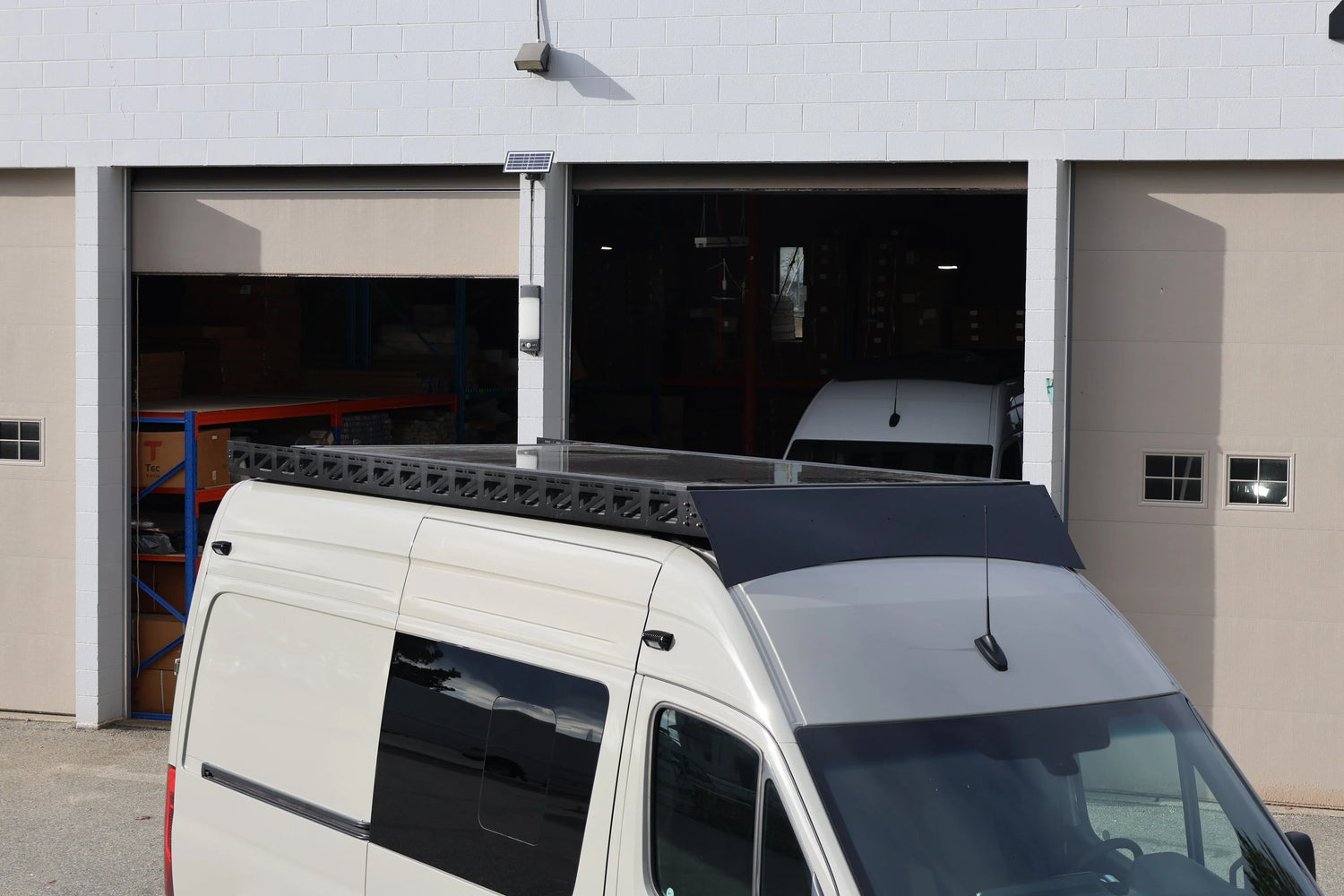

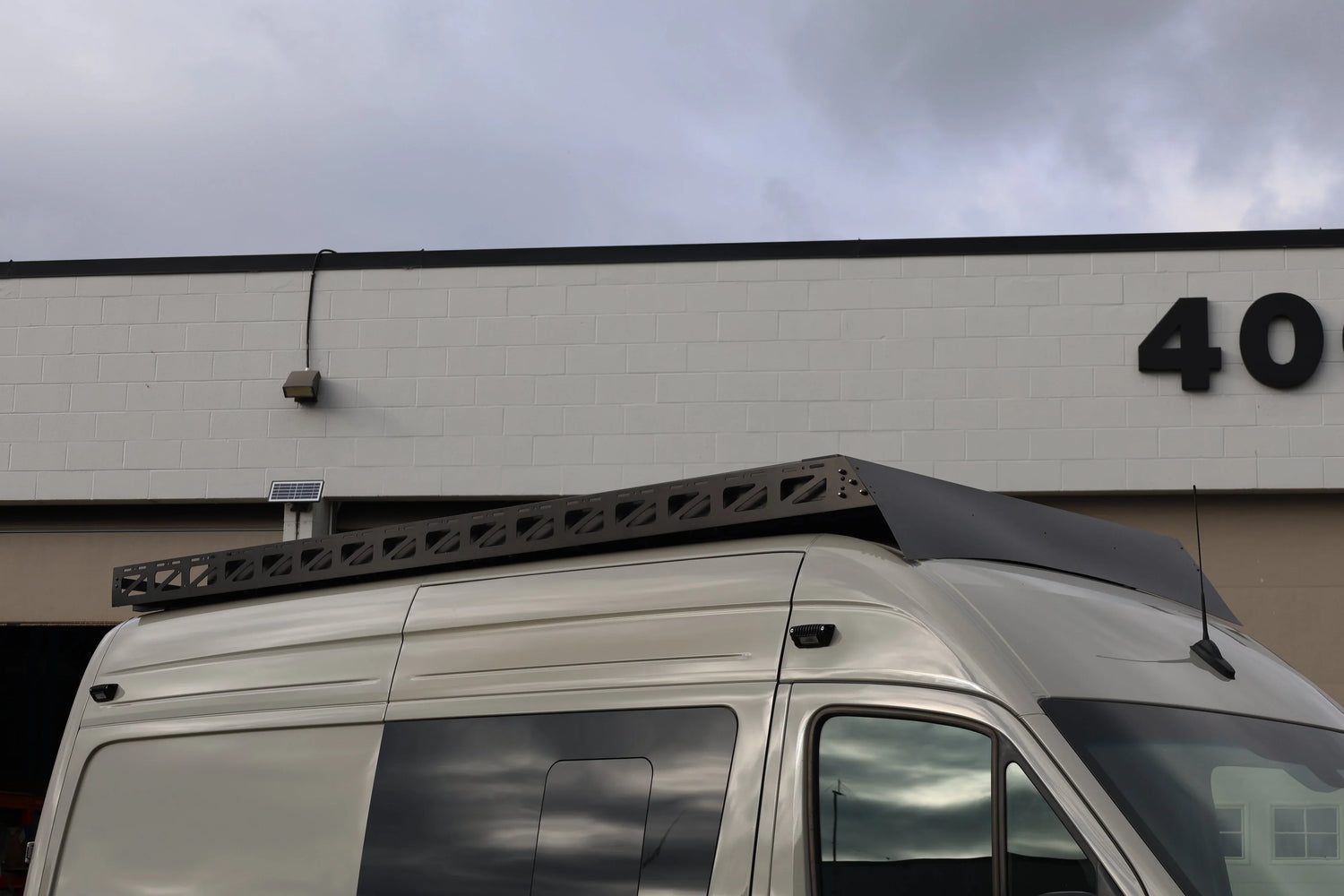

• Fully integrated carbon fiber top/bottom shells are supported by a purpose-built low-profile integrated roof rack
• Super fast and easy installation - the entire unit bolts directly onto the roof rails - no drilling

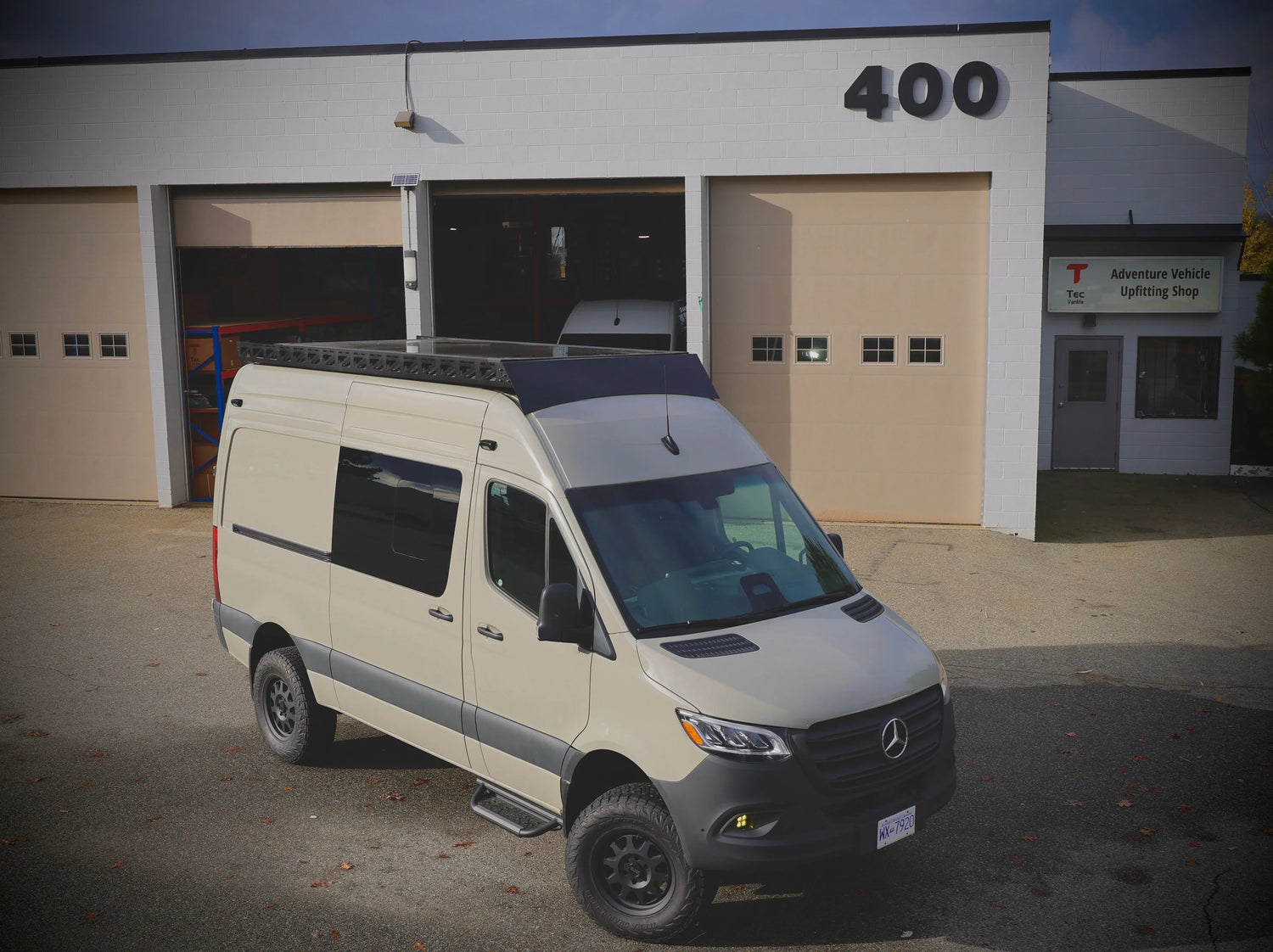

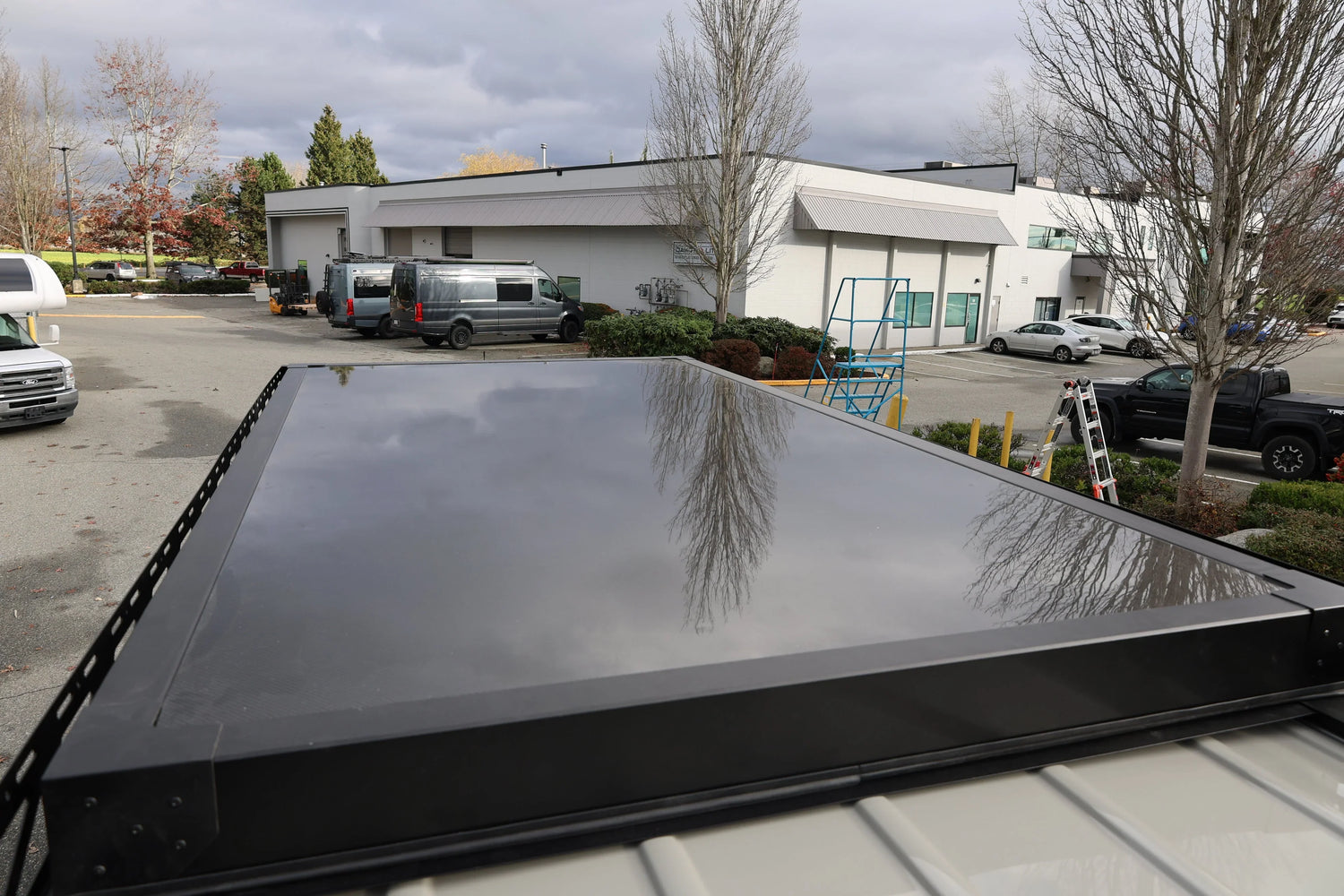

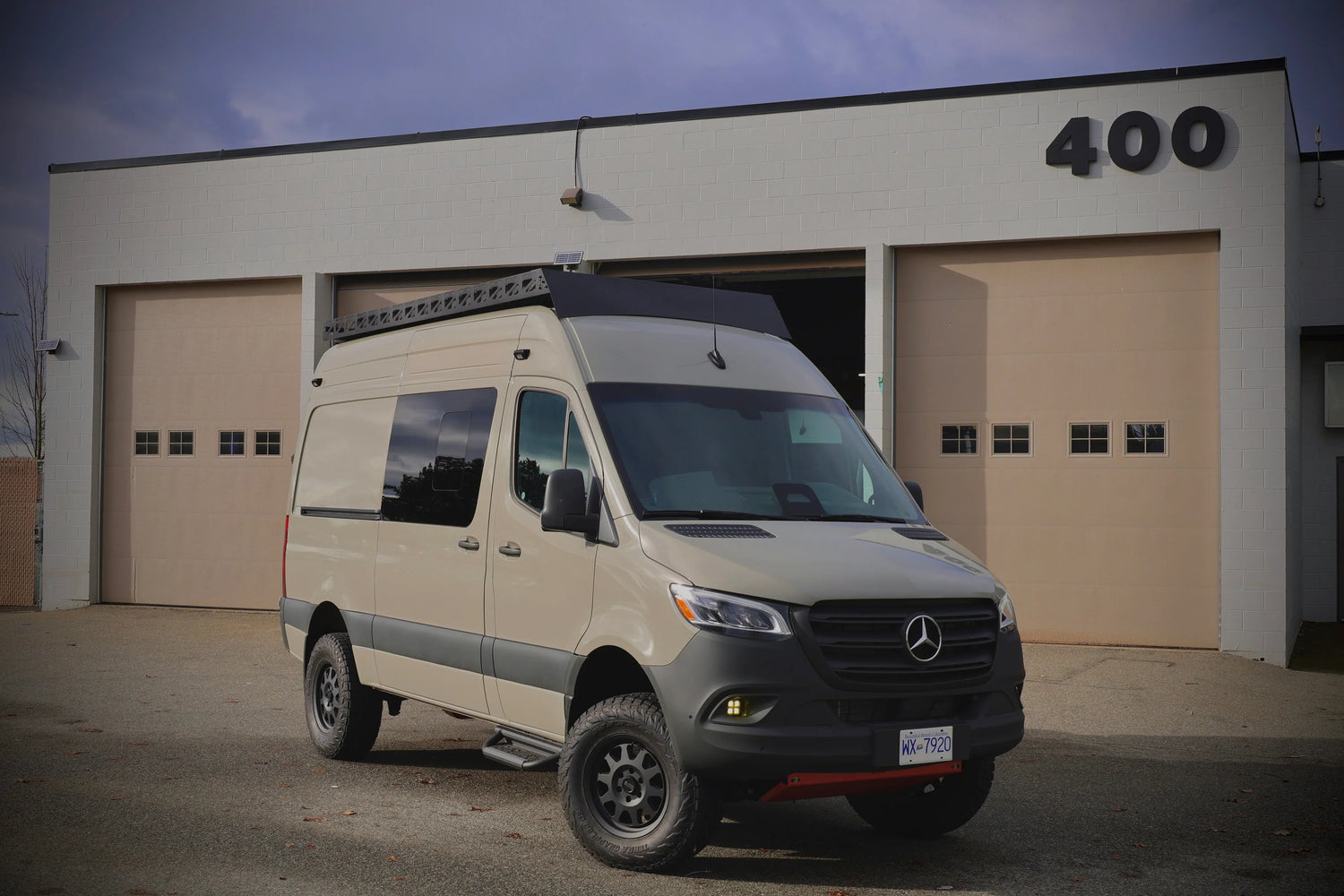

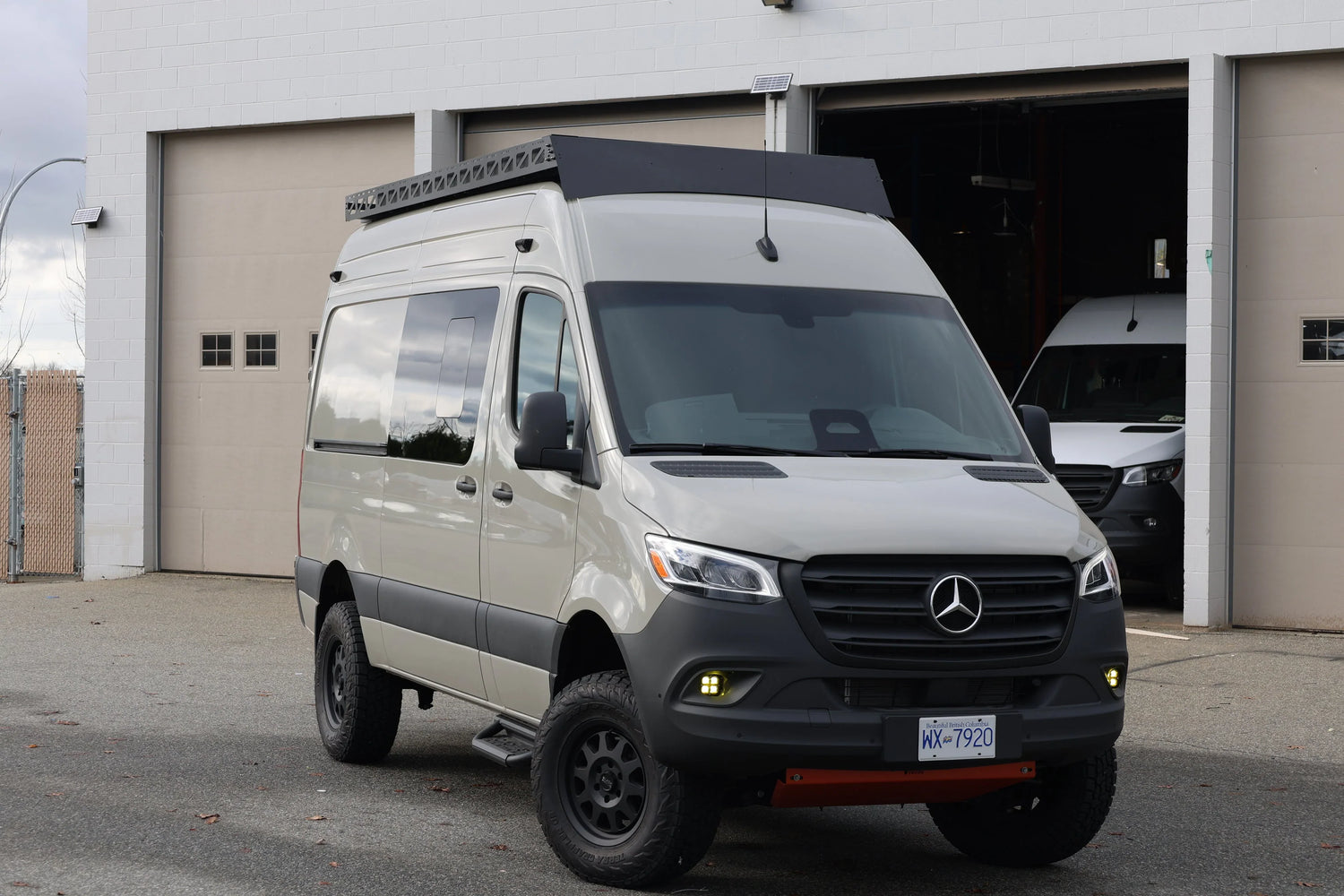

• Sleek, flush finish when closed

Requires factory or aftermarket roof rails.

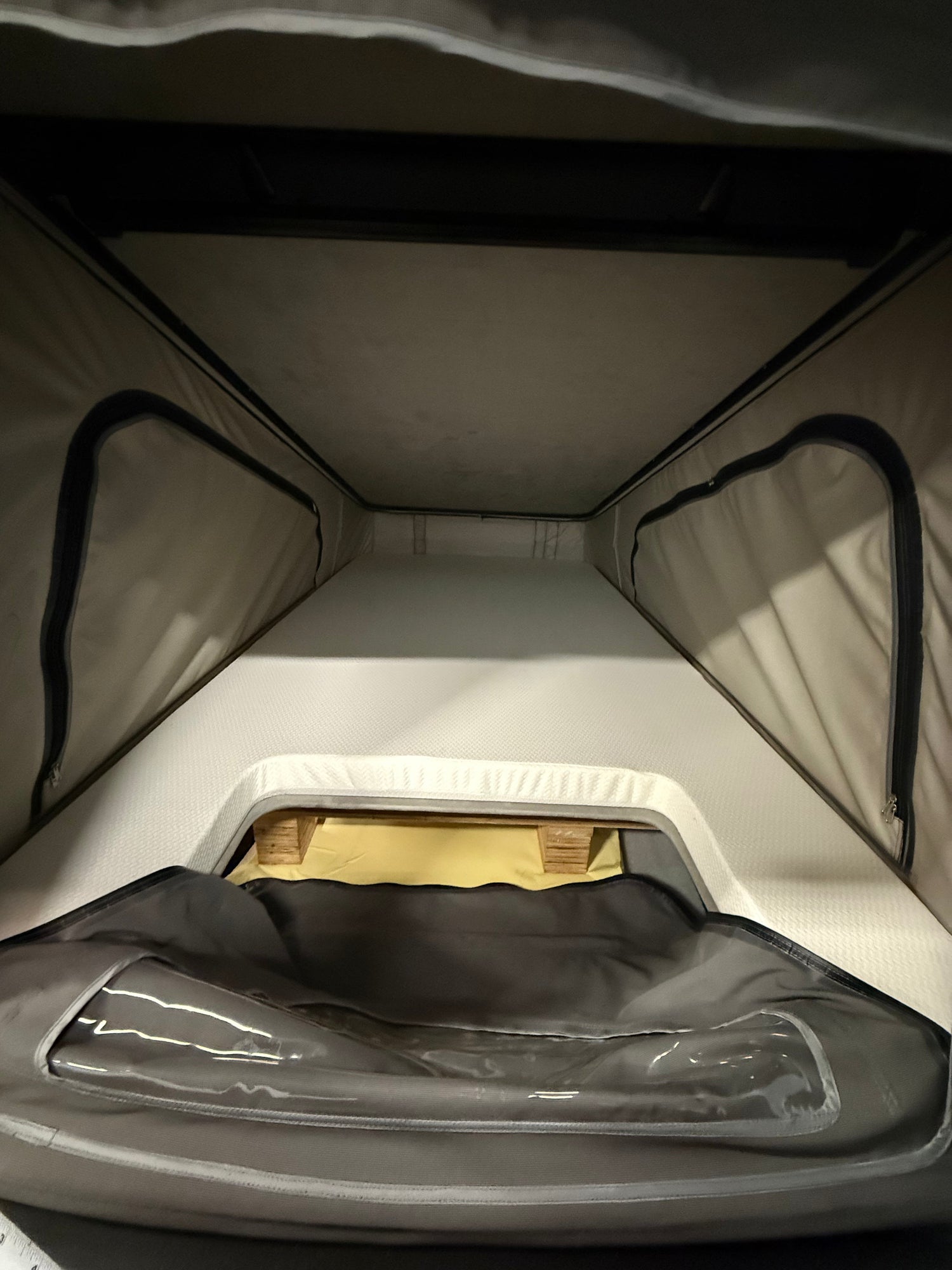

Inside:

• Opening and access is exclusively via the inside of the van
• This requires a cut-out behind the A pillar where a Fan would mount
• Entrance opening size  - approximately 17.7" x 27.6"
• Patented Mold & Moisture resistant fabric walls
• Removable insulation layer for 3-4 season camping
• Supportive, lightweight gel & memory foam mattress included
• Built-in LED lighting system
• USB & C integrated chargers

Why This Tent Is Different

• Ultra-Lightweight Carbon Fiber Composite – Top and bottom shells built from aerospace-grade materials for maximum strength and minimal weight
• Removable Insulation Curtain Layer – Add it for winter warmth, remove it for summer airflow
• Patented Mold + Moisture-Resistant Fabric – Eliminates condensation issues common in rooftop tents
• Opens From Inside Your Van – Convenience and stealth, no climbing outside at night
• No Exterior Straps or Latches – Hidden internal sub-frame guides the tent into a smooth fold every time
• “Magic Mattress” – A next-generation comfort system engineered specifically for rooftop sleeping ergonomics

Documents: RoamlabX Carbon Fiber Roof Top Tent - 2007+ Mercedes Sprinter 170"

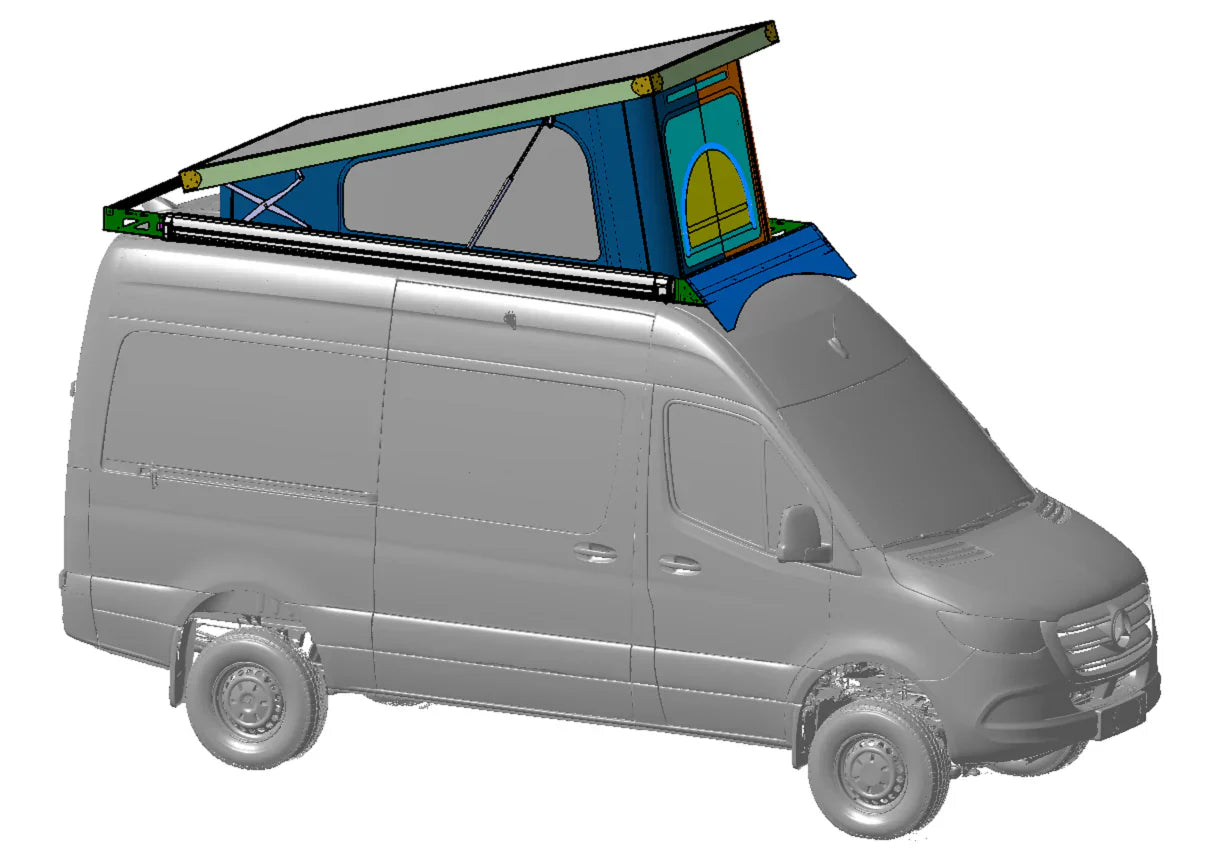

RoamlabX Carbon Fiber Rooftop Tent Diagram

RoamlabX Carbon Fiber Rooftop Tent Installation Guide

Note: This diagram shows dimensions for a Sprinter 144" van. The tent components are the same for 144" and 170"/170" EXT vans. The 170" packaging will include extensions and hardware to adapt and complete the full tent/rack installation.

Specifications: RoamlabX Carbon Fiber Roof Top Tent - Mercedes Sprinter 170"

Roof Rack Dimensions

• Rack Width:
• 153 cm / 5 ft ¼ in
• Sprinter 144 Rack Length:
• 342 cm / 134.5 in
• Sprinter 170 Rack Length:
• Same width as Sprinter 144
• 442cm / 174 in

Tent Interior Dimensions

• Interior Width:
• 130 cm / 51 in
• Interior Length:
• 252.5 cm / 99.5 in
• Front Interior Height:
• 94 cm / 37 in
• Rear Interior Height:
• 36 cm / 14 in

Tent Exterior Dimensions (Tent Body)

• Width:
• 147.5 cm / 58 in
• Length:
• 271 cm / 106.75 in

Entry Hatch Opening

• Opening Size:
• 450 mm × 700 mm
• 17.7 in × 27.6 in

Weight

• Total System Weight:
• Approximately 150 lbs (depending on configuration)

Shipping terms: Requires oversized freight with curbside delivery. Customer responsible for scheduling delivery date with carrier after tracking information is supplied. Customer is responsible for any storage, rescheduling, and weekend delivery fees that result from failure to schedule.

Frequently Asked Questions

1. Can I add solar panels, fans, or roof accessories?
Yes. The system is fully compatible with solar panels, fans, light bars, and most roof-mounted accessories.

2. Can the tent support top rails or crossbars?
Yes. The system can accept top rails for mounting crossbars, storage boxes, traction boards, and more.

3. Can the gas struts be upgraded?
Yes. Stronger gas struts can be custom-ordered for additional rooftop load capacity.

4. How easy is installation?
Installation is straightforward. The entry hatch installs like a Maxxair fan, and the tent bolts directly to your roof rails like a roof rack.

5. Is a Ford Transit version coming?
Yes. A Transit-compatible version is scheduled for Q2 2026.

6. Can I open and close the tent from inside the van?
Yes. The entire mechanism is fully interior-operated for comfort, stealth, and safety.

7. What is the total system weight?
Approximately 150 lbs, depending on configuration.

8.  Is there a 170 length available?

There is only one size of tent, but this item comes with the 170"

9. Can the tent be mounted rear facing?

No, the tent is integrated with the faring.

10.  Can a Roof Top fan be mounted?

Yes.  The carbon can be cut and a roof-top fan mounted.
