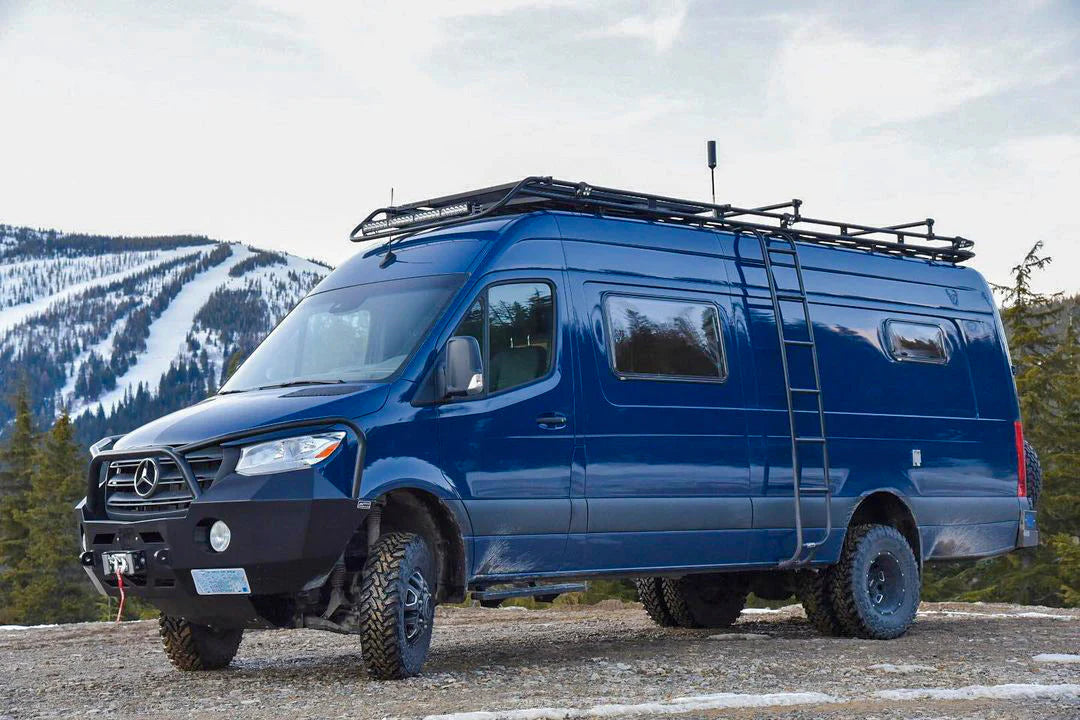

Van Compass 2023+ Mercedes Sprinter 3500 Striker 4X4 2" Complete Lift Kit (Dual Rear Wheel)

Shipping fees calculated at checkout. Please allow 7-10 business days to process the order before shipping.

Shipping fees calculated at checkout. Please allow 7-10 business days to process the order before shipping.

$ 4,05565

Part#
VCMP-7224-OPTI

Need a lift kit upgrade for your Mercedes Sprinter (2023+ 3500)? The Van Compass 2023+ Mercedes Sprinter 3500 Striker 4X4 2" Complete Lift Kit (Dual Rear Wheel)Ā provides clearance for larger tires and offers additional ground clearance under the van. Additional traction from larger tires and ground clearance helps to avoid obstacles on the trail to your remote campsite. The Striker kit retains the stock vehicle suspension geometry and improves on the factory ride quality and payload rating with a full replacement leaf spring pack, specified for your vehicle's weight. All of the suspension lift kit components are constructed of high quality materials here in the USA, are powder coated for durability and corrosion resistance.

Key Features: Van Compass 2023+ Mercedes Sprinter 3500 Striker 4X4 2" Complete Lift Kit (Dual Rear Wheel)

  • Fits 2023+ Mercedes Sprinter AWD 3500 Dual Rear Wheel vans only
  • Increases ground clearance and allows fitment of larger tires
  • Retains factory suspension geometry, alignment, and ride quality
  • Full replacement Opti-Rate rear leaf spring pack tuned to your vanā€™s weight
  • Improves payload handling and rear suspension articulation
  • Powder coated for enhanced durability and corrosion resistance
  • High-quality construction made in the USA

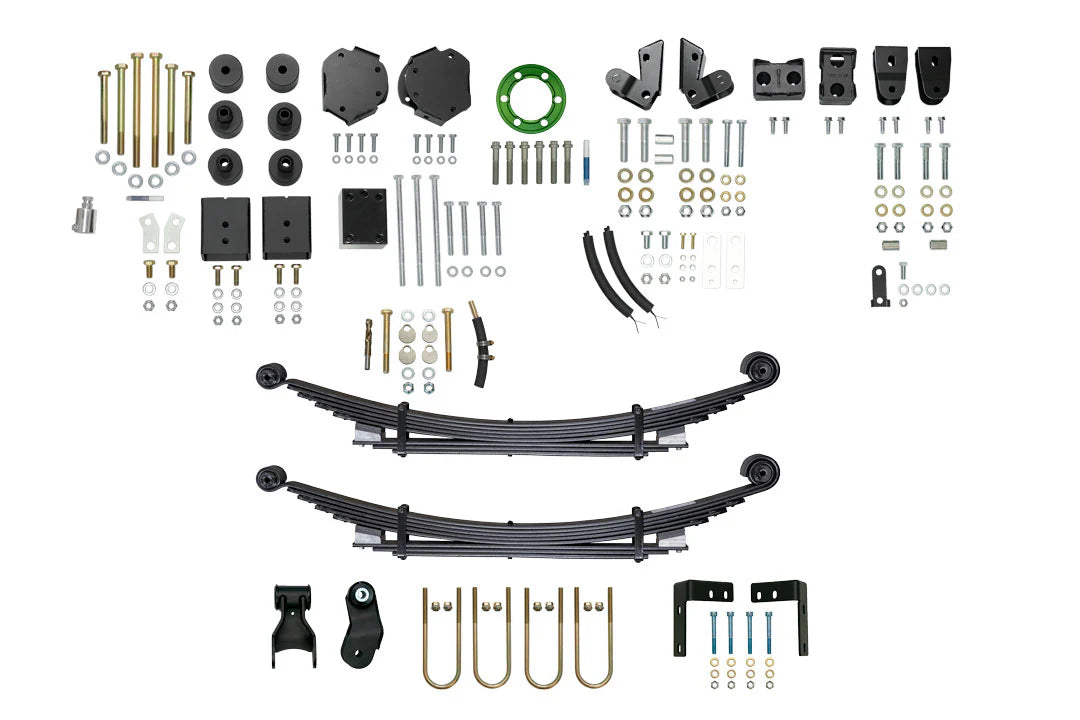

Included Components:

  • Front 2" strut spacers
  • Front 2" subframe drop spacers
  • Engine and transmission mount 2" lift spacers
  • Front differential re-clocking cams
  • CNC Machined 2" steering shaft extension
  • Low pressure power steering hose extension
  • Front brake line relocation brackets
  • Opti-Rate replacement rear leaf spring pack
  • Rear sway bar drop brackets
  • Rear lower shock relocation brackets
  • Rear bump stop drop brackets
  • Wind assist or headlight leveling sensor bracket
  • Rear wind assist extension bracket - 1/8" hot rolled steel
  • All necessary hardware

Fitment Guide

MODEL:Ā SPRINTER 3500

YEAR:Ā 2023-PRESENT

DRIVE TYPE:Ā AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT?Ā USE THE CAT SCALE LOCATOR<<

Documents: Van Compass 2023+ Mercedes Sprinter 3500 Striker 4X4 2" Complete Lift Kit (Dual Rear Wheel)
