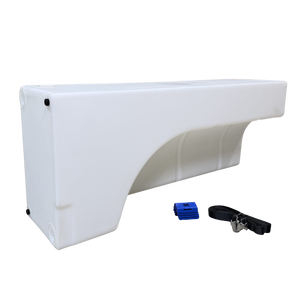

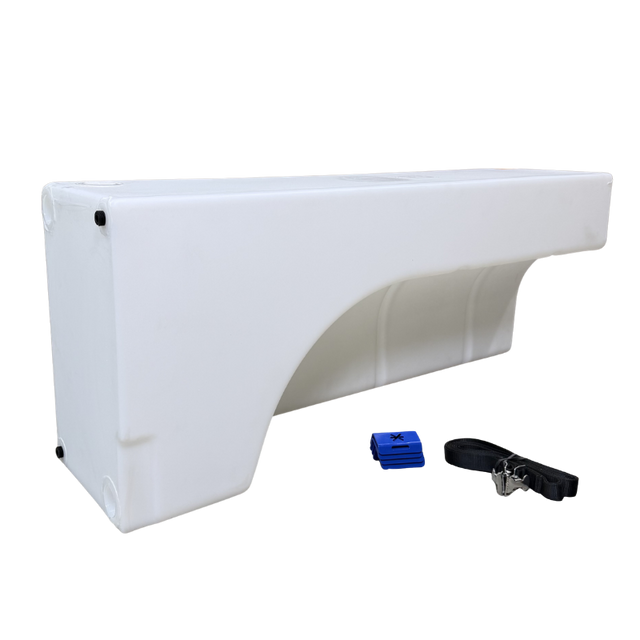

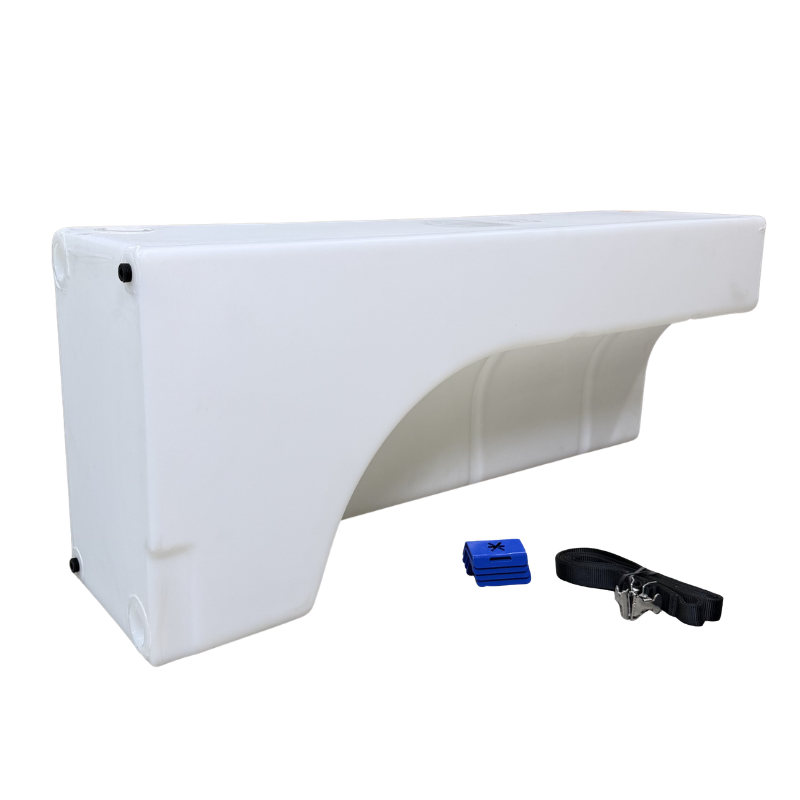

Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33)

$ 299.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

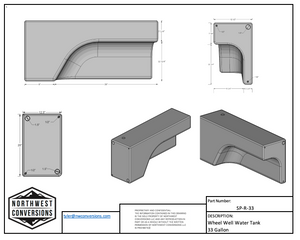

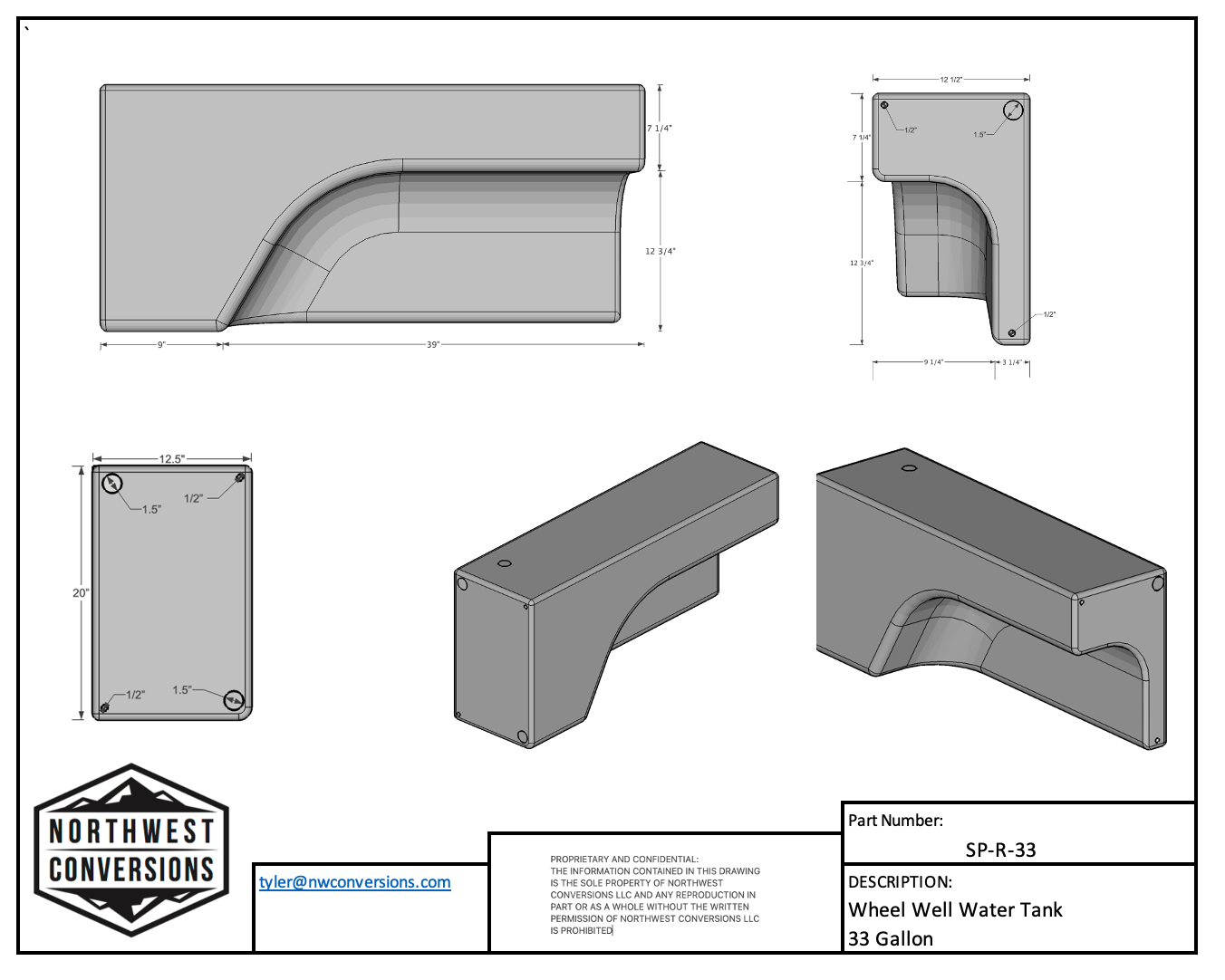

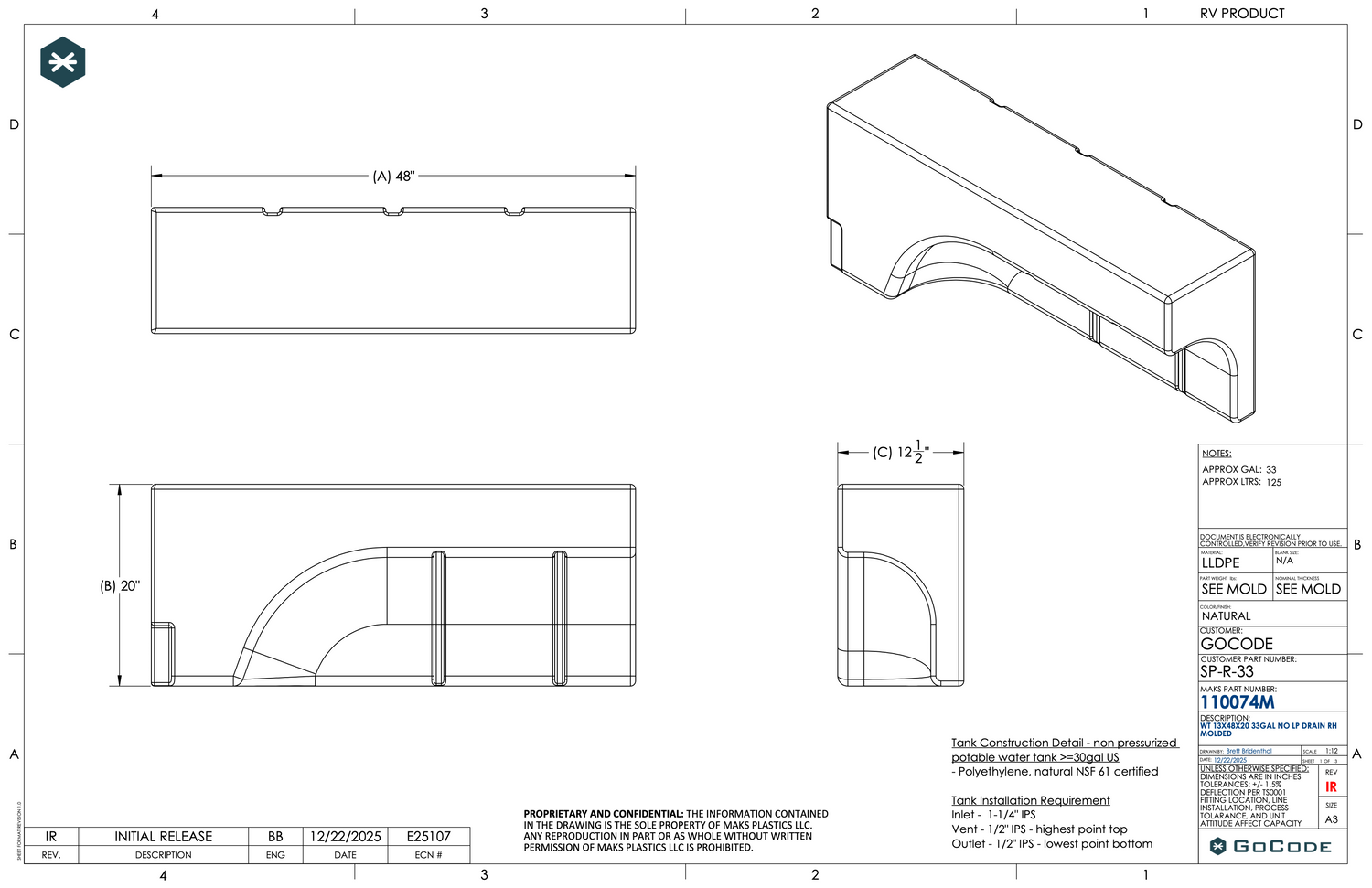

The Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 48” long x 20” tall x 12.5” wide.

Key Features: Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33)

  • Compatible with all Sprinter model vans (1997+)
  • Not compatible with Dually Sprinters (see SP-DU-19 and SP-DU-25)
  • TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well
  • **PROMASTER** The tank needs to be elevated 3.5" to fit the large wheel wells
  • Can be placed either driver or passenger side
  • Tank sits rear of wheel well on passenger side and in front of wheel well on driver side
  • Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end.
  • Tank has (2) 1.5" NPT ports (need to be drilled out) and (1) 1/2" NPT port on opposite end.
  • Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor
  • Tank is designed not to be pressurised (I.e.  Needs to be vented).
  • Tanks are made from BPA Free Food Grade Plastic
  • Made in the USA

Specifications: Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33)

  • Weight: 25 lbs
  • Dimensions: 48 x 20 x 13 in
  • Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end.
  • Tank has (2) 1.5" NPT ports (need to be drilled out) and (1) 1/2" NPT port on opposite end.
  • Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor
  • Tank is designed not to be pressurised (I.e.  Needs to be vented).

Tank Compatibility:

Vehicle fitment

Product type
Water system component
Vehicle
Mercedes-Benz Sprinter
Years
1997-current
Summary
Fits 1997-current Mercedes-Benz Sprinter. Confirm vehicle model, year range, capacity, fitting sizes, hose routing, mounting location before ordering. Product listing notes: Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) The Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 48” long x 20” tall x 12.5” wide. Compatible with all Sprinter model vans (1997+)

Fitment FAQ

What does this Northwest Conversions 33 Gallon 1997+ Sprinter Wheel fit?

This Northwest Conversions 33 Gallon 1997+ Sprinter Wheel fits 1997-current Mercedes-Benz Sprinter applications where the listed fitment details match.

Is this product vehicle-specific?

This is a vehicle-specific water system component for 1997-current Mercedes-Benz Sprinter. Confirm the listed model, year range, configuration, measurements, and installation requirements before ordering.

What should I verify before ordering?

Confirm vehicle model, year range, capacity, fitting sizes, hose routing, mounting location before checkout.

What installation details matter?

Confirm vehicle model, year range, capacity, fitting sizes, hose routing, mounting location before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.

Who is this product best for?

This water system component is intended for Mercedes-Benz Sprinter camper van conversions, RV upgrades, overland builds, and mobile installations where the listed fitment details match.

Campervan HQ fitment guide

Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) for camper van and RV builds

Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) supports Sprinter applications where fitment, measurements, installation requirements, and build layout should be confirmed before ordering.

Why choose this product?

  • Supports camper van, RV, and mobile build planning
  • Helps confirm measurements, installation needs, and clearances before checkout
  • Useful for matching the product to the build layout before ordering

Installation context

  • Confirm measurements and clearances
  • Review wiring, mounting, sealant, or material requirements where relevant
  • Use professional installation when the build requires it

Compatibility notes

Fits 1997-current Mercedes-Benz Sprinter. Confirm vehicle model, year range, capacity, fitting sizes, hose routing, mounting location before ordering. Product listing notes: Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) The Northwest Conversions 33 Gallon 1997+ Sprinter Wheel Well Water Tank - Right (SP-R-33) is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit the Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 48” long x 20” tall x 12.5” wide. Compatible with all Sprinter model vans (1997+)

Common use cases

  • Camper van conversions
  • RV upgrades
  • Trailer and overland builds
