EcoFlow 5 kVA Power Kit - Gen 2

$ 8,246⁰⁰

5kVA Kit Version

OurKaravan EcoFlow 80/20 Cabinet

Product variants

Earn [points_amount] when you buy this item.

EcoFlow 30A Dist. Panel (Gen 1) model is no longer available. We recommend the 50A Distribution Panel with 10kWH option for the ideal EcoFlow Power Kit experience. The OurKaravan EcoFlow 80/20 Cabinet is now compatible with the 5 kVA Power Kit for 5 and 10 kWH systems. Select in dropdown menu and then choose your add-ons.

The hassle-free, high-powered EcoFlow 5 kVA Power Kit - Gen 2 is the newest version of EcoFlow's integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

CHOOSE YOUR KIT, BATTERIES, and 48V CABLE

You can choose between these variants of the EcoFlow 5 kVA Power Kit - Gen 2:

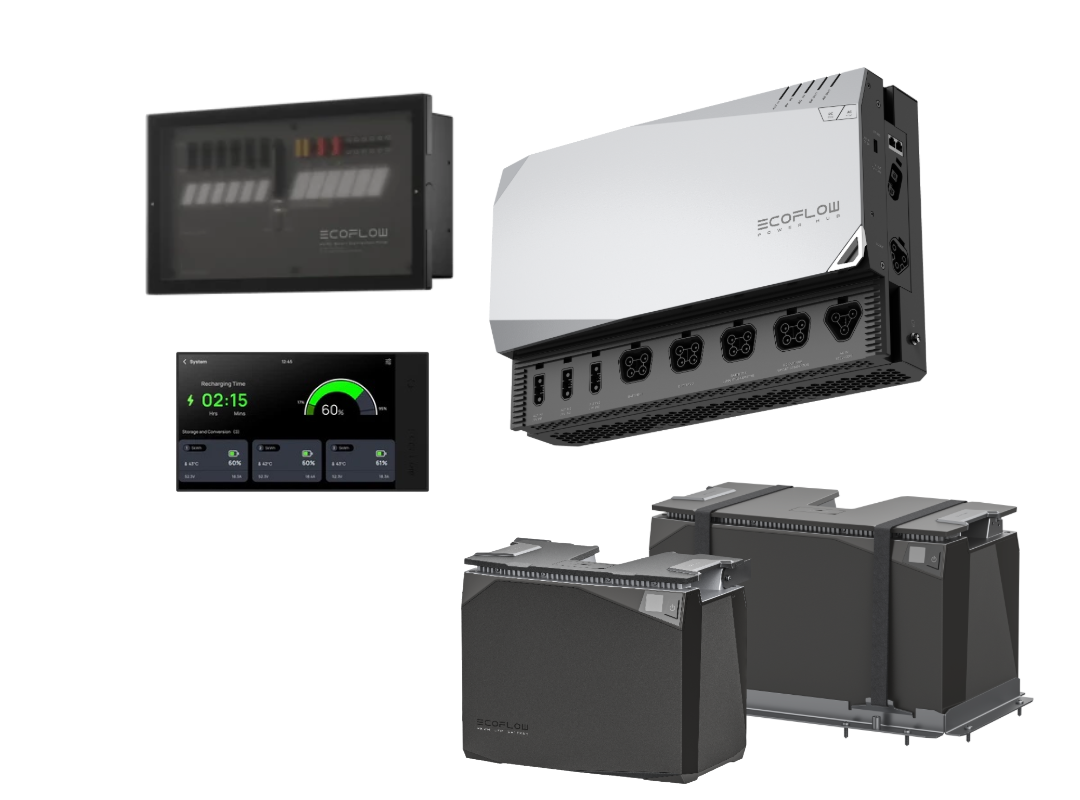

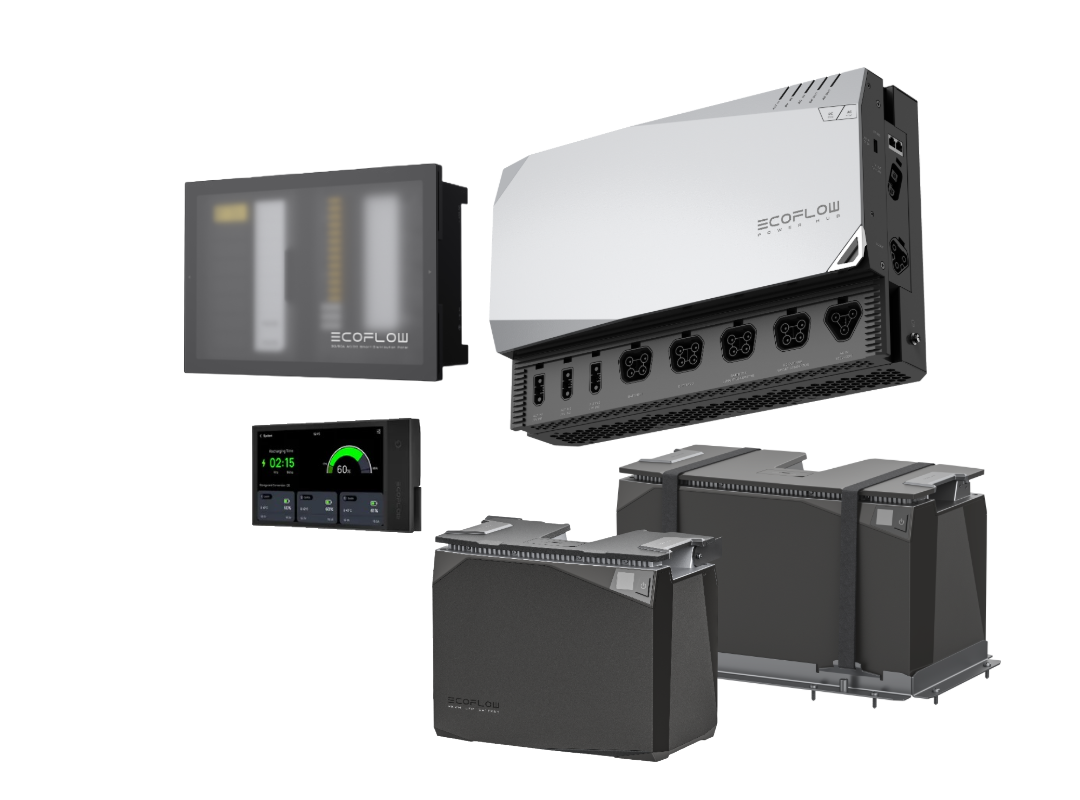

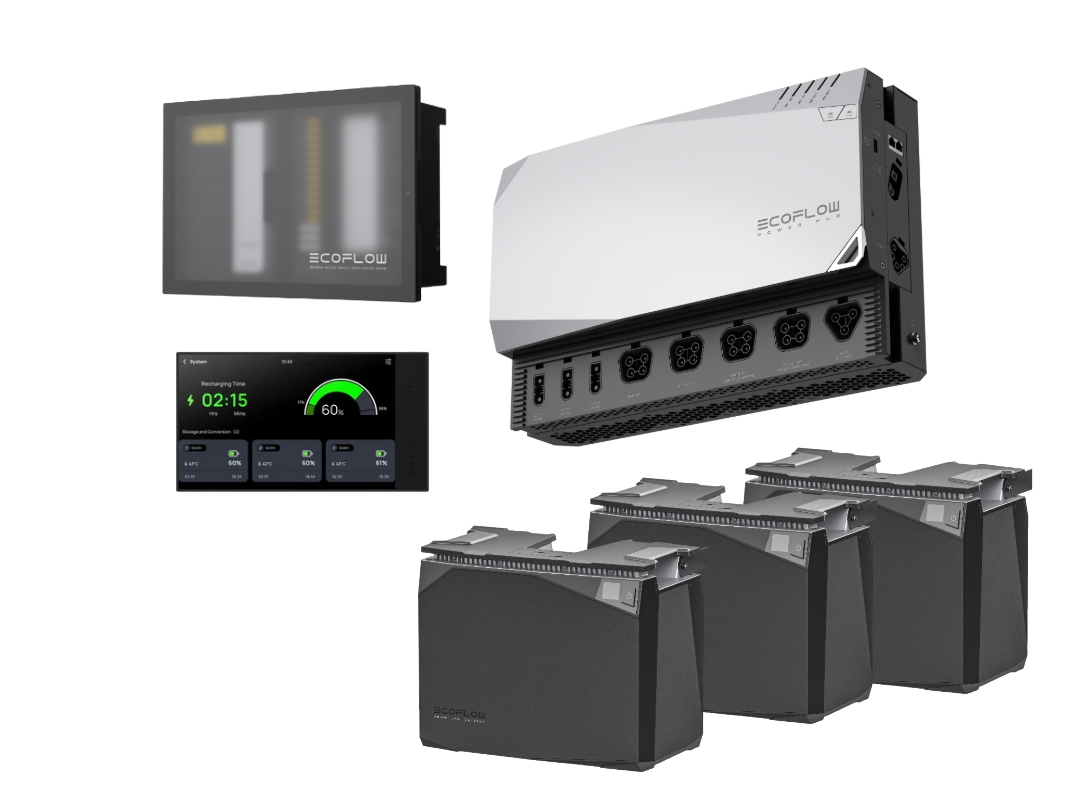

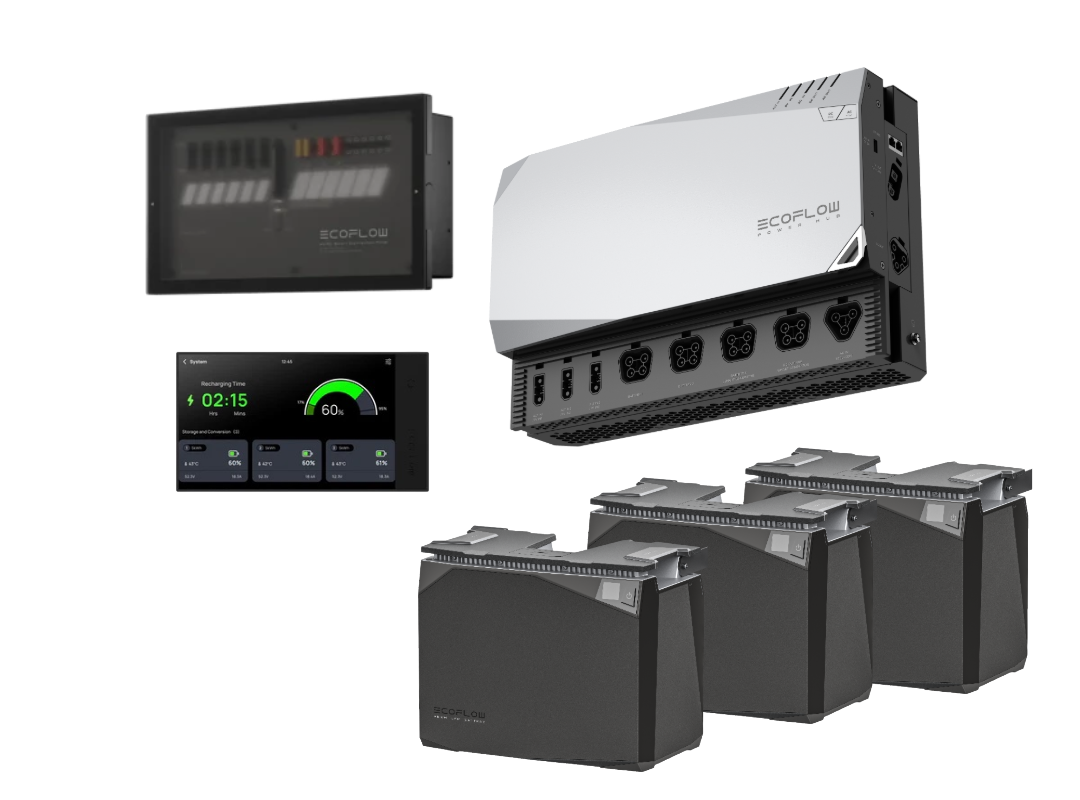

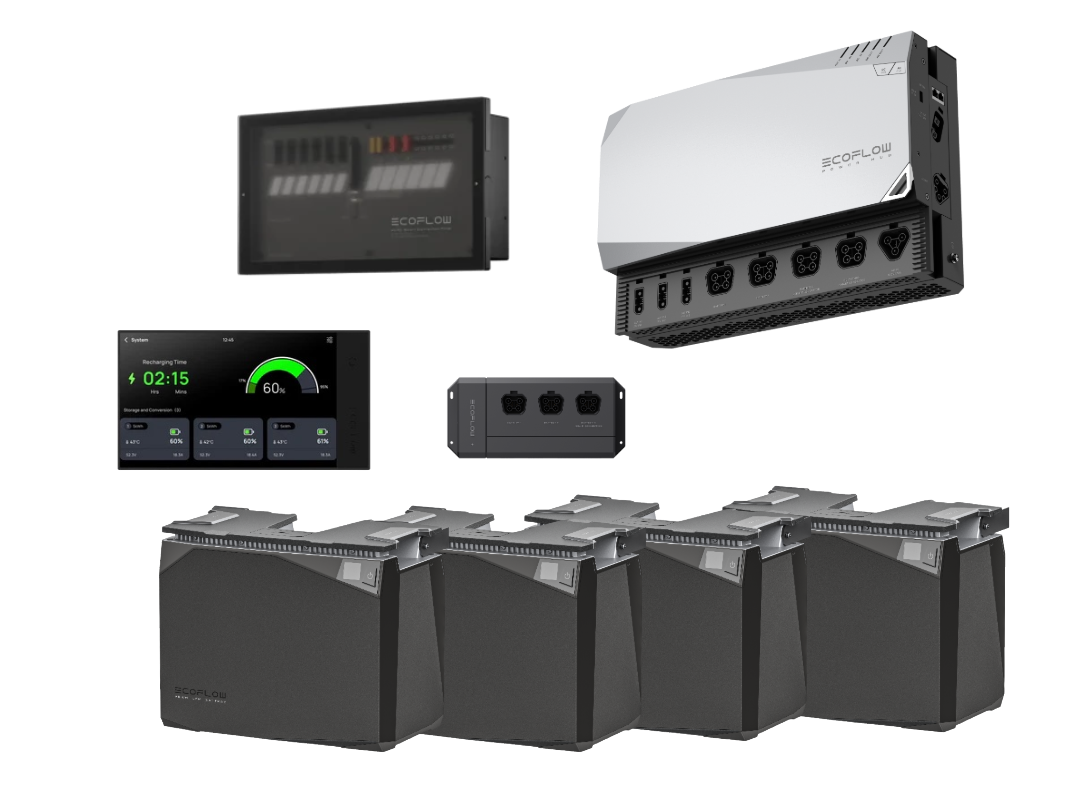

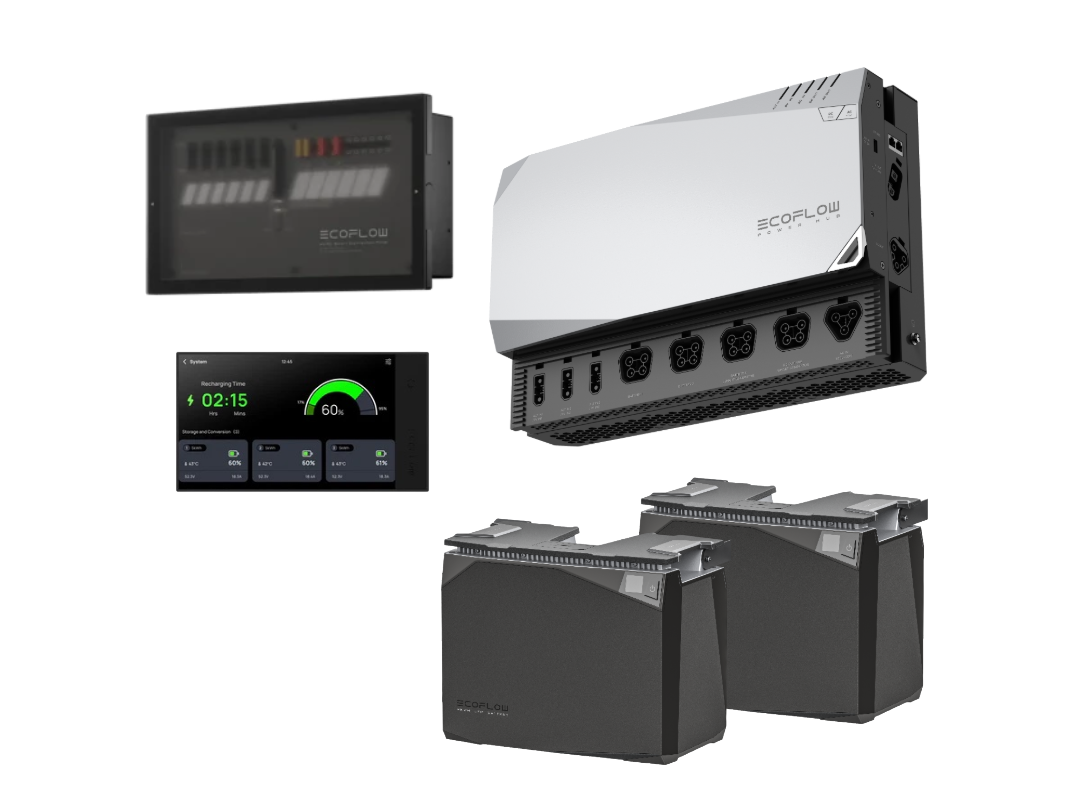

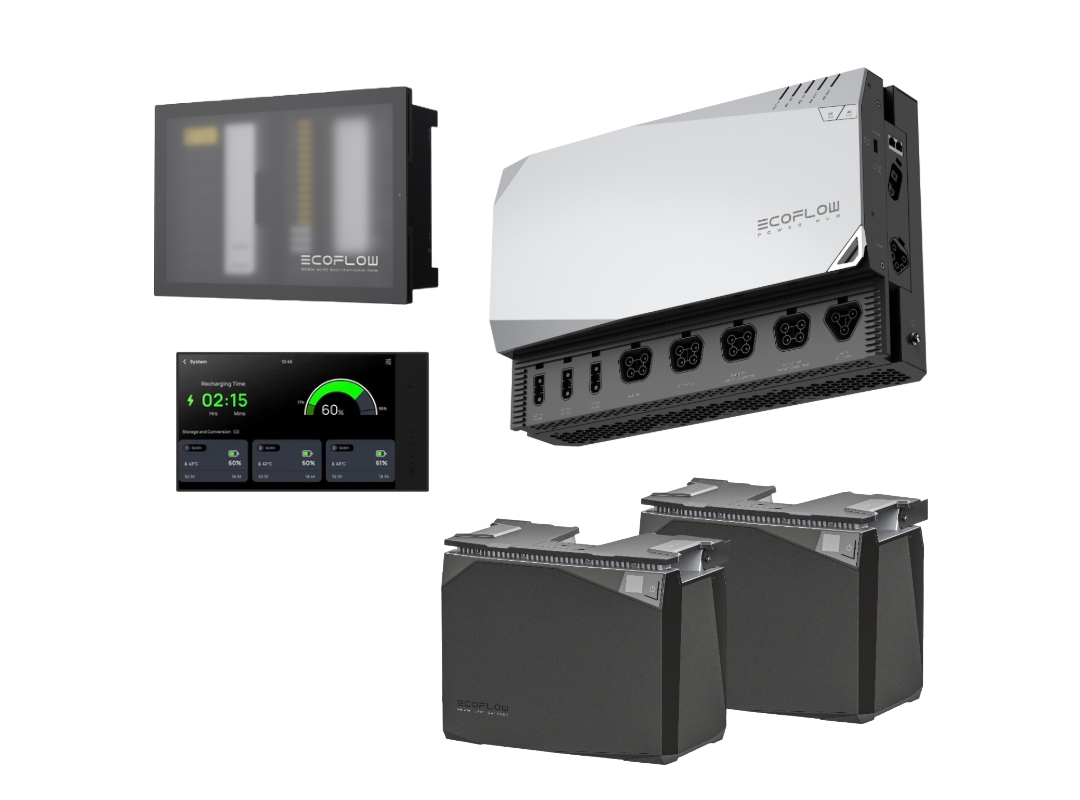

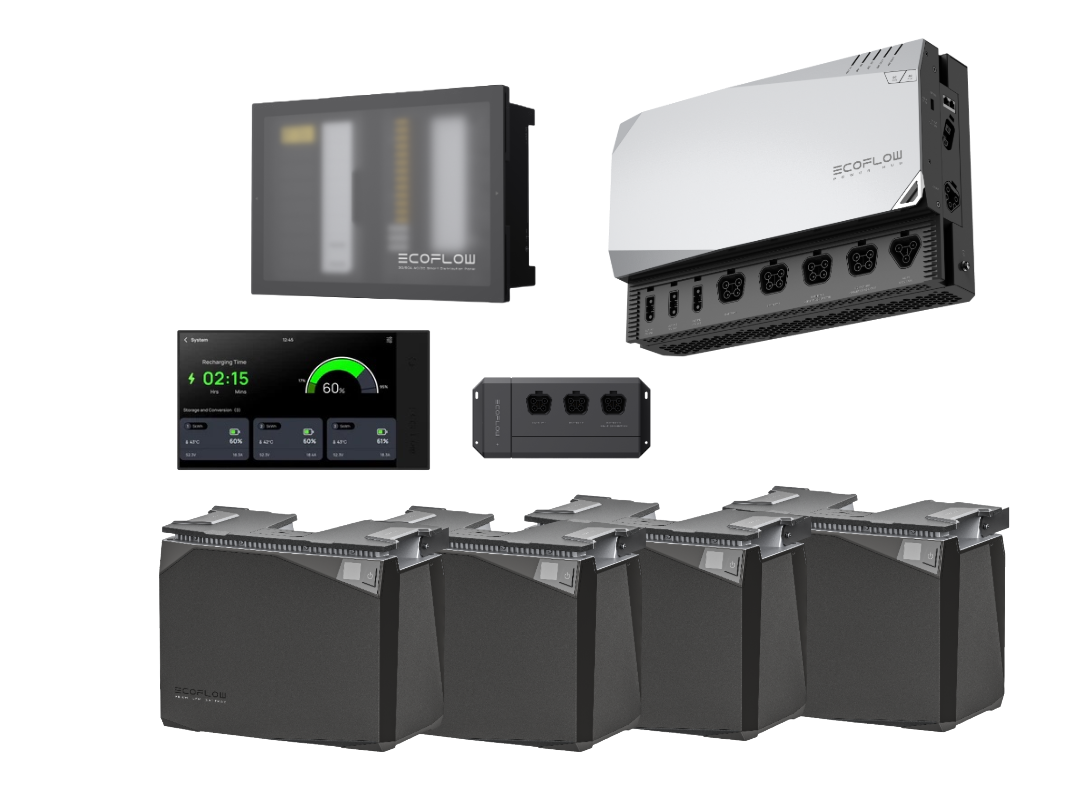

50A RV Kit with Console includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps
50A RV Kit with Console and OurKaravan EcoFlow 80/20 Cabinet includes - 1x 5 kVA Power Hub (Gen 2), 1x Cable Pack, 1x 5 kWh LFP Battery, 1x 30A/50A AC/DC Smart Distribution Panel (Gen 2), 1x Power Kit Console (Gen 1), 1x Battery Mounting Hardware/Straps; OurKaravan EcoFlow 80/20 Cabinet with install hardware and installation instructions. Please see updated diagram for the 30A/50A Panel recommended install location below.

BATTERIES - POWER DOCK

Your Kit Version selected includes a 5 kWh LFP Battery. Systems can expand up to 45 kWh when combining 3x EcoFlow Power Docks with 9x EcoFlow 5 kWh Batteries. You can also expand up to 18 kWh when combining 3x EcoFlow Power Docks with 9x EcoFlow 2 kWh Batteries. EcoFlow Power Kits allow mixing 2 kWh and 5 kWh batteries. We recommend at least 10 kWh-15 kWh when powering air conditioners, heaters, lights, etc. for the ideal EcoFlow Power Kit experience.

Note: The OurKaravan Cabinet is compatible with 5 and 10 kWH systems. A 3rd battery port will still be available if you plan to expand beyond the OurKaravan Cabinet Kit.

Note: The Power Dock to Power Hub connector cable is sold separately.

48V A/C CABLE

The new 5 kVA Power Hub features a dedicated 48V output port. To use this with a 48V appliance, add the 48V cable in the menus above. This is recommended for rooftop air conditioners or other 48V appliances.

POWER LINK

You can add up to 2x EcoFlow Power Links to the 5 kVA (Gen 2) and 3.6 kVA (Gen 1) Power Kits in a single system. You can add the Power Link in the menus above. Communication cables between the the Power Hub, AC/DC Smart Distribution Panel, and Power Kit Console are included. Communication cables and sensors are not included with the Power Link.

FREE SHIPPING on all EcoFlow items anywhere in the lower 48 US states.

Note: The 5kVA Power Hub comes with AC and DC Main Out cables designed to connect to the new EcoFlow 50A Distribution Panel.

OurKaravan recommends installing the EcoFlow new 30A/50A Distribution Panel (Gen 2) in a new location when comparing to the EcoFlow Gen 1 - 30A Panel model. Please see image below. Installers and end users are welcome to install in another location.

OurKaravan Cabinet PDF (Gen 1 30A Panel version)

SPECIFICATIONS

Power Hub 5 kVA - Gen 2

Dimensions (in)	480x140x300mm(18.9x5.5x11.8in)
Testing & Certifications	CE, UL, FCC
Wi-Fi	2.4G, 5G Supported
Bluetooth	5.0 Supported
OUTPUT
AC Output (Discharge only)	120V - 4000W, 5000VA, 60Hz (Surge 10 kVA, 100ms)
AC Output (Bypass Mode)	Low Voltage: 100-120V ~ 50A Max, 50/60Hz High Voltage: 220-240V ~ 50A Max, 50/60Hz
DC Main Output	13.6V - 100A, 1300W Max 26.4V - 60A, 1600W Max
INPUT
X-Fusion(Power Assist)	50A, 5000VA Max
AC Main Input Voltage/frequency	100-120V, 50Hz/60Hz
Solar Charging Input	Port 1: 13-60V 100A, 4000W max Port 2/3: 13-60V 30A, 1600W max
Alternator Charging Input	13V-60V, 60A/30A/30A, up to 4800W total
TEMPERATURE
Best Operating Temperature	68°F-86°F(20°C - 30°C)
Discharge Temperature	-13°F-140°F(-25°C to 60°C)
Charge Temperature	-13°F-140°F(-25°C to 60°C)
Storage Temperature	-13°F-140°F(-25°C to 60°C)
Net Weight	34 lbs(15.5kg)

30/50Amp AC/DC Smart Distribution Panel - Gen 2

Feed-In type	Split phase (L1, L2, N)
AC Input	50A Max. 120V/240V, 60Hz
AC Output	Max 30A for each branch circuit
AC Circuits	Max 12 branch circuits
Maximum Input Short-Circuit Current	10kA
DC Input	Max 100A, 13/26V
DC Output	Max 30A for F1-F13 Circuits Max 50A for F14-F16
Number of Circuits	16 controllable circuits(F1-F16)
Operating Temperature (C)	–25°C to 45°C (–13°F to 113°F)
Operating Temperature (F)	–25°C to 70°C (–13°F to 158°F)
Dimensions	390x135x270 mm (15.3x5.3x10.6 in.)
Net Weight (lbs)	4 kg (8.8 lb)
Altitude	9842 ft (3,000 m)
Enclosure Type	NEMA Type 1

Power Insight (10-in.) - Gen 2

Dimensions(WxHxD)	244.4 x 158.6 x 12.6mm(9.6W x 6.2H x 0.5D)
Weight	620g(1.4lbs)
Input Rating(USB-C)	5V DC, 2A
Operating Temperature	-10℃ to 45℃(14°F to 113°F)
Storage Temperature	-15℃ to 50℃(5°F to 122°F)
Altitude	3000m(9842ft)approximately
Communications	WLAN and Bluetooth
IP Rating	IP42
Bluetooth	Frequency Range: 2402-2480 MHz Max output power: <10 dBm
Wi-Fi	Frequency Range: 2412-2472 Mhz, 5180-5320 MHz, 5500-5700 MHz; Max Power: <20 dBm Frequency Range: 5745-5825 MHz; Max Power: >13.98 dBm
Tests and Certifications	UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

5kWh LFP Battery

Capacity	5120Wh (51.2V, 100Ah)
Cell Chemistry	Lithium Iron Phosphate
Cycle Life	~3500 Cycles up to 80% Capacity
Protection Level	IP54
Test and Certifications	UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature (F)	-4°F–140°F
Storage Temperature (C)	-20°C–60°C
Operating Temperature (F)	-4°F-122°F
Operating Temperature (C)	-20℃-60℃

Power Kit Console (7-in.) - Gen 1

Touch Screen (Diagonal Measurement)	7 Inch (6x3.4in) (Width x Height)
Power Supply Voltage	12 VDC
Operating Temperature (C)	-20℃-60℃
Operating Temperature (F)	-4°F-140°F
Tests and Certifications	UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC
