RV Solar Kit: Samlex 100W Solar Charging Kit
Looking for an RV solar kit? A solar kit like this Samlex 100W Solar Charging Kit is a great way to get started with RV solar panels.

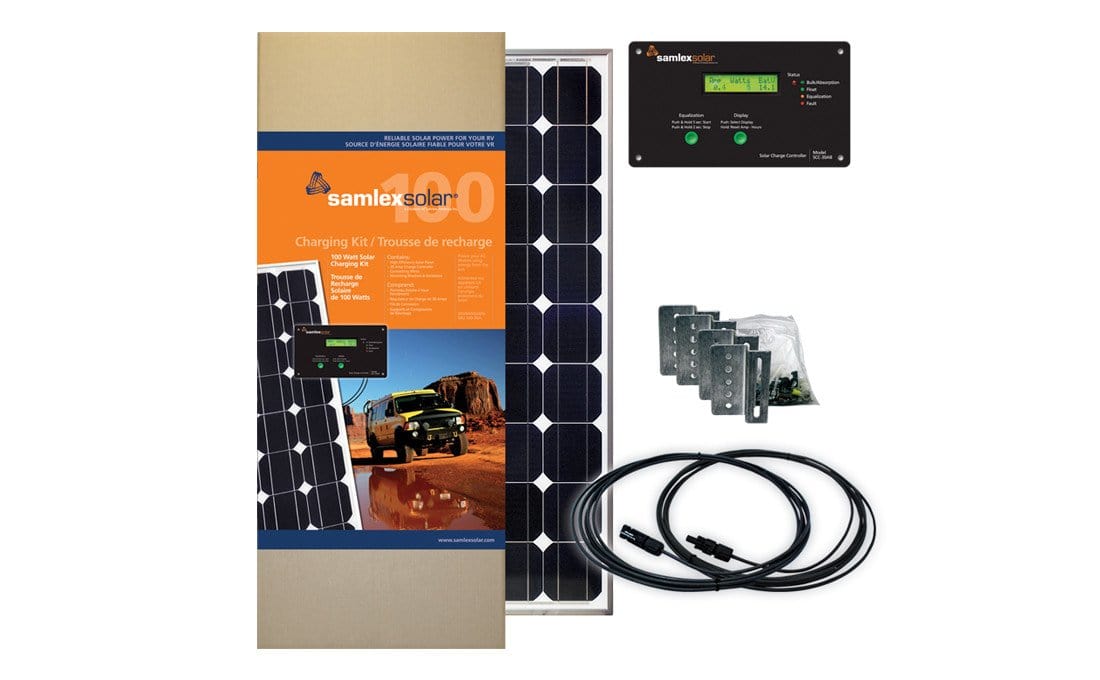

With this RV solar power package, you can generate the power for the comforts you need wherever you dry camp. This system includes a 100W solar panel, charge controller, and cabling and mounting hardware needed for your installation. If you have the space and want more power, you can also go with the slightly larger and more powerful Samlex 150W solar charging kit.
Note: A converter/charger is not included, but this system easily integrates with your vehicle's stock converter and 12V DC battery bank. You will also need cabling for your charge controller to battery bank connection, and a rooftop sealant like Dicor for sealing rooftop mounting holes.
Features: RV Solar Kit - Samlex 100W Solar Charging Kit
-
High-quality 100W solar panel
-
30 amp solar charge controller to regulate power to battery bank
-

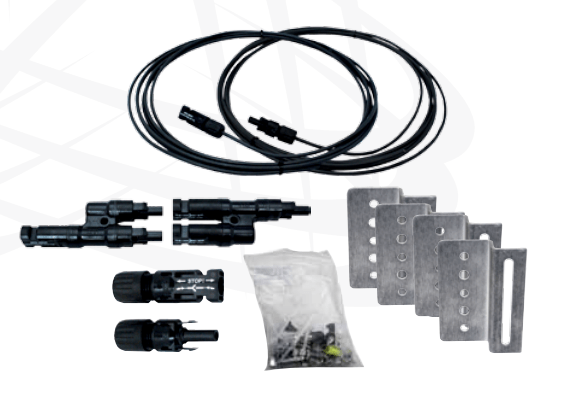

Output cable with MC4 connectors (10 AWG) and all panel mounting hardware
Specifications: RV Solar Kit - Samlex 100W Solar Charging Kit
| Solar Panel | Samlex 100W 36-cell high-efficiency (15.1%) monocrystalline PV module, tempered glass exterior, framed with anodized aluminum, 21.73" x 47.25" x 1.4" in (Vmp 19.3V, Voc 22.9V, Imp 5.2A), UL1703-certified. |
| Charge Controller | Samlex SCC-30AB 30A pulse width modulation (PWM) charge controller with integrated backlit LCD display, temperature-compensated 4-stage (bulk, absorption, float, equalize) charging, UL1741-listed. |
| Cabling | 20' of AWG10 cabling for solar panels, with MC4 connectors |
| Batteries | No batteries included - compatible with 12VDC flooded lead-acid, AGM and gel batteries, suggested battery bank size ~100AH |
| Mounting Hardware | RV rooftop solar panel mounts, branch connectors |
| Warranty |
25-year warranty on solar panel power output 5-year warranty on charge controller |
| Approvals | UL 1703/IEC61215, UL1741 |
Documents: RV Solar Kit - Samlex 100W Solar Charging Kit
Samlex Solar Charging Kit - Specification Sheet
Samlex Charge Controller - Specifications Sheet
Samlex Solar Charging Kit - Owner's Manual
Video: RV Solar Kit - Samlex 100W Solar Charging Kit
Vehicle fitment
- Product type
- Electrical system component
- Vehicle
- Camper vans, RVs, trailers, and mobile builds
- Summary
- Camper vans, RVs, trailers, and mobile builds that need a compatible electrical system component. Confirm voltage, amperage, wire sizing, mounting location, service access before ordering. Product listing notes: With this RV solar power package, you can generate the power for the comforts you need wherever you dry camp. This system includes a 100W solar panel, charge controller, and cabling and mounting hardware needed for your installation. If you have the space and want more power, you can also go with the slightly larger and more powerful Samlex 150W solar charging kit. Note: A converter/charger is not included, but this system easily integrates with your vehicle's stock converter and 12V DC battery bank. You will also need cabling for your charge controller to battery bank connection, and a rooftop sealant like Dicor for sealing rooftop mounting holes. Output cable with MC4 connectors (10 AWG) and all panel mounting hardware
Fitment FAQ
What does this RV Solar Kit: Samlex 100W Solar Charging fit?
This RV Solar Kit: Samlex 100W Solar Charging fits Camper vans, RVs, trailers, and mobile builds.
Is this product vehicle-specific?
This electrical system component is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.
What should I verify before ordering?
Confirm voltage, amperage, wire sizing, mounting location, service access before checkout.
What installation details matter?
Confirm voltage, amperage, wire sizing, mounting location, service access before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This electrical system component is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
Campervan HQ fitment guide
RV Solar Kit: Samlex 100W Solar Charging Kit for camper van and RV builds
RV Solar Kit: Samlex 100W Solar Charging Kit supports Camper vans, RVs, trailers, and mobile builds applications where fitment, measurements, installation requirements, and build layout should be confirmed before ordering.
Why choose this product?
- Supports camper van, RV, and mobile build planning
- Helps confirm measurements, installation needs, and clearances before checkout
- Useful for matching the product to the build layout before ordering
Installation context
- Confirm measurements and clearances
- Review wiring, mounting, sealant, or material requirements where relevant
- Use professional installation when the build requires it
Compatibility notes
Camper vans, RVs, trailers, and mobile builds that need a compatible electrical system component. Confirm voltage, amperage, wire sizing, mounting location, service access before ordering. Product listing notes: With this RV solar power package, you can generate the power for the comforts you need wherever you dry camp. This system includes a 100W solar panel, charge controller, and cabling and mounting hardware needed for your installation. If you have the space and want more power, you can also go with the slightly larger and more powerful Samlex 150W solar charging kit. Note: A converter/charger is not included, but this system easily integrates with your vehicle's stock converter and 12V DC battery bank. You will also need cabling for your charge controller to battery bank connection, and a rooftop sealant like Dicor for sealing rooftop mounting holes. Output cable with MC4 connectors (10 AWG) and all panel mounting hardware
Common use cases
- Camper van conversions
- RV upgrades
- Trailer and overland builds
RV Solar Kit: Samlex 100W Solar Charging Kit
