Flarespace Mercedes Sprinter 144"WB Campervan Body Flares

$ 1,799.00

Choose Your Driver Side Flares

Choose Your Passenger Side Flares

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Typically ships in 3-4 weeks.

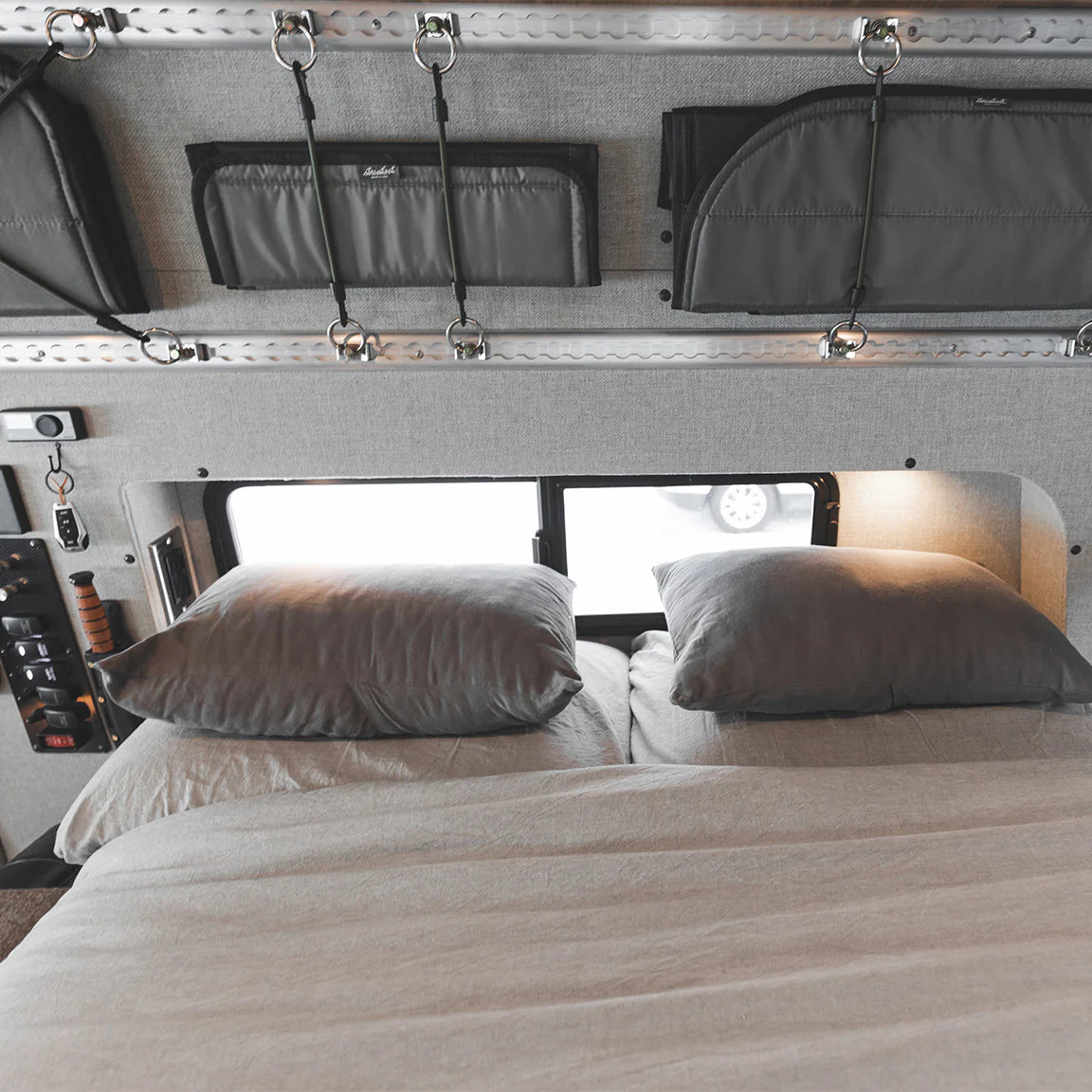

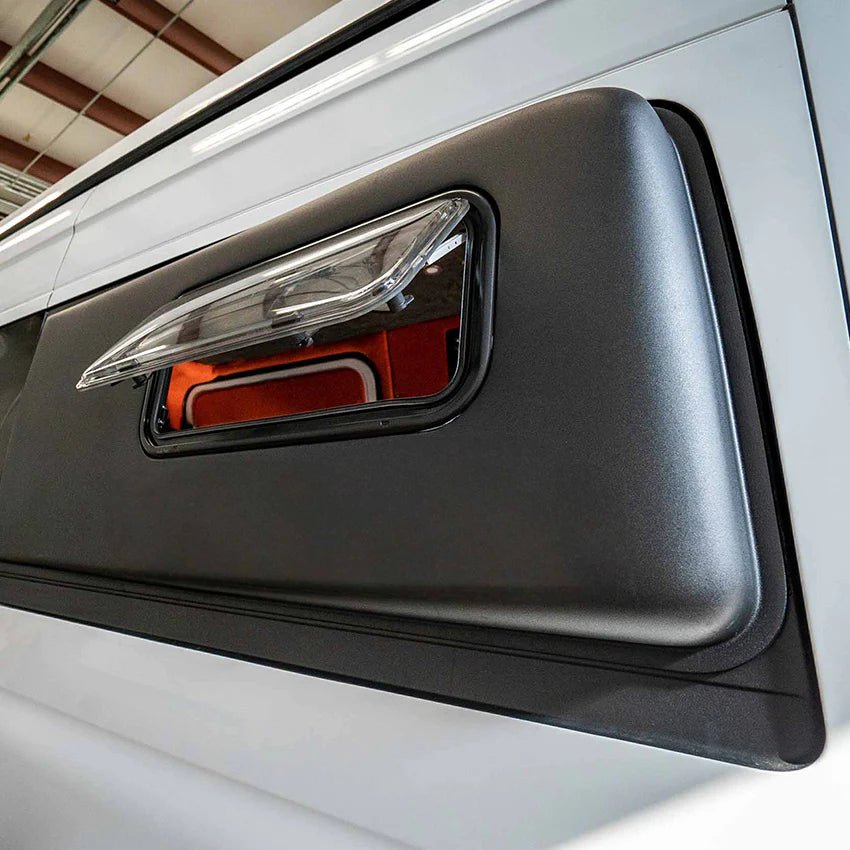

Looking to sleep sideways in your Mercedes Sprinter 144"WB camper van? These Flarespace Mercedes Sprinter Campervan Body Flares replace the stock rear upper body panels in your Sprinter, providing extra lateral space to enable you to sleep sideways in your campervan. Install these Flarespace flares and you'll be able to have up to a 74"-79" wide sleeping platform and a very comfortable night's sleep, without interfering with any of the doors on the van.

Other great benefits of using these flares in your Mercedes Sprinter camper van:

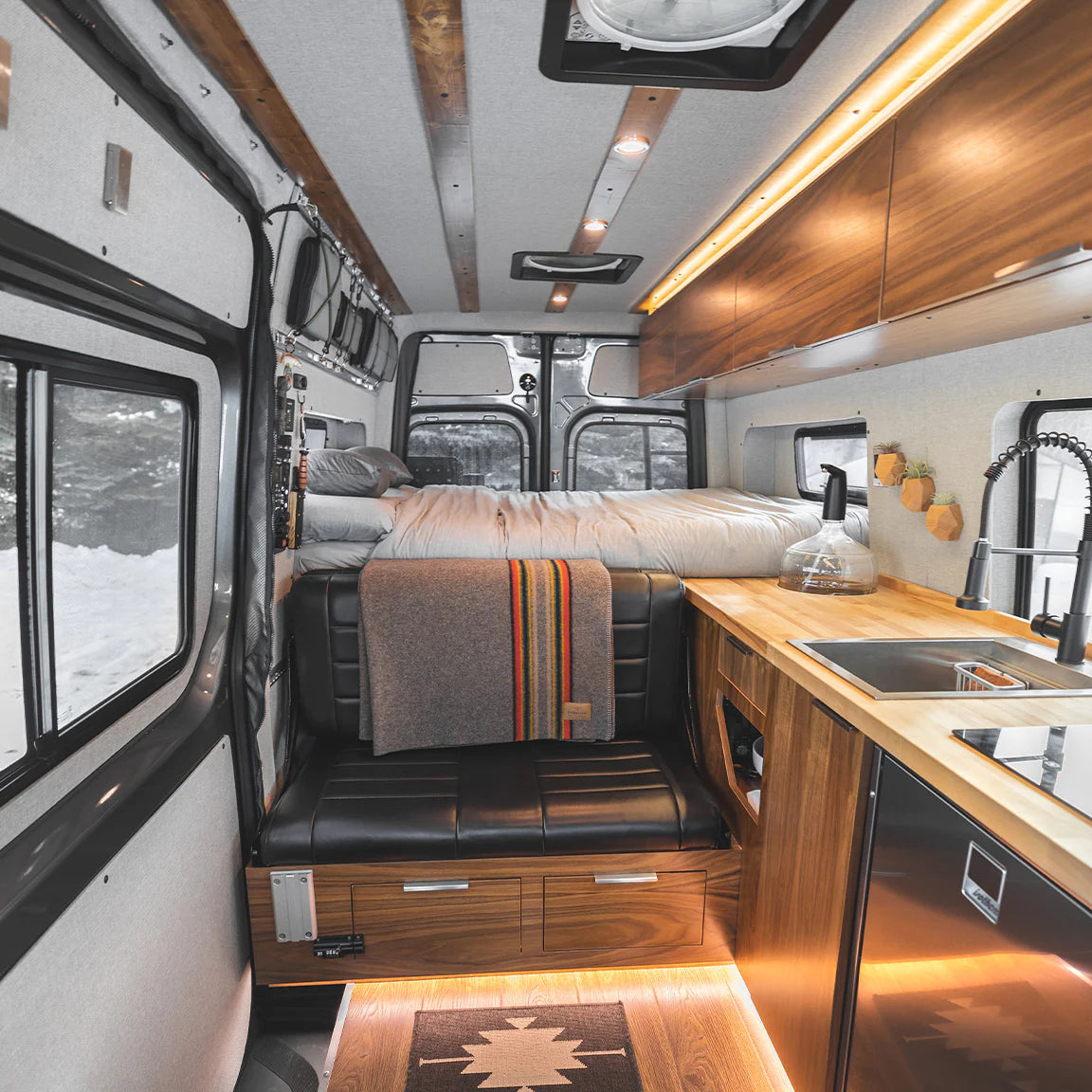

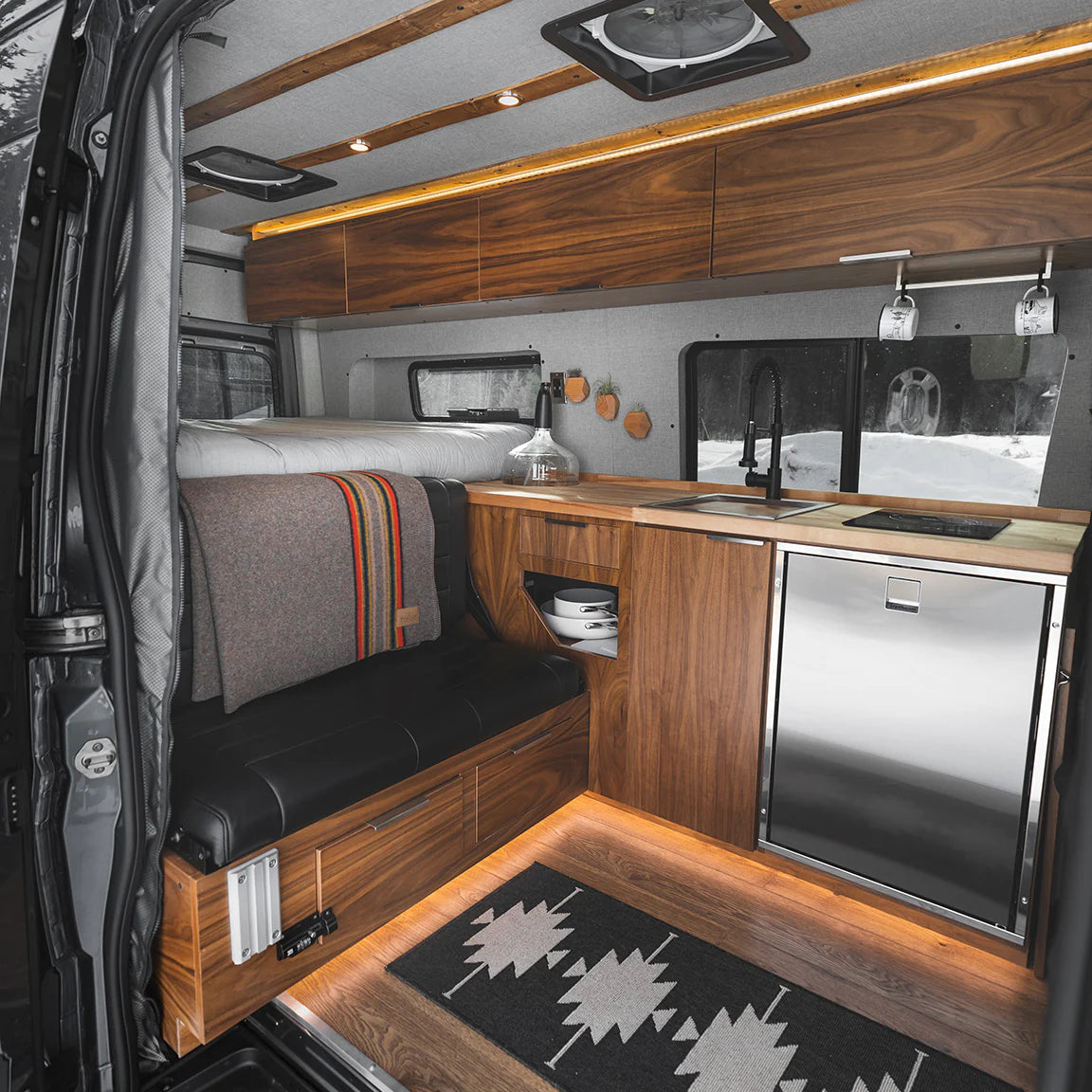

The extra space saved from orienting the bed sideways (almost 24") can be used to store bikes, add extra cabinetry or whatever else you need.
With these flares, you can get a 144"WB Sprinter outfitted almost as comfortably as a 170" Sprinter, which could save you thousands of dollars and be much easier to drive and maneuver.

On the driver side, you can select the regular-depth (3.25") flare or the extended-depth (5.25") flare. The passenger-side flare can only be regular depth (3.25") to clear the sliding door.

Note: Flares are only sold in pairs (one passenger-side, one driver-side), flares are not sold individually. Shipping on this item is $99.

All Flarespace sales may be canceled within 24 hours of ordering. Fiberglass products may not be returned, exchanged or canceled after 24 hours. All other Flarespace products may be evaluated for exchange or return on a case by case basis.

Key Features: Flarespace Mercedes Sprinter 144"WB Campervan Body Flares

Flares are made of polyester resin (fiberglass)
Package comes with two unpainted flares, approved 3M installation materials, and detailed installation instructions
Flares add extra width to the rear of your Sprinter campervan, increasing bed length to 74-77" long and 74-79" wide if using the optional extended driver side flare
Flares are designed to fit the rear quarter factory window cutouts on low-roof or high-roof 2007-current Mercedes Sprinter 144"WB 2500/3500 cargo, crew and passenger vans.

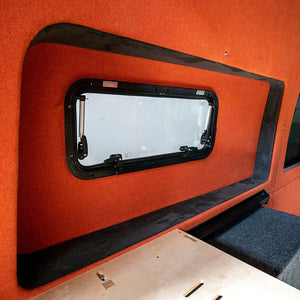

Flarespace Half Slider Window 1033 (optional)
Detailed video installation instructions included.
Flares are made to order, we'll check lead times when you order.
Proudly made in the USA by Flarespace.

FAQ: Flarespace Mercedes Sprinter 144"WB Campervan Body Flares

Who can install flares? Campervan HQ can provide you with a list of trained installers in your area, or any professional auto body shop can paint and install flares.
How are they installed? Your installer will paint your flares to match the color of your Sprinter van. The rear quarter panel is cut out along the factory lines, with the same size cut out as a window. The flares are glued in using the supplied 3M adhesive and sealant. Installers are supplied with detailed step-by-step instructions, including a video and written instructions. Installation takes about 4 hours, plus a day to cure.
Does the sliding door need to be modified? The stock Sprinter sliding door will open fully without modifications. This also applies for slider doors with CR Laurence windows and T-vent window knobs.
Will the rear doors still open 270 degrees? If you install an extended door stopper on the rear door, the Sprinter's rear doors can still be opened fully without touching the flares.

Specifications: Flarespace Mercedes Sprinter 144"WB Campervan Body Flares

Height (in.)	27.6
Width (in.)	64
Depth (in.)	3.25" (or optional 5.25" driver side)
Weight (lbs.)	40 (pair of flares, boxed)
Material	Polyester resin (fiberglass), 300-grit gelcoat surface, ready for paint

Videos: Flarespace Mercedes Sprinter 144"WB Campervan Body Flares

Vehicle fitment

Product type: Camper van window
Vehicle: Mercedes-Benz Sprinter
Platform: 2500 3500
Years: 2007-current
Wheelbase: 144"WB
Roof height: Low roof and High roof
Side: Driver side
Window position: Sliding door
Window type: Opening window
Opening style: Half-slider
Screen: This is an opening window. The product listing does not state that a screen is included.
Summary: Fits 2007-current Mercedes-Benz Sprinter 2500 3500. Confirm vehicle model, year range, drivetrain/configuration, wheelbase, roof height, side, window position, cutout dimensions, install type, opening style before ordering. Product listing notes: Other great benefits of using these flares in your Mercedes Sprinter camper van: Flares are designed to fit the rear quarter factory window cutouts on low-roof or high-roof 2007-current Mercedes Sprinter 144"WB 2500/3500 cargo, crew and passenger vans. Detailed video installation instructions included. Window type: Opening window.
Install requirements: Confirm whether this window is clamp-in or bonded/glue-in before ordering. Glue-in windows require urethane adhesive, primer unless using primerless adhesive, and trim lock sized for the total window circumference.
Fitment exceptions: This window fits Mercedes-Benz Sprinter NCV3 / 906 2007-2018 van models when the listed wheelbase, side, and position match.

Fitment FAQ

What does this Flarespace Mercedes Sprinter 144"WB Campervan Body Flares fit?

This Flarespace Mercedes Sprinter 144"WB Campervan Body Flares fits 2007-current Mercedes-Benz Sprinter 2500 3500 applications where the listed fitment details match.

Is this product vehicle-specific?

This window fits 2007-current Mercedes-Benz Sprinter 2500 3500. Confirm side, position, wheelbase, roof height, generation, install type, and window operation before ordering.

What should I verify before ordering?

Confirm vehicle model, year range, drivetrain/configuration, wheelbase, roof height, side, window position, cutout dimensions, install type, opening style before checkout.

What installation details matter?

Confirm whether this is a clamp-in or bonded/glue-in installation. Confirm cutout dimensions, wall thickness, trim requirements, and clearances before ordering.

Who is this product best for?

This camper van window is intended for cargo van window upgrades.

Do Campervan HQ van windows come with instructions?

Most van windows are sold for DIY van builders and may not include manufacturer instructions because many manufacturers assume installation by someone familiar with van window installation. Check the Campervan HQ van window installation blog for guidance. For CR Laurence van windows, you can also search YouTube for CR Laurence window install videos.

Do van windows require adhesive and primer?

Van windows are generally either bonded/glue-in or clamp-in. Bonded windows require urethane adhesive and primer unless a primerless adhesive is specified. Clamp-in windows typically do not require primer or adhesive. Both styles require an existing opening, so cargo vans without windows require the correct cutout before installation.

Do Campervan HQ van windows ship for free?

Most van windows do not ship free because large windows often require truck freight or special handling. When available, warehouse pickup can reduce or refund shipping costs. For large multi-item orders, contact Campervan HQ for an individual quote.

What should I check when a van window is delivered?

Inspect the window shipment before the delivery driver leaves. If there is damage, have the driver note it on the Bill of Lading and provide a signed copy. Without signed damage notation at delivery, Campervan HQ may not be able to make a shipping damage claim.

What is the return process for damaged or defective van windows?

For delivery damage, Campervan HQ needs a signed Bill of Lading showing the damage and photos of the damage. For a defective van window, Campervan HQ needs photos of the defect and will request a Return Authorization. In either case, re-package the window in the original box and tape the invoice number or return authorization number to the outside of the box.
