Van Compass 2023+ Mercedes Sprinter AWD 2500 Strike 2" Lift Kit (3 / 4.3 to 5 / 6.3 Upgrade)
Couldn't load pickup availability
Part#
VCMP-7219-UP
Need a lift kit upgrade for your Mercedes Sprinter AWD (2023+ 2500)? The Van Compass 2023+ Mercedes Sprinter AWD 2500 Strike 2" Lift Kit (3 / 4.3 to 5 / 6.3 Upgrade) is designed specifically for customers who already have a Stage 3 or Stage 4.3 kit and want to upgrade to Stage 5 or Stage 6.3 specifications. This upgrade package enhances your lift and capability without replacing your entire suspension system.
This kit pairs the necessary front and rear lift components, along with two small additional leaves, to upgrade your existing rear mini pack for increased ride height and load handling. With this upgrade, you can enjoy greater ground clearance, larger tire fitment, and improved off-road performance while maintaining the stock suspension geometry, payload rating, and ride quality.
The Striker lift system allows for better approach, break-over, and departure angles, and provides extra traction and clearance to navigate rough trails and reach remote campsites with ease. Built with high-quality materials and powder coated for durability and corrosion resistance, this upgrade ensures your Sprinter is ready for even tougher adventures.
Recommended Wheel Size: 17" x 8.5", +45mm offset
WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
Key Features: Van Compass 2023+ Mercedes Sprinter AWD 2500 Strike 2" Lift Kit (3 / 4.3 to 5 / 6.3 Upgrade)
- Upgrade for existing Stage 3 to Stage 5 or Stage 4.3 to Stage 6.3 systems
- Provides 2" of additional lift for better ground clearance and tire fitment
- Retains stock suspension geometry, payload rating, and ride quality
- Includes front and rear lift components plus additional rear mini pack leaves
- Improves approach, break-over, and departure angles for better trail performance
- Allows fitment of larger tires for increased traction and capability
- Constructed from high-quality materials and powder coated for durability
- Made in the USA

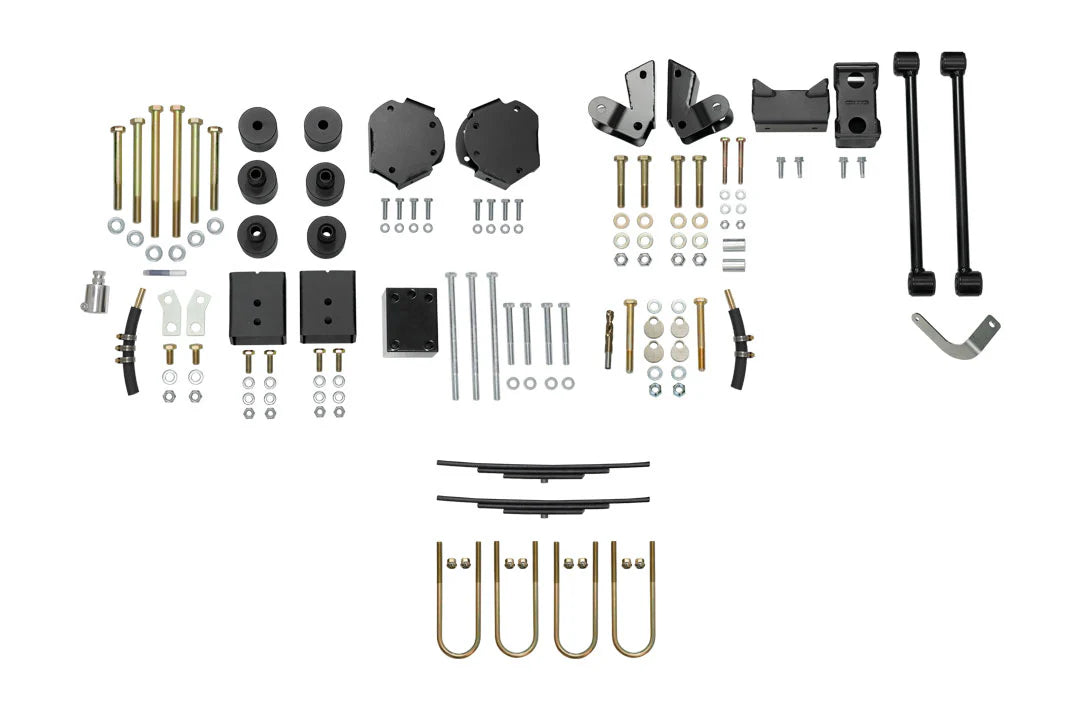

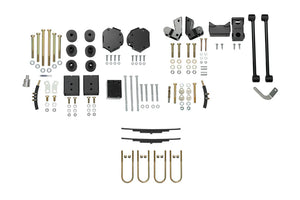

The Kit Includes:
- Front 2" strut spacers
- Front 2" subframe drop spacers
- Engine and transmission mount 2" lift spacers
- Front differential cam bolt kit
- CNC Machined 2" steering shaft extension
- Low pressure power steering hose extension
- Front brake line relocation brackets
- 3 short leaves to convert 3-leaf Mini Leaf Spring pack to 6-leaf
- Extended rear sway bar links
- Rear lower shock relocation brackets
- Rear bump stop drop brackets
- Wind assist or headlight leveling sensor bracket
- All necessary hardware and detailed instructions
Fitment Guide
MODEL: SPRINTER 2500
YEAR: 2023-PRESENT
DRIVE TYPE: AWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
Recommended Wheel Size: 17" x 8.5", +45mm offset
WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
Documents: Van Compass 2023+ Mercedes Sprinter AWD 2500 Strike 2" Lift Kit (3 / 4.3 to 5 / 6.3 Upgrade)
2023+ VS30 AWD Striker 2" Front Kit Installation Instructions
2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions
Video: Van Compass Mercedes Sprinter AWD (2023+ 2500) Striker AWD 2" Lift Kit (3 / 4.3 to 5 / 6.3 UPGRADE)
