Van Compass 2015+ Mercedes Sprinter AWD 4X4 - Stage 4.3 System

$ 3,644⁷⁵

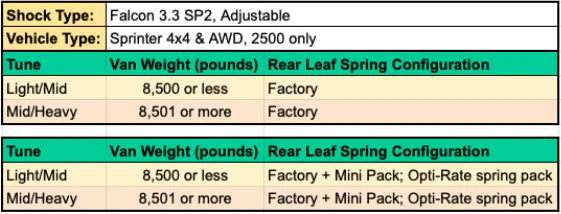

Shock Tune

Product variants

Part#
LIGHT/MID TUNE - VCMP-7072-LM
MID/HEAVY TUNE - VCMP-7072-MH

Need a suspension upgrade for your Mercedes Sprinter AWD or 4x4? The Mercedes Sprinter AWD/4x4 (2015-Present 2500 Only) Stage 4.3 System Suspension Package by Van Compass delivers exceptional stability, comfort, and control specifically designed for heavy adventure vans, conversion vans, Class B RVs, and passenger vans frequently operating near or above GVWR. Proven as best-selling suspension kit, the Stage 4.3 addresses common handling issues, significantly enhancing your Sprinter’s ride quality both on and off the pavement.

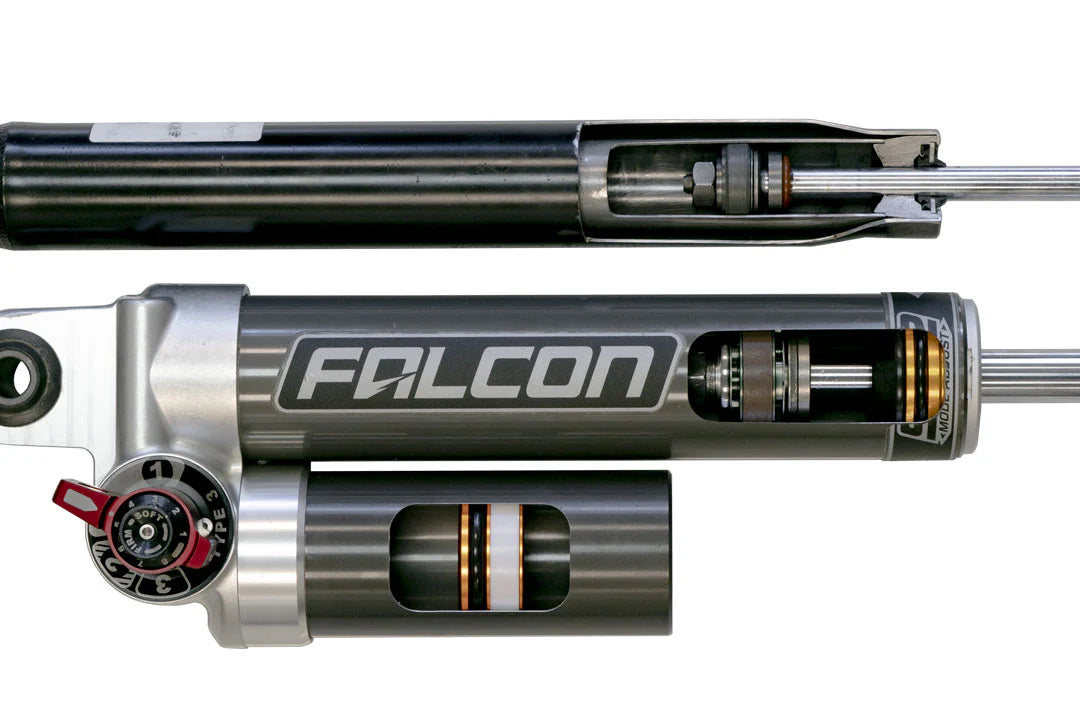

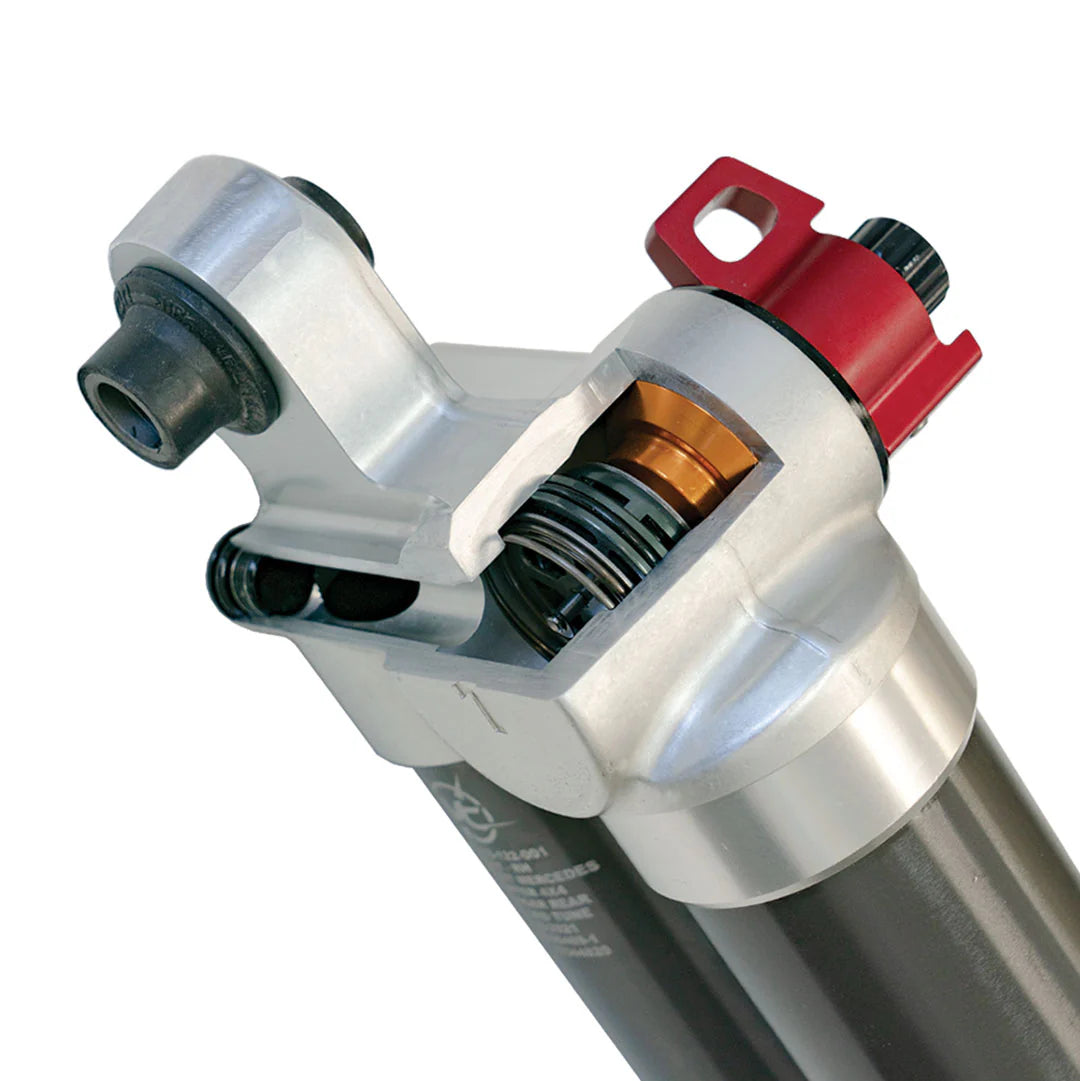

At the heart of the Stage 4.3 system are the VC-tuned Falcon 3.3 Adjustable Shocks, featuring 10 intuitive firmness settings easily controlled by an accessible Fast Adjust knob. Quickly adjust the shocks from soft, compliant settings ideal for rough terrain, to firm, stable control suited for highway driving and windy conditions. This wider range of adjustability far exceeds typical competitors, dramatically improving handling flexibility.

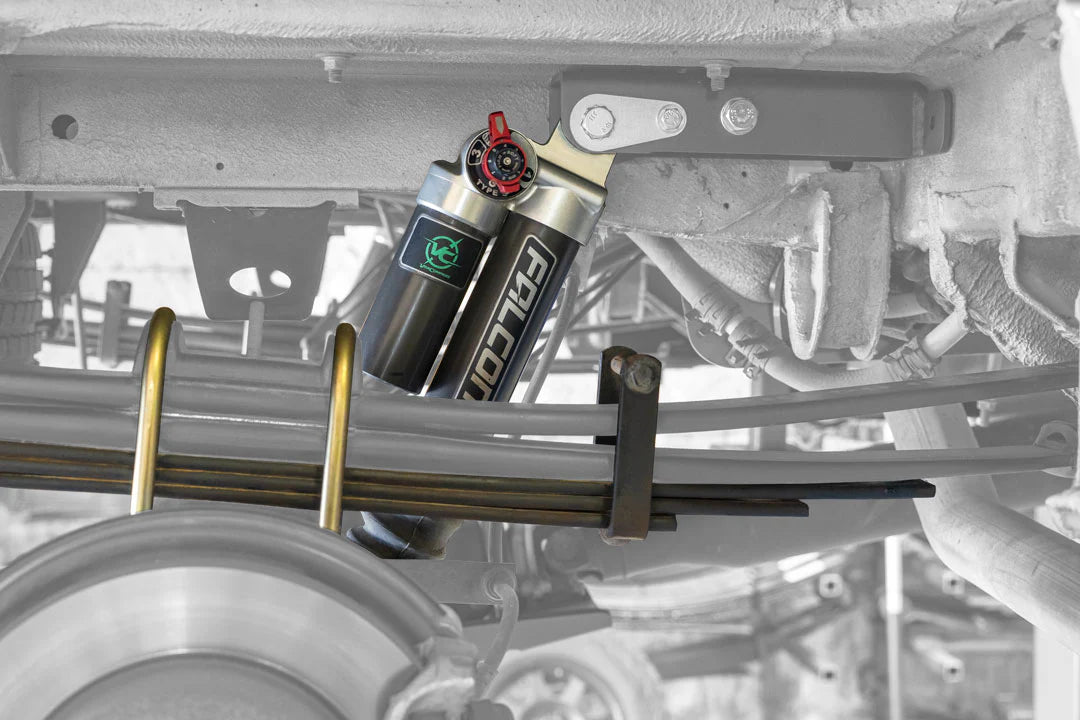

The included rear mini leaf spring pack seamlessly integrates with your factory leaf springs, restoring approximately 1.25 inches of lost ride height and correcting rear sag due to heavy loads. This provides your Sprinter with a balanced, level stance, while preserving the smooth, quiet ride characteristics of factory components.

Additionally, the progressive foam Bump Buddy replacement jounce bumpers significantly improve spring progression, effectively reducing sway and increasing bottom-out resistance without harshness, noise, or clunking common with standard factory rubber stops.

Recommended Wheel Size: 17" x 8.5", +45mm offset

NOTE: Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

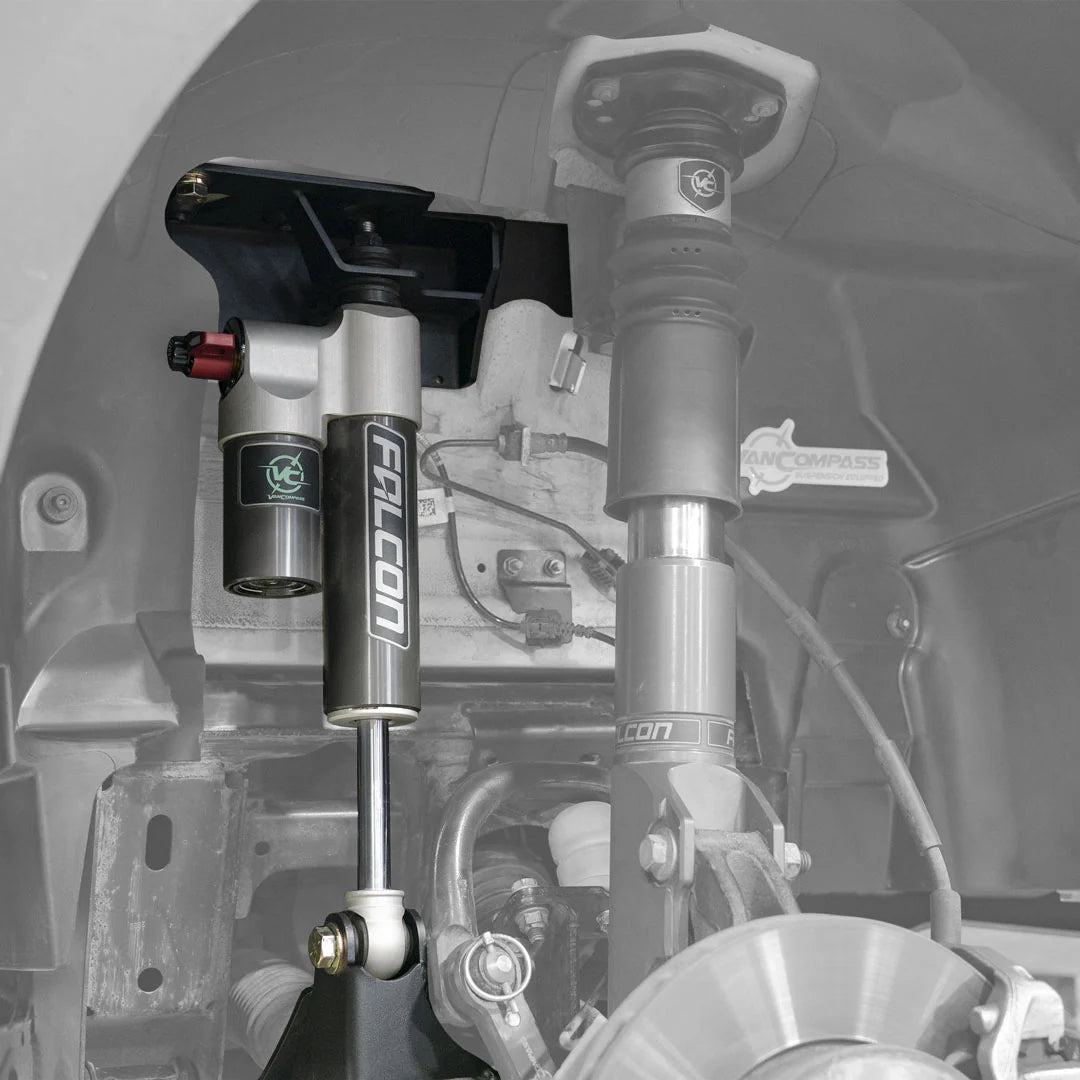

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Key Features: Van Compass Sprinter AWD 4X4 (2015-Present 2500) Stage 4.3 System

Fits 2015+ Mercedes Sprinter AWD 4x4 vans only
VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
Restores lost ride height and reduces sagging
Enhanced cornering stability and reduced wind sway
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance
100% bolt on

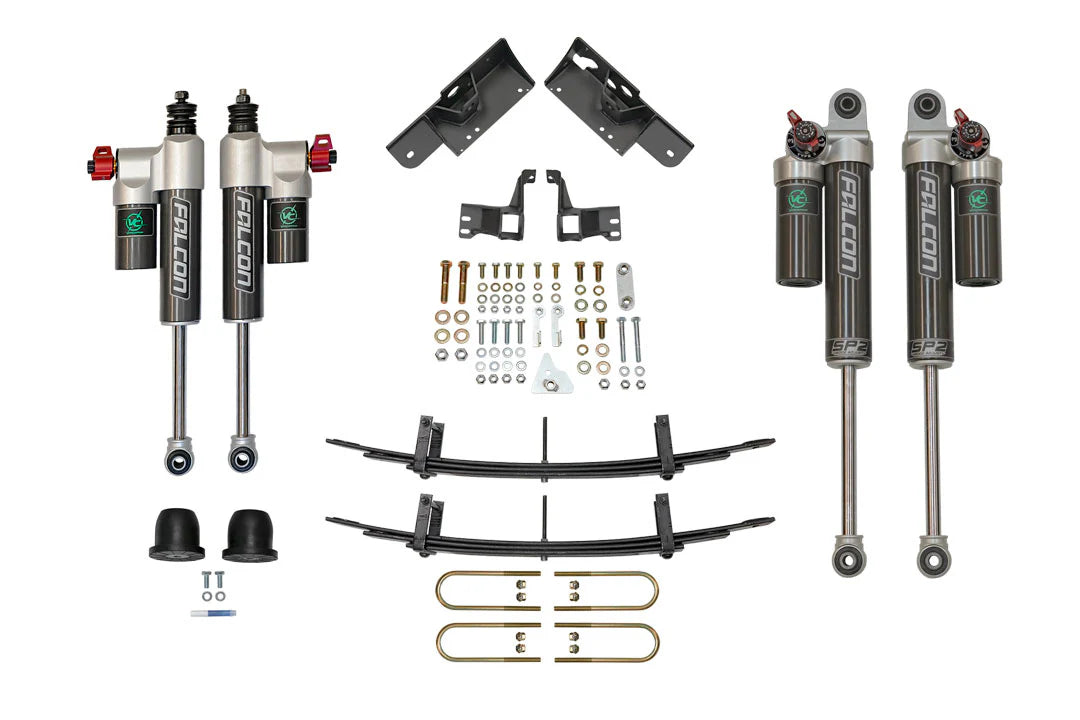

What's Included?

Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
Front Bump Buddies
Falcon 3.3 Fast Adjust Rear Shocks with SP2
Rear Mini Leaf Spring Pack
Dust boots for all 4 shocks.
All necessary hardware and instructions for a simple installation

Fitment Guide

MODEL: SPRINTER 2500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

Recommended Wheel Size: 17" x 8.5", +45mm offset

NOTE: Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
