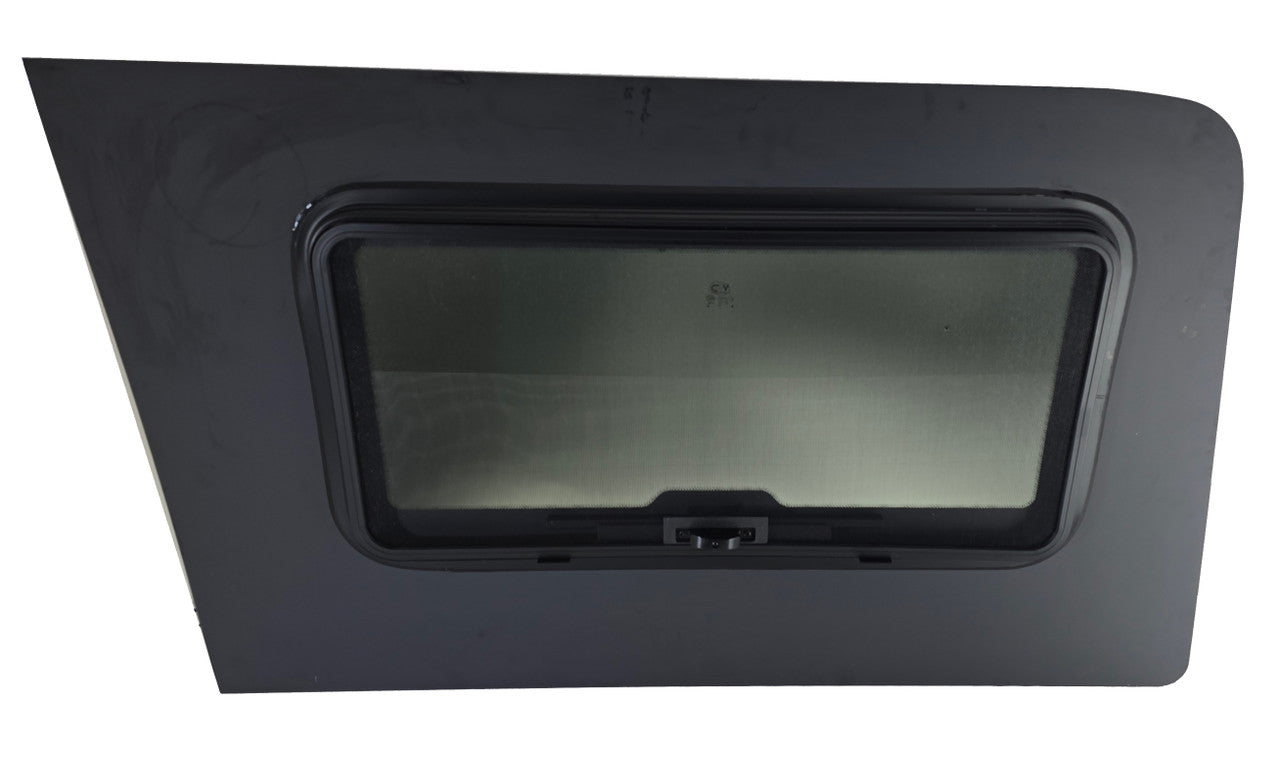

VWD 2007+ Mercedes Sprinter Passenger Side Rear Quarter 170" Crank-Out Awning Window (SR103-CA)

Name: VWD 2007+ Mercedes Sprinter Passenger Side Rear Quarter 170" Crank-Out Awning Window (SR103-CA)
Brand: Van Windows Direct
SKU: SR103-CA
Price: 599.95 USD
Availability: InStock

$ 599⁹⁵

Key Features

Key Features

Fits 2007+ Mercedes Sprinter170"/170" EXT High/Low Roof vans
Fits passenger side rear quarter section

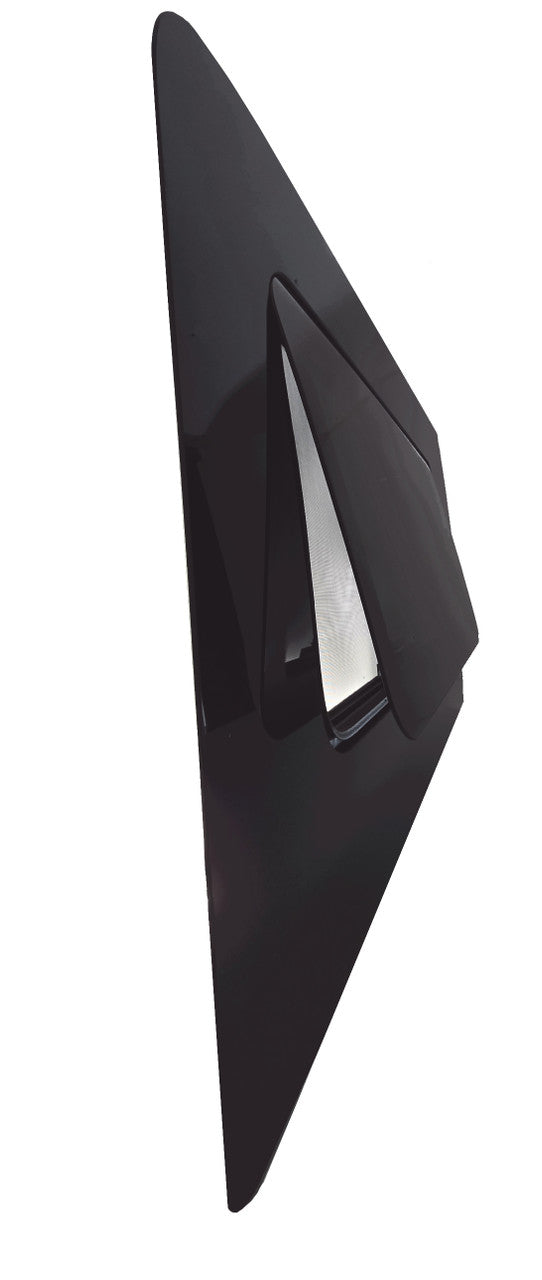

Crank-Out Awning Design for all-weather ventilation—even in rain or snow

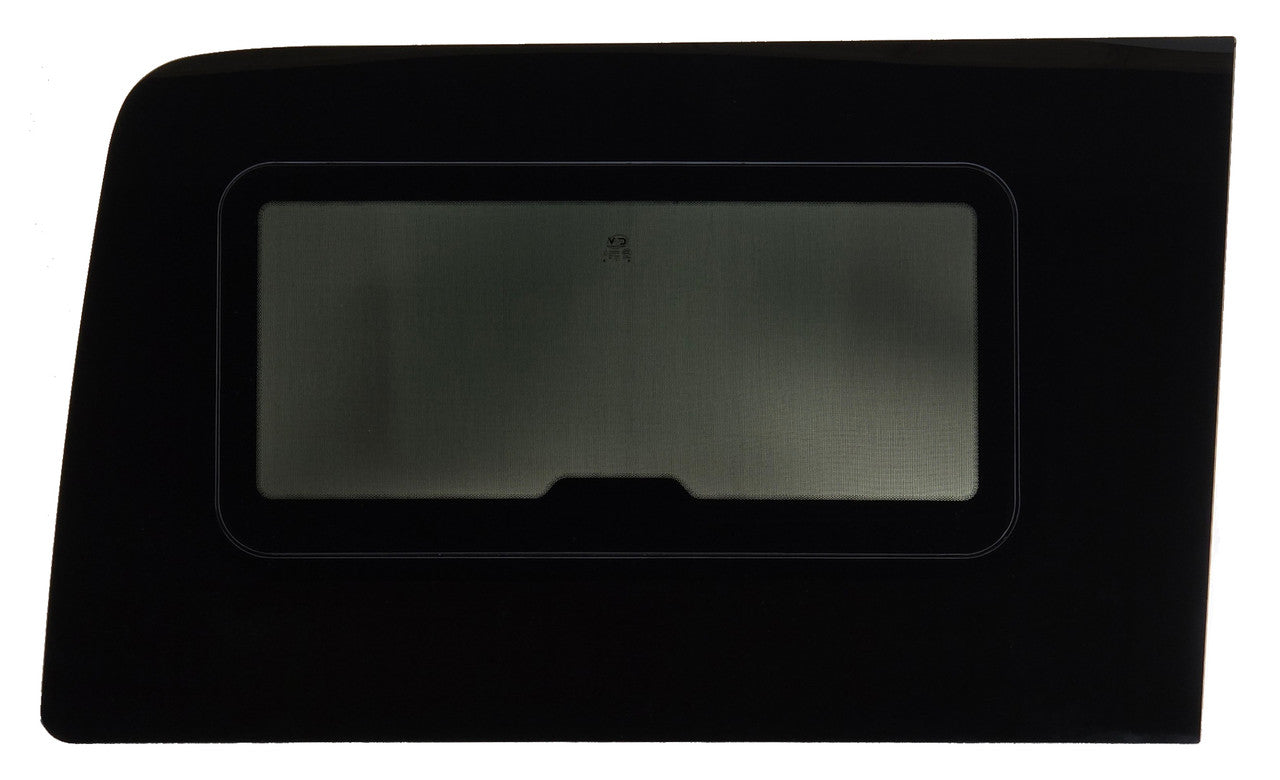

Solar Privacy Glass with 17% UV protection to reduce glare and heat
Large 33.82” x 16.65” Opening for maximum airflow and interior comfort

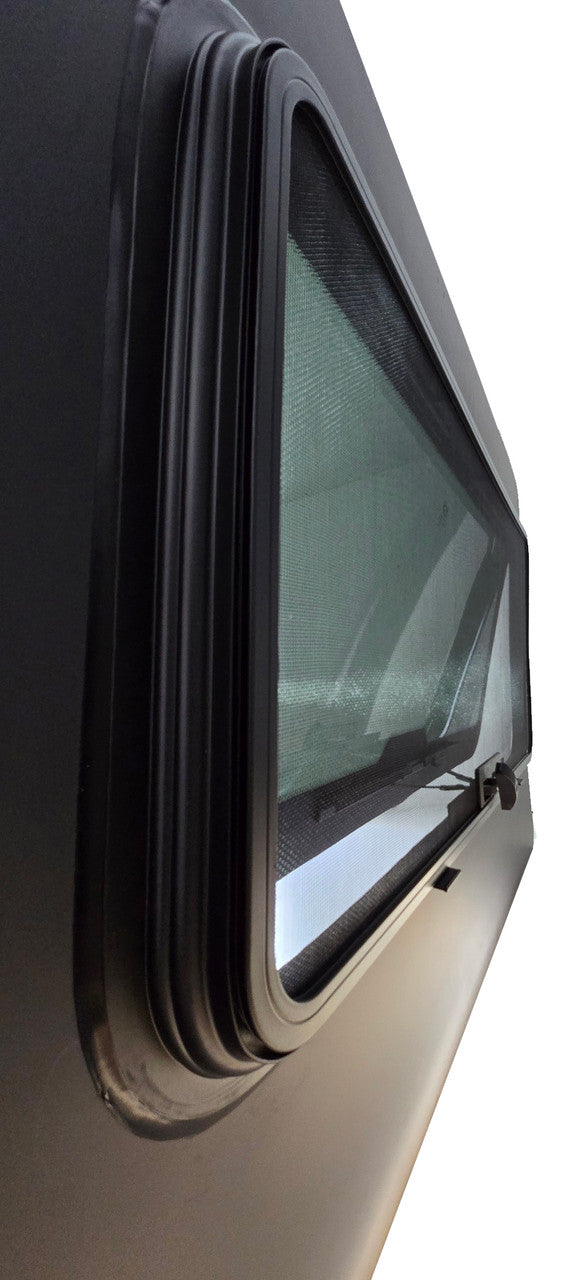

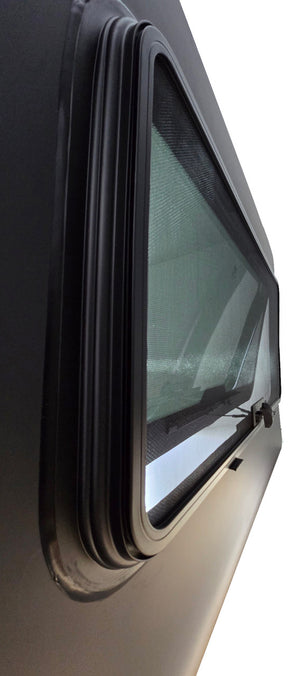

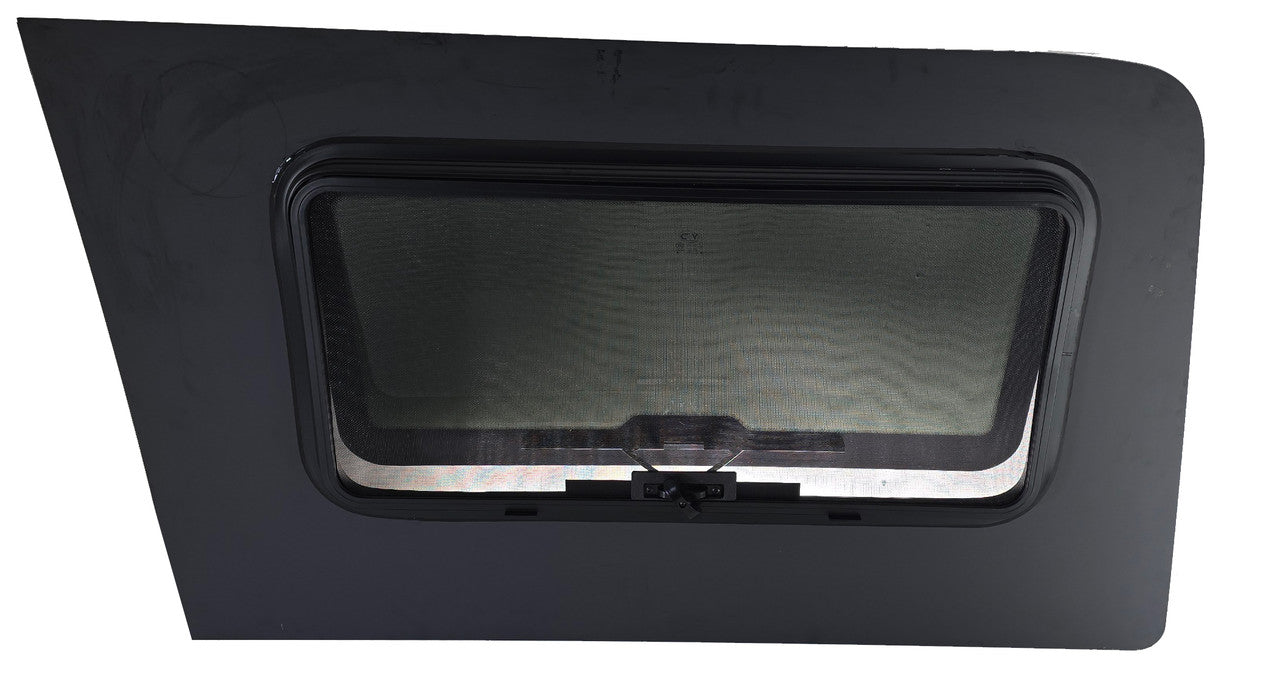

Built-In Removable Bug Screen for fresh, pest-free ventilation
Durable, Weather-Resistant Construction with urethane-bonded watertight seal
Frameless All-Glass Look for a sleek, modern aesthetic
Easy, Direct-Fit Installation backed by a 1-Year Van Windows Direct Warranty

Introducing the innovative VWD 2007+ Mercedes Sprinter Passenger Side Rear Quarter 170" Crank-Out Awning Window (SR103-CA). Elevate your van life with this direct-fit upgrade designed specifically for the Passenger Side Rear Quarter of your Sprinter van (170/170Ext WB). Whether you're a weekend adventurer or a full-time van lifer, this premium window enhances your ventilation, privacy, and overall comfort—keeping your van cool, secure, and stylish in any weather.

Crafted for superior performance, the VWD Crank-Out Awning Window features solar privacy glass with a 17% UV rating to shield you from harmful rays, while the unique crank-out awning design offers ventilation in any condition—even rain or snow. The included bug screen ensures fresh, pest-free airflow, and the weather-resistant construction guarantees a watertight seal, protecting your van against the elements.

Install Info

Notes when installing your bond-in van window:

Use an urethane automative adhesive for install such as: Sikaflex P2G Adhesive
Qty: 1-2 tubes for small and medium size window projects or Qty: 2 tubes for each large window.
Clean adhesive area with alcohol, let dry, and apply window primer such as: Dow Beta Primer
Qty: 1 primer per large window
Add Trim lock or window gasket for the cut metal edge. This window's compatible option can be found in this page's Frequently Bought Together section.
Check out our How to Install Bonded Van Windows blog article for more details, or watch the video below.

FAQ

Q1: What is a bond-in window?

A: A bond-in window is a frameless automotive-style window that is adhered to the van body using urethane adhesive. It offers a sleek, modern appearance and creates a watertight, secure seal.

Q2: Are bond-in windows compatible with my van?

A: Bond-in windows are available for most popular vans including Sprinter (high/low roof), Ford Transit (medium/high roof), and RAM ProMaster. Check the product fitment details for your specific year and wheelbase.

Q3: What’s the difference between bond-in and clamp-in windows?

A: Bond-in windows use urethane adhesive for a seamless, low-profile install. Clamp-in windows use a mechanical frame and clamps to hold the glass in place—easier to install, but with a different appearance.

Q4: Can I install a bond-in window myself?

A: DIY installation is possible if you’re comfortable with bodywork, cutting metal, and applying automotive urethane. However, many customers choose to have a professional RV or van builder perform the install to ensure a watertight seal.

Q5: What tools or supplies do I need to install a bond-in window?

A: You’ll need:

Automotive urethane adhesive
Primer for glass and metal
Cutting tools (jigsaw with metal blade or body saw)
Masking tape, clamps, and cleaning supplies

Q6: Do bond-in windows come with adhesive or primer?

A: Most bond-in windows do not include adhesive or primer. These must be purchased separately or as part of an install kit designed for your specific window.

Q7: How long does the urethane adhesive take to cure?

A: Urethane typically requires 24–48 hours to fully cure. Avoid driving or exposing the window to rain until the adhesive has fully set.

Q8: Are bond-in windows watertight and weatherproof?

A: Yes, when properly installed with high-quality urethane and primer, bond-in windows are fully watertight and dustproof, making them ideal for campervan use in all climates.

Q9: Do bond-in windows have opening panels or screens?

A: Some bond-in windows (like vented rear quarter or awning-style options) feature crank-out or sliding panels and bug screens. Others are fixed solid glass. Check product specs for ventilation options.

Q10: Can bond-in windows be installed in a cargo van with no existing windows?

A: Yes! Bond-in windows are designed for cargo vans and often align with factory stampings in the metal for easier installation. Always measure and confirm cutout dimensions before starting.

Product Specs

VWD 2007+ Mercedes Sprinter Passenger Side Rear Quarter 170" Crank-Out Awning Window (SR103-CA)

Manufacturer	Van Windows Direct
Placement on Van	Passenger Side Rear Quarter
SKU	SL103-CA

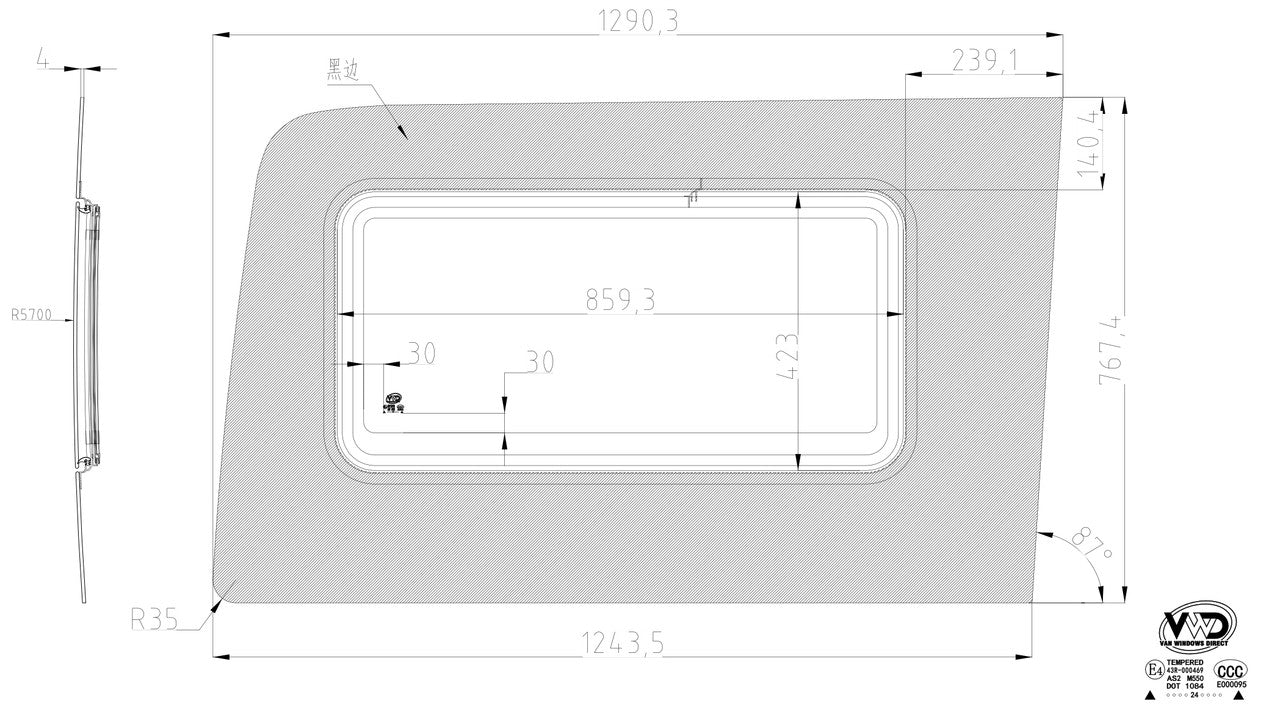

Overall Size	1290mm x 768mm (50.79" x 30.24")
Awning Opening	859mm x 423mm (33.82” x 16.65”)

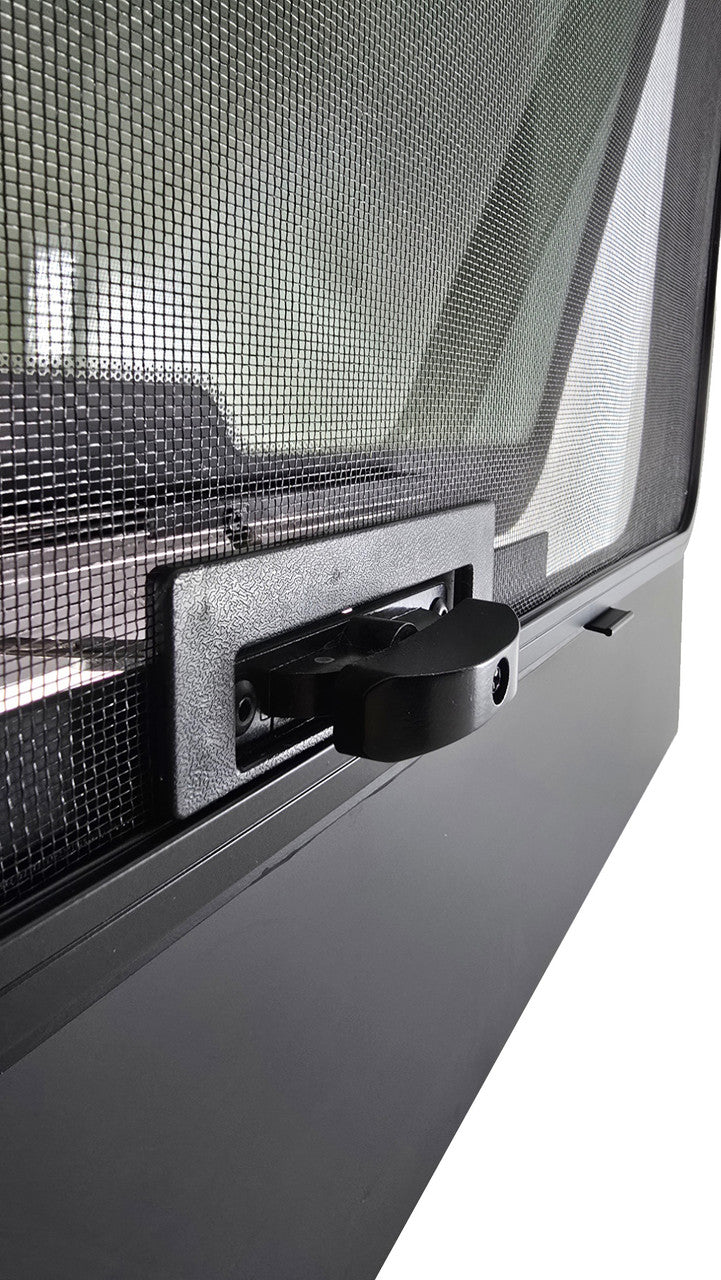

Awning Crank-Out	Up to 76mm (3”) for fresh air control
