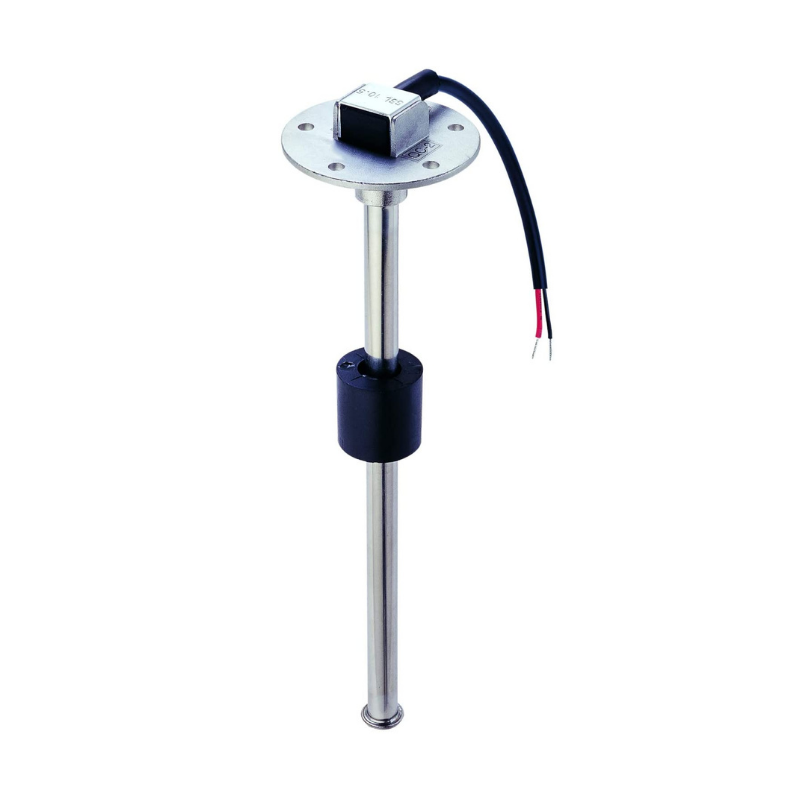

KUS Water Level Sensor with SAE 5 Hole Pattern Mount

Please allow 2-3 weeks to process and ship. Shipping calculated at checkout.

$ 65.99

Sensor Depth

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

The electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes reed switch and magnetic field technology. The advantage of reed switch type level sender over thick-film swing arm type level sender is the reed switch’s durability and reliability. Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential mechanical failures.

• • Please note that KUS recommends a 1″ clearance from the bottom of plastic tanks and a 0.5″ clearance from the bottom of stainless/aluminum tanks.

Key Features: KUS Water Level Sensor with SAE 5 Hole Pattern Mount

Available in several lengths to fit your specific water tank.
Signal Output: 240 ohms-33 ohms
Mounting Method: SAE 5 hole mounting pattern
Operating Voltage: 12Vdc/24Vdc
Material: Type 316 stainless steel
NBR mounting gasket (1Pcs) and screw (5Pcs) included

Material:

Body: SUS 316 Stainless Steel
Cable: PVC
Float: NBR

American Standard Output:

4″ through 18.5″ at 0.5″ increments
19″ through 96″ at 1″ increments

Mounting Methods: Standard SAE 5 hole pattern

Protection Rank: IP65

Output Signal:

American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)
European Standard 0-180 ohms (0 ohms at empty, 180 ohms at full)

Resolution Range:

21mm
*Finer resolution (as low as 10mm) available upon request

Operational Temperature: -40°F ~ +185°F (-40°C ~ +85°C)

Additional Information:

Video

Vehicle fitment

Product type: Water system component
Vehicle: Camper vans, RVs, trailers, and mobile builds
Summary: Camper vans, RVs, trailers, and mobile builds that need a compatible water system component. Confirm capacity, fitting sizes, hose routing, mounting location before ordering. Product listing notes: KUS Water Level Sensor with SAE 5 Hole Pattern Mount Please note that KUS recommends a 1″ clearance from the bottom of plastic tanks and a 0.5″ clearance from the bottom of stainless/aluminum tanks. Mounting Method: SAE 5 hole mounting pattern

Fitment FAQ

What does this KUS Water Level Sensor with SAE 5 fit?

This KUS Water Level Sensor with SAE 5 fits Camper vans, RVs, trailers, and mobile builds.

Is this product vehicle-specific?

This water system component is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.

What should I verify before ordering?

Confirm capacity, fitting sizes, hose routing, mounting location before checkout.

What installation details matter?

Confirm capacity, fitting sizes, hose routing, mounting location before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.

Who is this product best for?

This water system component is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
