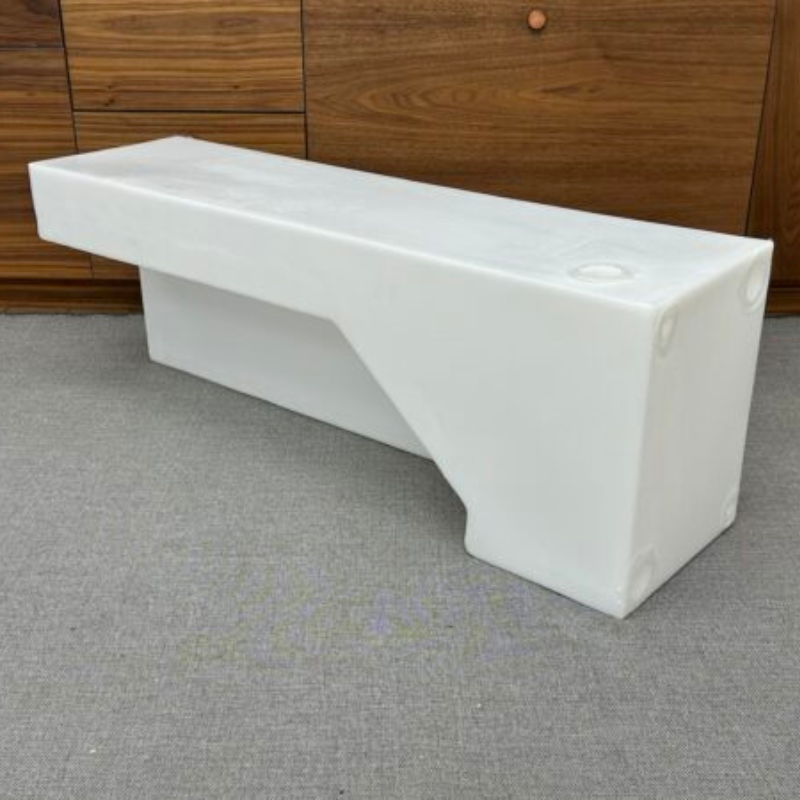

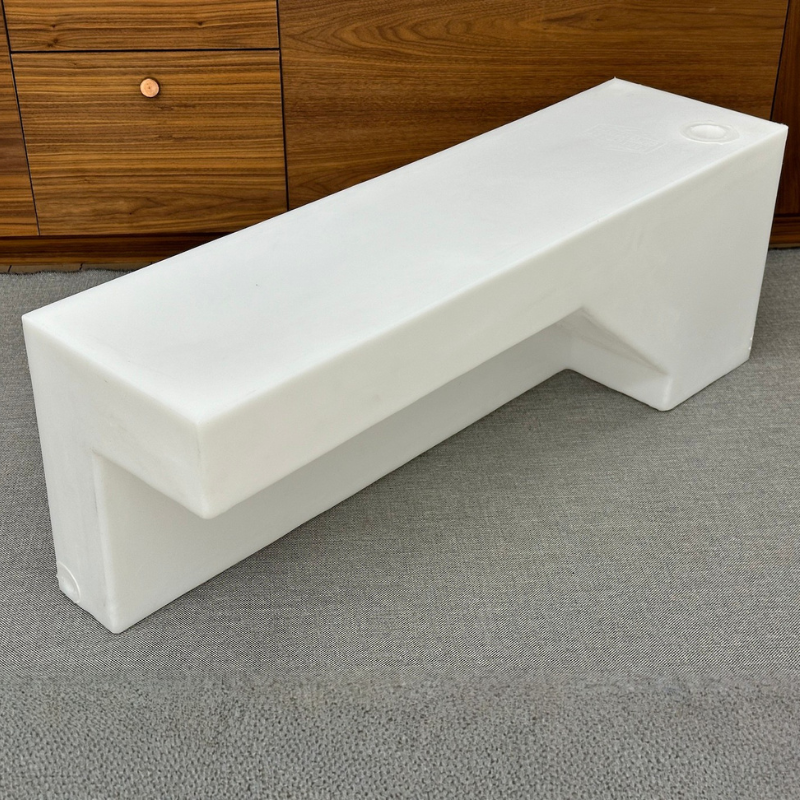

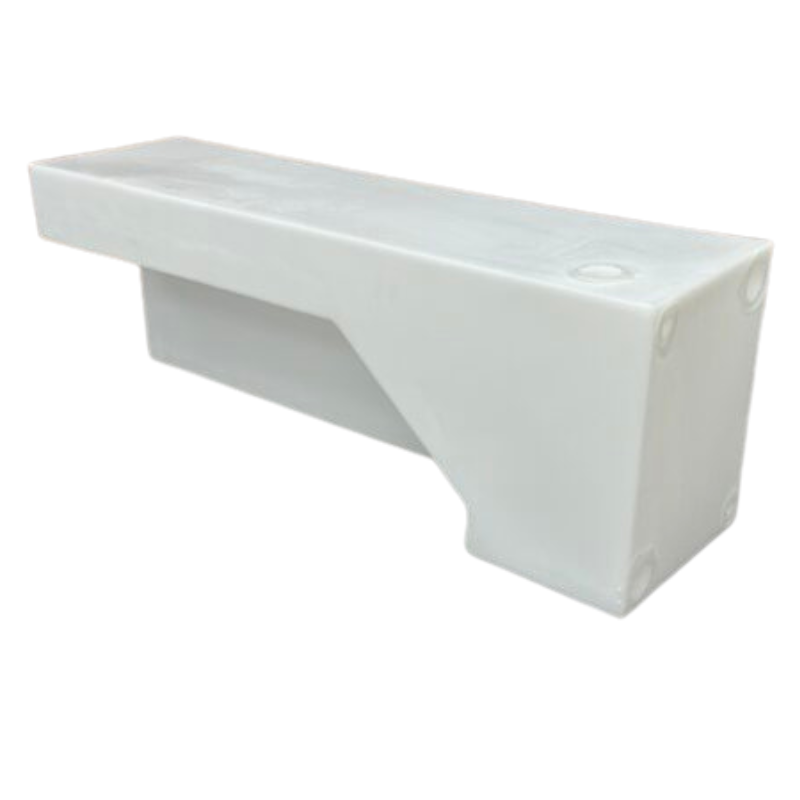

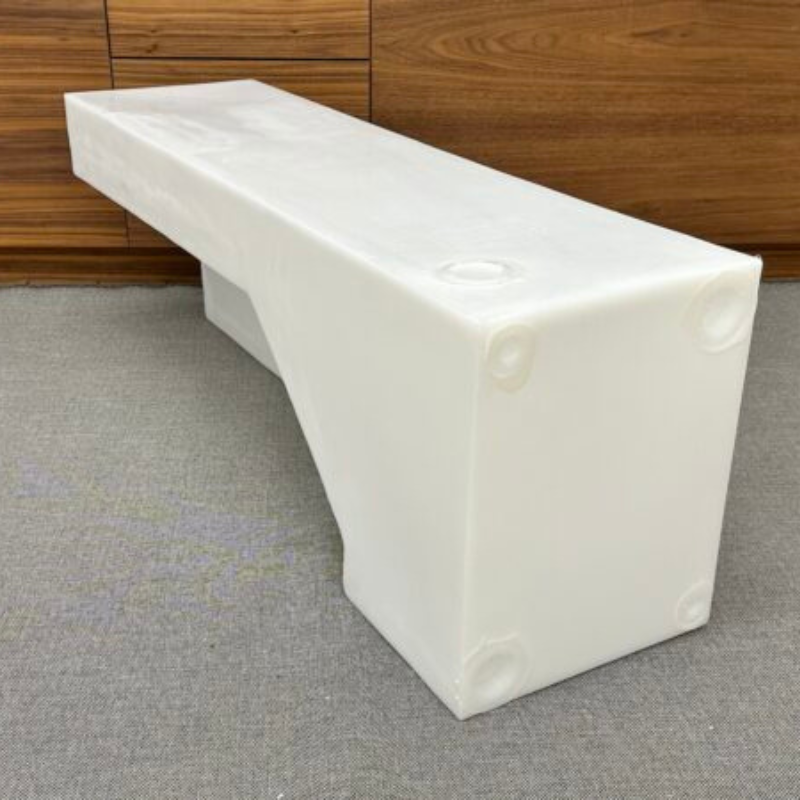

Northwest Conversions 24 Gallon Ford Transit Wheel Well Water Tank (Left)

Introducing the Northwest Conversions 24 Gallon Ford Transit Wheel Well Water Tank (Right), the ultimate solution for maximizing space and ensuring a reliable water supply on your adventures!

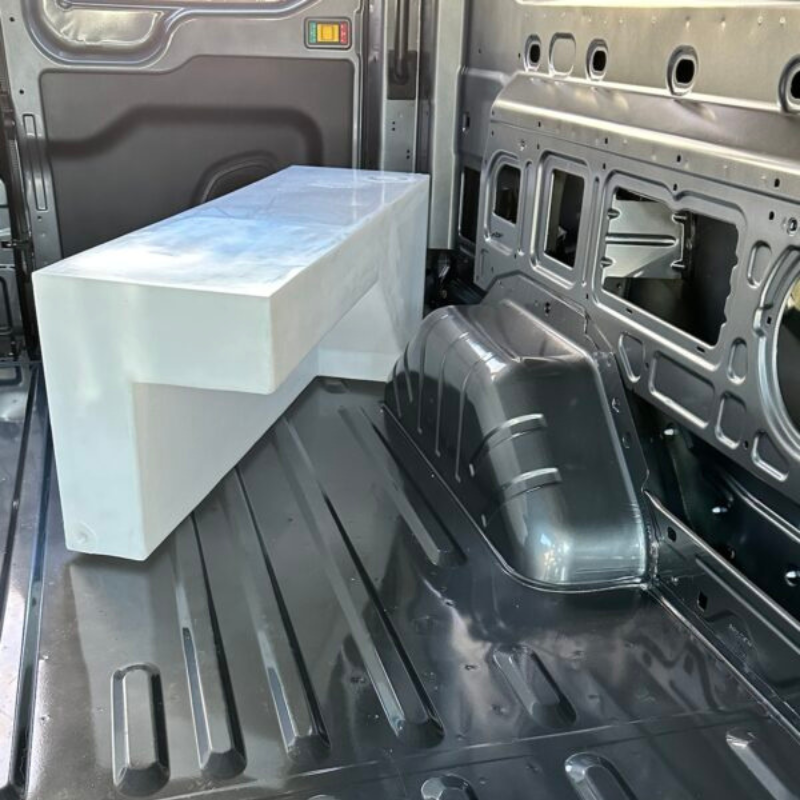

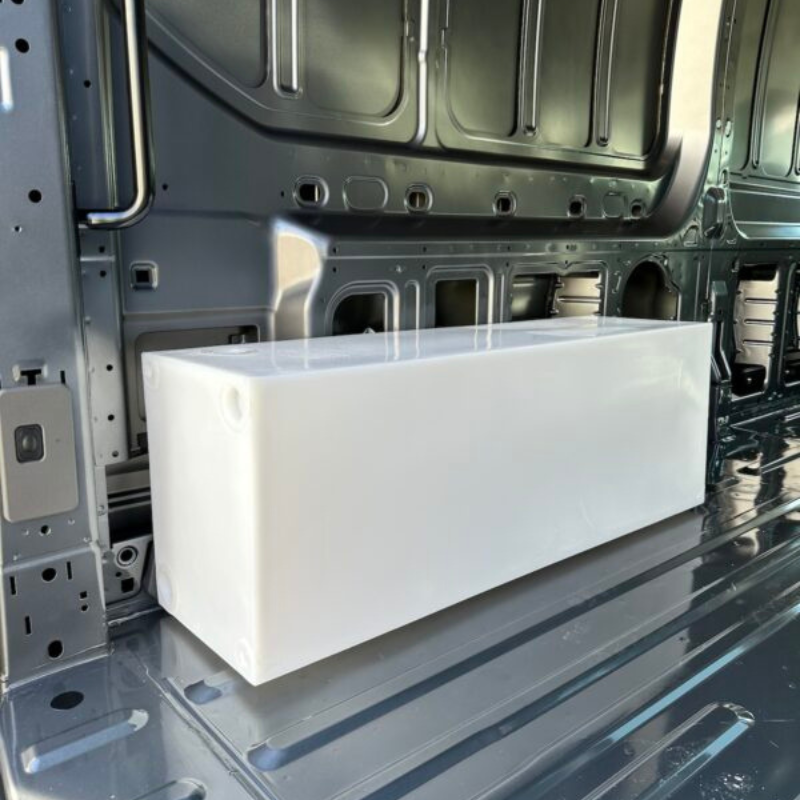

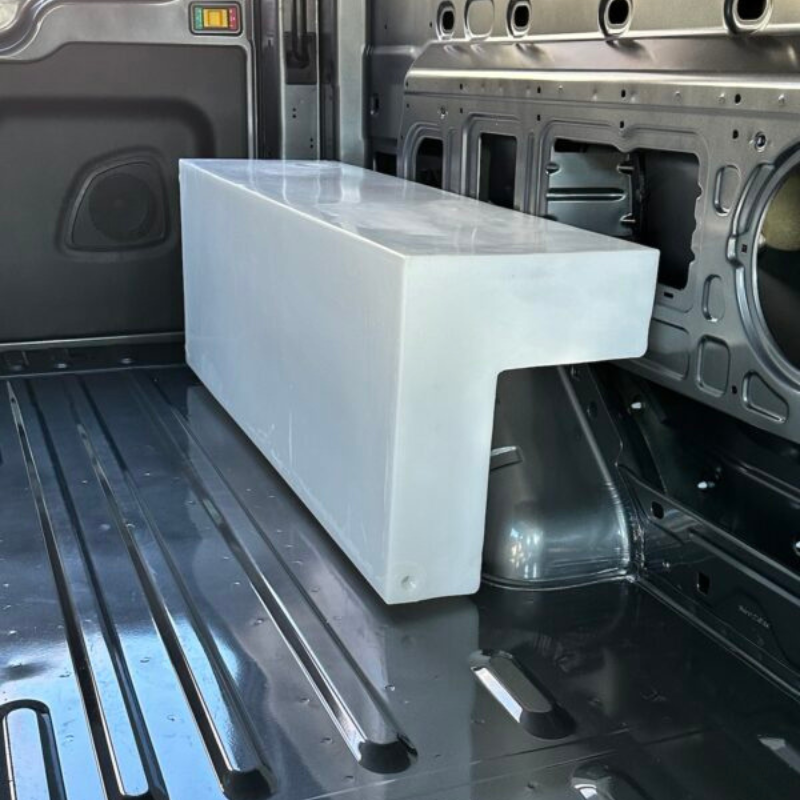

The 24 Gallon Wheel Well Water Tank is designed to use the wasted space around the wheel well.  It is designed to fit the Ford Transit Vans but may also fit other makes and models(installation customization).

Note: Free Shipping in Continental US!

Key Features: Northwest Conversions 24 Gallon Ford Transit Wheel Well Water Tank (Left)

• 24 Gallon Wheel Well Water Tank (TR-L-24)
• Designed for the Ford Transit Van

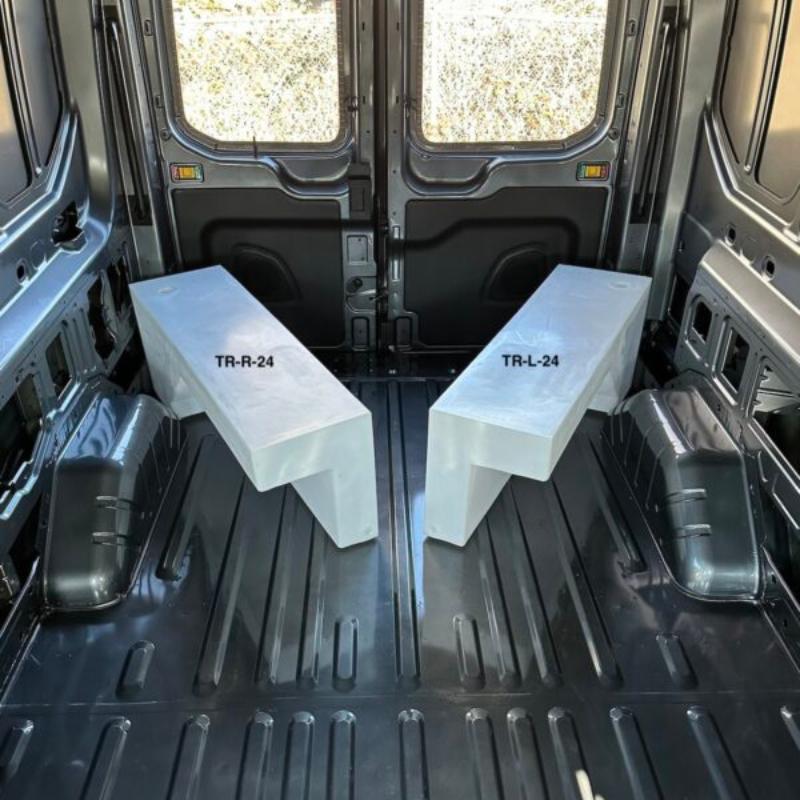

• Can be placed either driver or passenger side.
• Tank sits majority rear of wheel well on driver side and majority front of wheel well on passenger side.

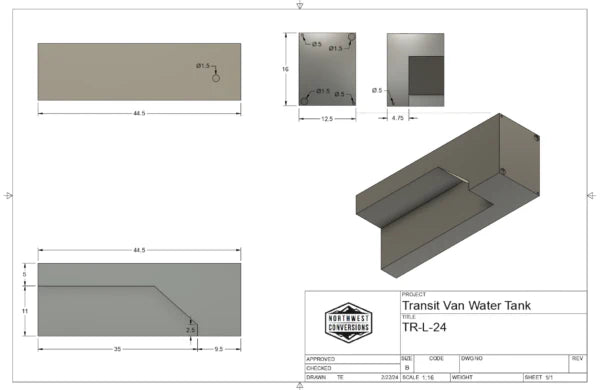

• Overall dimensions: 44.5" x 16" x 12.5" (see diagram)
• Tank has (2) 1.5" NPT ports (need to be drilled out) and (2) 1/2" NPT ports on large rectangular end and (1) 1/2" NPT port on open end (see diagram).
• Tank has (1) 1.5" NPT port (needs to be drilled out) on top for fill or level sensor.
• Tank is designed to NOT be pressurised (I.e. Needs to be vented.
• Tanks are made from BPA Free Food Grade Polyethylene.
• Made in the USA

Please allow up to 10 days for processing.

Specifications: Northwest Conversions 24 Gallon Ford Transit Wheel Well Water Tank (Left)

Weight: 27 lbs
Dimensions: 48 × 13 × 16 in
