Baja Designs LP6 Pro LED Auxiliary Light Pod
To keep your light performing at its highest potential, the LP6 Pro integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber daytime running light, low power, and high power mode, the LP6 easily fulfills all your lighting needs. Choose from two patterns to suit your needs: Spot or Driving/Combo:

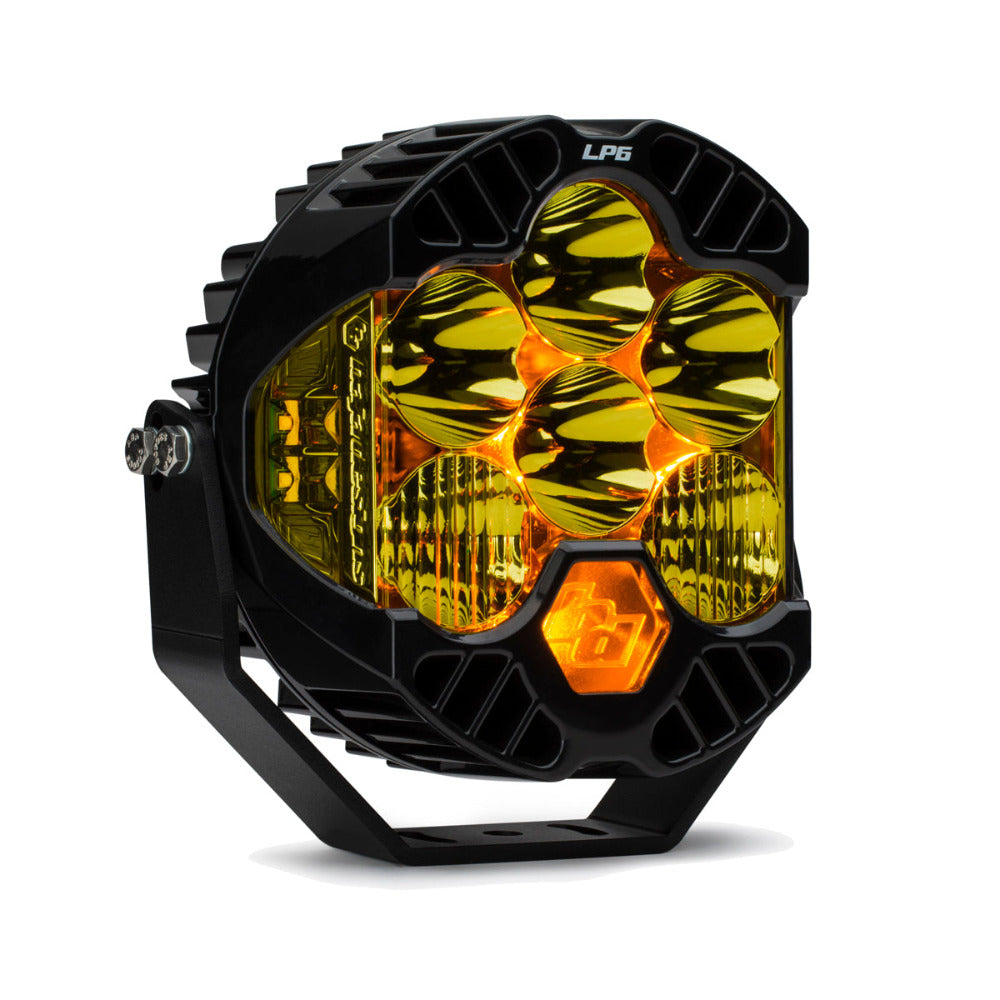

- Driving/Combo: Equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

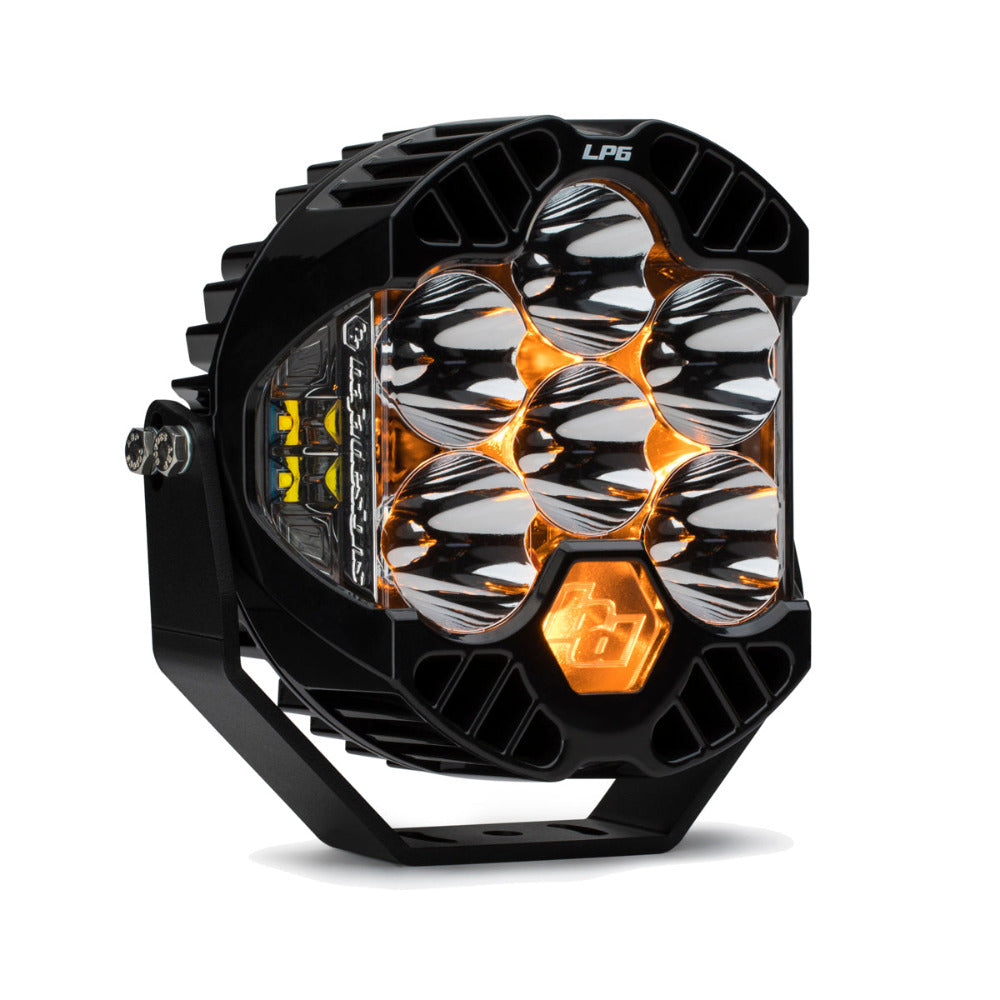

- Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
The Baja Designs LP6 Pro LED Auxiliary Light Pod isn't just a light—it's a lighting revolution. With unmatched power, advanced cooling, and versatile patterns, the LP6 Pro is your key to elevating your journey, illuminating every path with clarity and confidence. Unleash the future of lighting technology today.
Key Features: Baja Designs LP6 Pro LED Auxiliary Light Pod
- Blazing Brightness
- Cool and Efficient
- Versatile Daytime Running Light
- Spot or Driving/Combo Brilliance
- Satisfaction Guarantee (30-day money back guarantee)
- Limited Lifetime Warranty (complete purchase protection)
- uService (replaceable lenses and optics)
- ClearView (all the light, right where you need it)
- MoistureBlock (waterproof, rain proof, submersible)
- CopperDrive (only led driven at 100 percent)
- 5000K Daylight (less driver fatigue, natural color)
- Made in USA
Specifications: Baja Designs LP6 Pro LED Auxiliary Light Pod
| Amperage Rating (A) | 7.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.300 |
| Backlight Wattage (W) | 4.140 |
| Beam Pattern | Spot / Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 11225 |
| Housing Color | Black |
| Housing Material | Hard Anodized Machined Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 103.500 |
| Wiring Harness Included | No |
Dimensions
| Length (in.) | 6.5 |
| Height (in.) | 6.5 |
| Depth (in.) | 3.2 |
| Weight (lbs.) | 4.2 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Document: Baja Designs LP6 Pro LED Auxiliary Light Pod
Baja Designs LP6 Pro LED Auxiliary Light Pod Installation Instructions
Videos: Baja Designs LP6 Pro LED Auxiliary Light Pod
Vehicle fitment
- Product type
- Climate control component
- Vehicle
- Camper vans, RVs, trailers, and mobile builds
- Summary
- Camper vans, RVs, trailers, and mobile builds that need a compatible climate control component. Confirm measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: MoistureBlock (waterproof, rain proof, submersible) Mounting Hardware Included Mounting Hardware Material
Fitment FAQ
What does this Baja Designs LP6 Pro LED Auxiliary Light fit?
This Baja Designs LP6 Pro LED Auxiliary Light fits Camper vans, RVs, trailers, and mobile builds.
Is this product vehicle-specific?
This climate control component is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.
What should I verify before ordering?
Confirm measurements, mounting location, clearances, installation requirements before checkout.
What installation details matter?
Confirm measurements, mounting location, clearances, installation requirements before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This climate control component is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
Campervan HQ fitment guide
Baja Designs LP6 Pro LED Auxiliary Light Pod for camper van and RV builds
Baja Designs LP6 Pro LED Auxiliary Light Pod supports Camper vans, RVs, trailers, and mobile builds applications where fitment, measurements, installation requirements, and build layout should be confirmed before ordering.
Why choose this product?
- Supports camper van, RV, and mobile build planning
- Helps confirm measurements, installation needs, and clearances before checkout
- Useful for matching the product to the build layout before ordering
Installation context
- Confirm measurements and clearances
- Review wiring, mounting, sealant, or material requirements where relevant
- Use professional installation when the build requires it
Compatibility notes
Camper vans, RVs, trailers, and mobile builds that need a compatible climate control component. Confirm measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: MoistureBlock (waterproof, rain proof, submersible) Mounting Hardware Included Mounting Hardware Material
Common use cases
- Camper van conversions
- RV upgrades
- Trailer and overland builds
Baja Designs LP6 Pro LED Auxiliary Light Pod
