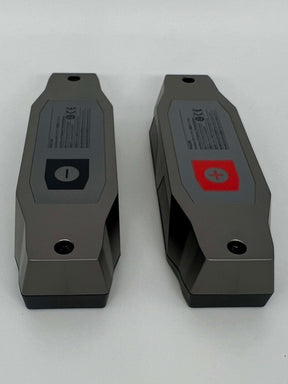

EcoFlow LFP Battery Power Distribution Terminal
Wiring large DC loads into your EcoFlow Power Kit-based RV electrical system? Check out the EcoFlow LFP Battery Power Distribution Terminal – the solution for efficient and reliable DC power distribution in a compact and eco-friendly package.
These 300A DC bus bars (sold as a set of two, one for positive and one for negative connections) give you a way to wire large DC loads into your EcoFlow Power Kit. EcoFlow recommends using these for loads like 12V and 24V DC air conditioners, combined with the AC/DC Distribution Panel.
FREE SHIPPING on this item anywhere in the lower 48 US states.
Specifications: EcoFlow LFP Battery Power Distribution Terminal
| Brand | EcoFlow |
| Type | Power Distribution Terminal / Bus Bar (set of 2) |
| Max. current rating | 300A |
| Max. voltage rating | 60 VDC |
| Terminal diameter | 0.31 inch |
| Terminal height | 0.59 inch |
| Terminal material | Stainless steel |
| Hex nut material | Stainless steel |
| Recommended torque | 150.5-203.6lbf·inch / 17-23N·m |
| Busbar strip material | Tin-plated copper |
| Base material | PC+ABS, black, YS 1293B，UL 94 V-0 |
| Cover material | PC+ABS, YS 1286B, UL 94 V-2 |
| Weight | 0.59 lb |
| Dimensions (h*w*d) (with cover) | 6.57 x 2.05 x 1.36 inch |
| Warranty | 1-year |
Documents: EcoFlow LFP Battery Power Distribution Terminal
EcoFlow LFP Battery Power Distribution Terminal Quick Installation Guide
Video: EcoFlow LFP Battery Power Distribution Terminal
The modular EcoFlow Power Kits are plug-and-play power systems, enabling you to quickly put together very capable electrical systems for your camper van or RV. Even after you assemble a system, you can add a battery to increase power storage capacity or plug in a solar panel for faster charging. Power Kits include the patented Power Hub that combines five components (inverter, dual MPPT solar charge controllers, DC/DC charger, DC/DC converter) to meet all your power needs, saving you space, money, and set-up hassle.
<
Vehicle fitment
- Product type
- 48V power kit
- Vehicle
- Camper vans, RVs, trailers, and off-grid power builds
- Summary
- Camper vans, RVs, trailers, and off-grid builds that need an integrated EcoFlow 48V power system. Confirm product specifications, electrical requirements, installation clearances, cable routing, and system compatibility before ordering.
Fitment FAQ
What does this EcoFlow Power Kit fit?
This EcoFlow Power Kit fits camper vans, RVs, trailers, and off-grid builds that need an integrated EcoFlow 48V power system.
Is this product vehicle-specific?
This is a universal EcoFlow electrical system component, not a van-generation-specific product. Fit depends on battery capacity, Power Hub generation, AC/DC distribution panel, charging sources, mounting space, ventilation, and installer wiring plan.
What should I verify before ordering?
Confirm battery capacity, AC and DC load requirements, solar/alternator/shore input plans, cable lengths, connector compatibility, mounting space, ventilation, and installer requirements before checkout.
What installation details matter?
Confirm battery capacity, AC/DC distribution needs, solar and alternator inputs, shore power plan, cable routing, mounting location, ventilation, and professional installation requirements before ordering.
Who is this product best for?
This EcoFlow product is intended for camper van electrical systems, RV power upgrades, off-grid builds, auxiliary power, and backup power planning.
Campervan HQ fitment guide
EcoFlow LFP Battery Power Distribution Terminal for camper van and RV power systems
EcoFlow LFP Battery Power Distribution Terminal supports camper vans, RVs, trailers, and off-grid power builds that need an integrated EcoFlow power system. Confirm battery capacity, AC/DC loads, solar and alternator charging, wiring, ventilation, mounting space, and installation clearances before ordering.
Why choose this product?
- Supports integrated camper van and RV power systems
- Helps plan battery capacity, charging inputs, and AC/DC loads
- Useful for off-grid power, solar charging, and mobile living electrical upgrades
Installation context
- Confirm battery capacity and kit configuration
- Check AC/DC loads, solar input, alternator charging, and shore power needs
- Verify mounting space, wiring routes, ventilation, and service access
Compatibility notes
EcoFlow Power Kits are universal power-system products for camper vans, RVs, trailers, and off-grid builds. Fit depends on electrical requirements, battery capacity, mounting space, cable routing, and installer-confirmed system design.
Common use cases
- Camper van electrical systems
- RV and trailer power upgrades
- Off-grid battery and inverter setups
