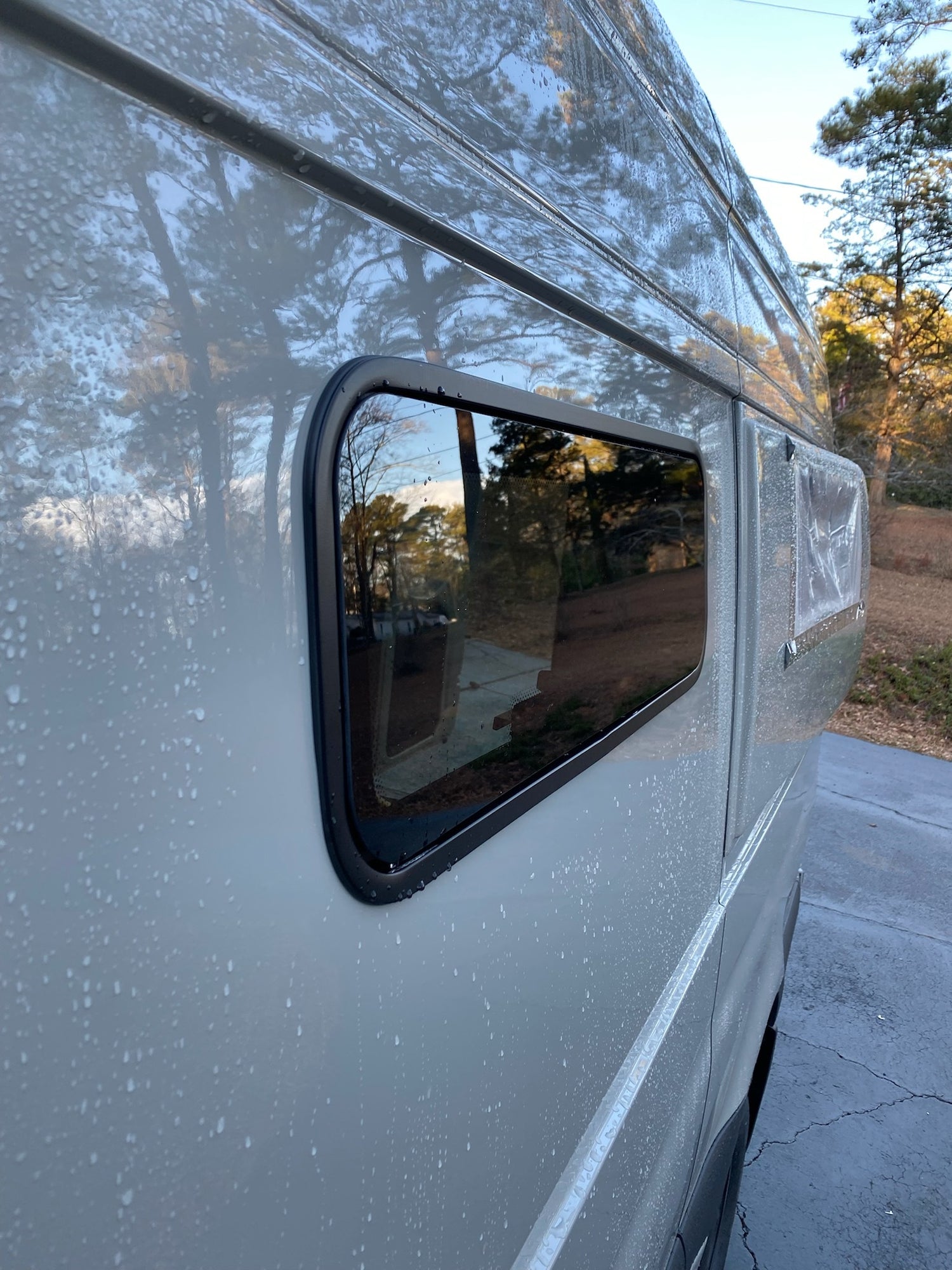

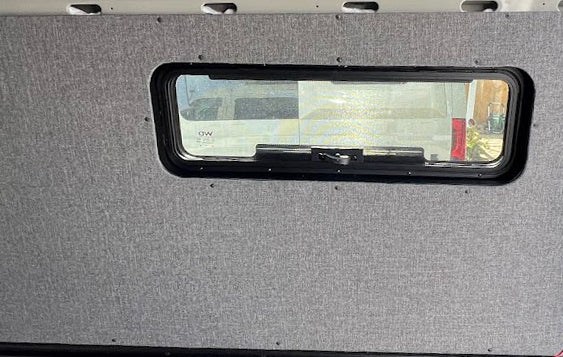

VWD Universal Awning Bunk Window (AW3310)
The VWD Awning Bunk Window is a tilt-out van bunk window that allows excellent ventilation for your camper van.
This bunk window is an easy-to-install flat awning crank-out window that features a removable screen and measures 34-3/4" long and 11-3/4" tall. The window is crafted with solar privacy glass and features an upgraded 3M UV-coated foam seal for increased longevity and a more reliable weather-tight seal compared to competitive models.
The awning tilts out 3", allowing air to flow through the massive 31-1/4" x 8-1/4" opening enabling some of the best ventilation for a bunk window.
Note: Not recommended to install on passenger side rear quarter sections due to sliding door interference. Recommended for driver side only. Not recommended to drive with window open(voids warranty).
Key Features: VWD Universal Awning Bunk Window (AW3310)
- Universal Fit
- Color = Matte black powder coat frame
- Solar privacy glass
- Matte black powder coat frame
- UV Rating = 17%
- Installation Type = Clamp Ring
- Mfg Country = China
- Mfg Warranty = 1 Year
- Outside Frame Dimensions: 34-3/4" x 11-3/4"
- Cut-Out Dimensions: 33-5/8" x 10-5/8"
- Clamp Ring Size: 1/8"
- Alternative to CRL AW1033
What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)
- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.
Specifications: VWD Universal Awning Bunk Window (AW3310)
| Outside Frame Dimensions: | 34-3/4" x 11-3/4" |
| Cut-out Dimensions: | 33-5/8" x 10-5/8" |
| Weight (lbs.): | 15 |
| Tint: | 17% UV tinting |
| Window Type: | Fixed Awning with Screen (Clamp-in) |
| Fits: | All van models, universal placement |
Video: Universal Clamp-In Windows
Below are videos showing a guideline of how to install clamp-in windows with 1/8" clamp rings. The same method can be applied to almost any clamp-in window, but be sure to measure your clamp ring inner dimensions and compare to your template before making the cutout.
Vehicle fitment
- Product type
- Camper van window
- Vehicle
- Camper vans, RVs, trailers, and overland builds
- Side
- Driver side
- Window position
- Sliding door
- Window type
- Opening window
- Opening style
- T-vent
- Screen
- This is an opening window with a screen.
- Install type
- Clamp-in
- Summary
- Fits Camper vans, RVs, trailers, and overland builds. Confirm side, window position, cutout dimensions, install type, opening style, wall thickness before ordering. Not recommended to install on passenger side rear quarter sections due to sliding door interference. Recommended for driver side only. Not recommended to drive with window open(voids warranty).. Window type: Opening window.
- Install requirements
- This is a clamp-in window installation that only requires the window. Confirm the cutout, clamp ring fit, and mounting clearances before ordering. See the Clamp-in van window install guide.
Fitment FAQ
What does this VWD Universal Awning Bunk Window (AW3310) fit?
This VWD Universal Awning Bunk Window (AW3310) fits Camper vans, RVs, trailers, and overland builds.
Is this product vehicle-specific?
This universal-fit window can be installed in suitable camper van, RV, trailer, truck camper, and overland applications when the installer confirms placement, structure, cutout, wall thickness, and clearances.
What should I verify before ordering?
Confirm side, window position, cutout dimensions, install type, opening style, wall thickness before checkout.
What installation details matter?
This is a clamp-in window installation that typically requires only the window. Confirm the factory cutout or installer-cut opening, wall thickness, trim ring, and clearances before ordering.
Who is this product best for?
This camper van window is intended for universal camper van, RV, trailer, truck camper, and overland window installations where the installer confirms dimensions and placement.
Do Campervan HQ van windows come with instructions?
Most van windows are sold for DIY van builders and may not include manufacturer instructions because many manufacturers assume installation by someone familiar with van window installation. Check the Campervan HQ van window installation blog for guidance. For CR Laurence van windows, you can also search YouTube for CR Laurence window install videos.
Do van windows require adhesive and primer?
This is a clamp-in van window. Clamp-in windows do not require primer or urethane adhesive because they seal against the van body with weatherstripping, an exterior compression ring, foam gasket tape where specified, or an interior trim ring. You still need an existing opening, so cargo vans without windows require the correct cutout before installation.
Do Campervan HQ van windows ship for free?
Most van windows do not ship free because large windows often require truck freight or special handling. When available, warehouse pickup can reduce or refund shipping costs. For large multi-item orders, contact Campervan HQ for an individual quote.
What should I check when a van window is delivered?
Inspect the window shipment before the delivery driver leaves. If there is damage, have the driver note it on the Bill of Lading and provide a signed copy. Without signed damage notation at delivery, Campervan HQ may not be able to make a shipping damage claim.
What is the return process for damaged or defective van windows?
For delivery damage, Campervan HQ needs a signed Bill of Lading showing the damage and photos of the damage. For a defective van window, Campervan HQ needs photos of the defect and will request a Return Authorization. In either case, re-package the window in the original box and tape the invoice number or return authorization number to the outside of the box.
Campervan HQ fitment guide
VWD Universal Awning Bunk Window (AW3310) fitment and installation guide
This universal-fit window is for camper vans, RVs, trailers, truck campers, and overland builds when the installer confirms install method, opening style, screen details, placement, structure, cutout, and wall thickness.
Why choose this product?
- Universal-fit camper van window for installer-confirmed applications
- RV, trailer, truck camper, and overland builds require matching dimensions and wall thickness
- Window operation and install type define the installation requirements
Installation context
- This is a clamp-in window installation that only requires the window
- Factory cutout or installer-cut opening dimensions must match the window
- Side, window position, roof height, and wheelbase must match before installation
Compatibility notes
Fits Camper vans, RVs, trailers, and overland builds. Confirm side, window position, cutout dimensions, install type, opening style, wall thickness before ordering. Not recommended to install on passenger side rear quarter sections due to sliding door interference. Recommended for driver side only. Not recommended to drive with window open(voids warranty).. Window type: Opening window.
Common use cases
- Universal camper van window upgrades
- Camper van ventilation and visibility
- RV window, trailer, truck camper, and overland build projects
