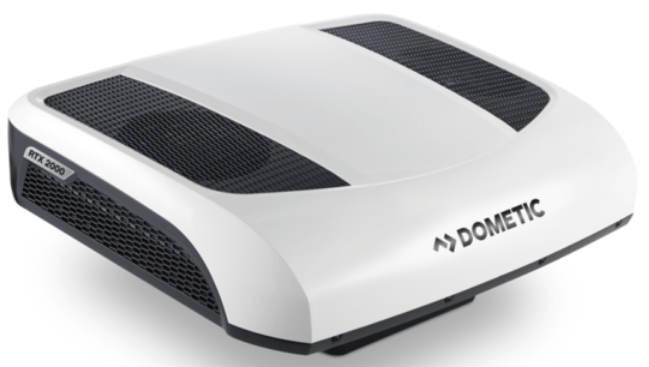

Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Couldn't load pickup availability
Need an RV rooftop air conditioner for your camper van? This Dometic RTX2000 12V RV Air Conditioner (6800 BTU) is a low-profile RV rooftop air conditioner with sleek, futuristic styling that offers premium comfort control and very minimal power draw. The third-generation Dometic CoolAir roof air conditioner offers more cooling performance, even while consuming less energy than its predecessor. That's because the Dometic RTX2000 uses a variable-speed inverter compressor, giving excellent cooling performance and amazingly efficient and quiet operation.

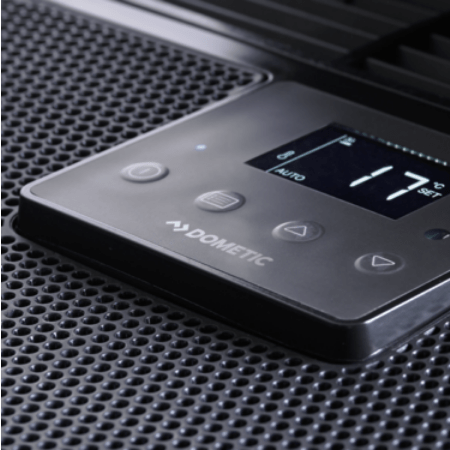

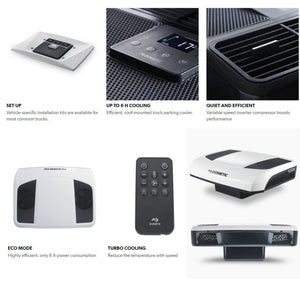

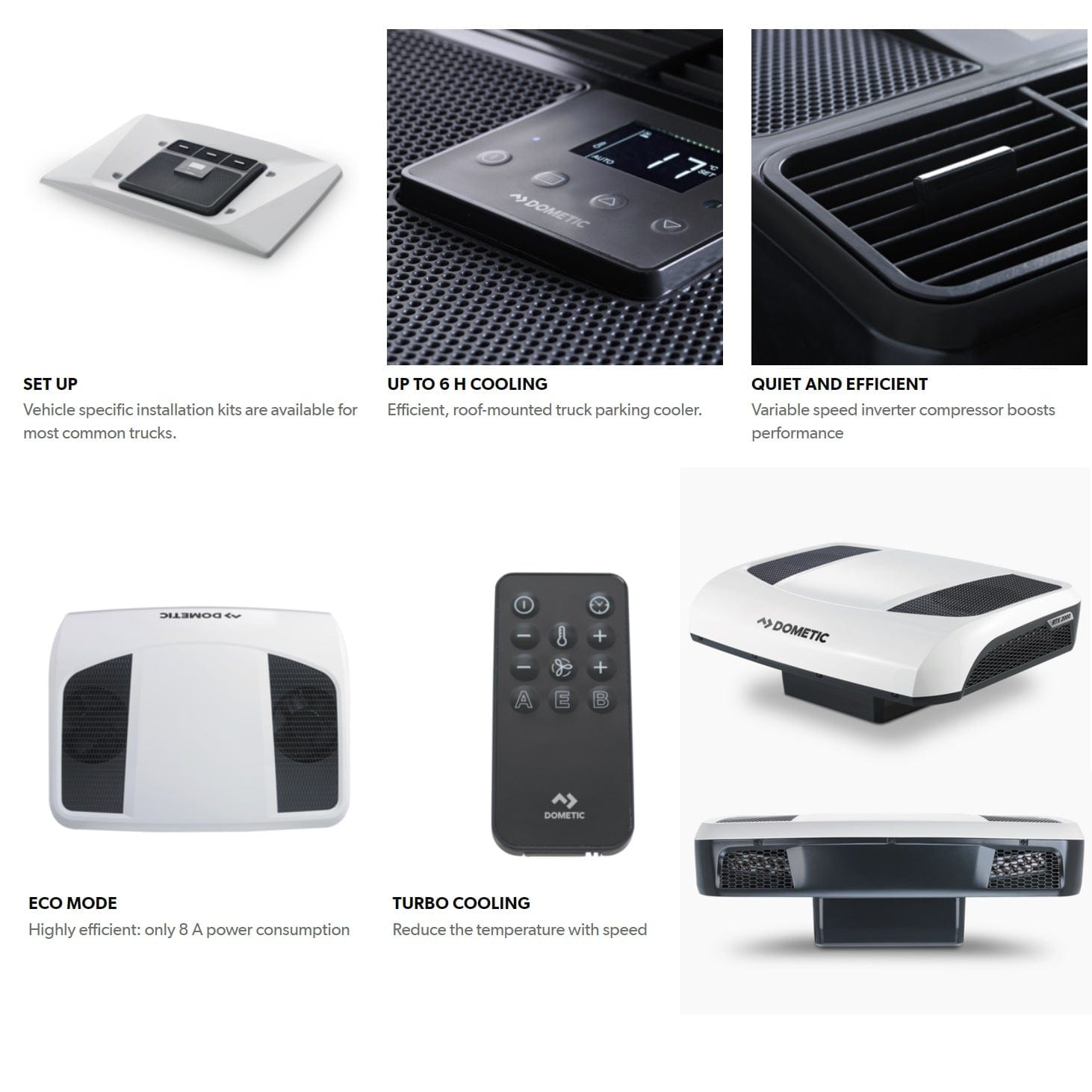

The Dometic RTX2000 12V RV Air Conditioner (6800 BTU) has a two-cylinder compressor which works quietly, letting you enjoy all the comforts of this air conditioner: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner.
Key Features: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
- Fits universally where space allows
- 2000W cooling capacity (6,824 BTU), 12 V

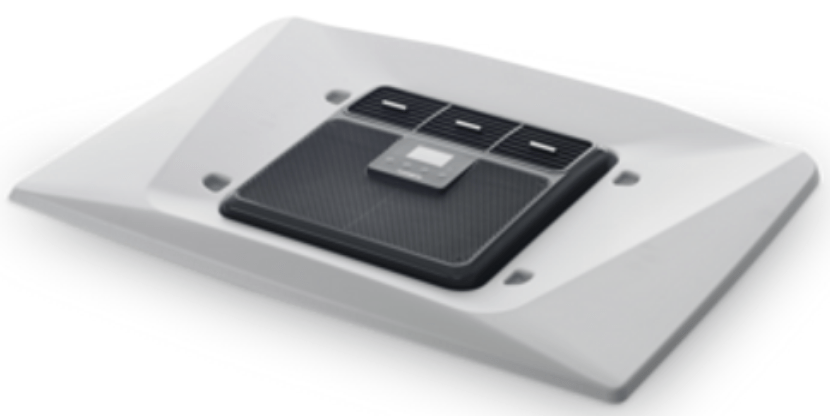

- This is a complete kit! Includes 12V installation kit with 24 ft (8m) electrical harness, rubber gasket for roof mount, and optional interior ceiling panel.
- Very quiet
- Suitable for ambient temperatures of 41 °F to 126 °F
- Turbo cooling operating mode for quick cooling
- All A/C components integrated into roof unit
- Highly efficient: only 19A@12VDC power consumption in Eco mode
- 1-year warranty.
What's Included?
- 12V Dometic RTX 2000 Air Conditioner
- Foam Roof Gasket
- Electrical Wiring Harness and Electrical Pack

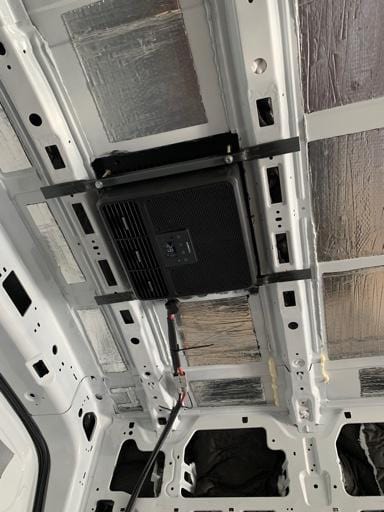

- Air Conditioner Mounting Hardware
See full breakdown below.
Specifications: Dometic RTX2000 12V RV Air Conditioner
- Weight 72.6 lbs (approximately)
- Dimensions ( W x H x D ) 34'' x 12'' x 25'' (above the roof). Required cutout 15" x 14".
- Electrical consumption: 19A-58A@12VDC
- Refrigerant: R-134A
- Noise: < 70 dB(A)
Documents: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Installation and Operating Manual Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Video: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)

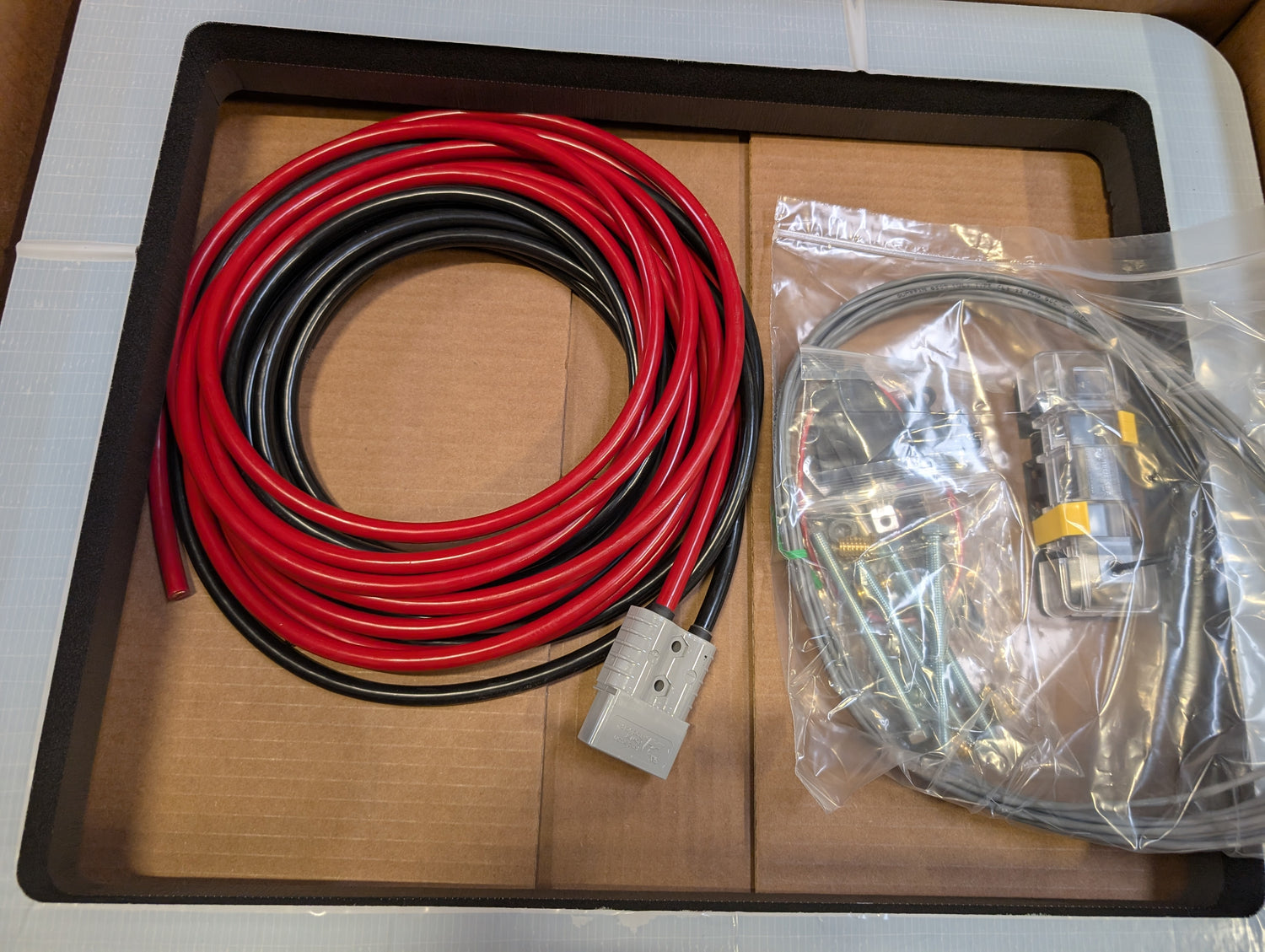

Included items:
|
Part |
Quantity |
|
Cover Frame Universal RTX 2000 3rd Generation |
1 |
|
Seal 0.4 in. x 0.8 in. (10 mm x 20 mm) |
1 x 2.7 mm |
|
Support Bracket |
2 |
|
Hex Bolt M8 x 100 |
4 |
|
Threaded Insert With Flange M8 |
4 |
|
Threaded Insert With Flange M6 |
4 |
|
Washer 8.5 x 20 x 1.25 |
4 |
|
Spring Washer M8 |
4 |
|
Nut M8 |
4 |
|
Allen Screw With Cylinder Head M6 x 110 |
4 |
|
Spacer 6.2 x 10 x 48 |
8 |
|
Washer M6 |
4 |
|
Power Cable External Short RTX 12V |
1 |
|
Cable Ties |
1 |
|
1/4 in. Hex Bit |
1 |
|
80 A Fuse |
1 |
|
200 A Fuse Holder |
1 |
|
2 A Fuse |
1 |
|
Cable Terminals for Battery Cable AWG 4 3/8 in. |
2 |
|
Cable Terminal for Fuse Holder 1/4 in. |
2 |
|
Ring Terminal 0.02 in. (0.5 mm) |
2 |
|
Joint Connector 0.02 in. (0.5 mm) |
1 |
|
2A Fuse Holder |
1 |
|
Loom Tubing 9.8 ft (3 m) |
1 |
|
Opening Template 18.9 in. x 15.3 in. (480 mm x 390 mm) |
1 |
|
Seal 35 x 20 x 3000 |
1 |
