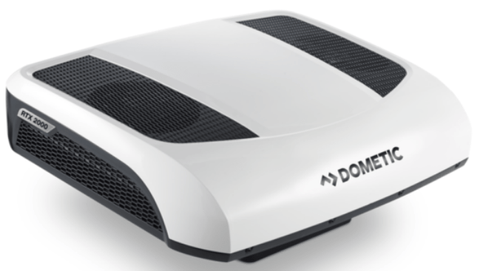

Dometic RTX2000 12V RV Air Conditioner (6800 BTU)

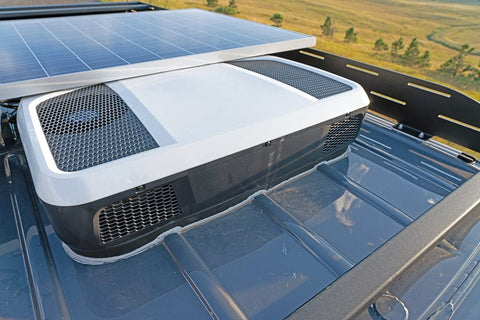

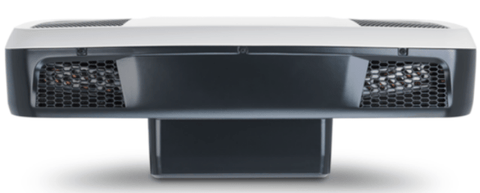

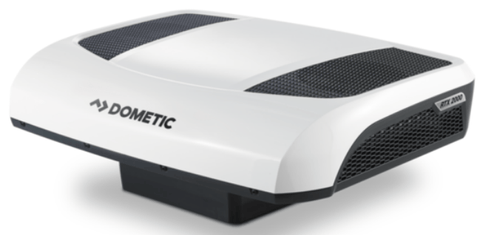

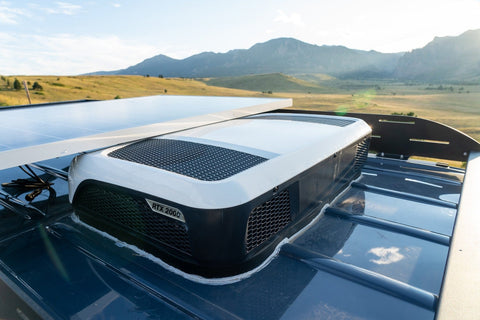

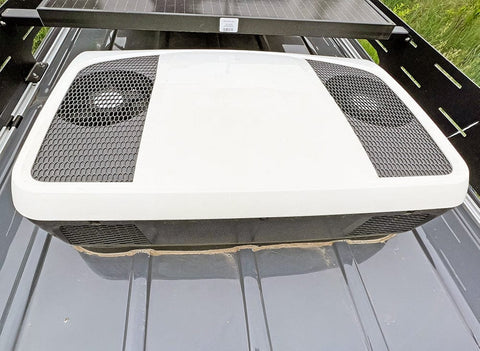

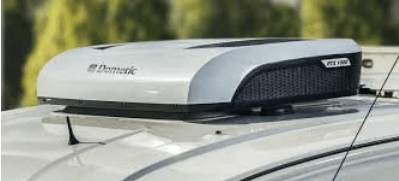

Need an RV rooftop air conditioner for your camper van? This Dometic RTX2000 12V RV Air Conditioner (6800 BTU) is a low-profile RV rooftop air conditioner with sleek, futuristic styling that offers premium comfort control and very minimal power draw. The third-generation Dometic CoolAir roof air conditioner offers more cooling performance, even while consuming less energy than its predecessor. That's because the Dometic RTX2000 uses a variable-speed inverter compressor, giving excellent cooling performance and amazingly efficient and quiet operation.

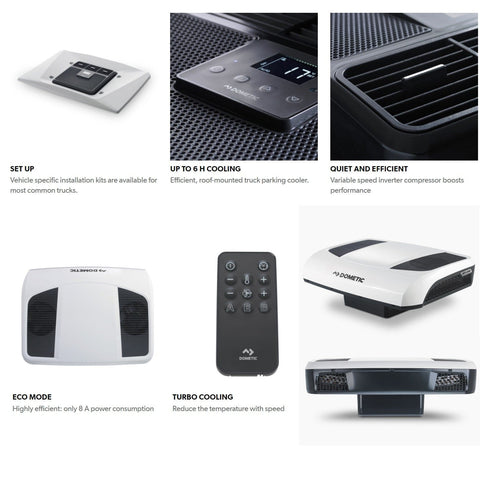

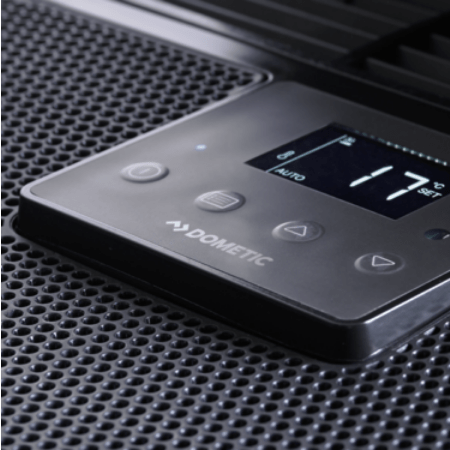

The Dometic RTX2000 12V RV Air Conditioner (6800 BTU) has a two-cylinder compressor which works quietly, letting you enjoy all the comforts of this air conditioner: the large, high-contrast display, the individually adjustable air distribution, the four operating modes – and the adaptive automatic mode of the air conditioner.
Key Features: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
- Fits universally where space allows
- 2000W cooling capacity (6,824 BTU), 12 V

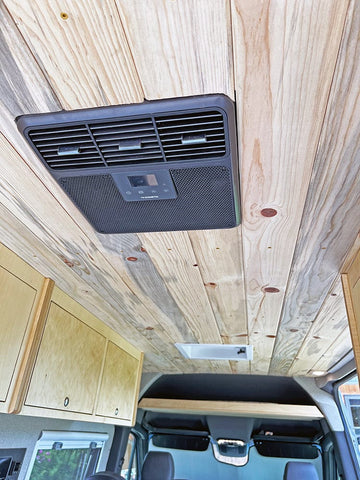

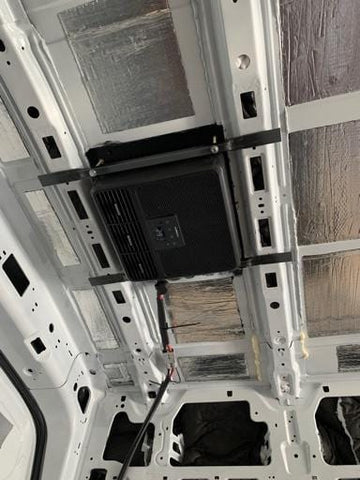

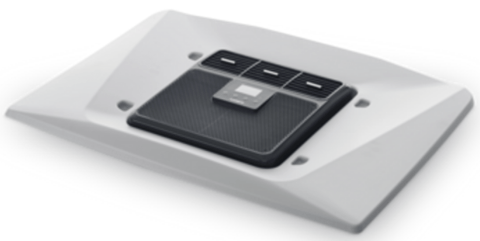

- This is a complete kit! Includes 12V installation kit with 24 ft (8m) electrical harness, rubber gasket for roof mount, and optional interior ceiling panel.
- Very quiet
- Suitable for ambient temperatures of 41 °F to 126 °F
- Turbo cooling operating mode for quick cooling
- All A/C components integrated into roof unit
- Highly efficient: only 19A@12VDC power consumption in Eco mode
- 1-year warranty.
What's Included?
- 12V Dometic RTX 2000 Air Conditioner
- Foam Roof Gasket

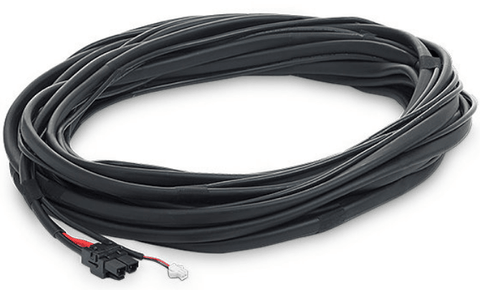

- Electrical Wiring Harness and Electrical Pack
- Air Conditioner Mounting Hardware
See full breakdown below.
Specifications: Dometic RTX2000 12V RV Air Conditioner
- Weight 72.6 lbs (approximately)
- Dimensions ( W x H x D ) 34'' x 12'' x 25'' (above the roof). Required cutout 15" x 14".
- Electrical consumption: 19A-58A@12VDC
- Refrigerant: R-134A
- Noise: < 70 dB(A)
Documents: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Installation and Operating Manual Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Video: Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
Included items:
|
Part |
Quantity |
|
Cover Frame Universal RTX 2000 3rd Generation |
1 |
|
Seal 0.4 in. x 0.8 in. (10 mm x 20 mm) |
1 x 2.7 mm |
|
Support Bracket |
2 |
|
Hex Bolt M8 x 100 |
4 |
|
Threaded Insert With Flange M8 |
4 |
|
Threaded Insert With Flange M6 |
4 |
|
Washer 8.5 x 20 x 1.25 |
4 |
|
Spring Washer M8 |
4 |
|
Nut M8 |
4 |
|
Allen Screw With Cylinder Head M6 x 110 |
4 |
|
Spacer 6.2 x 10 x 48 |
8 |
|
Washer M6 |
4 |
|
Power Cable External Short RTX 12V |
1 |
|
Cable Ties |
1 |
|
1/4 in. Hex Bit |
1 |
|
80 A Fuse |
1 |
|
200 A Fuse Holder |
1 |
|
2 A Fuse |
1 |
|
Cable Terminals for Battery Cable AWG 4 3/8 in. |
2 |
|
Cable Terminal for Fuse Holder 1/4 in. |
2 |
|
Ring Terminal 0.02 in. (0.5 mm) |
2 |
|
Joint Connector 0.02 in. (0.5 mm) |
1 |
|
2A Fuse Holder |
1 |
|
Loom Tubing 9.8 ft (3 m) |
1 |
|
Opening Template 18.9 in. x 15.3 in. (480 mm x 390 mm) |
1 |
|
Seal 35 x 20 x 3000 |
1 |
Vehicle fitment
- Product type
- Climate control component
- Vehicle
- Camper vans, RVs, trailers, and mobile builds
- Summary
- Camper vans, RVs, trailers, and mobile builds that need a compatible climate control component. Confirm measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: Need an RV rooftop air conditioner for your camper van? This Dometic RTX2000 12V RV Air Conditioner (6800 BTU) is a low-profile RV rooftop air conditioner with sleek, futuristic styling that offers premium comfort control and very minimal power draw. The third-generation Dometic CoolAir roof air conditioner offers more cooling performance, even while consuming less energy than its predecessor. That's because the Dometic RTX2000 uses a variable-speed inverter compressor, giving excellent cooling performance and amazingly efficient and quiet operation. Fits universally where space allows This is a complete kit! Includes 12V installation kit with 24 ft (8m) electrical harness, rubber gasket for roof mount, and optional interior ceiling panel.
Fitment FAQ
What does this Dometic RTX2000 12V RV Air Conditioner (6800 fit?
This Dometic RTX2000 12V RV Air Conditioner (6800 fits Camper vans, RVs, trailers, and mobile builds.
Is this product vehicle-specific?
This climate control component is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.
What should I verify before ordering?
Confirm measurements, mounting location, clearances, installation requirements before checkout.
What installation details matter?
Confirm measurements, mounting location, clearances, installation requirements before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This climate control component is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
Campervan HQ fitment guide
Dometic RTX2000 12V RV Air Conditioner (6800 BTU) for camper van and RV builds
Dometic RTX2000 12V RV Air Conditioner (6800 BTU) supports Camper vans, RVs, trailers, and mobile builds applications where fitment, measurements, installation requirements, and build layout should be confirmed before ordering.
Why choose this product?
- Supports camper van, RV, and mobile build planning
- Helps confirm measurements, installation needs, and clearances before checkout
- Useful for matching the product to the build layout before ordering
Installation context
- Confirm measurements and clearances
- Review wiring, mounting, sealant, or material requirements where relevant
- Use professional installation when the build requires it
Compatibility notes
Camper vans, RVs, trailers, and mobile builds that need a compatible climate control component. Confirm measurements, mounting location, clearances, installation requirements before ordering. Product listing notes: Need an RV rooftop air conditioner for your camper van? This Dometic RTX2000 12V RV Air Conditioner (6800 BTU) is a low-profile RV rooftop air conditioner with sleek, futuristic styling that offers premium comfort control and very minimal power draw. The third-generation Dometic CoolAir roof air conditioner offers more cooling performance, even while consuming less energy than its predecessor. That's because the Dometic RTX2000 uses a variable-speed inverter compressor, giving excellent cooling performance and amazingly efficient and quiet operation. Fits universally where space allows This is a complete kit! Includes 12V installation kit with 24 ft (8m) electrical harness, rubber gasket for roof mount, and optional interior ceiling panel.
Common use cases
- Camper van conversions
- RV upgrades
- Trailer and overland builds
Dometic RTX2000 12V RV Air Conditioner (6800 BTU)
