Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness

Typically ships in 5-7 business days. Shipping fees calculated at checkout.

$ 39.95

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

The Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness is a premium-grade wiring solution designed to safely and efficiently power auxiliary lighting on your vehicle. Built for durability and high-performance applications, this heavy-duty harness makes it easy to install aftermarket LED Lightbars, driving lights, fog lights, and other 12V accessories while ensuring reliable power delivery and long-lasting performance.

Whether you’re upgrading your off-road setup, improving nighttime visibility, or adding work lights to your truck or SUV, the Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness provides a clean and professional installation. Featuring high-quality wiring, a fused relay system, and weather-resistant connectors, this harness is engineered to withstand harsh environments and demanding conditions. The simple plug-and-play style connections help reduce installation time while delivering dependable operation for your lighting system.

Why choose the Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness?

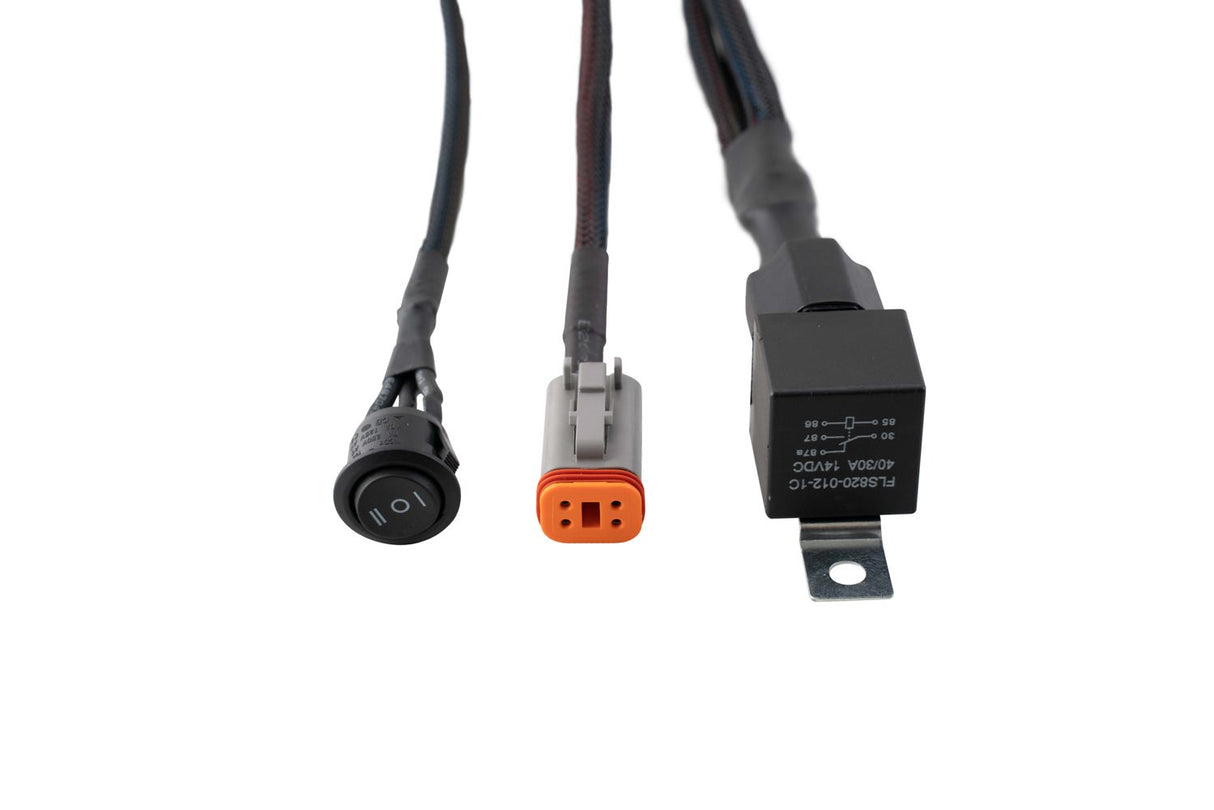

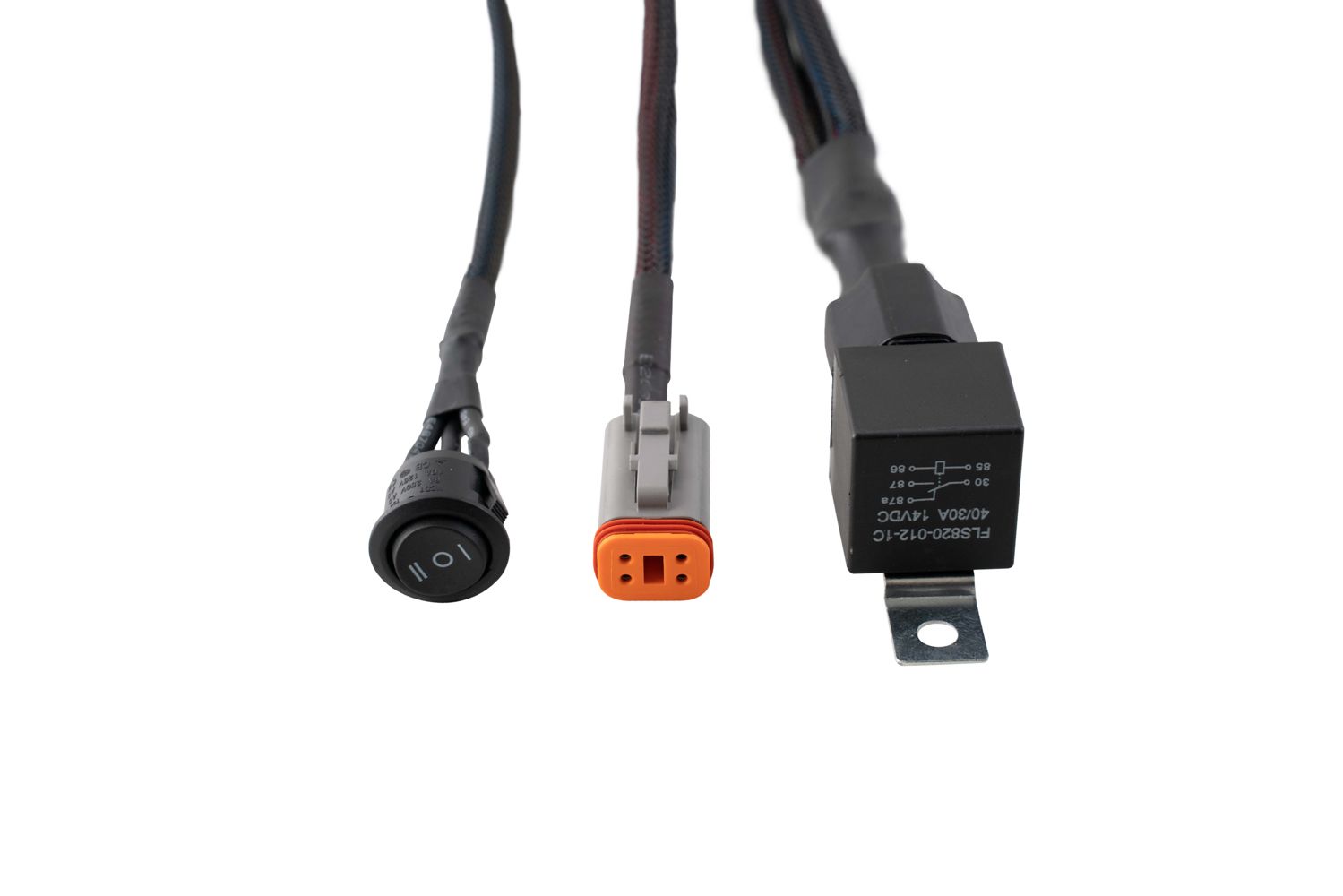

Easy installation – The included relay, inline fuse, and switch simplify the wiring process, making it ideal for both DIY enthusiasts and professional installers.

Heavy-duty construction – Designed with high-quality materials and durable insulation to handle rugged off-road and outdoor conditions.

Reliable power delivery – Ensures your auxiliary lights receive consistent voltage for optimal brightness and performance.

Enhanced safety – Integrated fuse protection and relay control help protect your vehicle’s electrical system from overloads or short circuits.

Versatile compatibility – Compatible with many LED pods, Lightbars, driving lights, and other 4-pin auxiliary lighting accessories.

Note: This wiring harness is designed for compatible 4-pin auxiliary lighting applications. Always verify your light’s connector type and power requirements before installation. Professional installation is recommended for users unfamiliar with vehicle electrical systems.

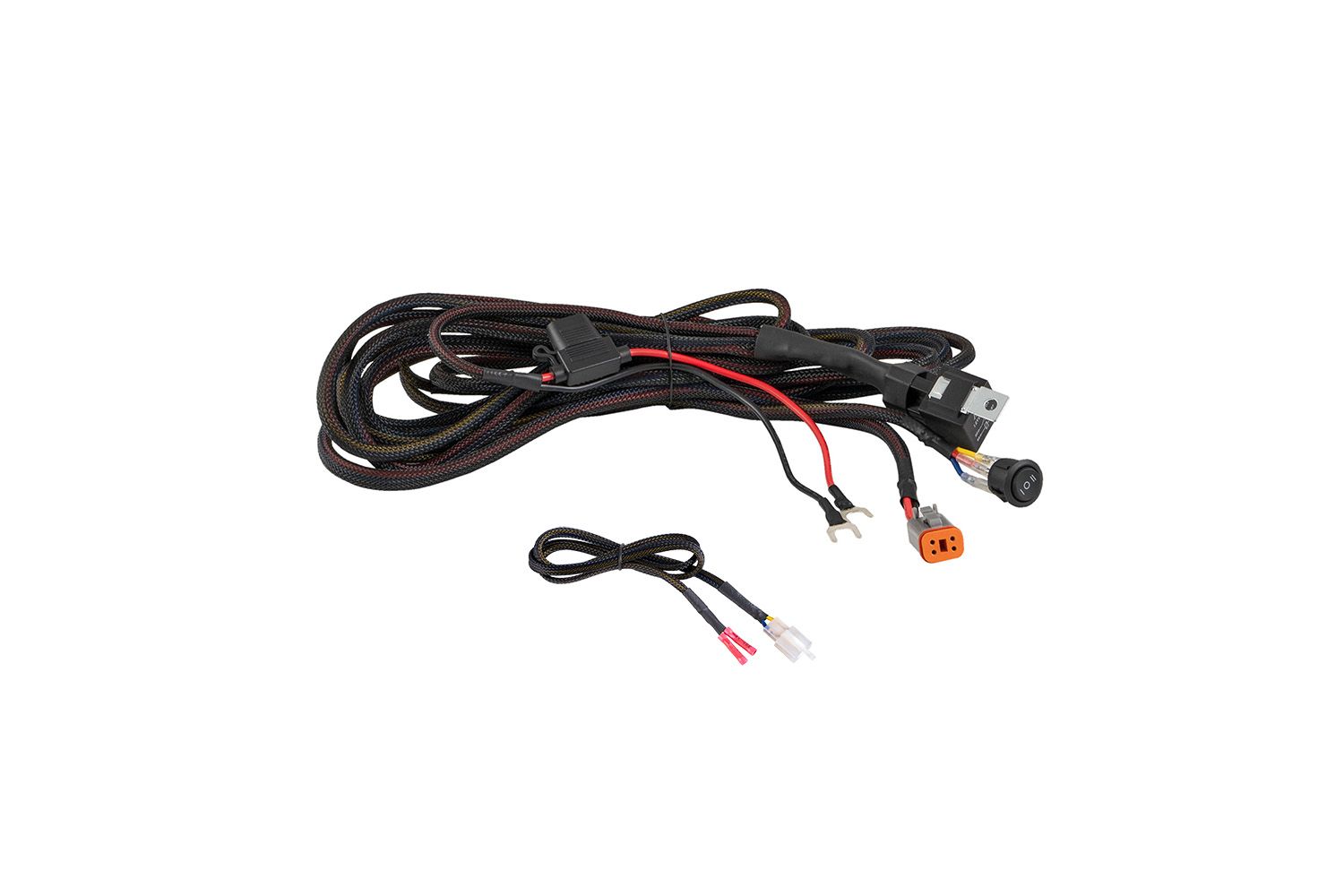

In the Box:

One (1) wiring harness
One (1) toggle switch
One (1) OEM aux switch adapter

Quantity: One (1)

Warranty: 3 year warranty

Key Features: Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness

Heavy-duty single output 4-pin wiring harness
Designed for auxiliary LED lighting applications

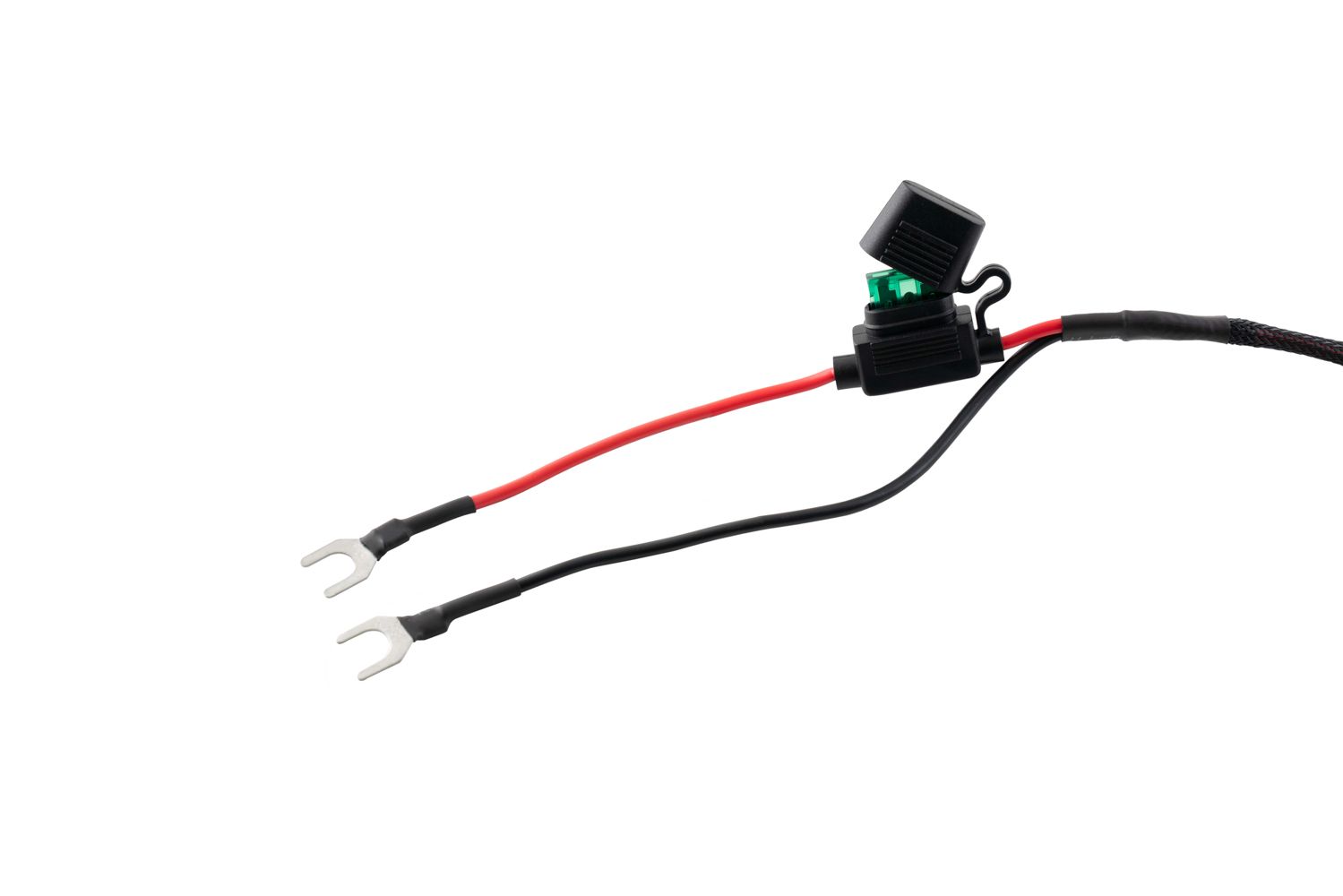

Includes relay and inline fuse protection
Durable insulated wiring for long-term reliability
Weather-resistant connectors for outdoor use
Easy switch operation for convenient light control
Simplifies aftermarket lighting installation
Ideal for off-road, work truck, and overland setups

Specifications: Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness

Specification	Details
Product Type	Heavy Duty Wiring Harness
Output Type	Single Output
Connector Type	4-pin
Application	Auxiliary LED Lighting
Relay Included	Yes
Fuse Protection	Inline Fuse
Weather Resistant	Yes
Compatibility	LED Pods, Lightbars, Driving Lights
Voltage Compatibility	12V Systems
Installation Type	Hardwired

Documents: Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness

Product Installation Guide

The Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness is a dependable and easy-to-install solution for powering auxiliary vehicle lighting, offering durable construction, reliable electrical protection, and professional-grade performance for any lighting upgrade.

Video: Diode Dynamics Heavy Duty Single Output 4-pin Wiring Harness

Vehicle fitment

Product type: Vehicle lighting
Vehicle: Camper vans, RVs, trailers, and mobile builds
Summary: Fits Camper vans, RVs, trailers, and mobile builds. Confirm vehicle mounting location, wiring, beam pattern, clearance before ordering. This wiring harness is designed for compatible 4-pin auxiliary lighting applications. Always verify your light’s connector type and power requirements before installation. Professional installation is recommended for users unfamiliar with vehicle electrical systems..

Fitment FAQ

What does this Diode Dynamics Heavy Duty Single Output 4-pin fit?

This Diode Dynamics Heavy Duty Single Output 4-pin fits Camper vans, RVs, trailers, and mobile builds.

Is this product vehicle-specific?

This vehicle lighting is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.

What should I verify before ordering?

Confirm vehicle mounting location, wiring, beam pattern, clearance before checkout.

What installation details matter?

Confirm vehicle mounting location, wiring, beam pattern, clearance before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.

Who is this product best for?

This vehicle lighting is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
