Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

Typically ships in 5-7 business days. Shipping fees calculated at checkout.

$ 39.95

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

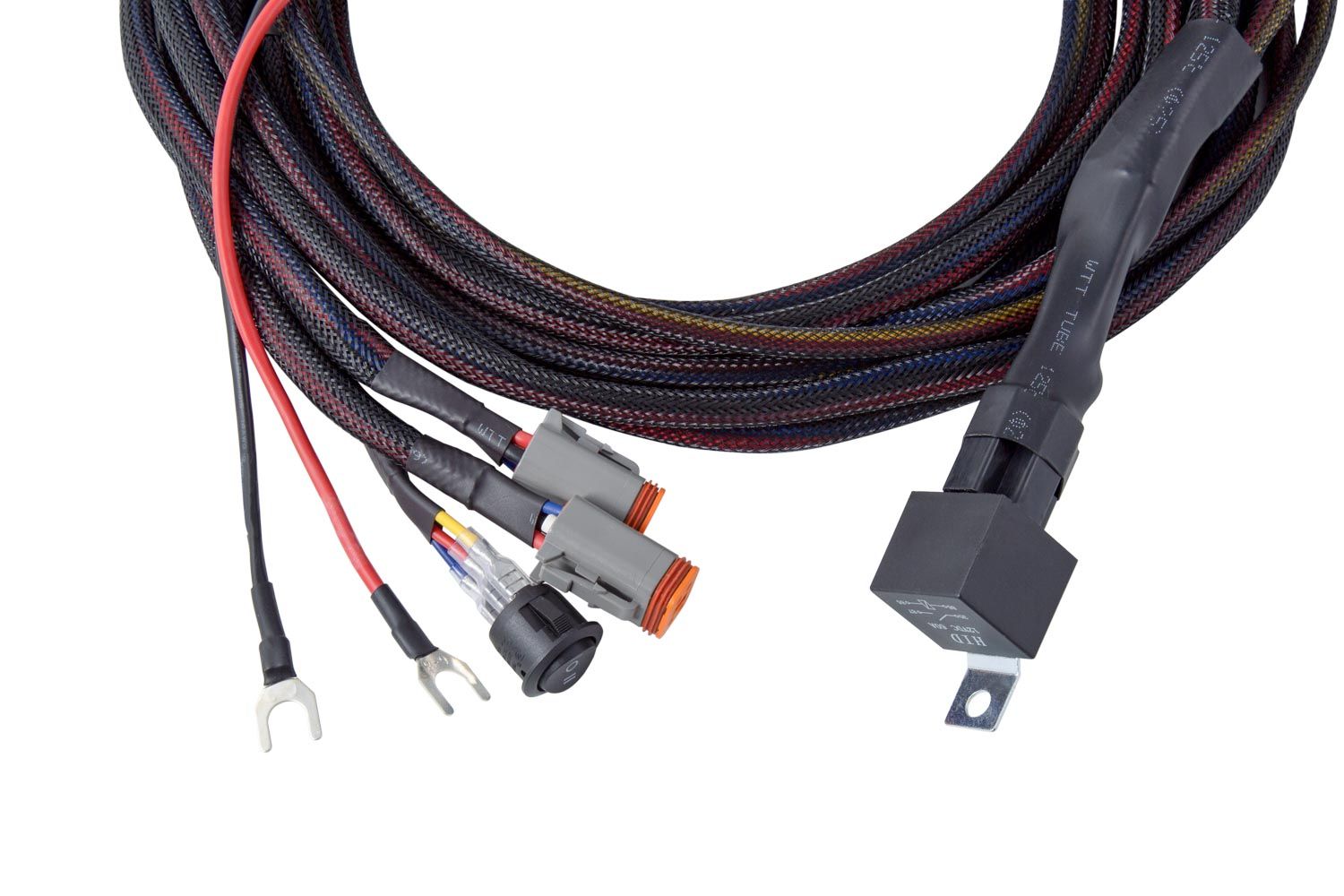

Need a clean and reliable way to wire your auxiliary LED lights? The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a compact and easy-to-install wiring solution designed for powering dual auxiliary lighting setups. Engineered specifically for Diode Dynamics Stage Series LED pods with backlight functionality, this harness features dual-output Deutsch DT connectors, integrated fuse protection, and a convenient three-way switch for seamless lighting control.

The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is ideal for trucks, SUVs, Jeeps, UTVs, and off-road vehicles that require dependable auxiliary lighting performance without the complexity of custom wiring. Its lightweight yet durable construction makes installation quick and efficient while providing stable power delivery for your LED lighting system. Whether you're upgrading your off-road lights, ditch lights, fog lights, or work lights, this harness offers a professional-grade solution for cleaner installation and better reliability.

Why is the Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness so easy to use?

Easy installation – The harness includes pre-configured wiring and dual Deutsch DT connectors for a fast plug-and-play setup.

Convenient lighting control – A three-way toggle switch allows you to switch between backlight mode, off mode, and main beam operation.

Reliable performance – High-quality 16AWG wiring delivers dependable power flow for auxiliary lighting systems.

Enhanced protection – A waterproof inline fuse helps protect your lights and vehicle electrical system from overloads.

Compact design – The lightweight harness design is easy to route through engine bays and tight installation spaces.

The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a great choice for anyone looking to simplify their auxiliary lighting installation while maintaining professional-level durability and performance.

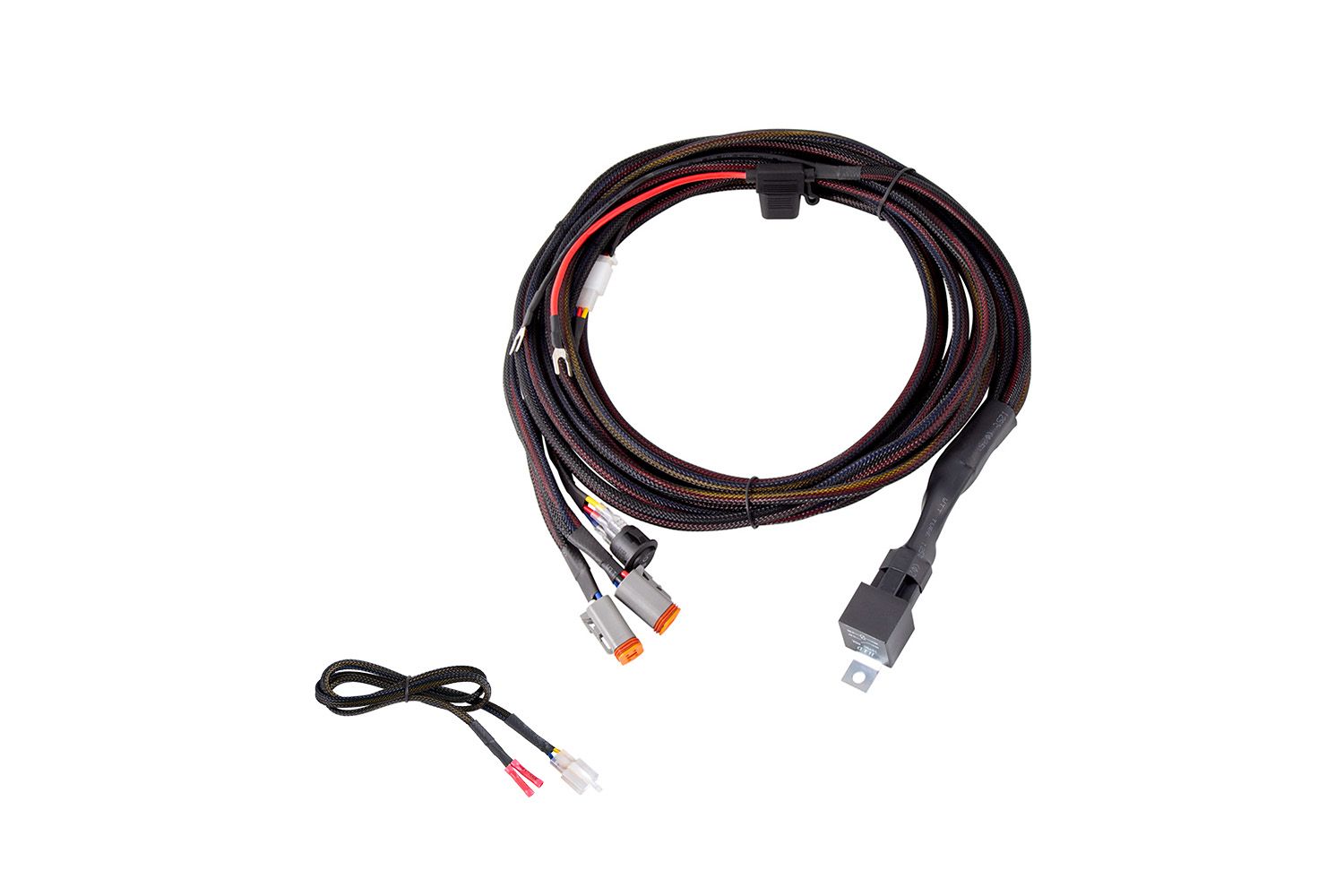

What Comes with the Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

One wiring harness
One three-way toggle switch
Integrated relay and fuse protection
Dual-output 4-pin connectors

Note: This harness is specifically designed for Diode Dynamics Stage Series LED pods with backlight functionality. Compatibility with other lighting systems should be confirmed before installation. Professional installation is recommended for users unfamiliar with automotive electrical systems.

In the Box:

One (1) wiring harness
One (1) toggle switch

Quantity: One (1)

Warranty: 3 year warranty

Key Features: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

Dual-output 4-pin wiring harness
Designed for Stage Series LED pods with backlight
Plug-and-play installation design
Three-way switch for backlight and main beam control
Durable 16AWG wiring construction
Waterproof inline fuse protection
Reliable relay-controlled power delivery
Compact and lightweight harness design
Ideal for off-road and auxiliary lighting applications
Compatible with trucks, SUVs, Jeeps, and UTVs

The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is an excellent solution for drivers who want a dependable, compact, and easy-to-install wiring setup for dual auxiliary LED lights.

Specifications: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

Specification	Details
Product Type	Dual Output Wiring Harness

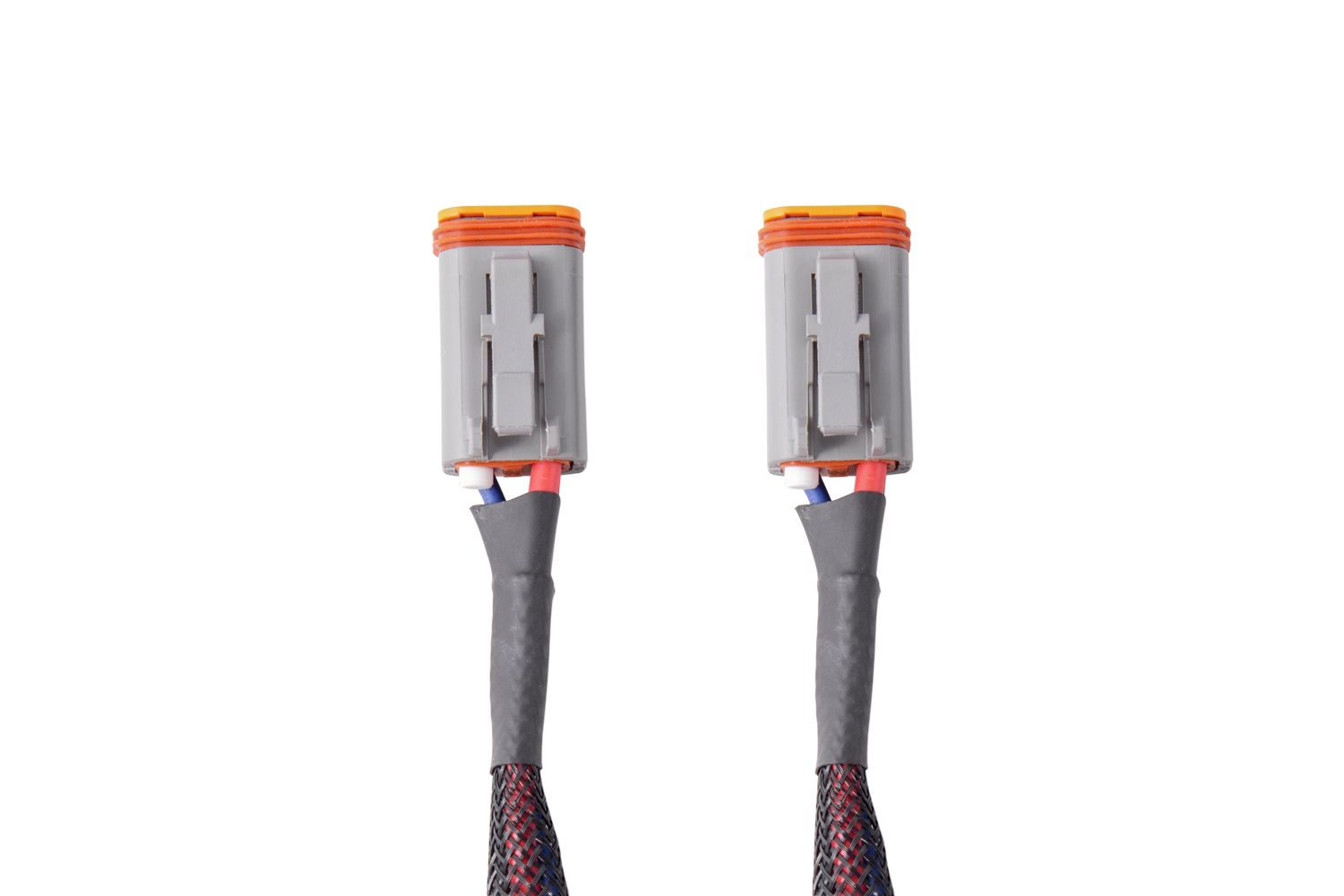

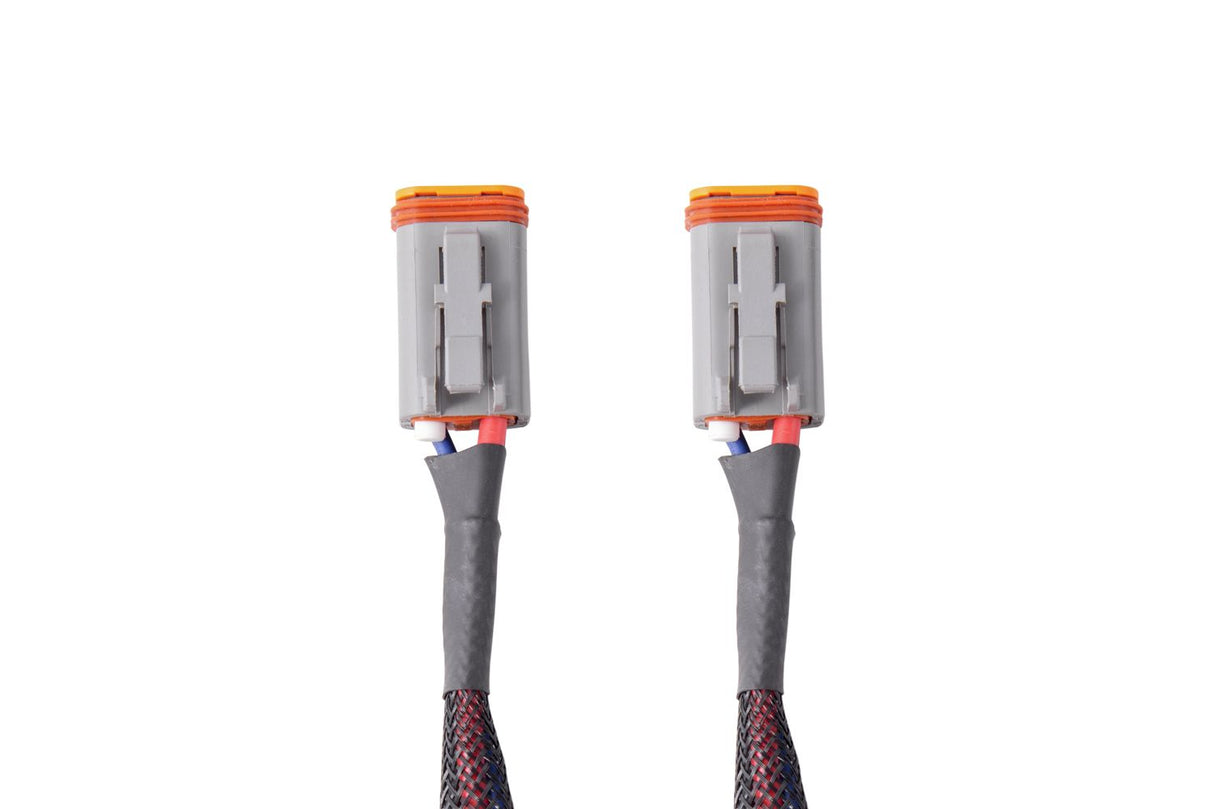

Connector Type	4-Pin Deutsch DT
Outputs	Dual Output
Application	Auxiliary LED Lighting
Voltage Range	9-16V
Wire Gauge	16AWG
Fuse Protection	Waterproof Inline Fuse
Switch Type	Three-Way Toggle Switch
Compatibility	Stage Series LED Pods with Backlight
Installation Type	Plug-and-Play
Vehicle Compatibility	Trucks, SUVs, Jeeps, UTVs
Use Case	Off-Road & Automotive Lighting
Brand	Diode Dynamics

Documents: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

Product Installation Guide

The Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness is a reliable and user-friendly wiring solution that makes installing and controlling dual auxiliary LED lights simple, safe, and efficient for any off-road or automotive lighting setup.

Video: Diode Dynamics Light Duty Dual Output 4-pin Wiring Harness

Vehicle fitment

Product type: Vehicle lighting
Vehicle: Camper vans, RVs, trailers, and mobile builds
Summary: Fits Camper vans, RVs, trailers, and mobile builds. Confirm vehicle mounting location, wiring, beam pattern, clearance before ordering. This harness is specifically designed for Diode Dynamics Stage Series LED pods with backlight functionality. Compatibility with other lighting systems should be confirmed before installation. Professional installation is recommended for users unfamiliar with automotive electrical systems..

Fitment FAQ

What does this Diode Dynamics Light Duty Dual Output 4-pin fit?

This Diode Dynamics Light Duty Dual Output 4-pin fits Camper vans, RVs, trailers, and mobile builds.

Is this product vehicle-specific?

This vehicle lighting is not tied to one van generation. Fit depends on measurements, installation requirements, and the build layout.

What should I verify before ordering?

Confirm vehicle mounting location, wiring, beam pattern, clearance before checkout.

What installation details matter?

Confirm vehicle mounting location, wiring, beam pattern, clearance before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.

Who is this product best for?

This vehicle lighting is intended for camper van conversions, RV upgrades, overland builds, and mobile installations where the product specifications match the build.
