VWD Vertical Lift Slider Van Window (VERT1522)

Typically ships in 5-7 business days. Shipping calculated at checkout.

$ 239⁹⁵ ~~$ 259⁹⁵~~

Sale

Shipping

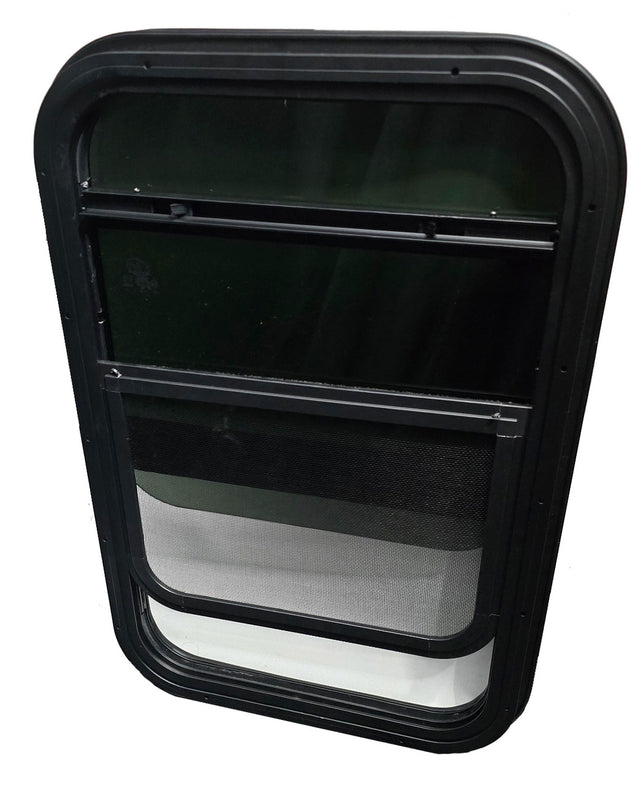

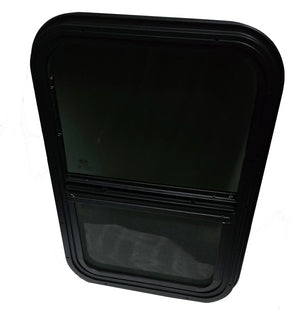

Enhance your campervan's style & comfort with the VWD Vertical Lift Slider Van Window(VERT1522)! Sleek, dark solar privacy glass filters 83% UV rays. It's durable, black powder-coated aluminum frame ensures strength & style. Effortlessly slide the lower panel up for airflow & customizable ventilation. Weep holes built in to the frame allow any water to escape the slider track while washing the vehicle or a heavy rain, making this a perfect ventilated window. Includes screw pack, foam seal & cut-out template for easy installation.

Key Features: VWD Vertical Lift Slider Van Window (VERT1522)

Fits universally for most modern campervans and RV's where space allows
Fits 2007+ Mercedes Sprinter, 2015+ Ford Transits, and 2014+ Ram ProMaster cargo vans
Color = Solar Privacy Glass
Flat walls recommended
UV Rating = 17%
Installation Type = Clamp Ring
Clamp Ring Size: 1/8"
Slider Opening: 335mm x 220mm (13-3/16" x 8-2/3")
Foam Seal & Screw Pack Included

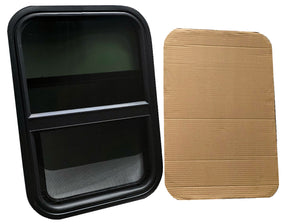

Template Included(Nice!)
Mfg Country = China
Mfg Warranty = 1-Year

NOTE: If considering installing on a campervan or Class B cargo van, we recommend installing on the rear doors or the flattest part of any side panels since curvature is present in most modern Class B cargo van bodies. It is not recommended to install on 78" radius van walls like the older US-made GM, Chevrolet, Ford vans. For those models, we recommend the VWD-AW3218S.

What’s needed to install a clamp-in window?

Bunk window

Gasket (included with window)
Clamp ring (included with window)
Screws (included with window)

Bunk window template
Drill & metal drill bits(1/8” max)
Philips screw driver (hand-tighten all screws)
Step bit (3/8”-1/2” at least)
Jigsaw with fine metal blade
Foam or bristle paint brush
Auto paint/primer
Plastic/paper drop-cloths
Blue painter’s tape
Safety:

Gloves
Eye protection
Hearing protection
Face mask
Long-sleeved shirt

Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.

Specifications: VWD Vertical Lift Slider Van Window (VERT1522)

Outside Frame Dimensions	415mm x 592mm (16-1/3" x 23-5/16")WxH
Cut-Out Dimensions	381mm x 559mm (15" x 22")WxH
Clamp Ring Size(Wall thickness max)	1/8"
Slider Opening	335mm x 220mm (13-3/16" x 8-2/3")WxH
Flowable Opening Lock Position 1	335mm x 100mm (13-3/16" x 3-15/16")WxH
Flowable Opening Lock Position 2	335mm x 190mm(13-3/16" x 7-1/2")WxH

Vehicle fitment

Product type: Van window
Vehicle: Universal vans, RVs, truck campers, trailers, and overland builds
Window type: Opening window
Opening style: Slider
Screen: Opening windows usually include sliding screens unless the product listing states otherwise
Install type: Clamp-in
Summary: Universal-fit camper van, RV window, Class A/Class B/Class C RV, truck camper, trailer, and overland window application. Installer must confirm placement, structure, cutout, and clearances.
Install requirements: Clamp-in window installation typically requires only the window.
Fitment exceptions: Universal-fit windows may be installed in multiple van, RV, truck camper, or trailer applications, but the installer must confirm correct position, structure, and clearances.

Fitment FAQ

What does this camper van window fit?

This camper van window is mapped for Universal vans, RVs, truck campers, trailers, and overland builds.

Is this product vehicle-specific?

Universal-fit windows can be installed in multiple van, RV, Class A/Class B/Class C RV, truck camper, trailer, and overland applications only when the installer confirms placement, structure, cutout, and clearances.

What should I verify before ordering?

Confirm side, window position, cutout dimensions, install type, opening style, screen status, roof height, wheelbase, and whether this replaces factory glass before checkout.

What installation details matter?

Clamp-in windows typically require only the window for installation. Confirm cutout, clamp ring fit, and position before ordering.

Who is this product best for?

This universal-fit window is intended for camper van window upgrades, RV window projects, trailers, truck campers, Class A/Class B/Class C RVs, and overland builds where the installer confirms fitment, install method, and placement.
