RV Solar Kit: Samlex 150W Solar Charging Kit
Looking for an RV solar kit? A solar kit like this Samlex 150W Solar Charging Kit is a great way to get started with RV solar panels.
With this RV solar power package, you can generate the power for the comforts you need wherever you dry camp. This system includes a 150W solar panel, charge controller, and cabling and mounting hardware needed for your installation.
Note: A converter/charger is not included, but this system easily integrates with your vehicle's stock converter and 12V DC battery bank. You will also need cabling for your charge controller to battery bank connection, and a rooftop sealant like Dicor for sealing rooftop mounting holes.
Features: RV Solar Kit - Samlex 150W Solar Charging Kit
-
High-quality 150W solar panel
-
30 amp solar charge controller to regulate power to battery bank
-
Output cable with MC4 connectors (10 AWG) and all panel mounting hardware
Specifications: RV Solar Kit - Samlex 150W Solar Charging Kit
| Solar Panel | Samlex 150W 36-cell high-efficiency (15.4%) polycrystalline PV module, tempered glass exterior, framed with anodized aluminum, 26" x 58" x 1.4" in (Vmp 18.4V, Voc 22.7V, Imp 8.2A), UL1703-certified. |

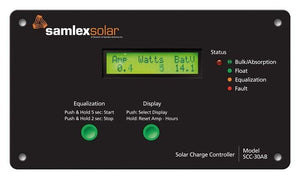

| Charge Controller | Samlex SCC-30AB 30A pulse width modulation (PWM) charge controller with integrated backlit LCD display, temperature-compensated 4-stage (bulk, absorption, float, equalize) charging, UL1741-listed. |
| Cabling | 20' of AWG10 cabling for solar panels, with MC4 connectors |
| Batteries | No batteries included - compatible with 12VDC flooded lead-acid, AGM and gel batteries, suggested battery bank size ~150AH |
| Mounting Hardware | RV rooftop solar panel mounts, branch connectors |
| Warranty |
25-year warranty on solar panel power output 5-year warranty on charge controller |
| Approvals | UL 1703/IEC61215, UL1741 |
Documents: RV Solar Kit - Samlex 150W Solar Charging Kit
Samlex Solar Charging Kit - Specification Sheet
Samlex Charge Controller - Specifications Sheet
Samlex Solar Charging Kit - Owner's Manual
Video: RV Solar Kit - Samlex 150W Solar Charging Kit
