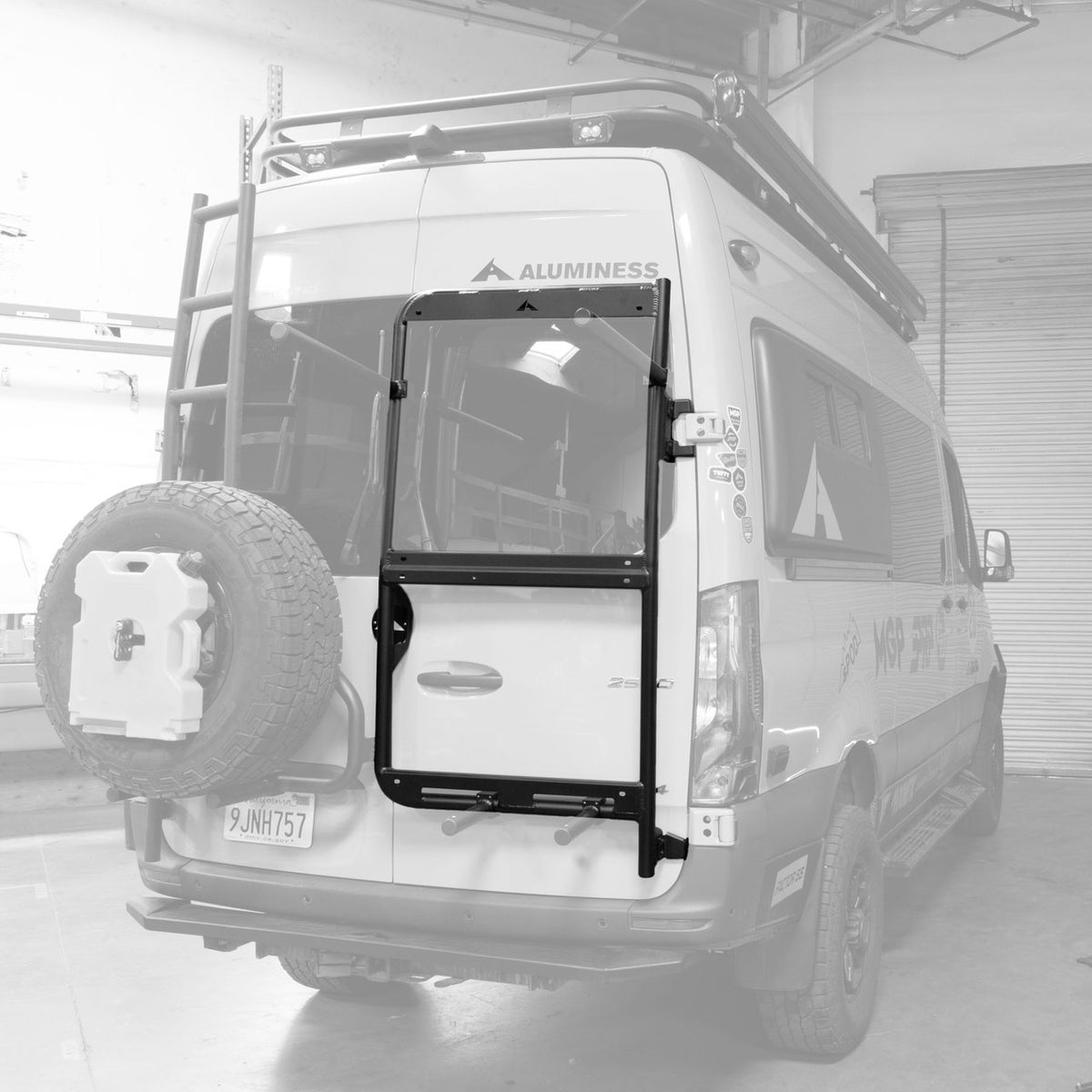

Aluminess 2019+ Mercedes Sprinter Rear Door Rack Base Unit (210760)

Aluminess 2019+ Mercedes Sprinter Rear Door Rack Base Unit (210760) is a bolt-on rack that mounts to the rear door of a 2019+ Mercedes Sprinter and gives you a foundation for carrying bikes, storage boxes or gear outside the van. It installs without drilling, using the factory bolt locations.

The base unit is modular: add a horizontal bike rack, a storage box or the Aluminess PowerLift Bike Rack on top of it. PowerLift requires a 180° rear door hinge, and the 180 hinge kit is sold separately. Boxes, bike trays, the PowerLift battery and other accessories are also sold separately.

Key Features: Aluminess 2019+ Mercedes Sprinter Rear Door Rack Base Unit (210760)

A no-drill rear door mounting base that you build out with your choice of accessories:

• Modular design accepts horizontal bike racks, storage boxes or the PowerLift system.
• No-drill installation uses the factory bolt locations, so the van's finish is left intact.
• Dynamic weight capacity of 200 lbs when the load is evenly distributed.
• Powder-coated textured black finish.
• Includes 8 in. support posts, ready for a storage box; optional 22 in. support posts are available for taller setups.
• Works with 270° rear door hinges for standard use, with no hinge swap required.
• Back-up sensor compatible, with no false alerts or interference.

What's Included?

• Rear door rack base unit
• 8 in. support posts
• Upper and lower hinge brackets and door seam bracket
• Hard stop with strap bracket and clamp, and door limiting strap
• Stainless steel mounting hardware, with anti-seize
• Protective tape for the door and hinges

Note: Boxes, bike trays, the PowerLift battery, the 180 hinge kit and the optional 22 in. support posts are sold separately.

Fitment Guide

MODEL: Mercedes-Benz Sprinter 1500, 2500, 3500, 3500XD and 4500

YEAR: 2019+ (Sprinter 1500 and 4500: 2019-2025; Sprinter 2500, 3500 and 3500XD: 2019-2026)

REAR DOOR HINGE: 270° for standard use; 180° required for PowerLift

Some aftermarket vehicle conversions are not compatible with Aluminess products. Confirm fit with your van before ordering.

Specifications: Aluminess 2019+ Mercedes Sprinter Rear Door Rack Base Unit (210760)

Documents: Aluminess 2019+ Mercedes Sprinter Rear Door Rack Base Unit (210760)

• Aluminess 210760 Mercedes Sprinter Base Unit Installation Sheet
